Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

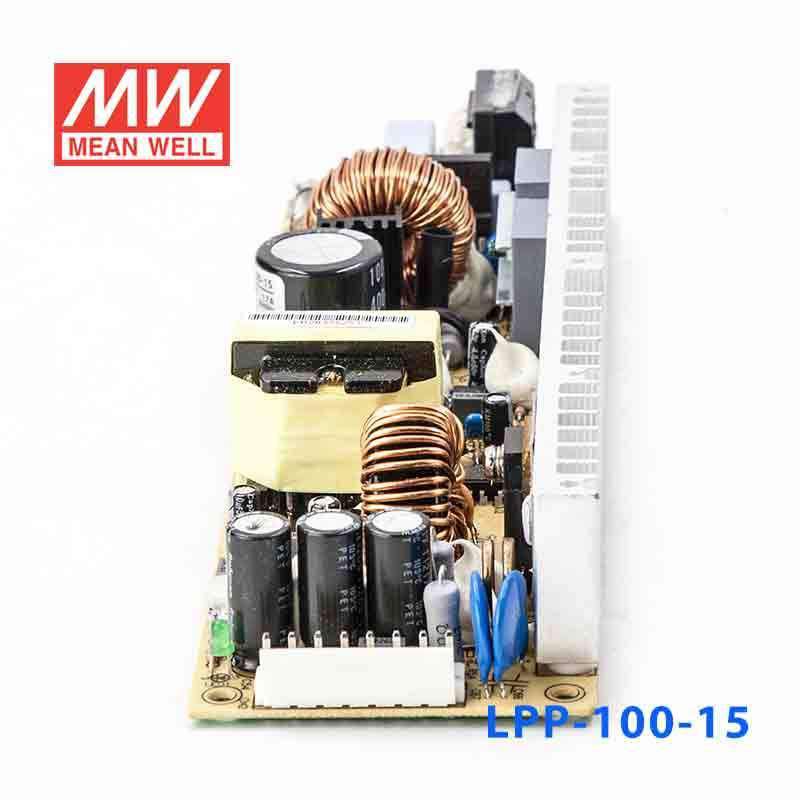

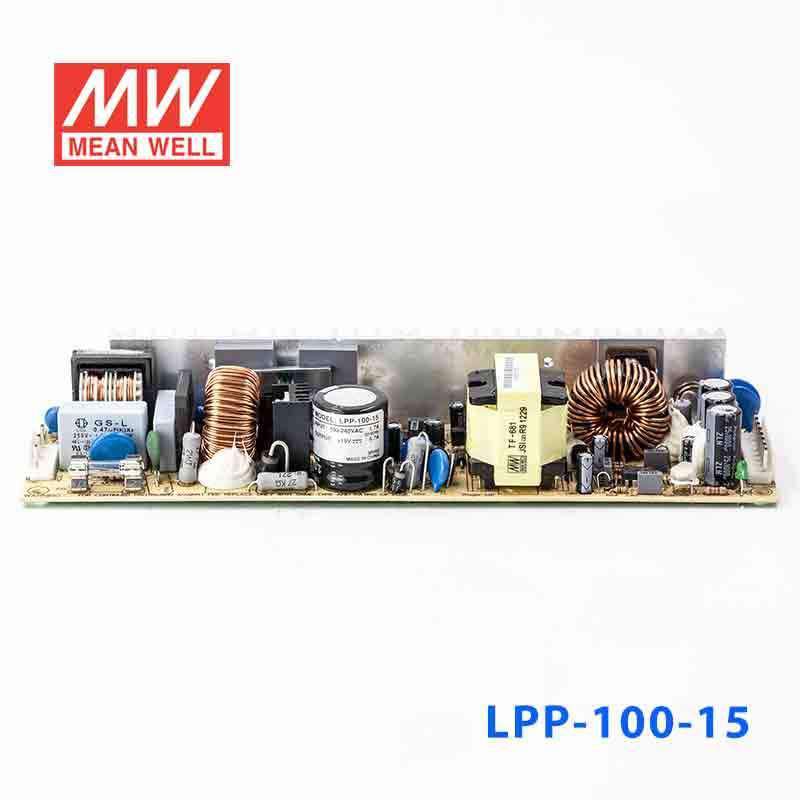

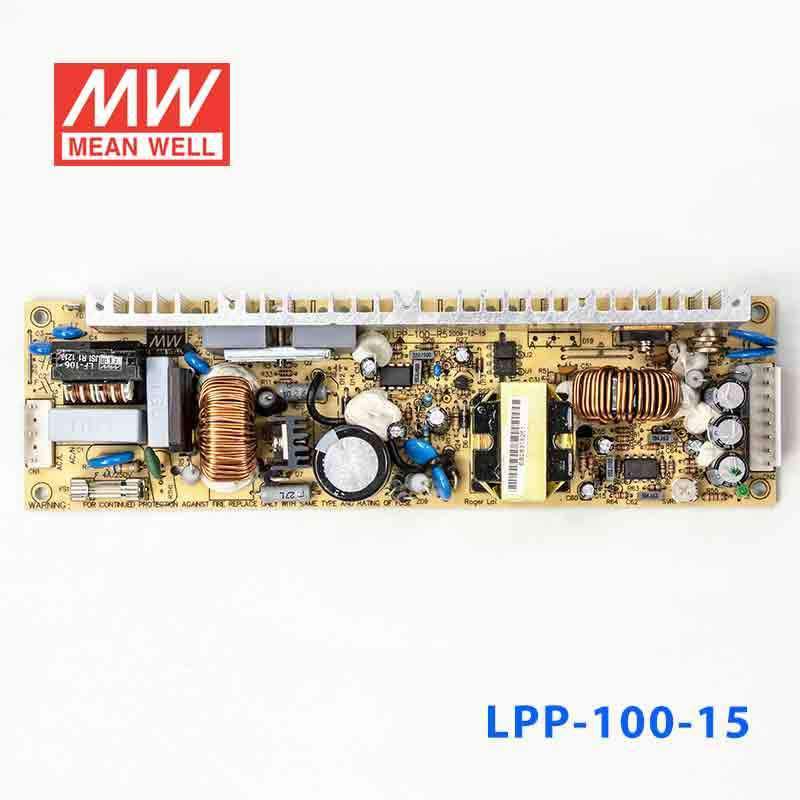

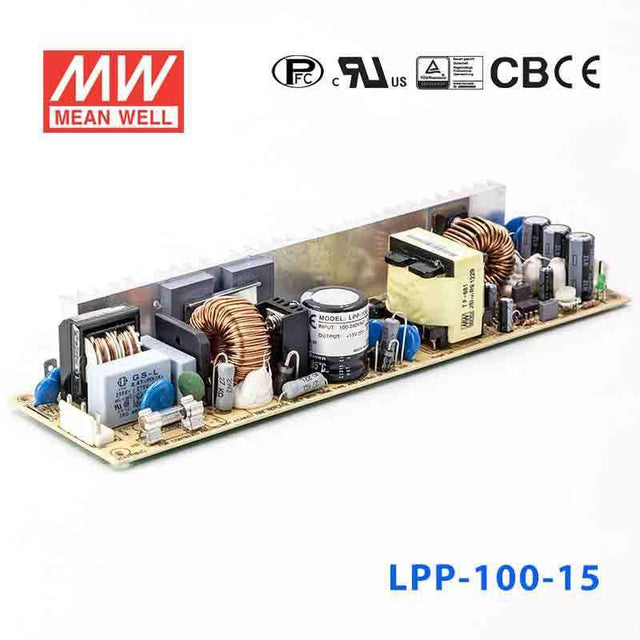

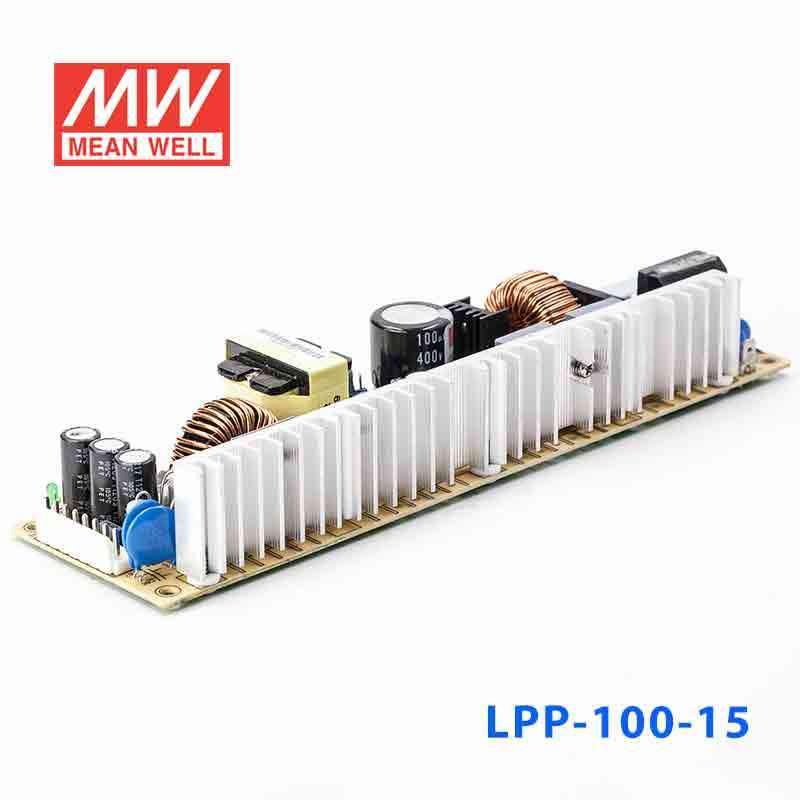

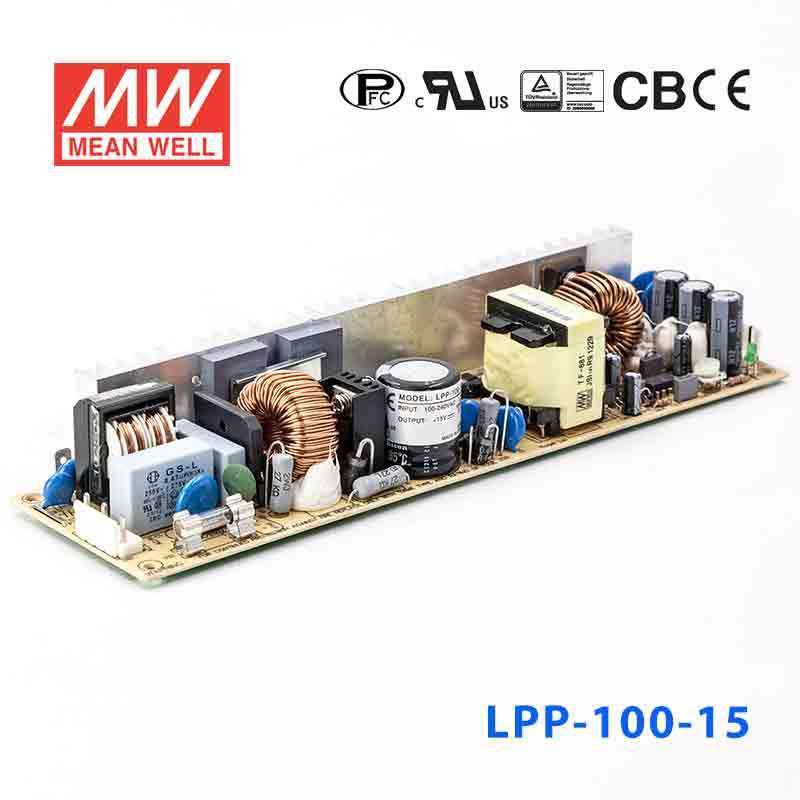

Mean Well LPP-100-15 Power Supply 100W 15V

small and compact, built-in active PFC function

SKU:

LPP-100-15

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

100% full load burn-in test

Built-in active PFC function

3 years warranty for LPP series

General Specification

AC input voltage range	85~264VAC
AC inrush current(230VAC)	30A
DC adjustment range	-5%~+10% rated output voltage
Overload protection Range	105%~150% rated output power
Overload protection Type	Constant current limiting, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Shut off, AC recycle to re-start
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-10~+60°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	5P+8P/3.96mm pitch, JST B5P / B8P-VH
Dimension (LxWxH)	222x62x33.6
Packing	24pcs / 13.9kg

Specifications

Brand

Mean Well
Series

LPP Series
Power Rating

100.5 Watt
Output Voltage

15 Volt
Rated Current

6.7 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

3 Year
Length

22.2 cm
Width

6.2 cm
Height

3.36 cm
Weight

0.51 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPP-100-15 for 15V industrial instruments or automation electronics?

It can fit 15V industrial electronics that require constant-voltage DC and draw no more than 100.5W or 6.7A. That makes it relevant for instruments, controllers, and other 15V loads where a fixed DC bus is required. The broad 85-264VAC input also helps when equipment may be deployed across different AC supply standards.

Is the LPP-100-15 suitable for embedded devices that need a regulated 15V power source?

Yes, provided the device is specified for 15V constant-voltage input and the full load stays within 100.5W and 6.7A. This model is not a constant-current driver, so it is meant for equipment expecting a fixed 15V DC supply. Its compact 222.0 x 62.0 x 33.6 mm package can be useful in space-constrained embedded builds.

Can the LPP-100-15 be used for 15V lab fixtures, OEM assemblies, or panel sub-systems?

It is suitable for those types of 15V DC applications when the total demand remains within the unit's 100.5W and 6.7A output ratings. The small and compact design and 0.51 kg weight can make integration easier in OEM or bench assemblies. Buyers should confirm the load expects constant-voltage 15V operation.

How does the LPP-100-15 differ from the other listed LPP outputs and power levels?

The LPP-100 family options listed are 3.3V 20A 66W, 5V 20A 100W, 7.5V 13.5A 101.25W, 12V 8.5A 102W, 13.5V 7.5A 101.25W, 15V 6.7A 100.5W, 24V 4.2A 100.8W, 27V 3.8A 102.6W, and 48V 2.1A 100.8W. The LPP-150 range listed moves to 3.3V 30A 99W, 5V 30A 150W, 7.5V 20A 150W, 12V 12.5A 150W, 13.5V 11.2A 151.2W, 15V 10A 150W, 24V 6.3A 151.2W, 27V 5.6A 151.2W, and 48V 3.2A 153.6W. LPP-150-24-OB appears in the list as well, but no numeric specs were supplied for that version here.

Is the LPP-100-15 rated for outdoor conditions or only for protected environments?

From the specs provided, the environmental data given is -10C to +60C operating temperature. No IP rating is included in this product data, so the provided specifications do not document protection against water or dust exposure. On that basis, it should be treated as a supply for protected installations unless separate enclosure protection is provided.
