Mean Well

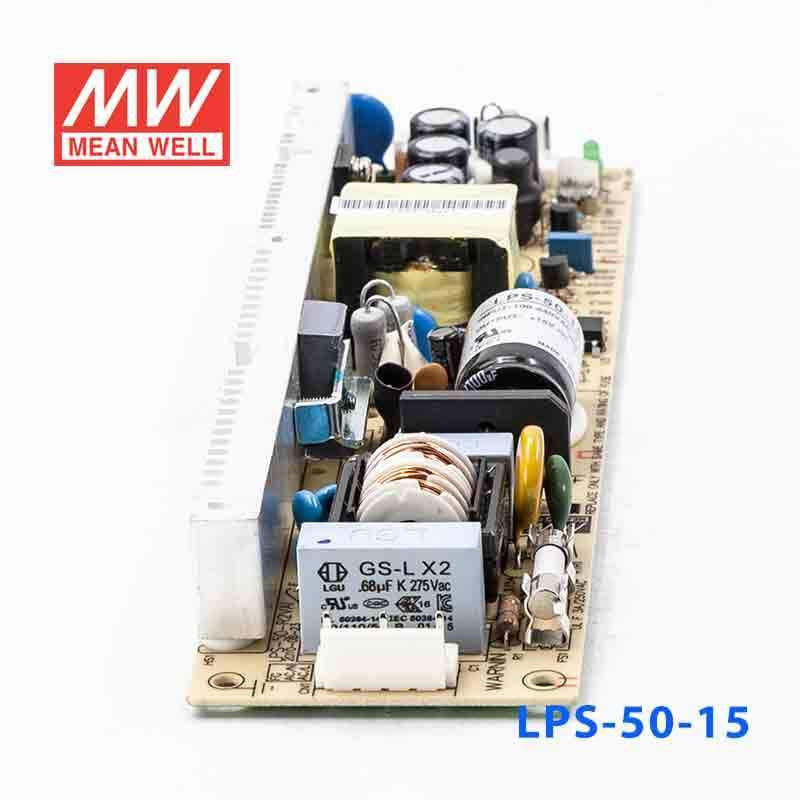

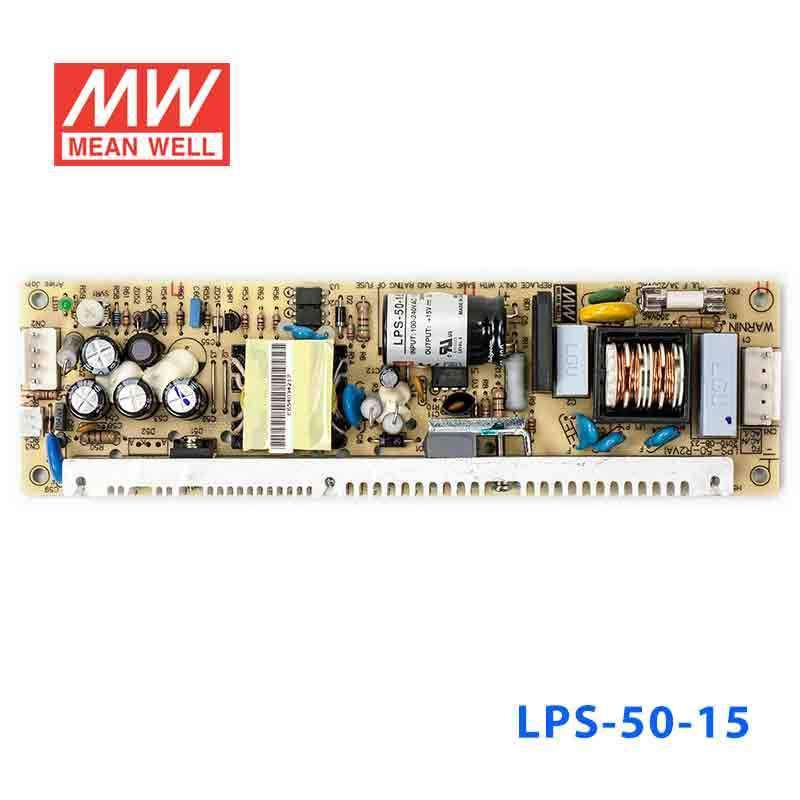

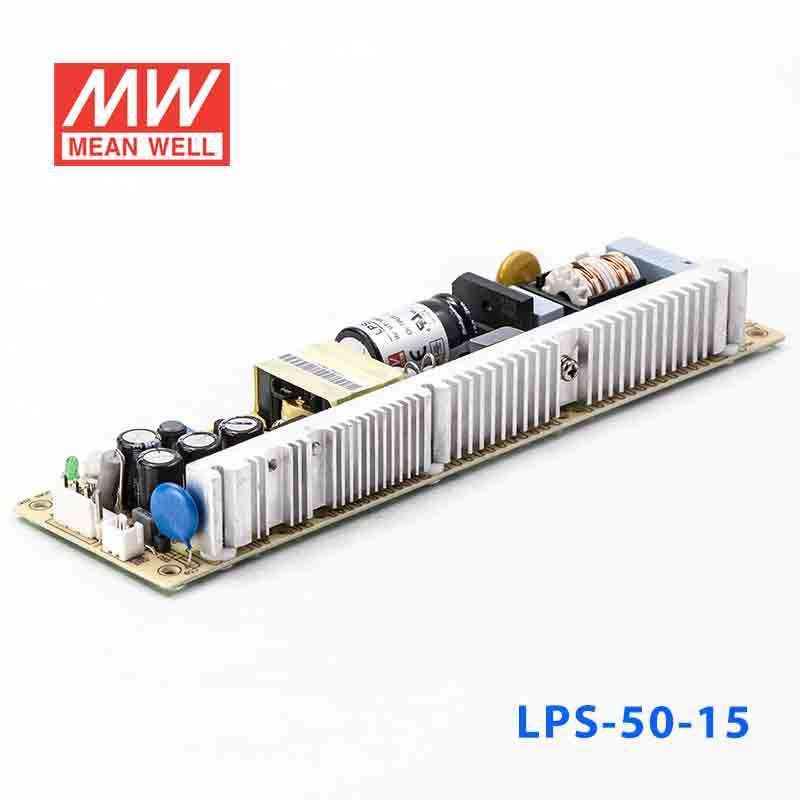

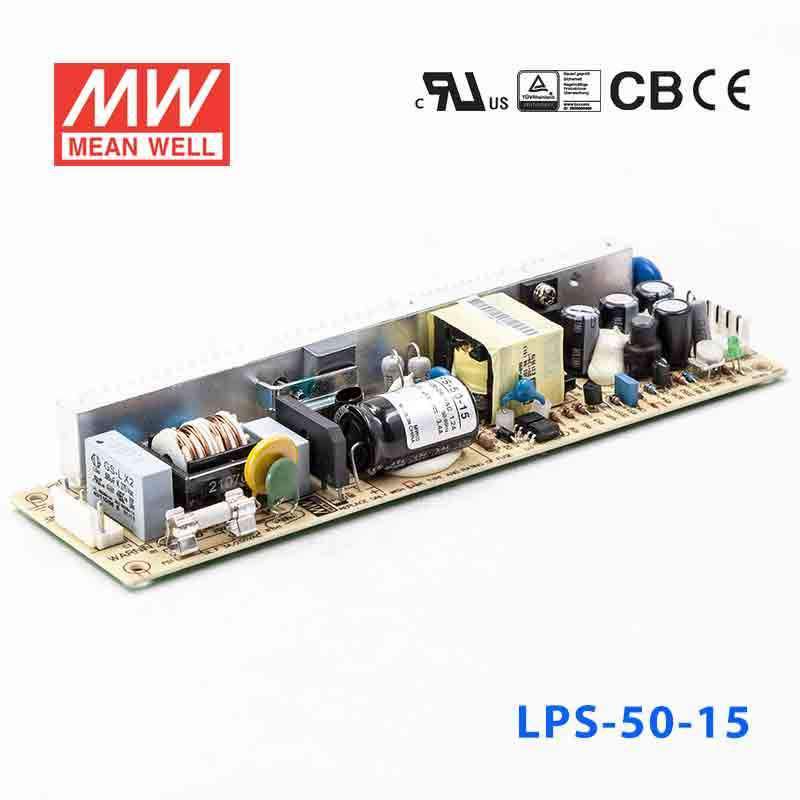

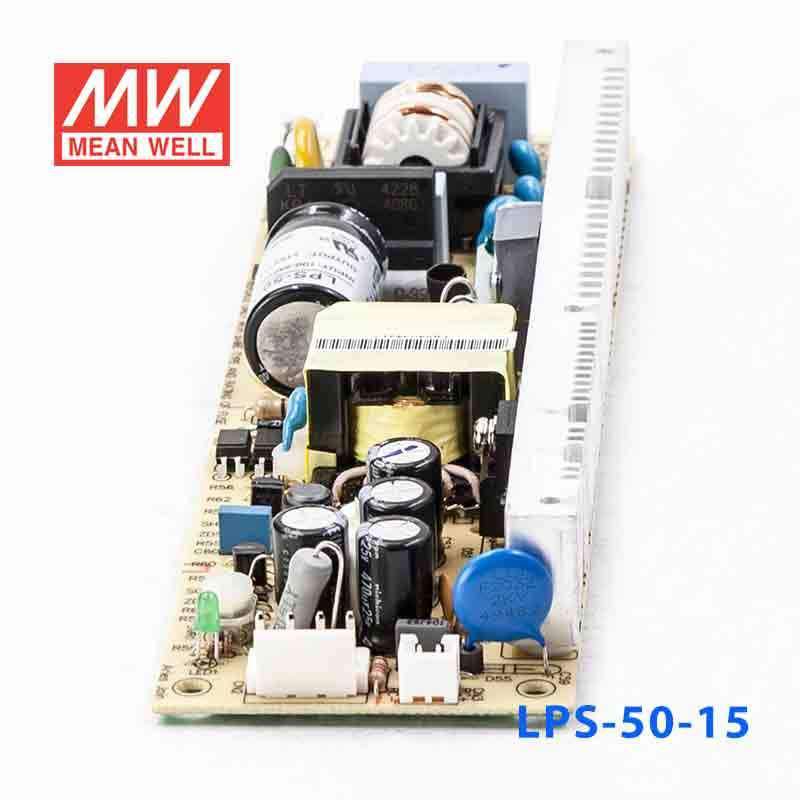

Mean Well LPS-50-15 Power Supply 51W 15V

small and compact, low profile, 23mm thickness, built-in remote ON-OFF control
SKU:
LPS-50-15
Please for Pricing
|

Description

Features

Universal AC input / Full range
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage
Built-in remote ON/OFF control
100% full load burn-in test
2 years warranty for LPS series

General Specification

AC input voltage range 90~264VAC
AC inrush current(230VAC) 35A
DC adjustment range ±10% rated output voltage
Overload protection Range 122%~160%
Overload protection Type Hiccup mode, auto recovery
Over voltage protection Range 110%~135% of rated output voltage
Over voltage protection Type Hiccup mode, auto recovery
Withstand voltage I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature -20~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry
Connection JST B5P / B4P-VH
Dimension (LxWxH) 195x55x23
Packing 48pcs / 12.5kg

Specifications
  • Brand
    Mean Well
  • Series
    LPS Series
  • Power Rating
    51 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    3.4 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    2 Year
  • Length
    19.5 cm
  • Width
    5.5 cm
  • Height
    2.3 cm
  • Weight
    0.24 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPS-50-15 for a 15V industrial instrument or control module?

Yes, if the device requires a 15V constant-voltage supply and the total load does not exceed 51W or 3.4A. That makes it relevant for lower-power industrial instruments and control modules built for 15V DC.

Is this suitable for 15V embedded electronics in an OEM assembly?

It can be used for embedded electronics that specify 15V DC input and stay within the 3.4A output limit. Because it is a constant-voltage supply, it is intended for equipment designed around a fixed 15V rail.

Can the LPS-50-15 fit in a compact enclosure for automation hardware?

It is well suited to compact builds because the housing measures 195.0 x 55.0 x 23.0 mm and the feature list highlights the 23mm low-profile design. For space-constrained automation hardware that needs 15V, that form factor can be useful.

Is the LPS-50-15 intended for outdoor environments?

The provided specs list an operating temperature range of -20°C to +70°C, which defines the temperature window. No IP rating is listed, so the supplied data does not establish an outdoor protection level.

How does the LPS-50-15 compare with the other 15V models in this series?

Among the listed 15V siblings, LPS-50-15 is 51W and 3.4A, LPS-75-15 is 75W and 5A, and LPS-100-15 is 100.5W and 6.7A. The main difference across those three is available output power and current at the same 15V output.
