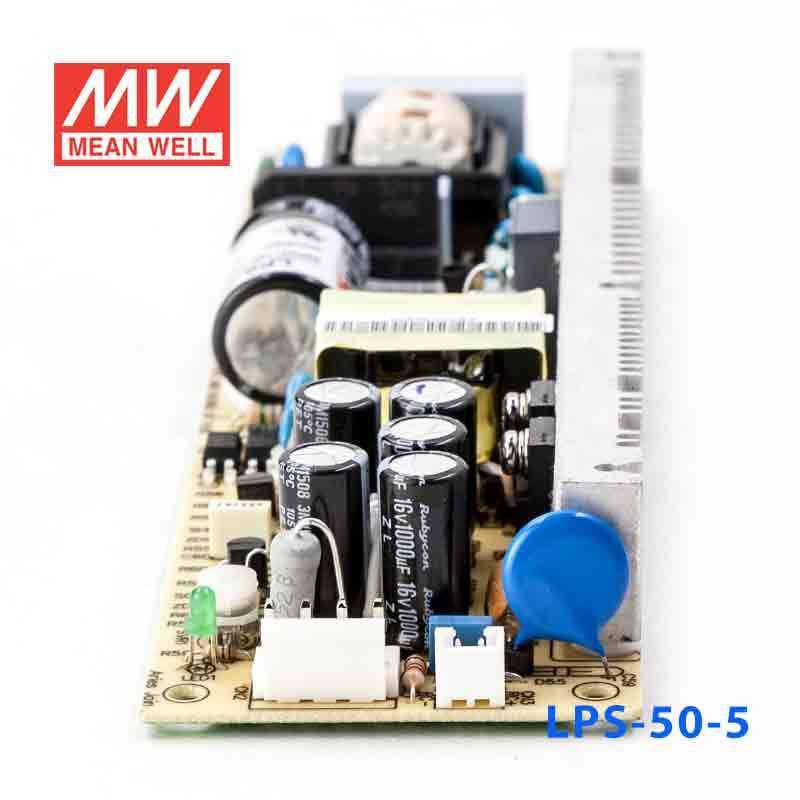

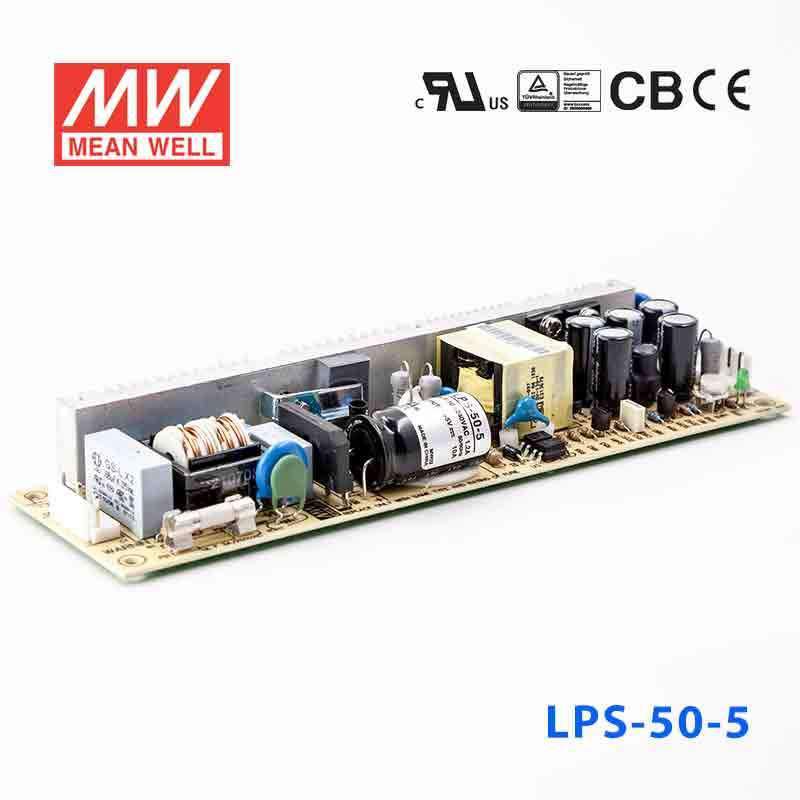

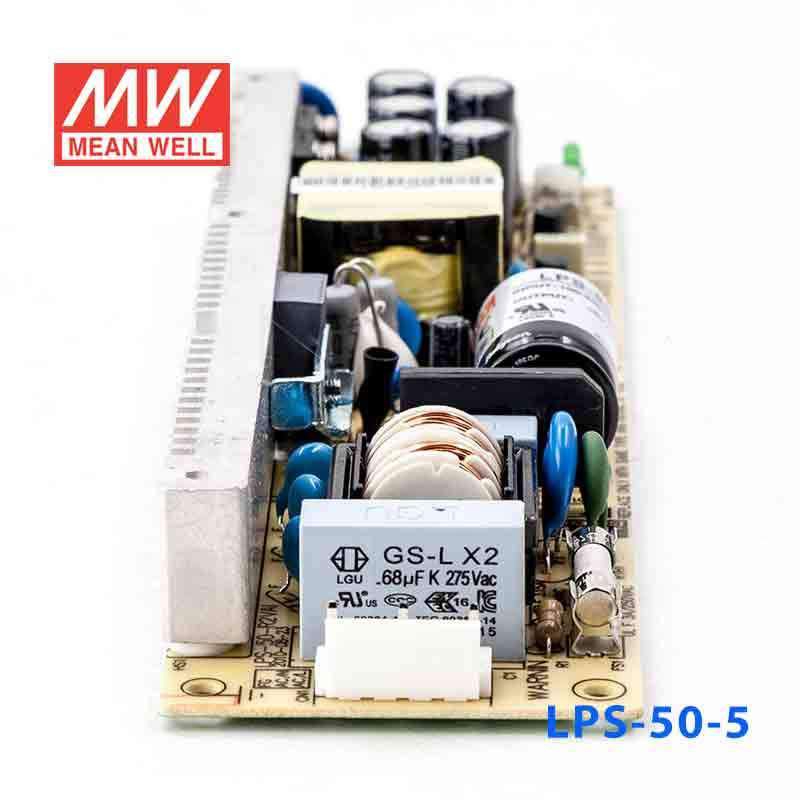

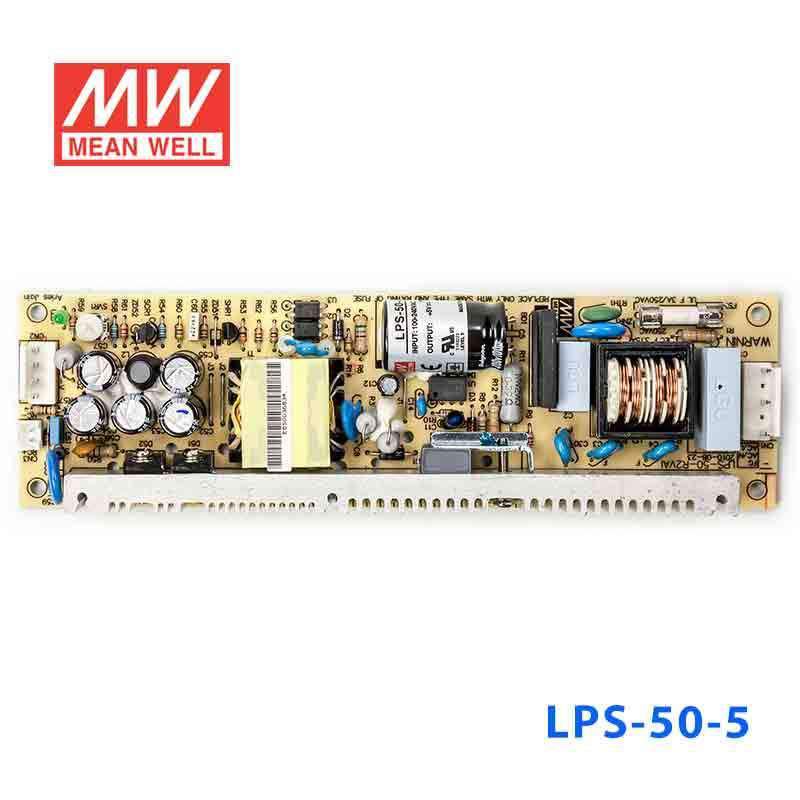

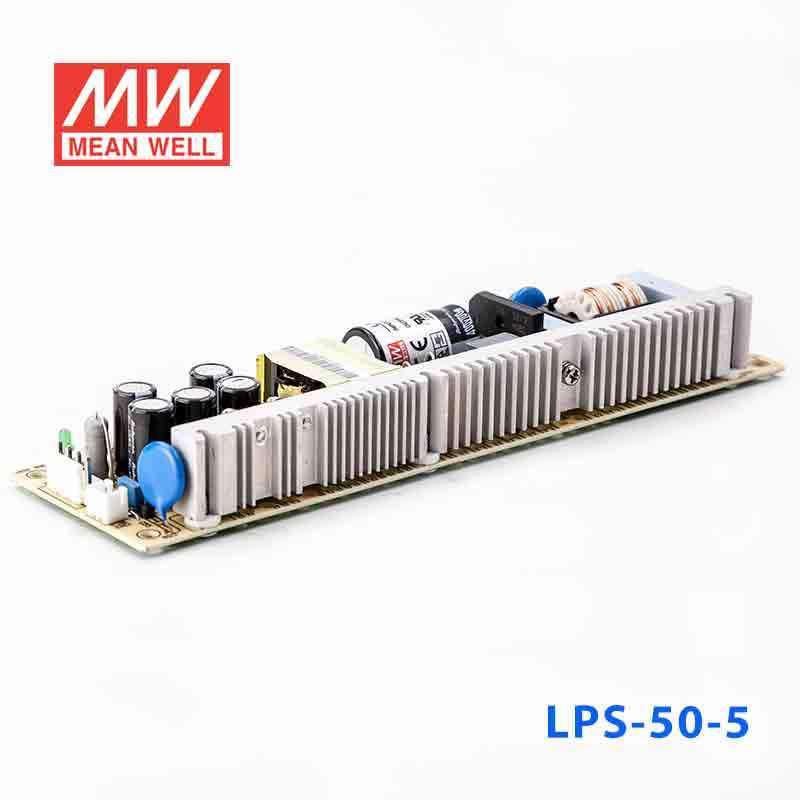

Mean Well LPS-50-5 Power Supply 50W 5V

small and compact, low profile, 23mm thickness, built-in remote ON-OFF control

SKU:

LPS-50-5

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

Built-in remote ON/OFF control

100% full load burn-in test

2 years warranty for LPS series

General Specification

AC input voltage range	90~264VAC
AC inrush current(230VAC)	35A
DC adjustment range	±10% rated output voltage
Overload protection Range	122%~160%
Overload protection Type	Hiccup mode, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Hiccup mode, auto recovery
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-20~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry
Connection	JST B5P / B4P-VH
Dimension (LxWxH)	195x55x23
Packing	48pcs / 12.5kg

Specifications

Brand

Mean Well
Series

LPS Series
Power Rating

50 Watt
Output Voltage

5 Volt
Rated Current

10 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~70°C
Warranty

2 Year
Length

19.5 cm
Width

5.5 cm
Height

2.3 cm
Weight

0.24 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPS-50-5 for 5V industrial controllers, logic circuits, or embedded devices?

Yes, this model provides constant voltage 5V output rated for 50W and 10A. It suits 5V electronics and control hardware when the full load stays within 10A.

Is the LPS-50-5 suitable for single-board computers, USB-powered subsystems, or test equipment that need a bulk 5V source?

It can be used as a regulated 5V source for embedded or lab systems that draw up to 50W total. The supply is sized for higher-current 5V loads than low-power adapters, with up to 10A available.

Can this model support 5V displays, HMI logic sections, or industrial communication electronics?

It is a fit for 5V constant voltage electronics where total demand does not exceed 10A. That makes it appropriate for many 5V logic, display, and communications loads in industrial or IT equipment.

Does the LPS-50-5 work well in low-clearance equipment housings?

Its dimensions are 195.0 x 55.0 x 23.0 mm and its weight is 0.24 kg. The low-profile 23.0 mm thickness helps when the enclosure height is restricted.

Can the LPS-50-5 be used in indoor equipment exposed to cold or high ambient temperatures?

The operating temperature range is specified as -20°C to +70°C. No IP rating is listed in the provided data, so the environmental protection level is not defined beyond that temperature range.

How does the LPS-50-5 compare with the other 5V LPS power supplies?

The listed 5V siblings are LPS-50-5 at 50W and 10A, LPS-75-5 at 75W and 15A, and LPS-100-5 at 100W and 20A. They share the same 5V output, with the higher models increasing available wattage and current.

Model	Power	Voltage	Current
Mean Well LPS-50-48 Power Supply 52W 48V	52.8W	48V	1.1A	View
Mean Well LPS-50-3.3 Power Supply 33W 3.3V	33W	3.3V	10A	View
Mean Well LPS-50-24 Power Supply 50W 24V	50.4W	24V	2.1A	View
Mean Well LPS-50-15 Power Supply 51W 15V	51W	15V	3.4A	View
Mean Well LPS-50-12 Power Supply 50W 12V	50.4W	12V	4.2A	View
