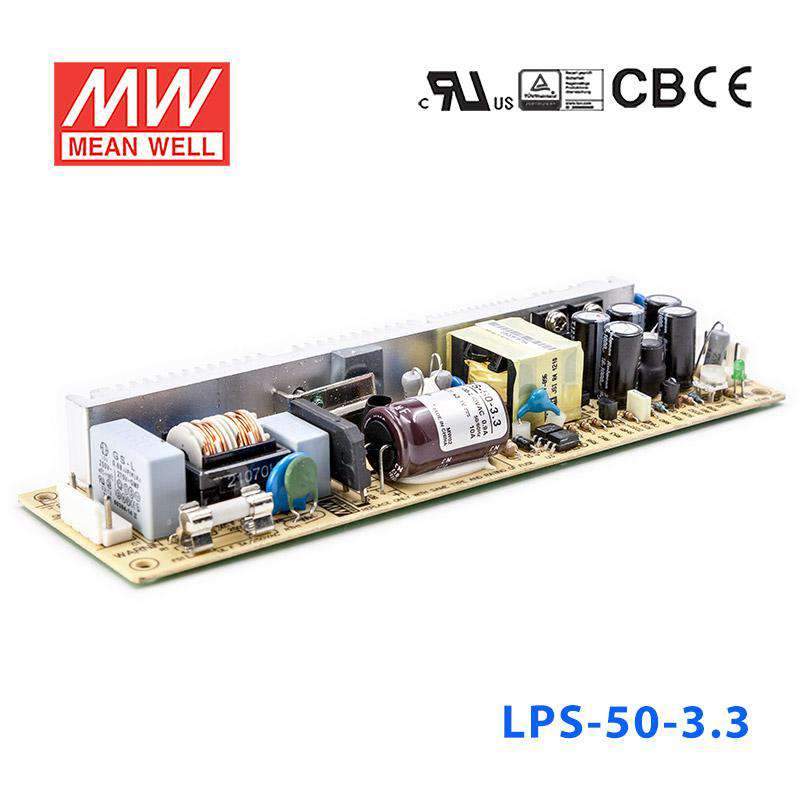

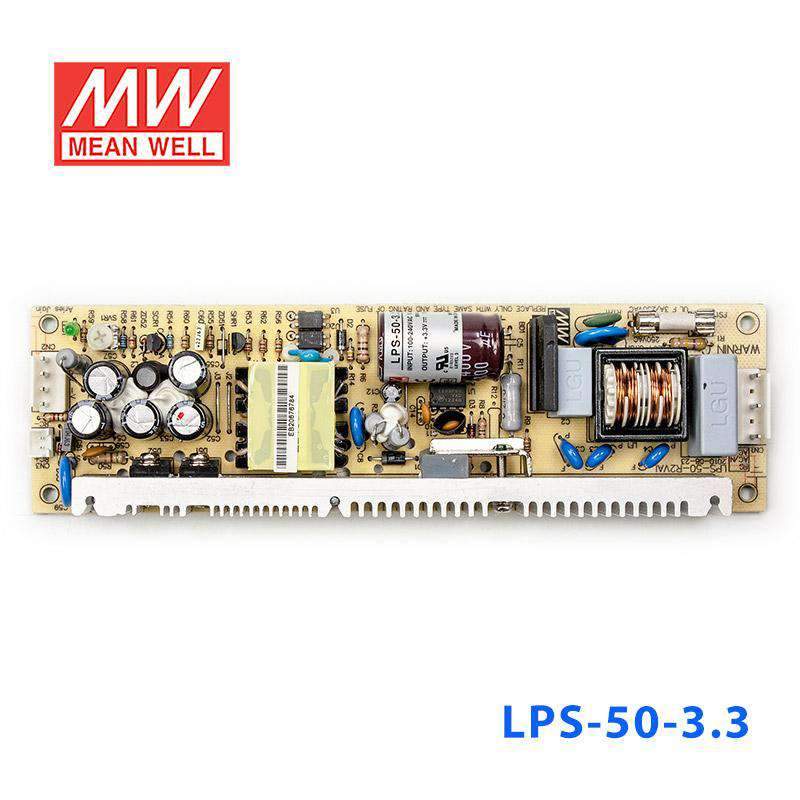

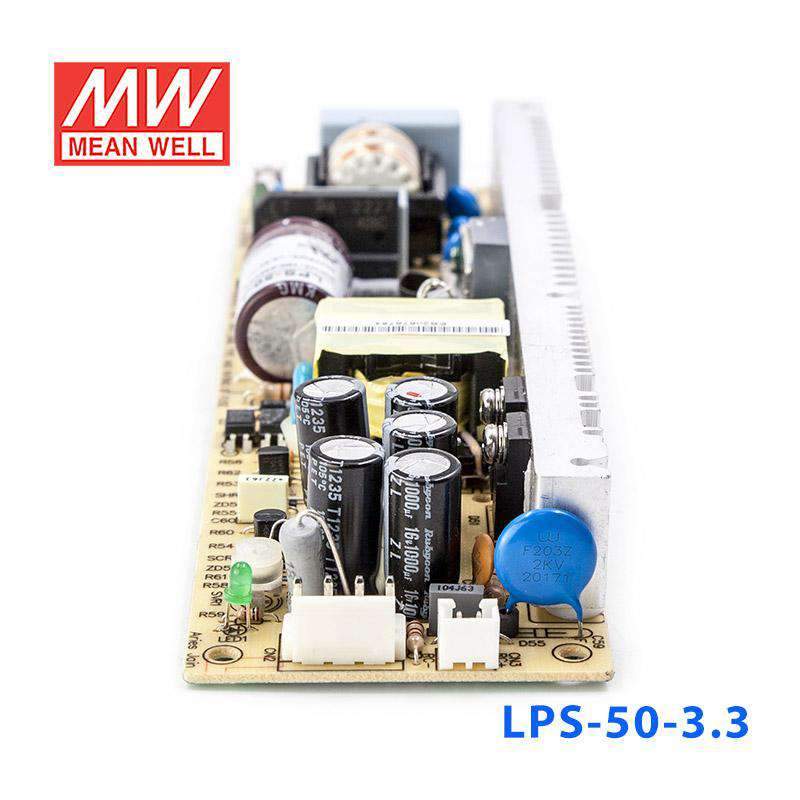

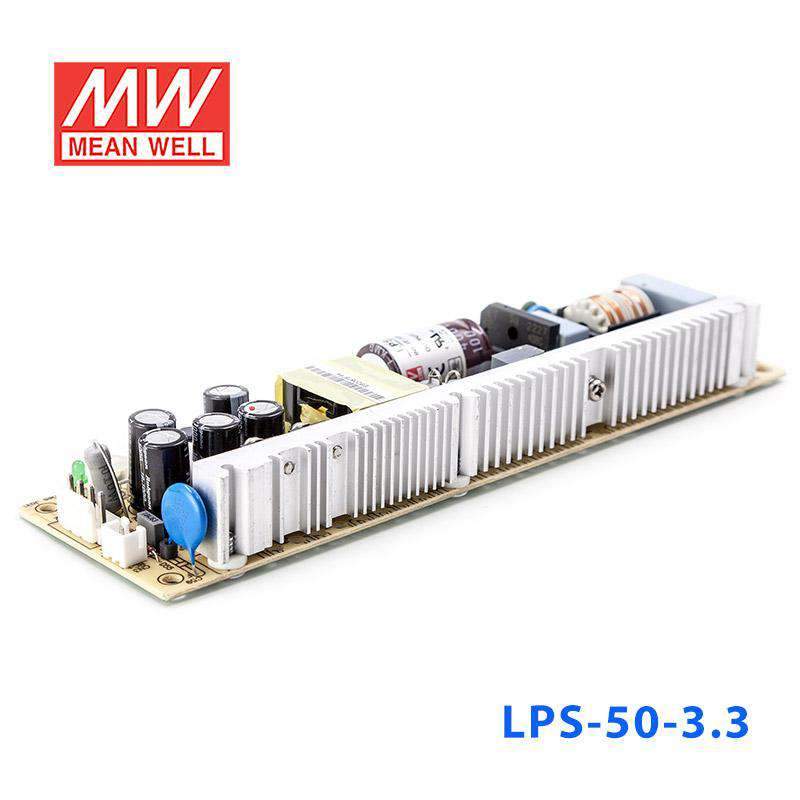

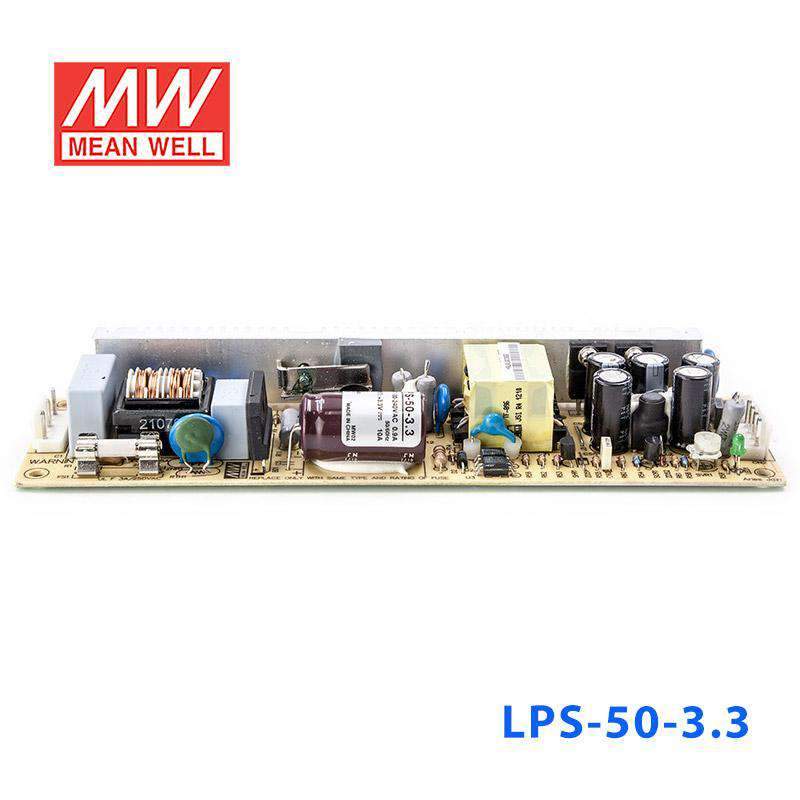

Mean Well LPS-50-3.3 Power Supply 33W 3.3V

small and compact, low profile, 23mm thickness, built-in remote ON-OFF control

SKU:

LPS-50-3.3

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

Built-in remote ON/OFF control

100% full load burn-in test

2 years warranty for LPS series

General Specification

AC input voltage range	90~264VAC
AC inrush current(230VAC)	35A
DC adjustment range	±10% rated output voltage
Overload protection Range	122%~160%
Overload protection Type	Hiccup mode, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Hiccup mode, auto recovery
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-20~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry
Connection	JST B5P / B4P-VH
Dimension (LxWxH)	195x55x23
Packing	48pcs / 12.5kg

Specifications

Brand

Mean Well
Series

LPS Series
Power Rating

33 Watt
Output Voltage

3.3 Volt
Rated Current

10 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~70°C
Warranty

2 Year
Length

19.5 cm
Width

5.5 cm
Height

2.3 cm
Weight

0.24 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPS-50-3.3 for 3.3V embedded boards, logic devices, or industrial controllers?

Yes, this is a constant voltage 3.3V supply rated for 33W and 10A. It suits 3.3V electronics and controller loads that stay within 10A total output current.

Is the LPS-50-3.3 appropriate for FPGA, MCU, or SBC power in a compact enclosure?

It can fit compact equipment because the housing is 195.0 x 55.0 x 23.0 mm and weighs 0.24 kg. The low-profile 23.0 mm design is useful where internal height is limited.

Can this model power 3.3V industrial communication or embedded I/O hardware?

It is intended for 3.3V constant voltage loads and provides up to 33W with 10A output current. That makes it suitable for 3.3V electronics in automation or embedded systems when the total load stays within those limits.

Would the LPS-50-3.3 make sense for lab or test fixtures that need regulated 3.3V DC?

It can be used for bench or fixture applications that require a fixed 3.3V output and no more than 10A. The 90-264VAC input is also useful where the AC source may vary across standard mains ranges.

Can the LPS-50-3.3 be used in hot or cold indoor equipment environments?

The specified operating temperature range is -20°C to +70°C. The provided specs do not include an IP rating, so environmental protection beyond that temperature range is not stated.

How does the LPS-50-3.3 compare with the other 3.3V LPS versions?

The listed 3.3V siblings are LPS-50-3.3 at 33W and 10A, LPS-75-3.3 at 49.5W and 15A, and LPS-100-3.3 at 66W and 20A. They share the same nominal 3.3V output, with higher models providing more wattage and current.
