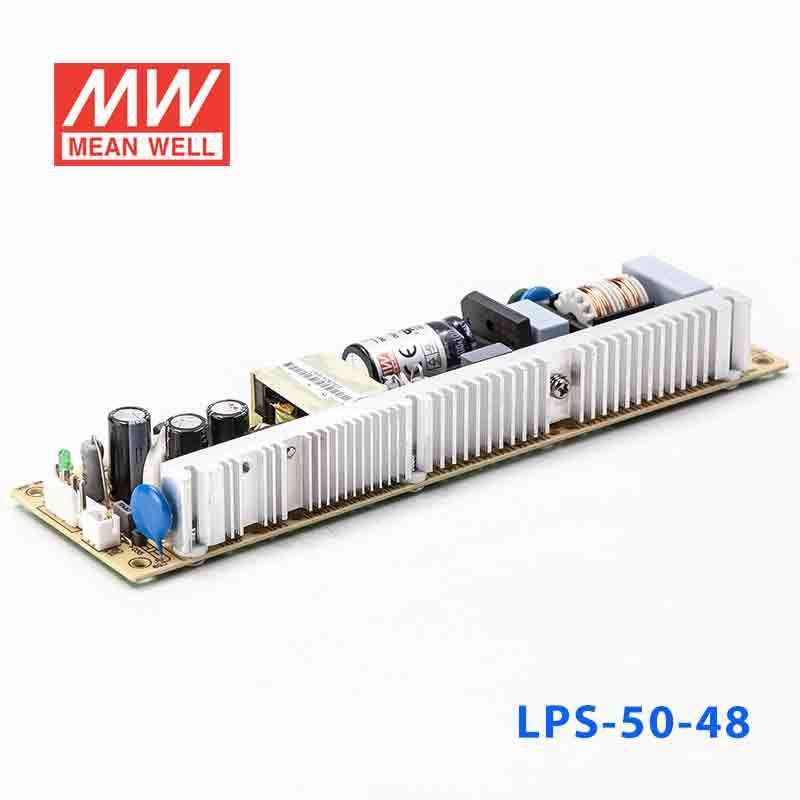

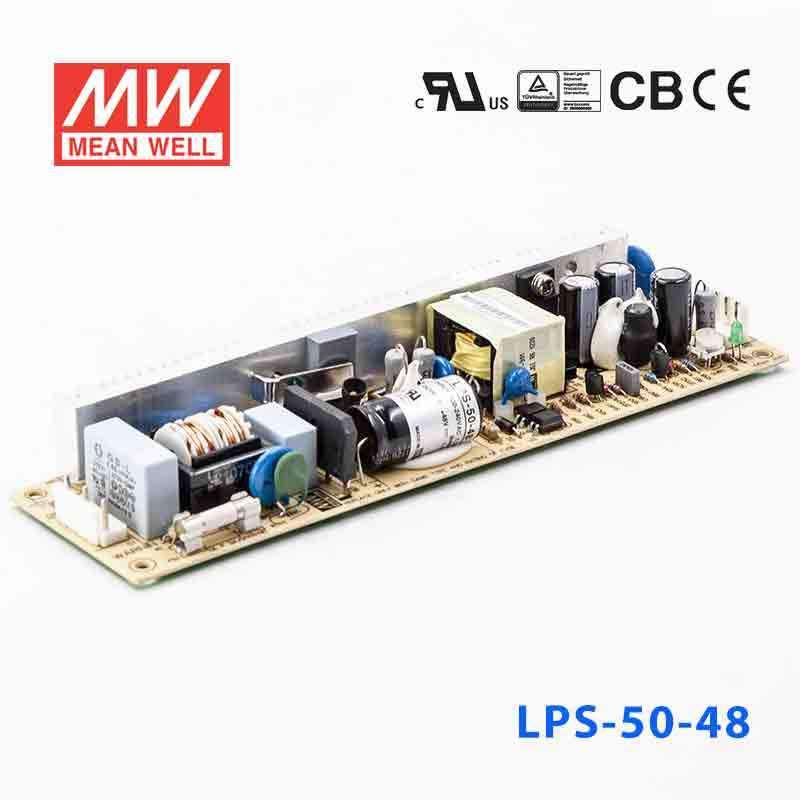

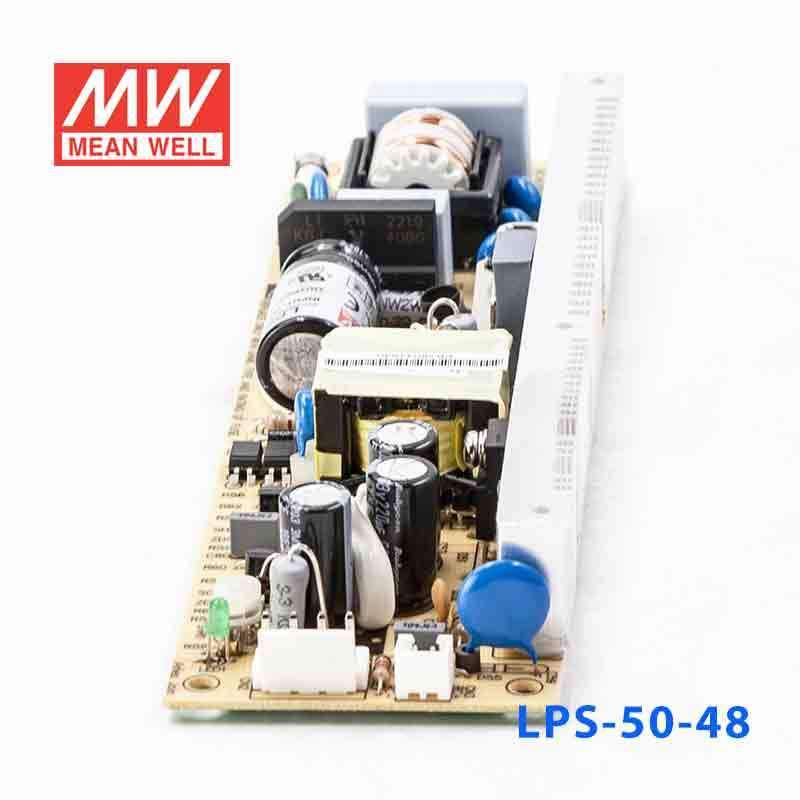

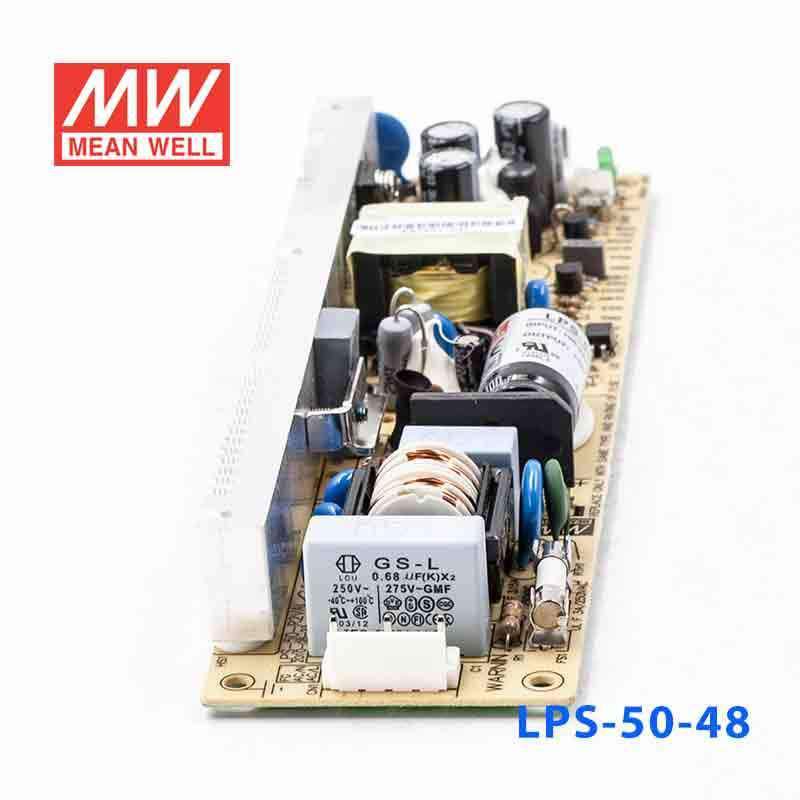

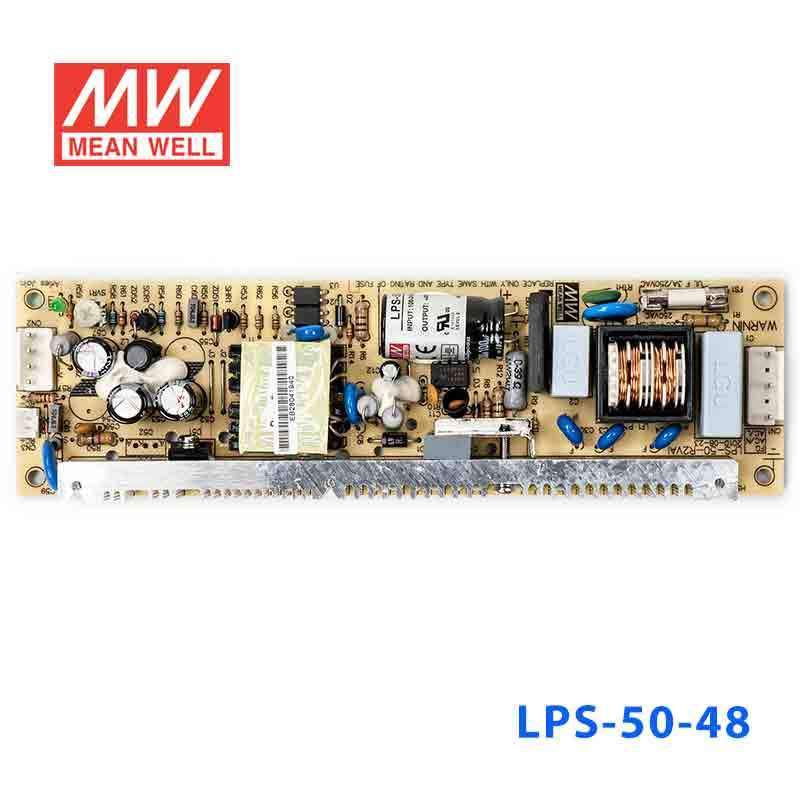

Mean Well LPS-50-48 Power Supply 52W 48V

small and compact, low profile, 23mm thickness, built-in remote ON-OFF control

SKU:

LPS-50-48

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

Built-in remote ON/OFF control

100% full load burn-in test

2 years warranty for LPS series

General Specification

AC input voltage range	90~264VAC
AC inrush current(230VAC)	35A
DC adjustment range	±10% rated output voltage
Overload protection Range	122%~160%
Overload protection Type	Hiccup mode, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Hiccup mode, auto recovery
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-20~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry
Connection	JST B5P / B4P-VH
Dimension (LxWxH)	195x55x23
Packing	48pcs / 12.5kg

Specifications

Brand

Mean Well
Series

LPS Series
Power Rating

52.8 Watt
Output Voltage

48 Volt
Rated Current

1.1 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~70°C
Warranty

2 Year
Length

19.5 cm
Width

5.5 cm
Height

2.3 cm
Weight

0.24 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPS-50-48 for 48V industrial controls, telecom accessories, or network hardware?

Yes, if the equipment requires constant voltage 48V DC and the load stays within 52.8W and 1.1A. It is best matched to lighter 48V devices rather than higher-current 48V loads.

Is the LPS-50-48 suitable for compact embedded equipment or slim control cabinets?

It is built in a compact format at 195.0 x 55.0 x 23.0 mm and weighs 0.24 kg. The 23.0 mm profile helps where enclosure depth is limited.

Can this power supply run 48V sensors, transmitters, or automation modules?

It can power 48V constant voltage devices up to 1.1A total output current. Buyers should check that the complete connected load remains within 52.8W.

Would the LPS-50-48 fit low-power 48V DC systems used in industrial or IT equipment?

It is a fit for low-power 48V applications that need a regulated output and accept up to 1.1A available current. The universal 90-264VAC input also supports operation from common AC input ranges.

Is the LPS-50-48 rated for outdoor exposure?

The product data specifies operation from -20°C to +70°C, but no IP rating is listed. Based on the provided specs, temperature range is defined while outdoor ingress protection is not specified.

How does the LPS-50-48 compare with the other 48V options in the LPS series?

The listed 48V models are LPS-50-48 at 52.8W and 1.1A, LPS-75-48 at 75W and 1.56A, and LPS-100-48 at 100.8W and 2.1A. All are 48V constant voltage models, with the differences centered on available power and output current.

Model	Power	Voltage	Current
Mean Well LPS-50-5 Power Supply 50W 5V	50W	5V	10A	View
Mean Well LPS-50-3.3 Power Supply 33W 3.3V	33W	3.3V	10A	View
Mean Well LPS-50-24 Power Supply 50W 24V	50.4W	24V	2.1A	View
Mean Well LPS-50-15 Power Supply 51W 15V	51W	15V	3.4A	View
Mean Well LPS-50-12 Power Supply 50W 12V	50.4W	12V	4.2A	View
