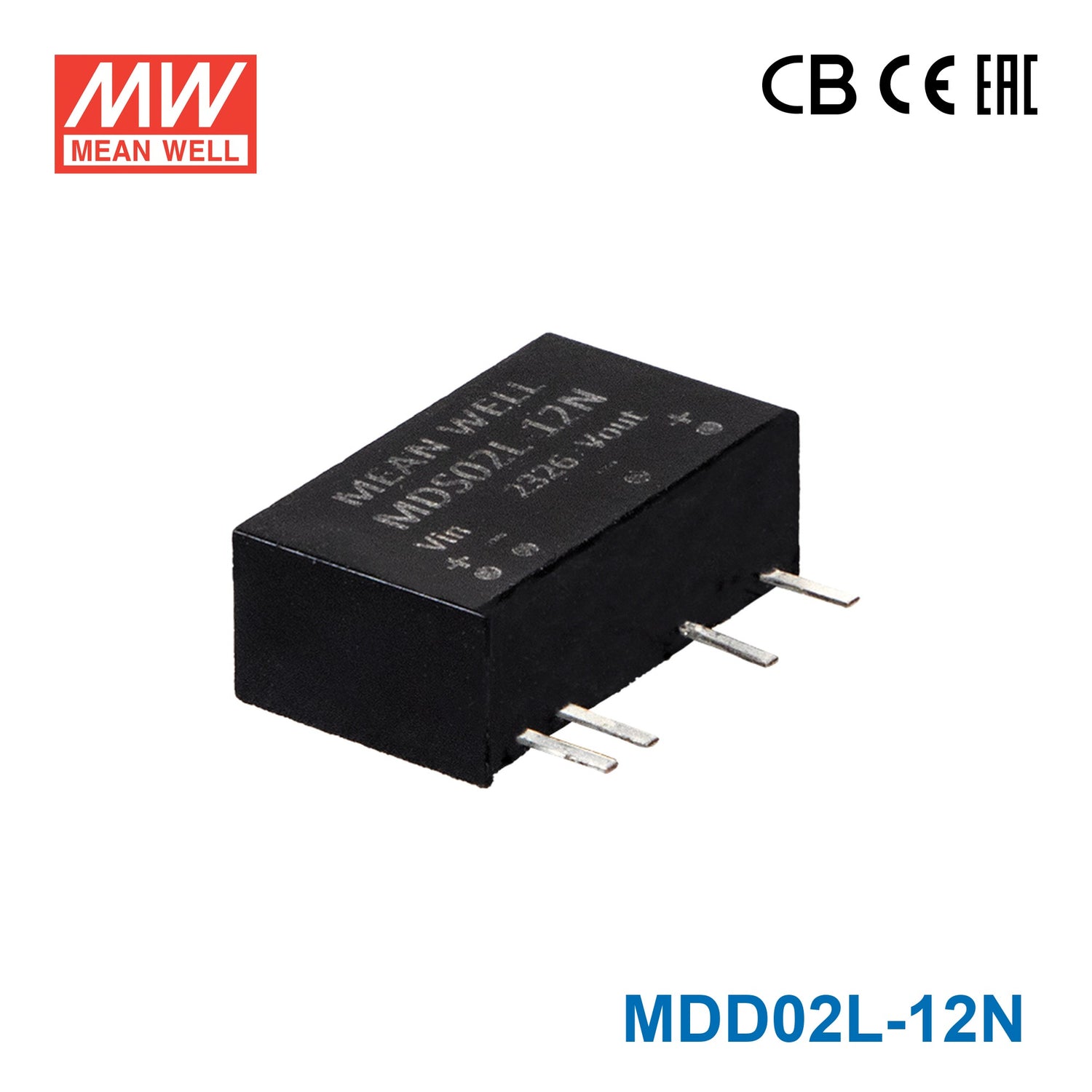

Mean Well MDD02L-12N SIP Package DC-DC Converter- 2W - ±12V Out

Input 4.5~5.5V, SIP7 package with international standard pinout, medical grade, low cost
SKU:
MDD02L-12N

|

Description

Features:

  • SIP7 package with international standard pinout
  • Operating temperature range -40 ~ +95°C
  • Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
  • Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
  • Low patient leakage current <2μA
  • Protections: Short circuit (Continuous)
  • 6KVDC hight I/O isolation (Reinforced insulation)
  • Low cost
  • 3 years warranty

General Specification

Input Voltage (Vdc)

5V (4.5 ~ 5.5V) | 12V (10.8 ~ 13.2V) | 24 (21.6 ~ 26.4V)

Output Voltage (Vdc)

1 Vo: 3.3V / 5V / 12V / 15V

2 Vo: ±5V / ±12V / ±15V

Overload Protection

Shut down the output when rated power≥102%, auto recovers

Operating Temperature

-40 ~ + 95°C

Short Circuit Protection

Continuous protection for a long time

Safety Certificate

CB / UL / EAC / CE / UKCA (62368-1 + 60601-1)

Dimension (LxWxH)

19.7 x 7.1 x 11.5 mm

Specifications

  • Brand
    Mean Well
  • Series
    MDD Series
  • Power Rating
    2 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    0.04 Ampere
  • Input Voltage
    4.5V~5.5V
  • Standards Met
    CB,CE,EAC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~95°C
  • Warranty
    3 Year
  • Length
    1.97 cm
  • Width
    0.71 cm
  • Height
    1.15 cm
  • Weight
    0 kg
