Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

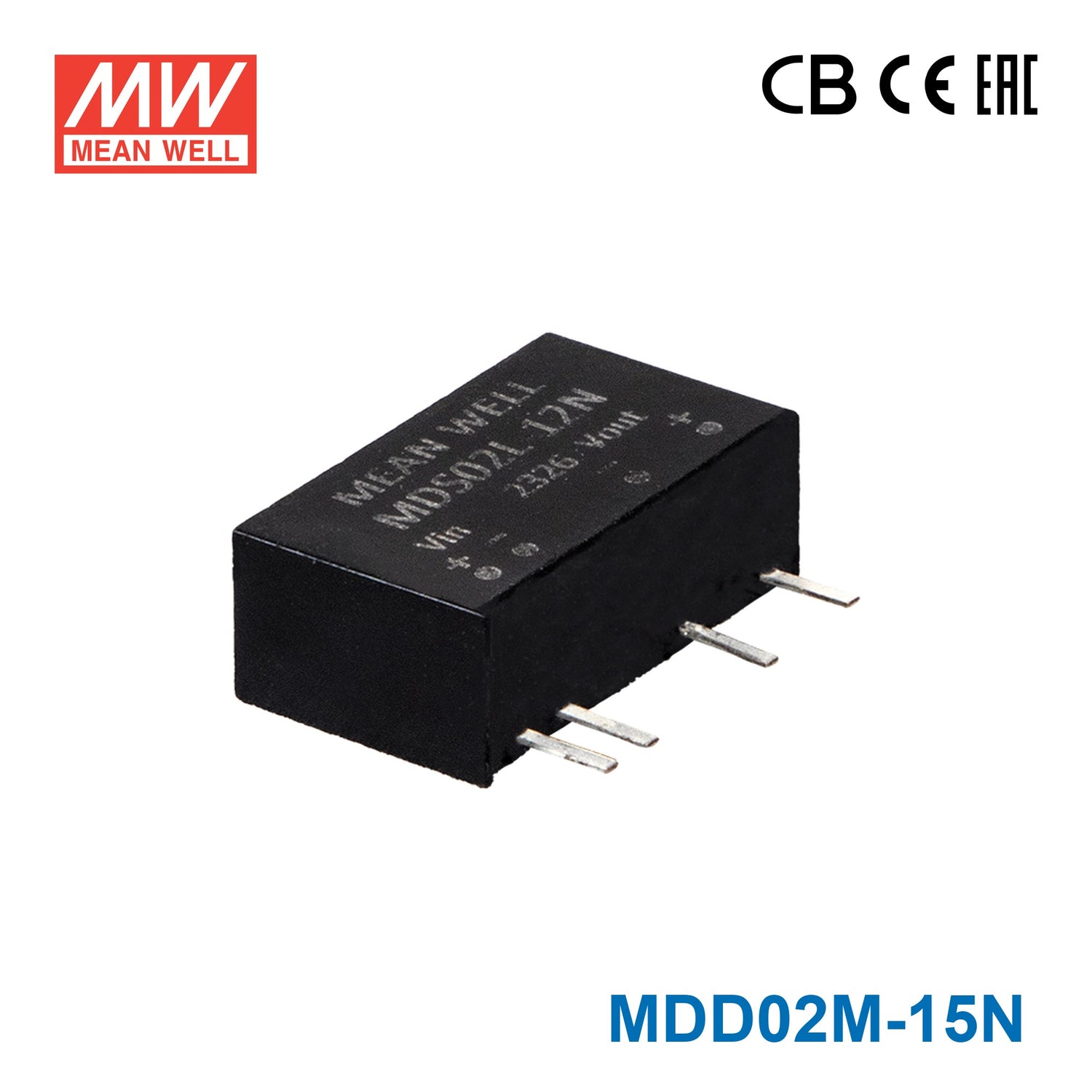

Mean Well MDD02M-15N SIP Package DC-DC Converter- 2W - ±15V Out 25mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.02 Ampere
-
Input Voltage10.8V~13.2V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
