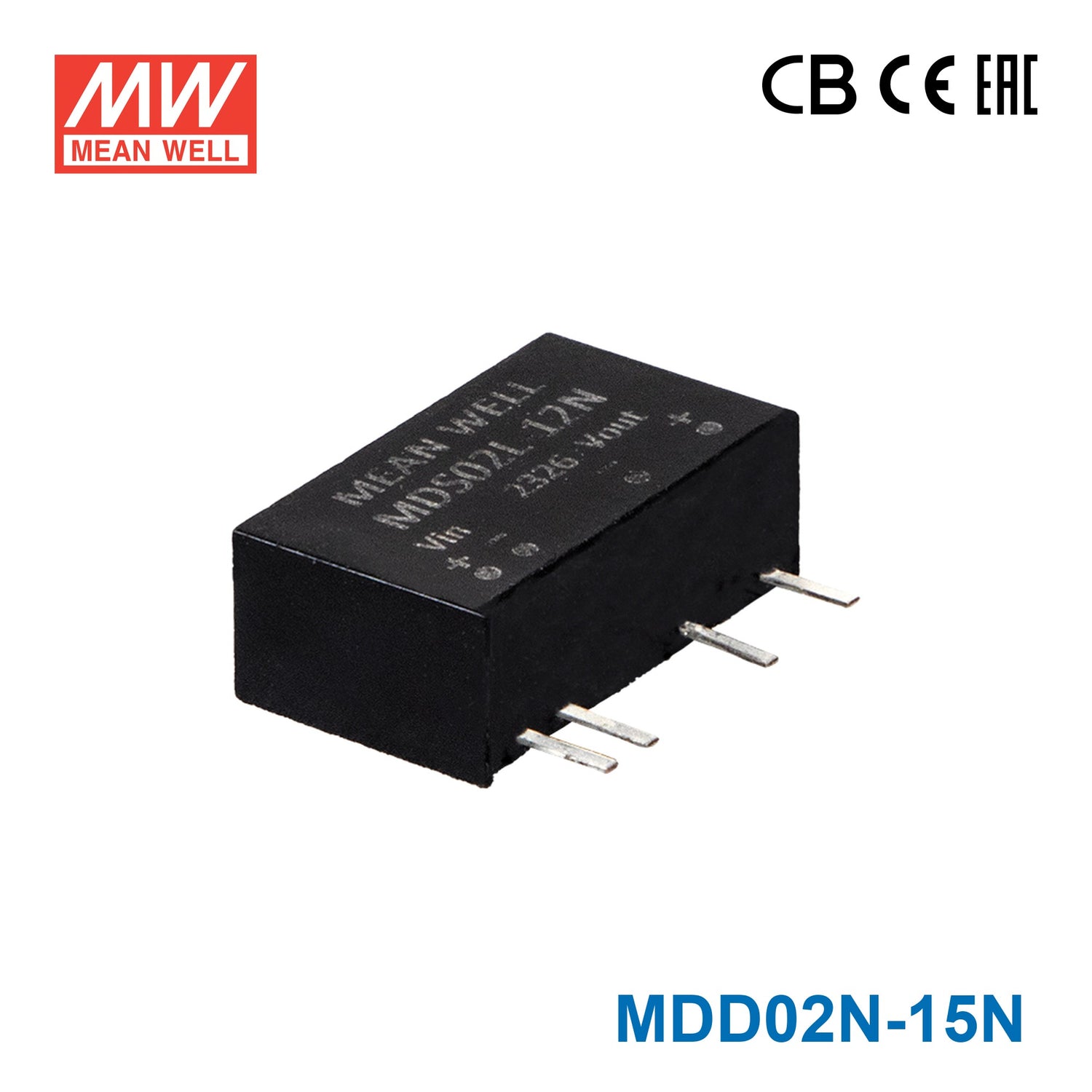

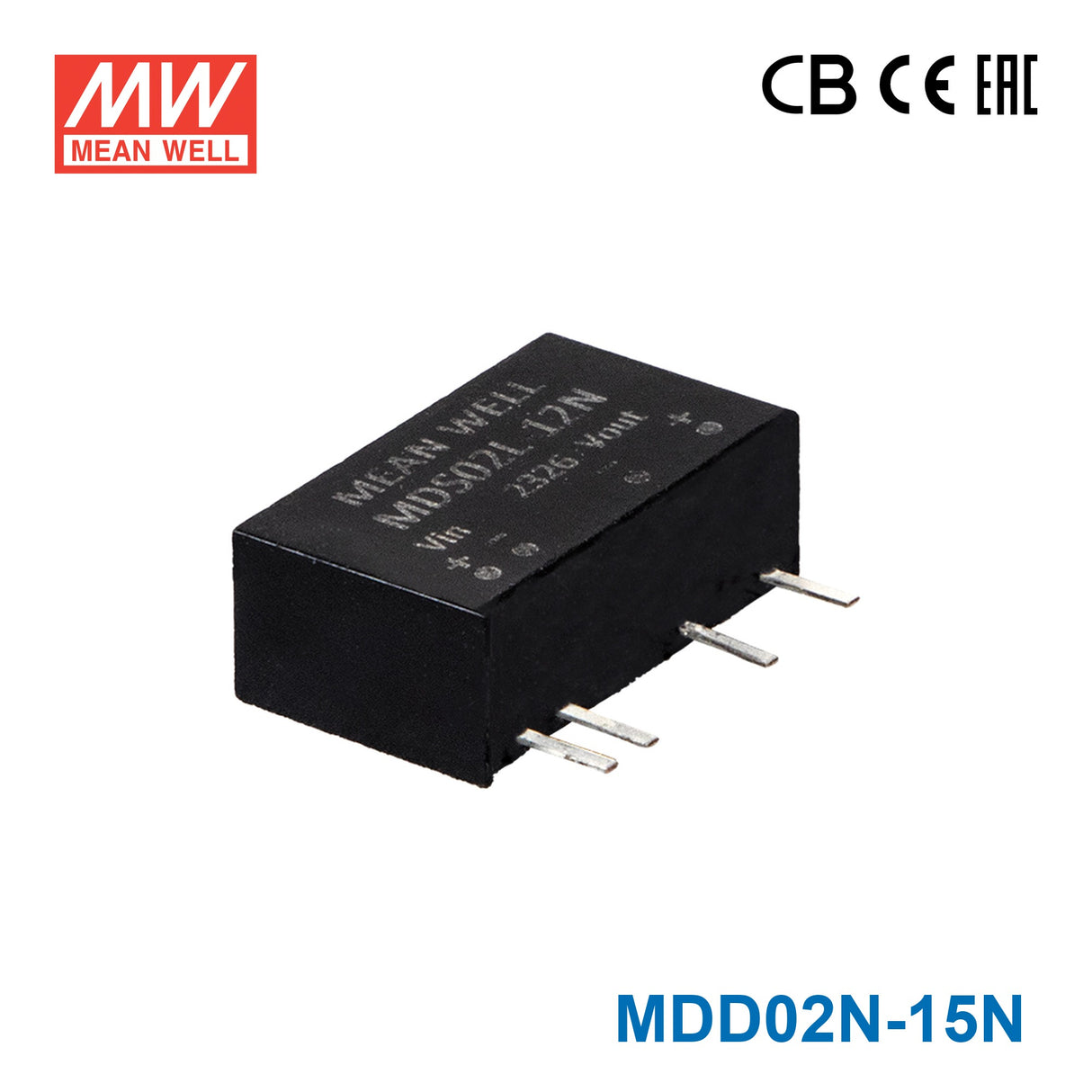

Mean Well MDD02N-15N SIP Package DC-DC Converter- 2W - ±15V Out 10mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.01 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well MDD02N-15N designed for?
The MDD02N-15N is a 2W SIP-package DC-DC converter intended for compact power conversion in electronic equipment. This model is suited to applications that need an isolated DC-DC module with a ±15V output option and reinforced 6KVDC input-to-output isolation.
What are the key electrical specs of the MDD02N-15N?
This model is rated for 2W output power and provides a ±15V output configuration. The product data also lists a rated current of 10 mA, along with continuous short-circuit protection and overload shutdown with automatic recovery when rated power reaches 102% or more.
Is the MDD02N-15N suitable for medical or safety-sensitive equipment?
Yes. The MDD02N-15N is described as medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP, and it has low patient leakage current below 2 microamps. It also carries CB, UL, EAC, CE, and UKCA safety certifications covering 62368-1 and 60601-1.
What operating temperature range can this DC-DC converter handle?
The MDD02N-15N is specified for operation from -40°C to +95°C. That wide range makes it a practical choice for equipment that may face both low-temperature starts and elevated internal enclosure temperatures.
How compact is the Mean Well MDD02N-15N?
This converter uses a SIP7 package with dimensions of 19.7 x 7.1 x 11.5 mm. Its listed weight is 2.8 g, making it a compact option where board space and overall assembly size matter.
What distinguishes the MDD02N-15N from more basic DC-DC converter modules?
Compared with basic low-cost converter modules, the MDD02N-15N stands out for its reinforced 6KVDC isolation, medical safety approvals, and very low patient leakage current. It also combines these features in a compact SIP7 form factor with a 3-year warranty.
