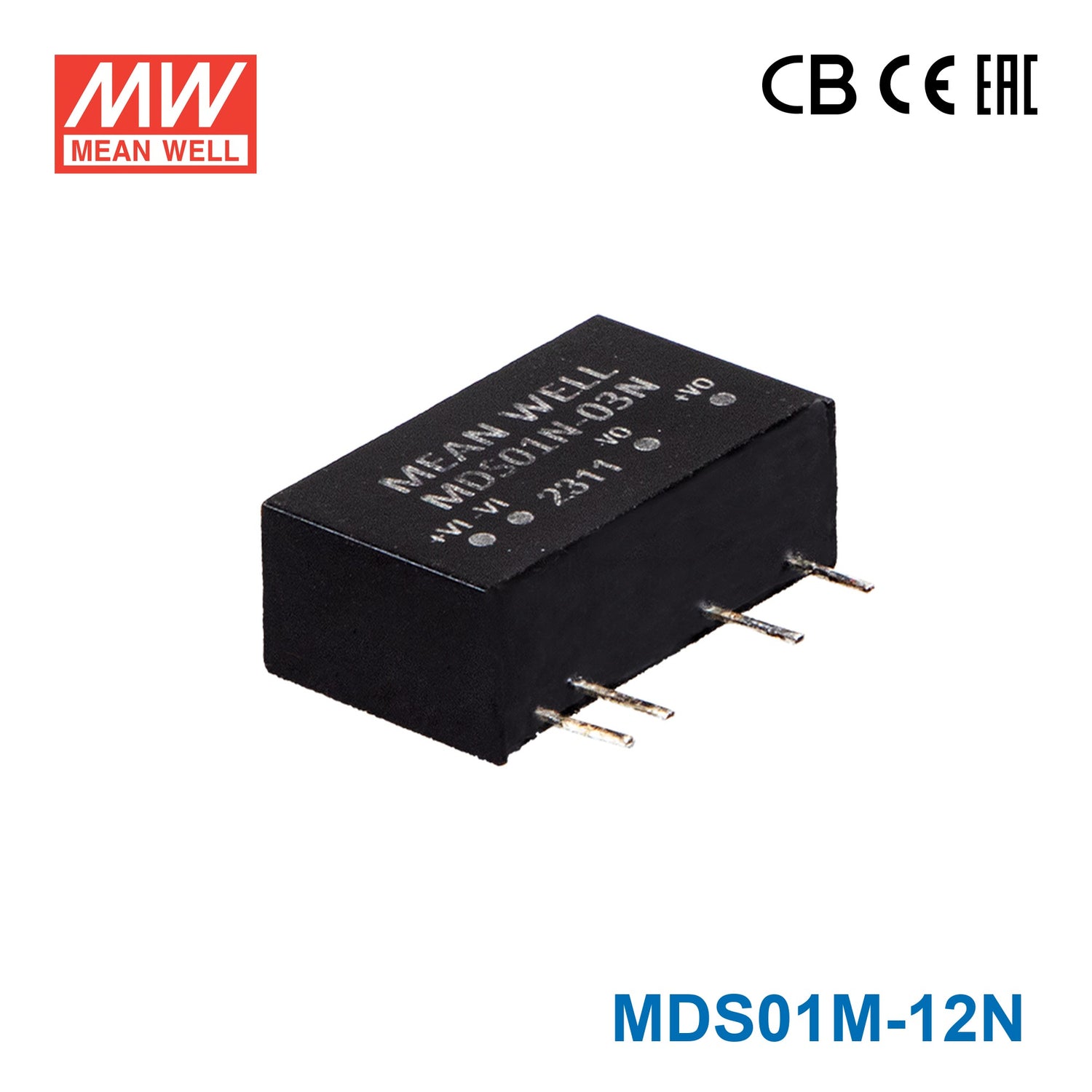

Mean Well MDS01M-12N SIP Package DC-DC Converter- 1W - 12V Out 15mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.01 Ampere
-
Input Voltage10.8V~13.2V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well MDS01M-12N designed for?
The MDS01M-12N is a 1W SIP-package DC-DC converter intended for compact embedded and industrial electronics that need a regulated 12V DC output. Its reinforced 6KVDC input-to-output isolation and medical safety approvals also make it relevant for equipment where isolation and low leakage current matter.
What are the key electrical specifications of the MDS01M-12N?
This model provides a single 12V DC output with a 1W power rating and a rated output current of 15mA. The product family supports several nominal input ranges, and the 12V-input version is specified for 10.8 to 13.2V DC input.
Is the MDS01M-12N suitable for medical or safety-sensitive equipment?
Yes. The product description states compliance with IEC/UL 62368-1 and LVD IEC60601-1, and it is medical safety approved to 1xMOPP/2xMOOP according to IEC60601-1. It also specifies low patient leakage current below 2uA, which is important in medical-related applications.
How does the MDS01M-12N perform in harsh temperature conditions?
The MDS01M-12N is rated for operation from -40C to +95C. That wide operating range makes it a practical option for equipment exposed to demanding industrial or enclosed-environment temperatures.
What protection and isolation features does this converter include?
This model includes continuous short-circuit protection and overload protection that shuts down the output when rated power reaches 102% or more, then automatically recovers. It also provides 6KVDC input-to-output isolation with reinforced insulation for applications that require strong electrical separation.
Why would a buyer choose the MDS01M-12N over a larger power converter?
The MDS01M-12N is optimized for low-power applications where compact size, isolation, and compliance matter more than higher output wattage. Its small 19.7 x 7.1 x 11.5 mm SIP7 form factor, 1W output, and medical-oriented safety credentials differentiate it from larger general-purpose DC-DC converters.
