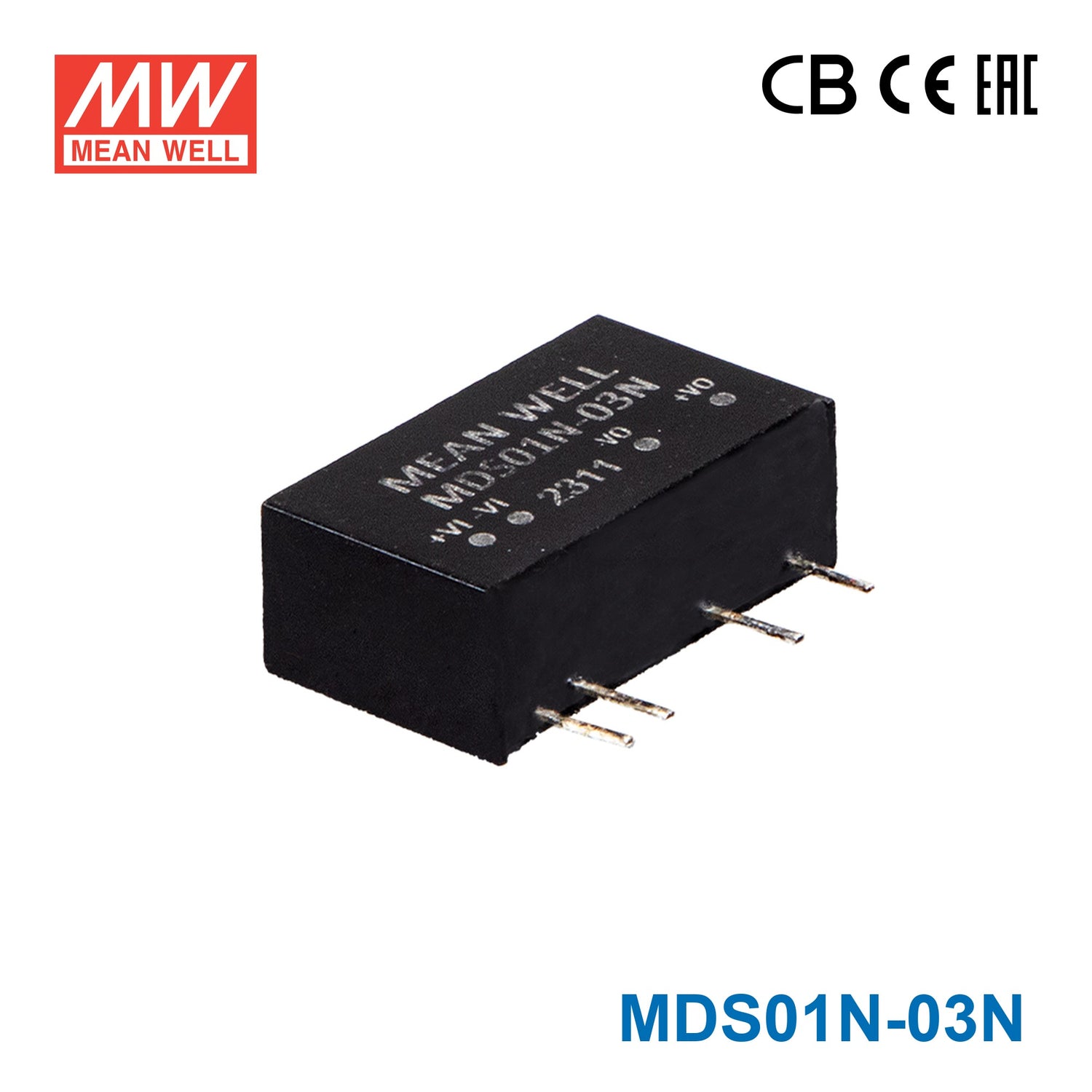

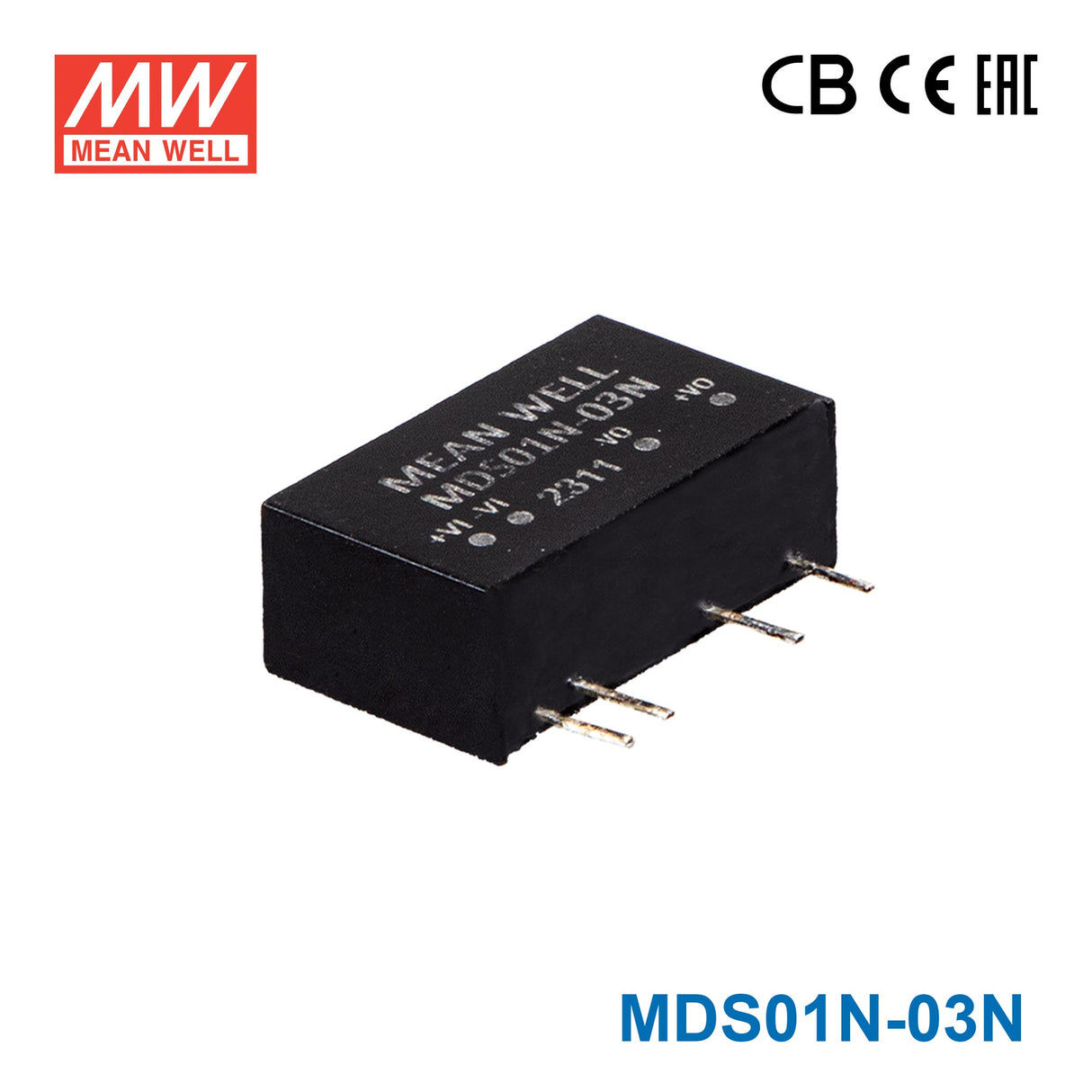

Mean Well MDS01N-03N SIP Package DC-DC Converter- 1W - 3.3V out 8mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating1 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.00 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well MDS01N-03N designed for?
The MDS01N-03N is a 1W SIP-package DC-DC converter for applications that need a regulated 3.3V DC output in a very compact form factor. It is suited to space-constrained electronic and industrial designs where reinforced isolation and medical-related safety approvals are important.
What are the key electrical specifications of the MDS01N-03N?
This model is rated for 1W output power and provides a 3.3V DC output. The MDS series supports multiple nominal input ranges by model family, and this series includes protections such as continuous short-circuit protection and overload shutdown with automatic recovery.
Is the MDS01N-03N suitable for medical or safety-critical equipment?
This converter is medical safety approved to IEC60601-1 with 1 x MOPP and 2 x MOOP stated in the product data. It also features 6KVDC input-to-output isolation and low patient leakage current below 2 microamps, which are useful characteristics for medically oriented designs.
What operating temperature range can the MDS01N-03N handle?
The specified operating temperature range is -40°C to +95°C. That makes it suitable for demanding environments where electronics may be exposed to both low and elevated temperatures.
How compact is the Mean Well MDS01N-03N?
The listed dimensions are 19.7 x 7.1 x 11.5 mm, and the product weight is 2.8 g. Its SIP7 package and small footprint make it useful where board space is limited.
What makes the MDS01N-03N different from a general-purpose low-cost DC-DC converter?
This model combines low power conversion with reinforced 6KVDC isolation, medical safety approvals, and low patient leakage current. That makes it a stronger fit for applications needing higher isolation and compliance credentials than a basic non-medical converter.
