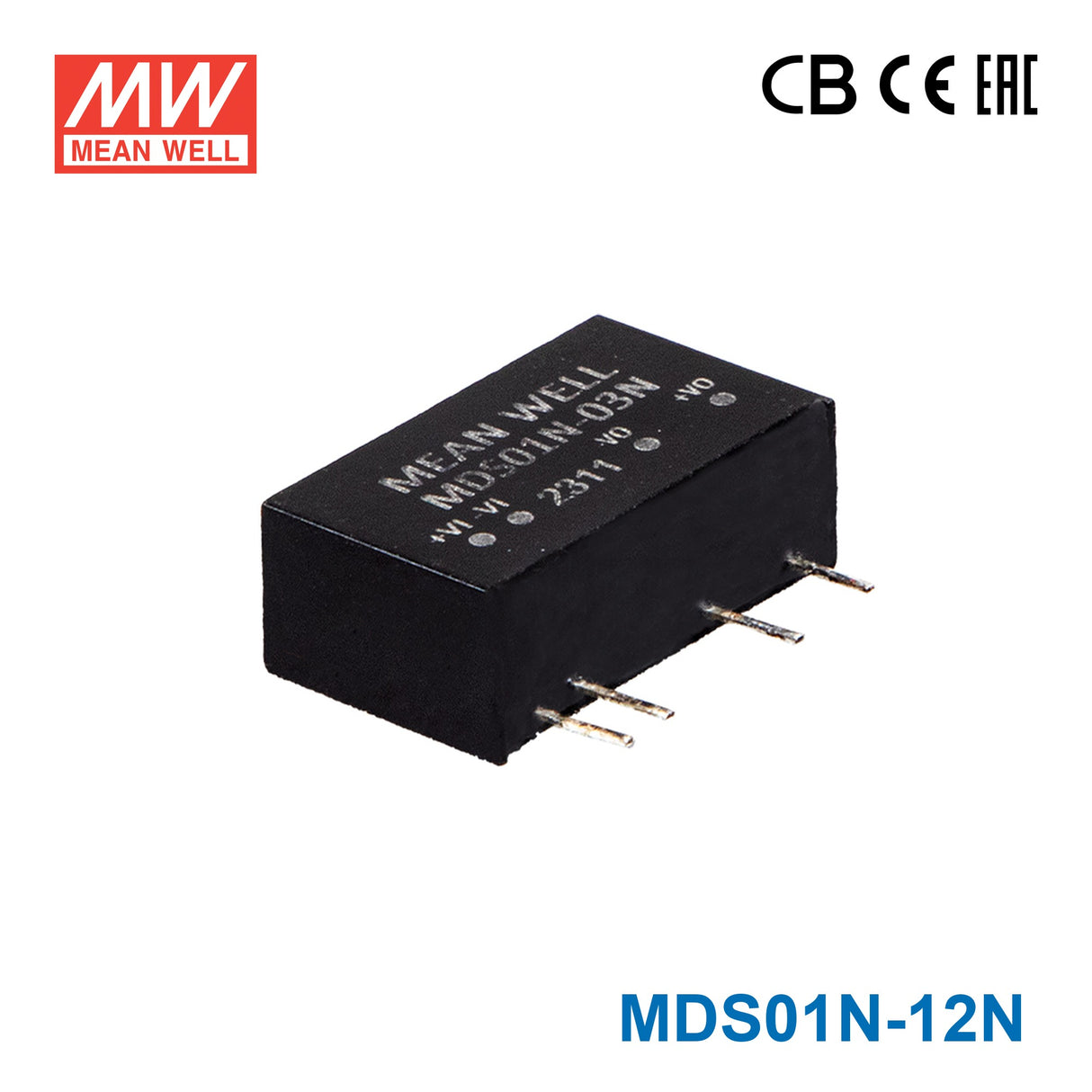

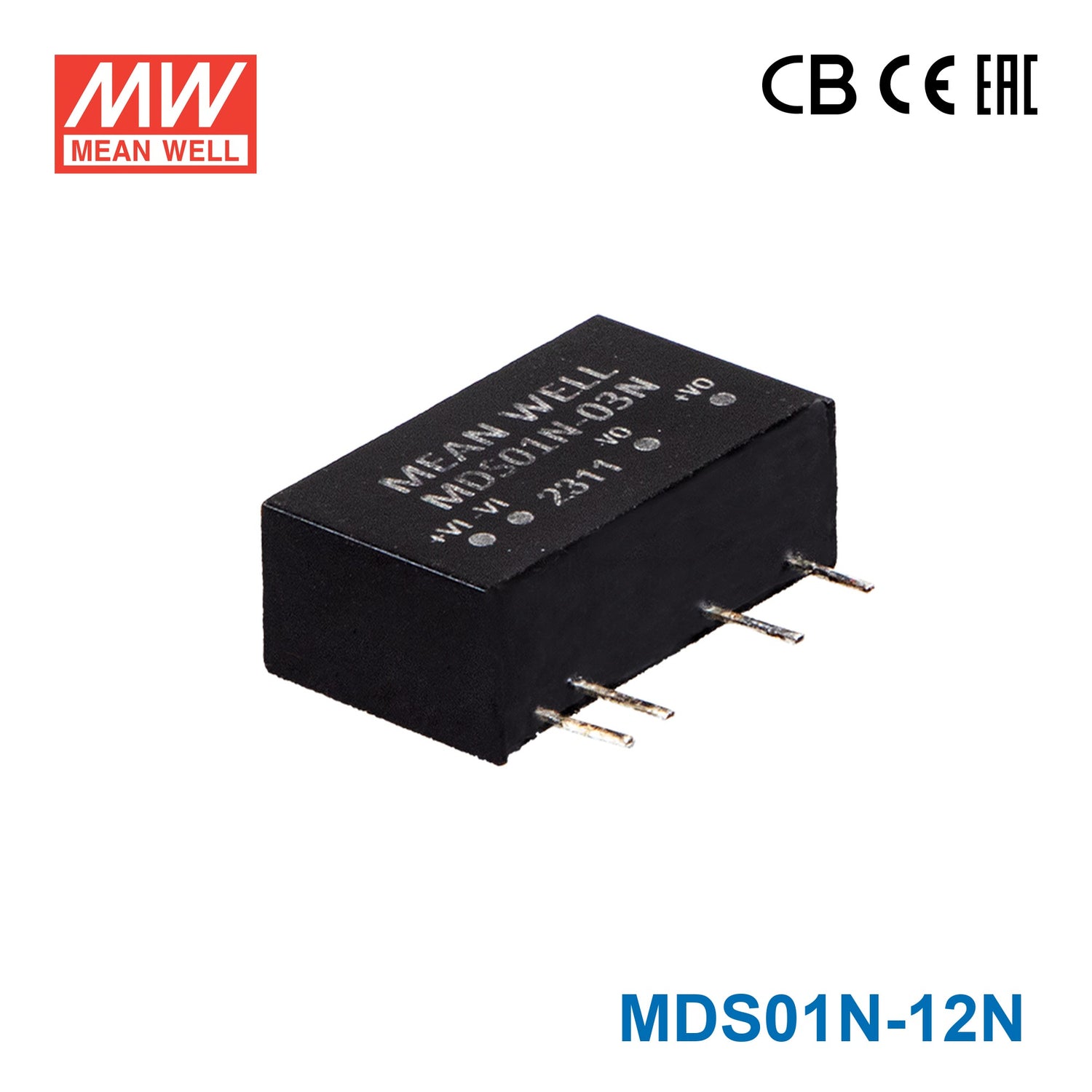

Mean Well MDS01N-12N SIP Package DC-DC Converter- 1W - 12V Out 8mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.00 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well MDS01N-12N designed for?
The MDS01N-12N is a 1W SIP-package DC-DC converter with a 12V output. It is intended for compact embedded and industrial electronics that need isolated DC-DC power conversion in a small footprint.
What output does the MDS01N-12N provide?
This model provides a single 12V DC output and is rated at 1W. It belongs to the Mean Well MDS01N series, which is built in a SIP7 package format.
Is the MDS01N-12N suitable for medical or safety-sensitive equipment?
Yes. The product description states compliance with IEC/UL 62368-1 and IEC60601-1, and it is listed as medically safety approved with 1xMOPP/2xMOOP. It also specifies low patient leakage current below 2uA.
How much isolation does the MDS01N-12N offer?
The MDS01N-12N is specified with 6KVDC input-to-output isolation. The description identifies this as reinforced insulation, which can be important in applications requiring strong isolation performance.
Can the MDS01N-12N be used in harsh temperature environments?
Yes. This model is rated for operation from -40°C to +95°C, which makes it suitable for demanding ambient conditions. Buyers should still confirm the rest of their system is rated for the same range.
What protection features are included on the MDS01N-12N?
The product includes continuous short-circuit protection. It also has overload protection that shuts down the output when rated power reaches 102% or more and then auto-recovers.
What are the physical size and warranty for the MDS01N-12N?
The listed dimensions are 19.7 x 7.1 x 11.5 mm, which supports use in space-constrained designs. Mean Well also lists a 3-year warranty for this model.
