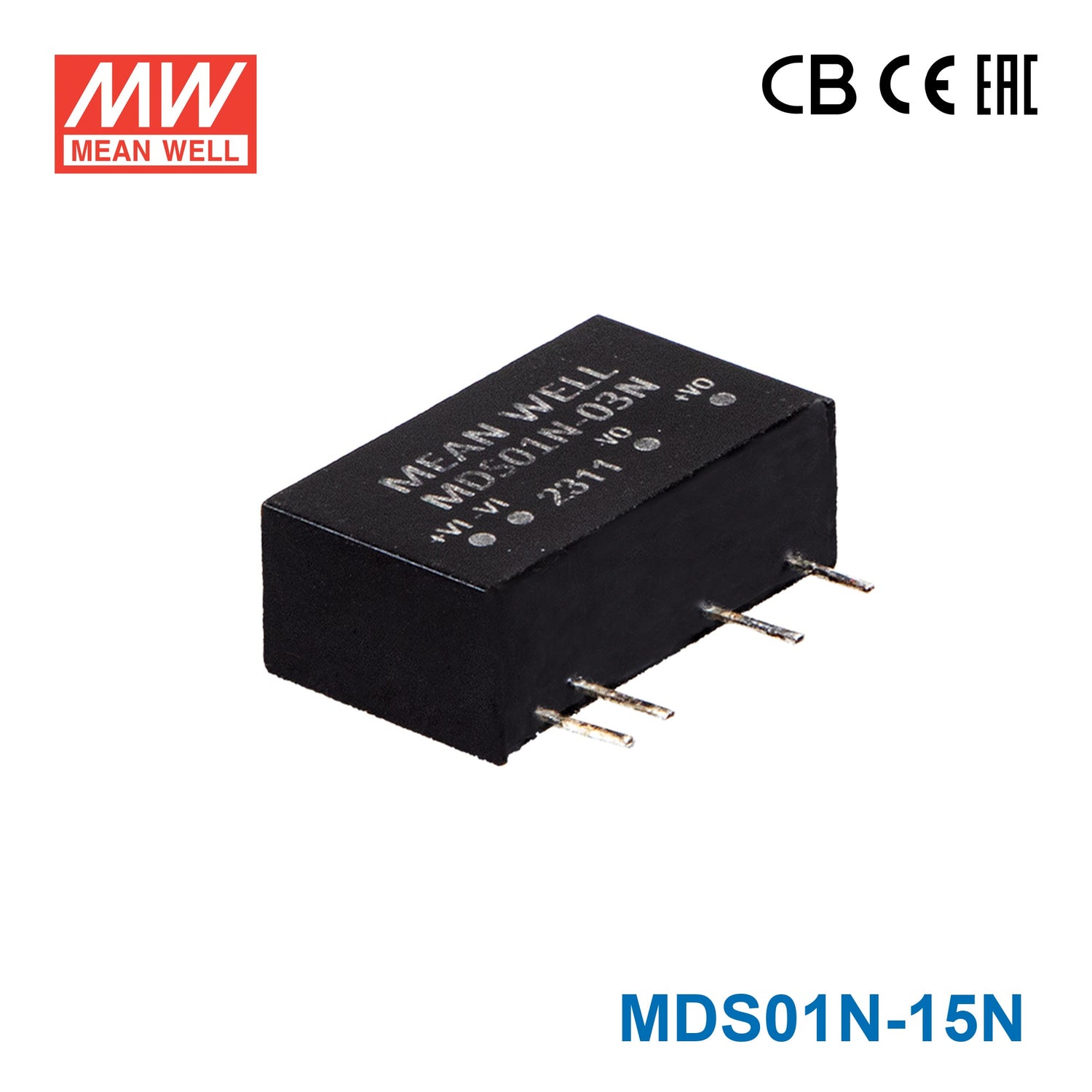

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well MDS01N-15N SIP Package DC-DC Converter- 1W - 15V Out 67mA

Input 21.6~26.4VSIP7 package with international standard pinoutmedical gradelow cost

SKU MDS01N-15N

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

MDS01N-15N is the 15V output model of this series: rated power 1W, typical efficiency 81%.

MDS01-N and MDD01-N series are 1W isolated and unregulated module type medical grade DC-DC converter with SIP7 package. It features international standard pins, a high efficiency up to 84%, wide working temperature range -40~+95℃, 6KVDC I/P-O/P hi-ght isolation voltage, short circuit protection, etc. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for medical systems, ultra low leakage current or industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP7 package with international standard pinout
Operating temperature range -40 ~ +95℃
Comply with IEC/UL62368-1 and LVD IEC60601-1
Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
Low patient leakage current <2μA
Protections: Short circuit (Continuous)
6KVDC hi-ght I/O isolation (Reinforced insulation)
Low cost
3 years warranty

Specifications

MDS01N-15NSpecifications from the official datasheet (2024-08-12 edition)

INPUT

INPUT VOLTAGE (RANGE): Normal 24V (21.6 ~ 26.4V)
VOLTAGE RANGE: 21.6 ~ 26.4Vdc
INPUT CURRENT (NO LOAD): 9mA
INPUT CURRENT (FULL LOAD): 52mA
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 500mA Slow-Blow Type for all models

OUTPUT

OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 7 ~ 67mA
EFFICIENCY^(Typ.): 81%
CAPACITOR LOAD^(Max.): 220μF
VOLTAGE ACCURACY: ±5.0%
RATED POWER: 1W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: ±15% for 3.3Vo, 5Vo ; ±10% for others
SWITCHING FREQUENCY^(Typ.): 30KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +95℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.02% / ℃ (0 ~ 90℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: IEC62368-1 / UL62368-1, LVD IEC60601-1, EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:6KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION LEVEL: Primary-secondary: 1xMOPP / 2xMOOP when system input voltage is with 250VAC
ISOLATION CAPACITANCE^(Typ.): 10pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032, BS EN/EN55011 Class A/B with external components
Radiated BS EN/EN55032, BS EN/EN55011 Class A/B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±4KV contact, Level 3, ±8KV air
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV / 5KHz
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line to Ground
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032, BS EN/EN55011	Class A/B with external components
Radiated	BS EN/EN55032, BS EN/EN55011	Class A/B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±4KV contact, Level 3, ±8KV air
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV / 5KHz
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line to Ground
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 15000Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.7*7.1*11.5mm (0.775*0.279*0.452 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 2.8g ; 24pcs/per tube, 2160pcs/90 tube/per carton

Test conditions and notes6

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.Patient leakage current(2μA max.) and reinforced isolation is based on a 250VAC, 50/60Hz system input voltage.
6.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

MDS01N-15N Mechanical Specification — Mechanical Specification

MDS01N-15N EMC Suggestion — EMC Suggestion

Typical applications

Downloads

Datasheet1

MDS01N-15N datasheetMDS01_N_spec.pdf · 2024-08-12 edition PDF Download

FAQ

What is the Mean Well MDS01N-15N designed for?

The MDS01N-15N is a compact 1W unregulated DC-DC converter module intended for low-power embedded and OEM applications that need an isolated 15V output. Its SIP7 package and small 19.7 x 7.1 x 11.5 mm footprint make it suitable for space-constrained electronics.

What output does this model provide?

This model provides a single 15V DC output and has a 1W power rating. It is part of Mean Well's MDS01N SIP-package converter range and is positioned for low-power conversion needs where a compact isolated module is required.

Is the MDS01N-15N suitable for medical or safety-sensitive equipment?

The series is approved to LVD IEC60601-1 with 1xMOPP and 2xMOOP when the system input voltage is within 250VAC, and it specifies a patient leakage current of 2 microamps max. Buyers evaluating regulated medical equipment should still confirm the exact certification fit for their end product and compliance pathway.

How much isolation does the MDS01N-15N provide?

The converter is specified with 6KVDC input-to-output isolation and reinforced isolation (based on a 250VAC system input voltage). That makes it a stronger fit for designs where electrical separation and low leakage are important selection criteria.

Can this DC-DC converter operate in harsh temperature conditions?

Yes. The MDS01N-15N is rated for operation from -40°C to +95°C, with load derating at higher temperatures per the derating curve, which supports use in demanding industrial and enclosed equipment environments within its overall design limits.

What protection features are included on the MDS01N-15N?

This model includes continuous short-circuit protection with automatic recovery, and the specification recommends a 500mA slow-blow fuse on the input. These protections help support product durability in low-power electronic systems.
