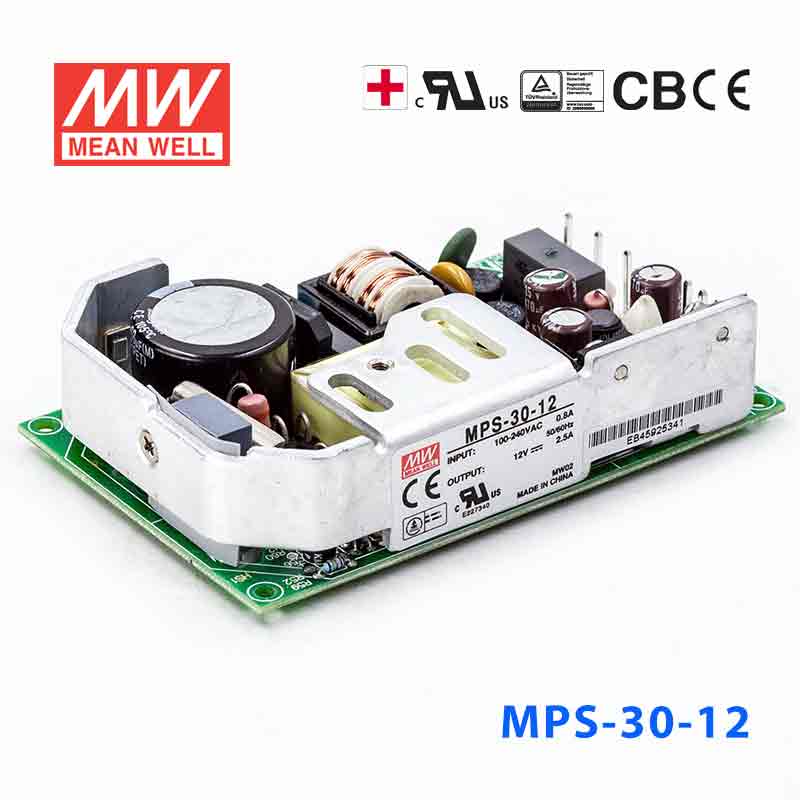

Mean Well MPS-30-12 Power Supply 30W 12V
Please Login for Pricing
Description
Description
MEAN WELL MPS-30 Series Power Supplies are 30W singlel output medical type power supplies low cost ,high reliability with 3 years warranty.
Features
- Universal AC input / Full range
- Low leakage current <200pA
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Medical safety approved (2 x MOPP between primary to secondary)
- Fixed switching frequency at 100KHz
- Low cost
- High reliability
- 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length10.16 cm
-
Width6.58 cm
-
Height2.35 cm
-
Weight0.16 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPS-30 Models
5 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well MPS-30-5 Power Supply 30W 5V | 25W | 5V | 5A | View |
| Mean Well MPS-30-48 Power Supply 30W 48V | 28.8W | 48V | 0.6A | View |
| Mean Well MPS-30-27 Power Supply 30W 27V | 29.7W | 27V | 1.1A | View |
| Mean Well MPS-30-24 Power Supply 30W 24V | 28.8W | 24V | 1.2A | View |
| Mean Well MPS-30-15 Power Supply 30W 15V | 30W | 15V | 2A | View |
{
