Mean Well

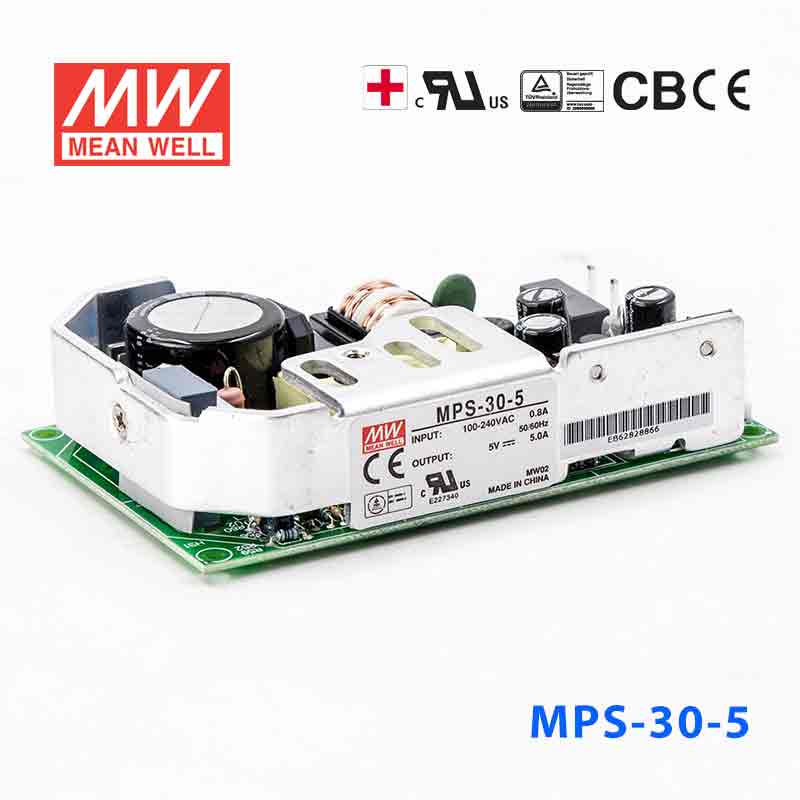

Mean Well MPS-30-5 Power Supply 30W 5V 5A

SKU MPS-30-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by RPS-30-5
Available to order
|

Overview

MPS-30-5 is the 5V output model of this series: rated current 5A, rated power 25W, typical efficiency 72%.

Features

  • Universal AC input / Full range
  • Low leakage current <200μA
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Medical safety approved (2 x MOPP between primary to secondary)
  • Fixed switching frequency at 100KHz
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

MPS-30-5Specifications from the official datasheet (2021-09-15 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
5A
CURRENT RANGE
0 ~ 5A
RATED POWER
25W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE TOLERANCENote.3
±3.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP, RISE TIME
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
70ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC auto switch 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
72%
AC CURRENT (Typ.)
0.8A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/230VAC
LEAKAGE CURRENT
Earth leakage current < 200μA/264VAC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.5 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:SHORT
ISOLATION RESISTANCE
I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, medical level, criteria A

OTHERS

MTBF
547Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
101.6*65.8*23.5mm (L*W*H)
PACKING
0.16Kg; 90pcs/15.8Kg/1.06CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
  5. 5. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.

Technical drawings

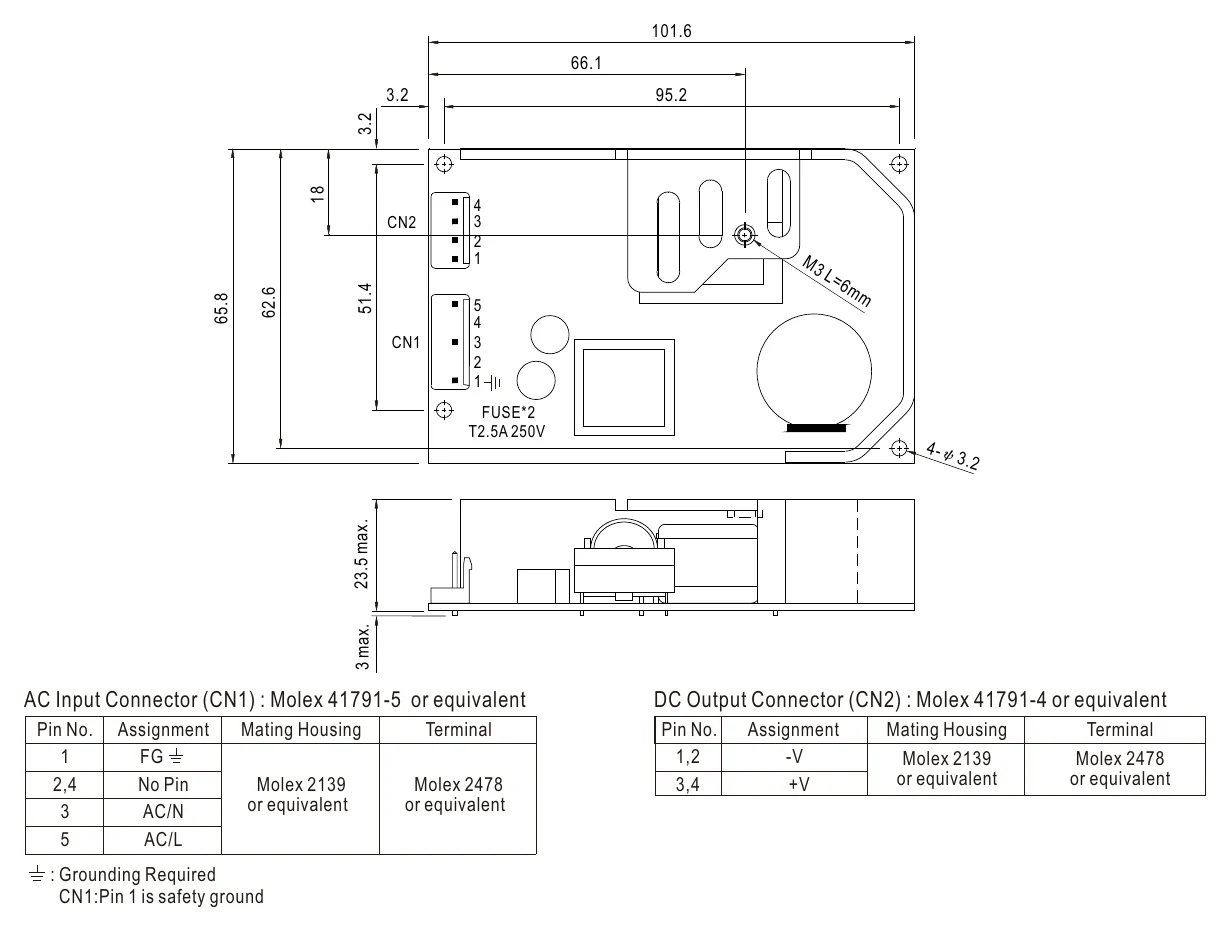

MPS-30-5 Mechanical Specification
Mechanical Specification

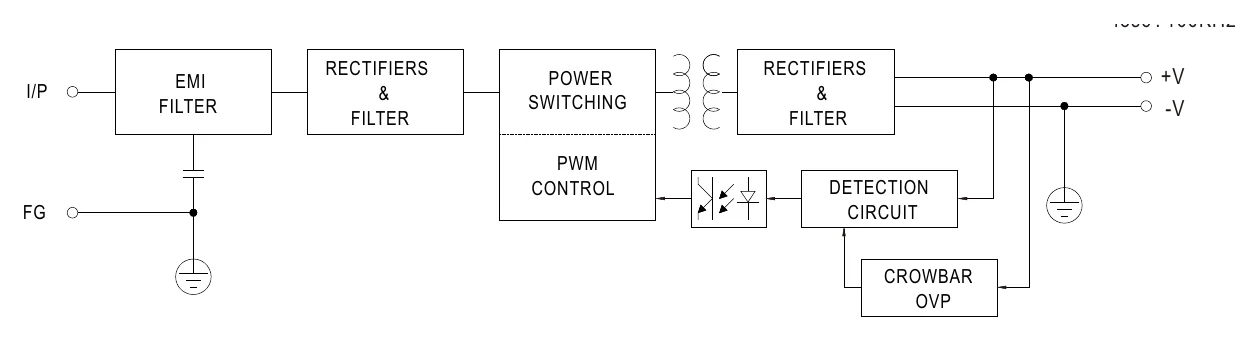

MPS-30-5 Block Diagram
Block Diagram

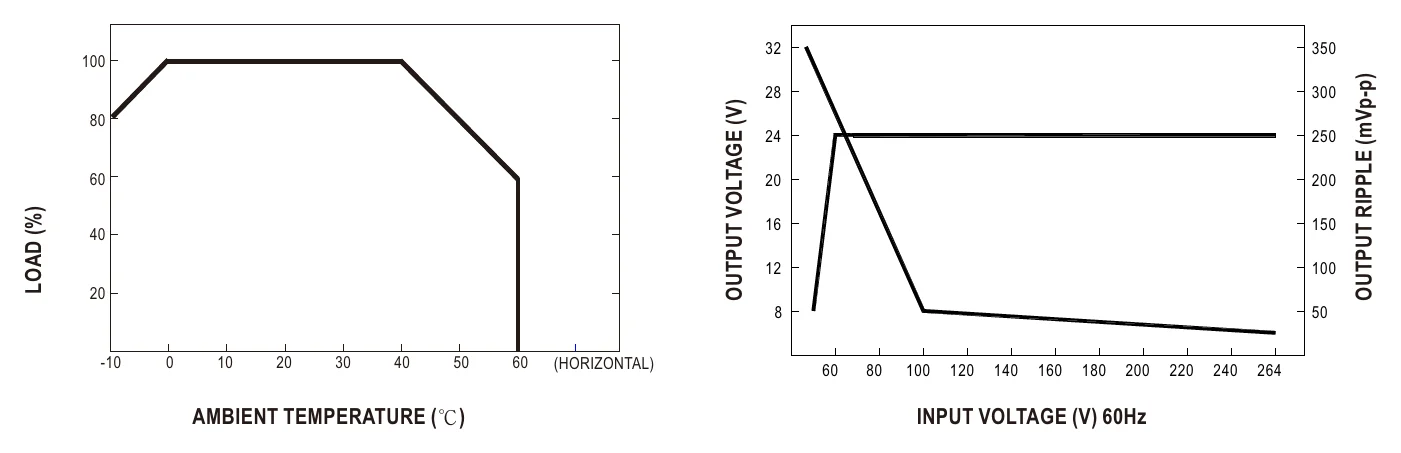

MPS-30-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MPS-30-5 for a 5V embedded controller or industrial single-board computer?

Yes, if the device needs constant-voltage 5V DC and the total draw stays within 5A. This model is rated for 25W, which suits many compact 5V logic and embedded loads.

Is this power supply suitable for 5V automation electronics or a sensor-processing board?

It can support 5V automation electronics as long as the combined load does not exceed 25W or 5A. That makes it more appropriate for lower-power 5V control electronics than for larger mixed loads.

Can the MPS-30-5 power a small 5V industrial interface or HMI accessory?

It is intended for constant-voltage 5V applications and provides up to 5A of output current. The 88-264VAC input range also helps when the equipment may be deployed on different AC mains systems.

Is the MPS-30-5 designed for indoor or outdoor use?

The unit is specified for operation from -10°C to +60°C. No IP rating is listed in the product data, so the specs support temperature limits but do not identify it as an outdoor-rated model.

How does the MPS-30-5 compare with the other compact MPS voltage options?

The related small-output models are MPS-30-12 at 30W, 12V, 2.5A; MPS-30-15 at 30W, 15V, 2A; MPS-30-24 at 28.8W, 24V, 1.2A; MPS-30-27 at 29.7W, 27V, 1.1A; and MPS-30-48 at 28.8W, 48V, 0.6A. The MPS-30-5 version is the 25W, 5V, 5A member of that group.
