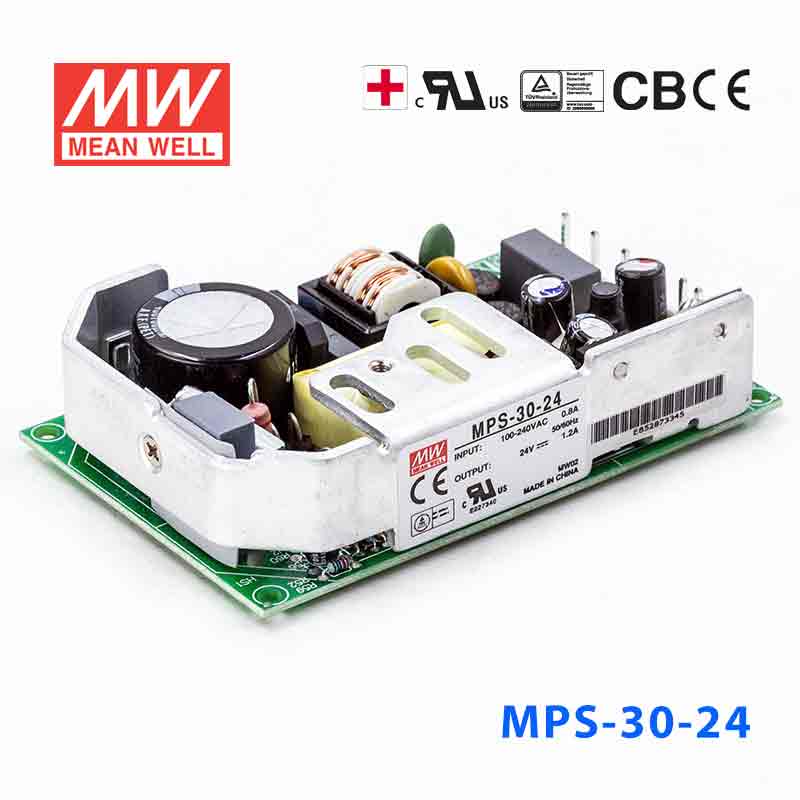

Mean Well MPS-30-24 Power Supply 30W 24V 1.2A

SKU MPS-30-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by RPS-30-24
In stock
|

Overview

MPS-30-24 is the 24V output model of this series: rated current 1.2A, rated power 28.8W, typical efficiency 77%.

Features

  • Universal AC input / Full range
  • Low leakage current <200μA
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Medical safety approved (2 x MOPP between primary to secondary)
  • Fixed switching frequency at 100KHz
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

MPS-30-24Specifications from the official datasheet (2021-09-15 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
1.2A
CURRENT RANGE
0 ~ 1.2A
RATED POWER
28.8W
RIPPLE & NOISE (max.)Note.2
240mVp-p
VOLTAGE TOLERANCENote.3
±3.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
70ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC auto switch 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
77%
AC CURRENT (Typ.)
0.8A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/230VAC
LEAKAGE CURRENT
Earth leakage current < 200μA/264VAC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
26.4 ~ 32.4V Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:SHORT
ISOLATION RESISTANCE
I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, medical level, criteria A

OTHERS

MTBF
547Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
101.6*65.8*23.5mm (L*W*H)
PACKING
0.16Kg; 90pcs/15.8Kg/1.06CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
  5. 5. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.

Technical drawings

MPS-30-24 Mechanical Specification
Mechanical Specification
MPS-30-24 Block Diagram
Block Diagram
MPS-30-24 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MPS-30-24 for a 24V PLC accessory or control module?

Yes, if the device needs constant-voltage 24V DC and its demand stays at or below 1.2A. The unit is rated for 28.8W total output, which fits lower-power 24V industrial electronics.

Is this a good fit for a small 24V automation sensor or relay load?

It can support 24V automation components as long as the total load does not exceed 1.2A or 28.8W. For larger 24V loads, a higher-current power supply would be a better fit.

Can the MPS-30-24 power a compact 24V embedded or industrial communications device?

It is appropriate for compact 24V DC equipment that operates within the 28.8W output ceiling. The 88-264VAC input range is useful where the equipment may be used with different AC input standards.

Can this power supply be used in an enclosed indoor panel with varying temperatures?

The specified operating range is -10°C to +60°C, so it is intended for use within that temperature span. Because no IP rating is listed, the specs do not support treating it as an outdoor or washdown-rated model.

What are the main differences between the MPS-30-24 and the other lower-power MPS voltage options?

In the smaller-output group, MPS-30-5 is 25W, 5V, 5A; MPS-30-12 is 30W, 12V, 2.5A; MPS-30-15 is 30W, 15V, 2A; MPS-30-27 is 29.7W, 27V, 1.1A; and MPS-30-48 is 28.8W, 48V, 0.6A. The MPS-30-24 version is rated at 28.8W, 24V, 1.2A.
