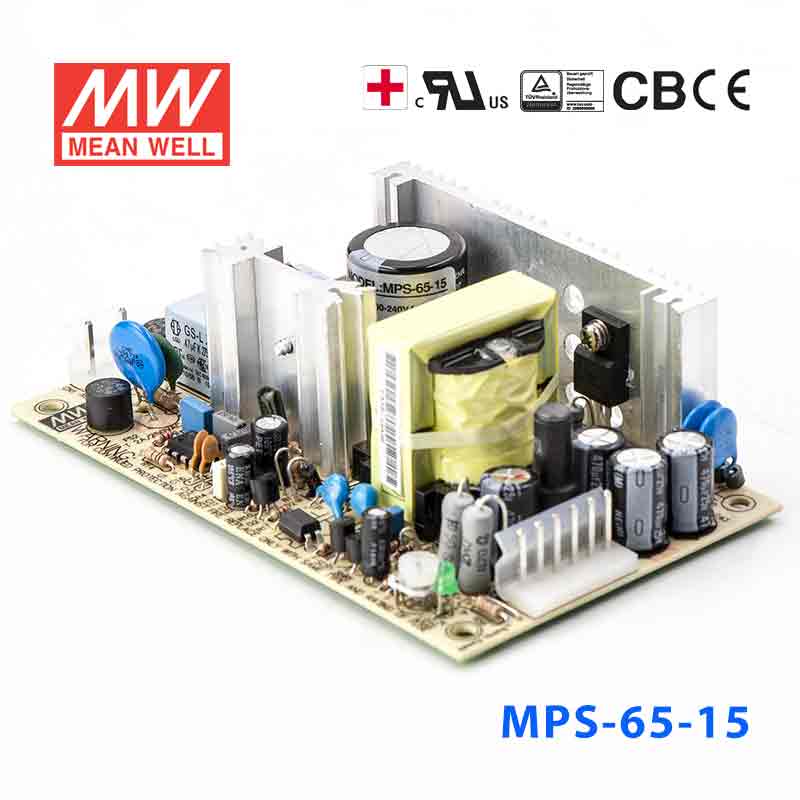

Mean Well MPS-65-15 Power Supply 65W 15V 4.2A

SKU MPS-65-15

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by RPS-65-15

Available to order

Overview

MPS-65-15 is the 15V output model of this series: rated current 4.2A, rated power 63W, typical efficiency 79%.

Features

Universal AC input / Full range
Low leakage current <250μA
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Medical safety approved (2 x MOPP between primary to secondary)
100% full load burn-in test
Fixed switching frequency at 45KHz
3 years warranty

Specifications

MPS-65-15Specifications from the official datasheet (2021-09-15 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 4.2A
CURRENT RANGE: 0 ~ 4.8A
RATED POWER: 63W
OUTPUT POWER (max.): 72W(+3.3V:50W;+5V:69W)with 18CFM min. Forced air convection
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 16.5V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 800ms, 30ms/230VAC 800ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 79%
AC CURRENT (Typ.): 1.6A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ.): COLD START 17A/115VAC 40A/230VAC
LEAKAGE CURRENT^Note.7: Earth leakage current < 250μA/264VAC , Touch current < 60μA/264VAC

PROTECTION

OVERLOAD: 73 ~ 105W (3.3V:51 ~ 75W)(5V:70 ~ 105W) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.25 ~ 20.25V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A

OTHERS

MTBF: 359.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 127*76*42mm (L*W*H)
PACKING: 0.23Kg; 54pcs/14.6Kg/1.28CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
5. Mounting holes M1 and M2 should be grounded for EMI purposes.
6. Heat Sink HS1,HS2 can not be shorted.
7. Touch current was measured from primary input to DC output.

Technical drawings

MPS-65-15 Mechanical Specification — Mechanical Specification

MPS-65-15 Derating Curve — Derating Curve

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MPS-65-15 for 15V industrial sensors, controllers, or interface modules?

It is suitable where the equipment is specified for constant 15V DC and the total draw does not exceed 4.2A or 63W. That makes it relevant for small industrial control, sensing, and interface loads built around a 15V rail. The input range is 90-264VAC.

Is this a good fit for 15V embedded systems or electronics cabinets?

It can be used for embedded or cabinet-mounted electronics that require a steady 15V output and stay within 4.2A. The unit provides constant-voltage operation, which is the key requirement for many DC-powered electronic assemblies. Its size is 127.0 x 76.0 x 42.0 mm.

Can the MPS-65-15 power light automation or instrumentation loads that run on 15V DC?

Yes, if those automation or instrumentation loads are rated for 15V DC and the combined load is no more than 63W. The rated output current is 4.2A, so it fits lighter-duty 15V systems rather than higher-current applications. It is not the right choice for 12V, 24V, or 48V equipment.

What are the differences between the MPS-65-15 and the other MPS-65 versions?

The MPS-65 family includes 3.3V 12A 39.6W, 5V 12A 60W, 7.5V 8A 60W, 12V 5.2A 62.4W, 13.5V 4.7A 63.45W, 15V 4.2A 63W, 24V 2.7A 64.8W, 27V 2.4A 64.8W, and 48V 1.35A 64.8W models. The 15V version sits in the middle of the range with 4.2A output current. Selection comes down to matching the exact DC voltage your equipment requires.

Can this 15V power supply be used in cold or warm indoor equipment environments?

The stated operating temperature range is -10°C to +60°C, so it is specified for that ambient range. No IP rating is listed in the provided data, so the specs do not describe it as weatherproof or sealed for outdoor exposure. It is best evaluated as a protected-location power supply unless the installation adds enclosure protection.
