Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

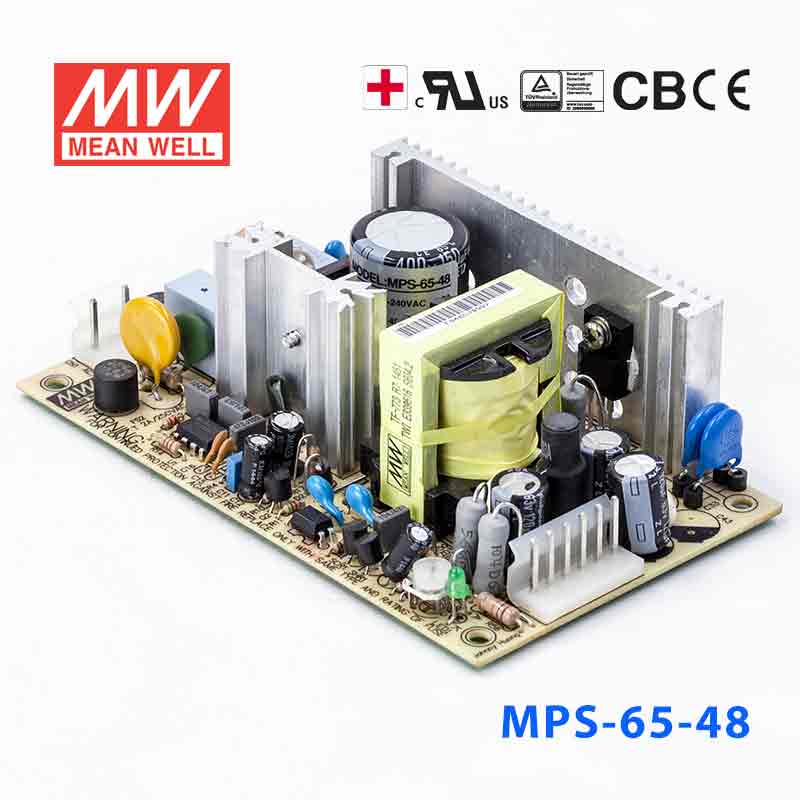

Mean Well MPS-65-48 Power Supply 65W 48V 1.35A

SKU MPS-65-48

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by RPS-65-48

Available to order

Overview

MPS-65-48 is the 48V output model of this series: rated current 1.35A, rated power 64.8W, typical efficiency 80%.

Features

Universal AC input / Full range
Low leakage current <250μA
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Medical safety approved (2 x MOPP between primary to secondary)
100% full load burn-in test
Fixed switching frequency at 45KHz
3 years warranty

Specifications

MPS-65-48Specifications from the official datasheet (2021-09-15 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 1.35A
CURRENT RANGE: 0 ~ 1.5A
RATED POWER: 64.8W
OUTPUT POWER (max.): 72W(+3.3V:50W;+5V:69W)with 18CFM min. Forced air convection
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 43.2 ~ 52.8V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 800ms, 30ms/230VAC 800ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 80%
AC CURRENT (Typ.): 1.6A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ.): COLD START 17A/115VAC 40A/230VAC
LEAKAGE CURRENT^Note.7: Earth leakage current < 250μA/264VAC , Touch current < 60μA/264VAC

PROTECTION

OVERLOAD: 73 ~ 105W (3.3V:51 ~ 75W)(5V:70 ~ 105W) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 55.2 ~ 64.8V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A

OTHERS

MTBF: 359.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 127*76*42mm (L*W*H)
PACKING: 0.23Kg; 54pcs/14.6Kg/1.28CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
5. Mounting holes M1 and M2 should be grounded for EMI purposes.
6. Heat Sink HS1,HS2 can not be shorted.
7. Touch current was measured from primary input to DC output.

Technical drawings

MPS-65-48 Mechanical Specification — Mechanical Specification

MPS-65-48 Derating Curve — Derating Curve

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MPS-65-48 for a 48V PLC, sensor, or industrial control load?

Yes, this model is a constant-voltage 48V supply rated for 1.35A and 64.8W. It fits industrial or automation equipment that requires a regulated 48V DC input and stays within that current and power limit.

Is the MPS-65-48 suitable for 48V embedded or communications hardware?

It can be used for embedded or communications equipment that needs a constant 48V output and draws no more than 1.35A. The wide 90-264VAC input also supports installations where the AC source may vary across regions.

Can this power supply run a low-power 48V automation node instead of a higher-wattage 48V unit?

Yes, if the load is within 64.8W and 1.35A at 48V, this model is sized for lower-power 48V applications. Larger 48V loads need a higher-rated supply than this model.

Can I use the MPS-65-48 for indoor industrial equipment in normal plant conditions?

The published operating temperature range is -10°C to +60°C, so it is specified for that temperature window. No IP rating is listed in the provided specs, so outdoor or washdown use is not defined by this product data.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well MPS-65-7.5Power Supply 65W 7.5V 8A	60W	7.5V	8A	View
Mean Well MPS-65-5 Power Supply 65W 5V 12A	60W	5V	12A	View
Mean Well MPS-65-3.3 Power Supply 65W 3.3V 12A	39.6W	3.3V	12A	View
Mean Well MPS-65-27 Power Supply 65W 27V 2.4A	64.8W	27V	2.4A	View
Mean Well MPS-65-24 Power Supply 65W 24V 2.7A	64.8W	24V	2.7A	View
Mean Well MPS-65-15 Power Supply 65W 15V 4.2A	63W	15V	4.2A	View
Mean Well MPS-65-13.5 Power Supply 65W 13.5V 4.7A	63.45W	13.5V	4.7A	View
Mean Well MPS-65-12 Power Supply 65W 12V 5.2A	62.4W	12V	5.2A	View
