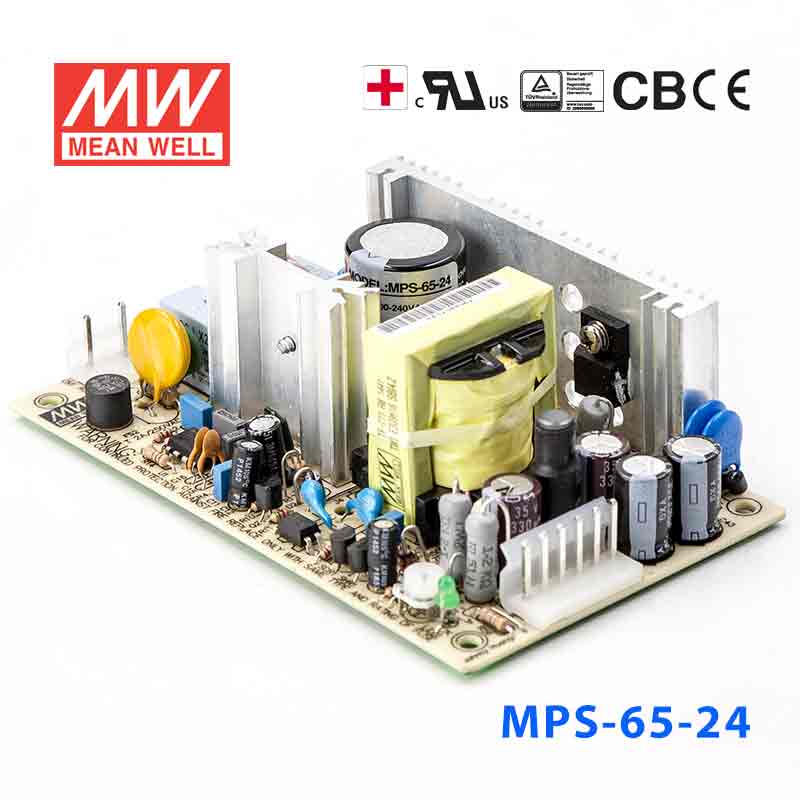

Mean Well MPS-65-24 Power Supply 65W 24V 2.7A

SKU MPS-65-24

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by RPS-65-24

Available to order

Overview

MPS-65-24 is the 24V output model of this series: rated current 2.7A, rated power 64.8W, typical efficiency 80%.

Features

Universal AC input / Full range
Low leakage current <250μA
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Medical safety approved (2 x MOPP between primary to secondary)
100% full load burn-in test
Fixed switching frequency at 45KHz
3 years warranty

Specifications

MPS-65-24Specifications from the official datasheet (2021-09-15 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 2.7A
CURRENT RANGE: 0 ~ 3A
RATED POWER: 64.8W
OUTPUT POWER (max.): 72W(+3.3V:50W;+5V:69W)with 18CFM min. Forced air convection
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 21.6 ~ 26.4V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 800ms, 30ms/230VAC 800ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 80%
AC CURRENT (Typ.): 1.6A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ.): COLD START 17A/115VAC 40A/230VAC
LEAKAGE CURRENT^Note.7: Earth leakage current < 250μA/264VAC , Touch current < 60μA/264VAC

PROTECTION

OVERLOAD: 73 ~ 105W (3.3V:51 ~ 75W)(5V:70 ~ 105W) rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 27.6 ~ 32.4V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level, criteria A

OTHERS

MTBF: 359.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 127*76*42mm (L*W*H)
PACKING: 0.23Kg; 54pcs/14.6Kg/1.28CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
5. Mounting holes M1 and M2 should be grounded for EMI purposes.
6. Heat Sink HS1,HS2 can not be shorted.
7. Touch current was measured from primary input to DC output.

Technical drawings

MPS-65-24 Mechanical Specification — Mechanical Specification

MPS-65-24 Derating Curve — Derating Curve

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MPS-65-24 for 24V PLC, relay, or automation control loads?

Yes, if the equipment requires constant 24V DC and the total load stays within 2.7A and 64.8W. That aligns with many lower-power industrial automation and control applications built around a 24V rail. The input range is 90-264VAC.

Is the MPS-65-24 suitable for 24V sensors, actuators, or industrial I/O hardware?

It can fit 24V DC hardware where the combined current requirement is no more than 2.7A. For sensor groups, I/O modules, or small actuators that stay inside that limit, the constant-voltage output is appropriate. It should not be selected for loads that need more than 64.8W.

Can this model power 24V embedded or telecom support electronics?

It is a possible fit for embedded or support electronics designed for a 24V constant-voltage input and drawing up to 2.7A. The compact dimensions of 127.0 x 76.0 x 42.0 mm can help in tight cabinets or equipment housings. Confirm that the downstream electronics are specified for 24V DC.

How does the MPS-65-24 compare with other MPS-65 output variants?

The MPS-65 series includes 3.3V 12A 39.6W, 5V 12A 60W, 7.5V 8A 60W, 12V 5.2A 62.4W, 13.5V 4.7A 63.45W, 15V 4.2A 63W, 24V 2.7A 64.8W, 27V 2.4A 64.8W, and 48V 1.35A 64.8W versions. This model is the 24V option and provides 2.7A. The family keeps a similar form factor while changing the DC output rating.

Is the MPS-65-24 rated for outdoor or washdown conditions?

The available specifications show an operating temperature range of -10°C to +60°C, but they do not include an IP rating. Without an IP rating in the listing, it should not be treated as a sealed outdoor or washdown power supply. It is more appropriate for protected indoor environments or an enclosure that provides the required protection.
