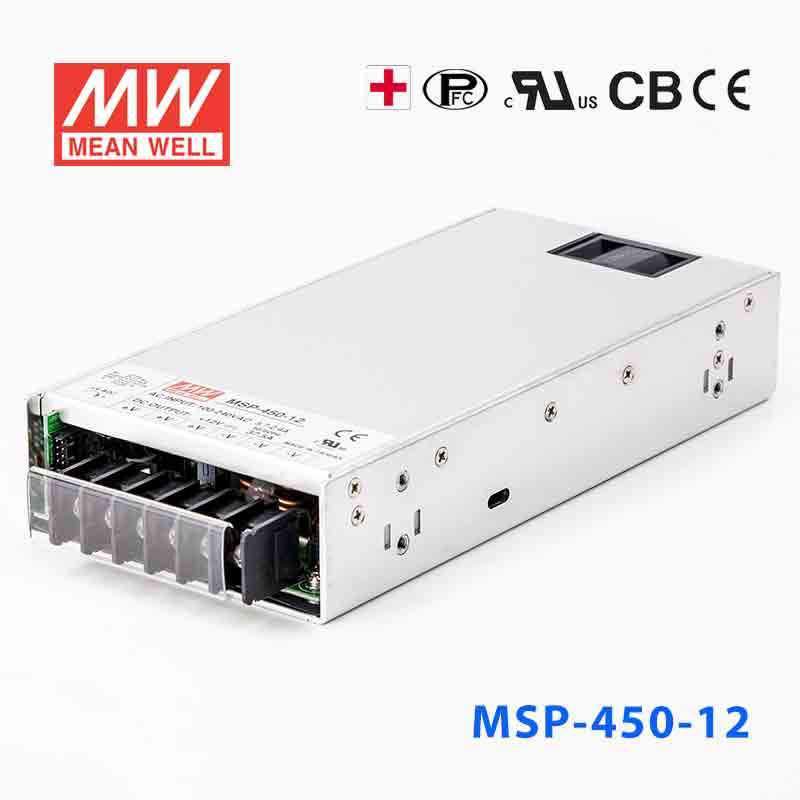

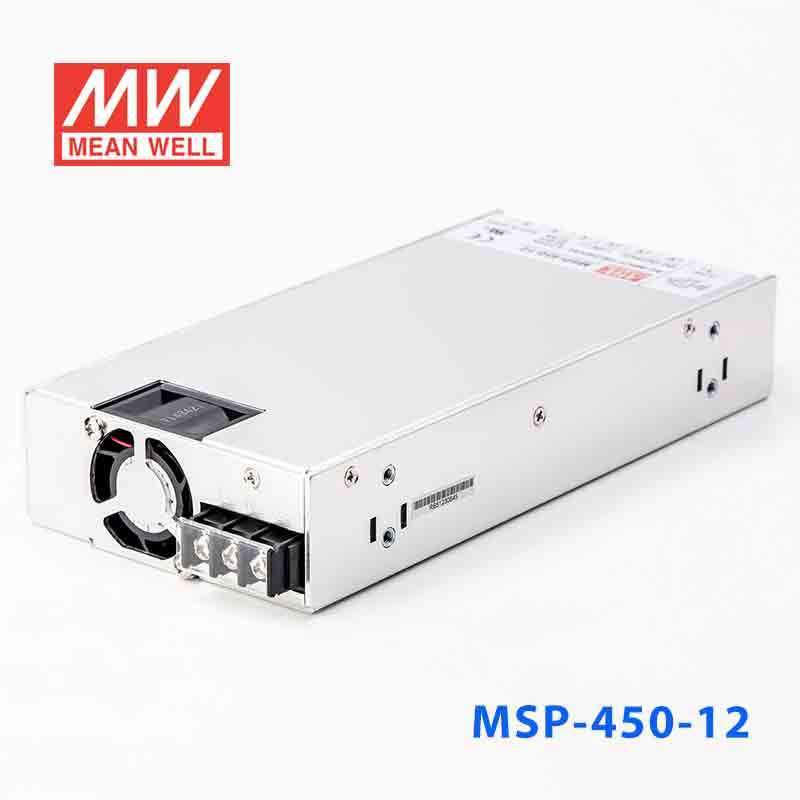

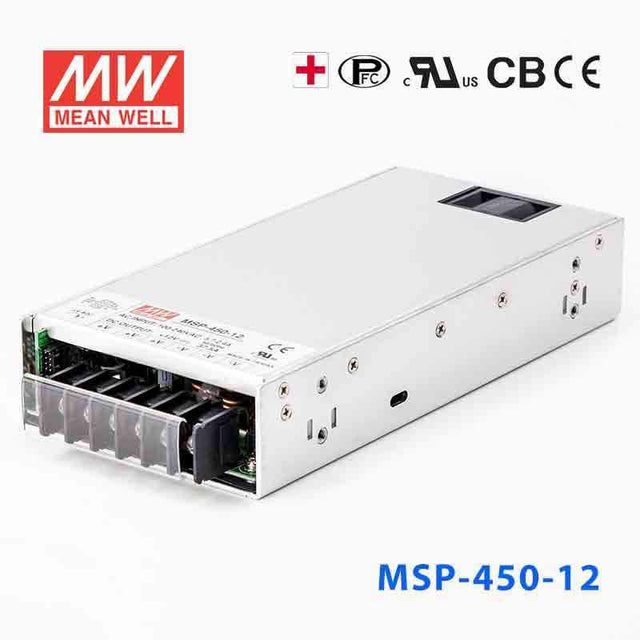

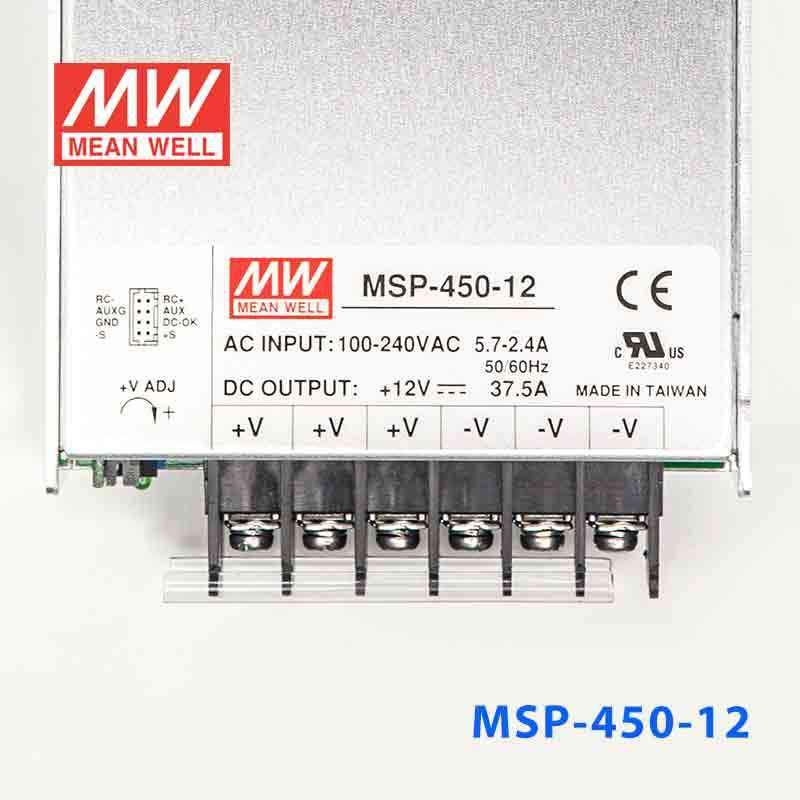

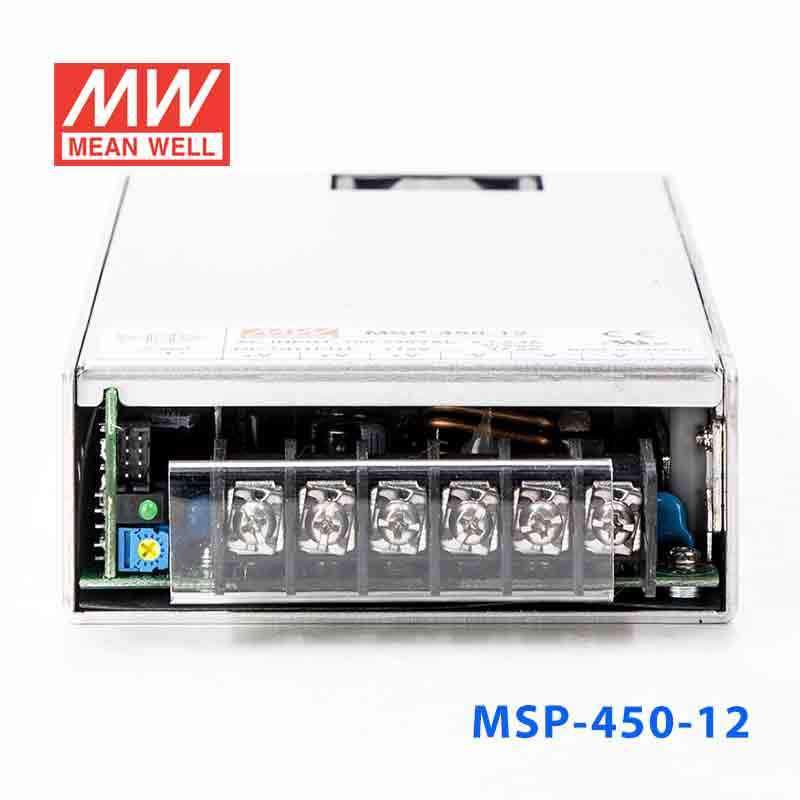

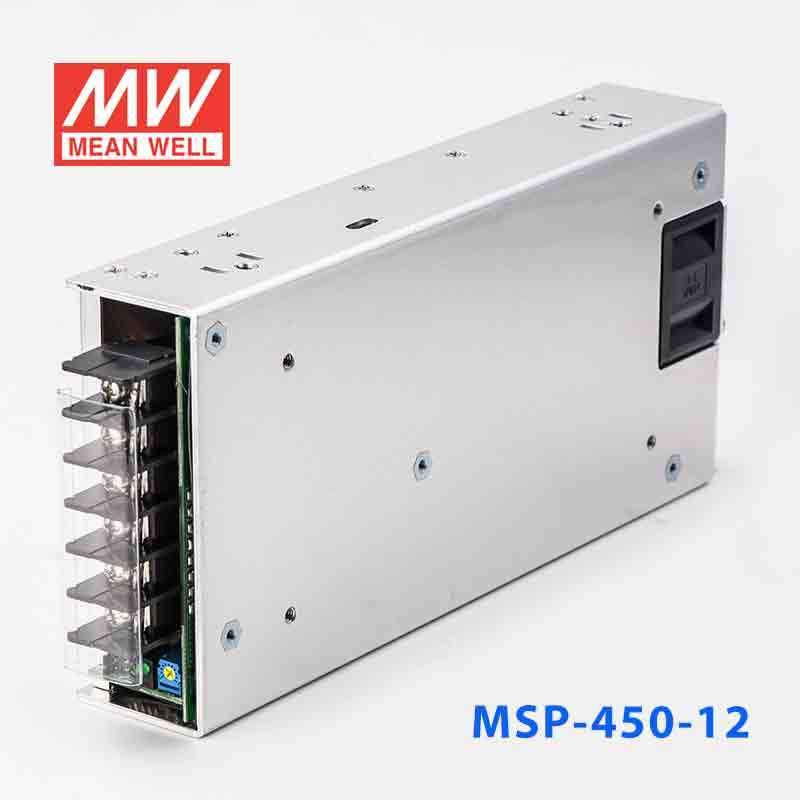

Mean Well MSP-450-12 Power Supply 450W 12V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function, PF>0.95 |
| High efficiency up to 89.5% |
| Withstand 300VAC surge input for 5 seconds |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in constant current limiting circuit |
| Medical safety approved (MOOP level) |
| Built-in cooling Fan ON-OFF control |
| Built-in DC OK signal |
| Built-in remote ON-OFF control |
| No load power consumption<0.6W |
| Standby 5V@0.3A |
| Built-in remote sense function |
| 5 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | 35A/115VAC 70A/230VAC |
| Over current protection | 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed |
| Over voltage protection | 110%~140% Protection type : Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | ANSI/AAMI ES60601-1, IEC60601-1 approved |
| EMC standards | Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3 |
| Dimension (LxWxH)(mm) | 218x 105x 41 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating450 Watt
-
Output Voltage12 Volt
-
Rated Current37.5 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length21.8 cm
-
Width10.5 cm
-
Height4.1 cm
-
Weight1.19 kg
