Can I use the MSP-450-36 for 36V industrial automation equipment?

Yes, this unit is a constant voltage 36V supply rated at 450W and 12.5A. That makes it a practical choice for industrial automation equipment designed around a 36V DC bus.

Is the MSP-450-36 a good match for 36V motion-control or actuator systems?

It can be, provided the equipment is specified for a 36V constant voltage source and stays within 12.5A and 450W. The output profile is better aligned with fixed-voltage 36V devices than with loads that need a different DC rail.

Would this 36V model work in industrial test stands or lab equipment?

Yes, the MSP-450-36 is suited to test stands or lab systems that require regulated 36V DC at up to 12.5A. Its 85-264VAC input range is also useful when equipment may be deployed across different AC mains environments.

Can the MSP-450-36 power a 36V control cabinet system with multiple DC loads?

It can support a 36V control cabinet if the combined load stays within 450W and 12.5A. Because it is a constant voltage model, it is intended for equipment that expects a stable 36V output rail.

Is the MSP-450-36 suitable for indoor or outdoor installations?

The operating temperature range is -40°C to +70°C, so the temperature spec is broad for industrial environments. No IP rating is provided in the product specs, so the listing does not define it as an outdoor-rated enclosure.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

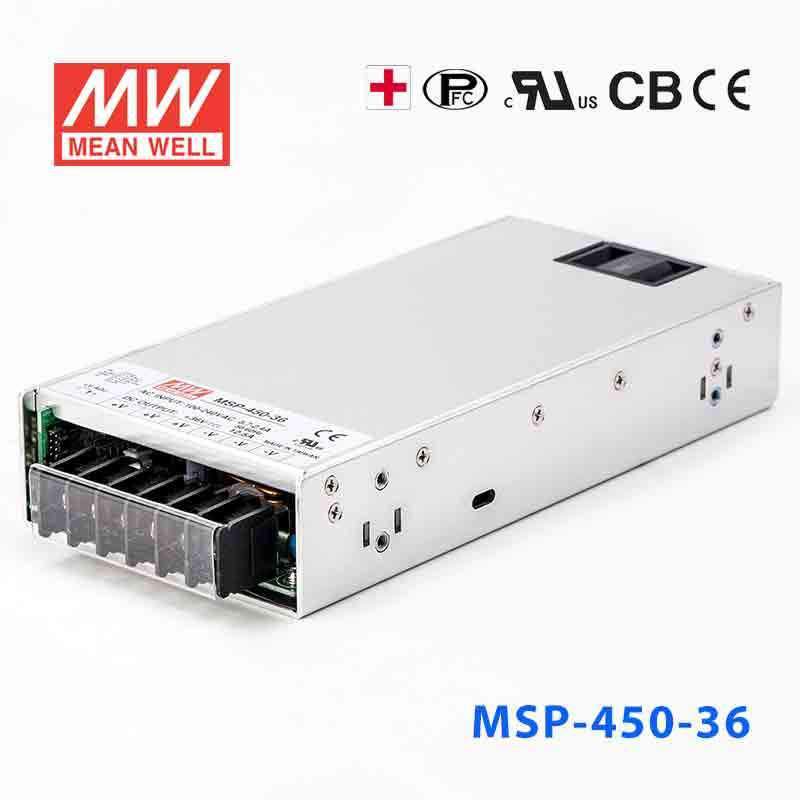

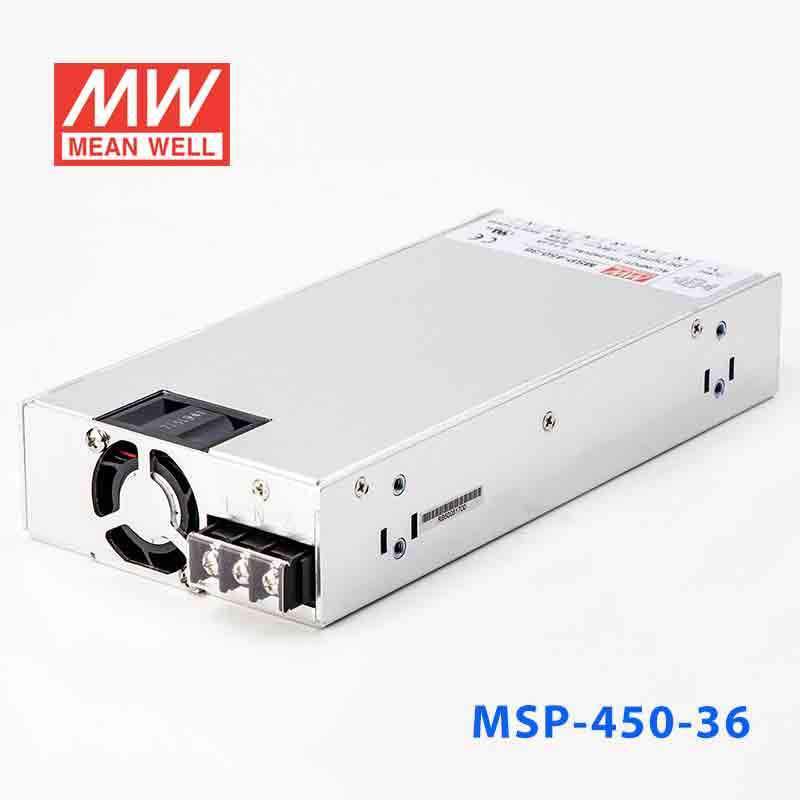

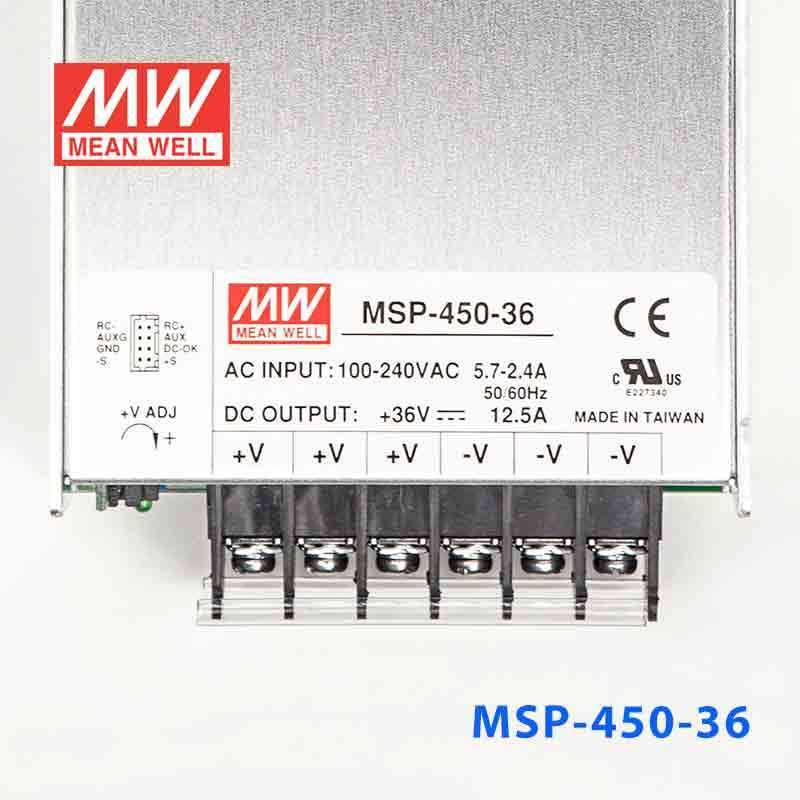

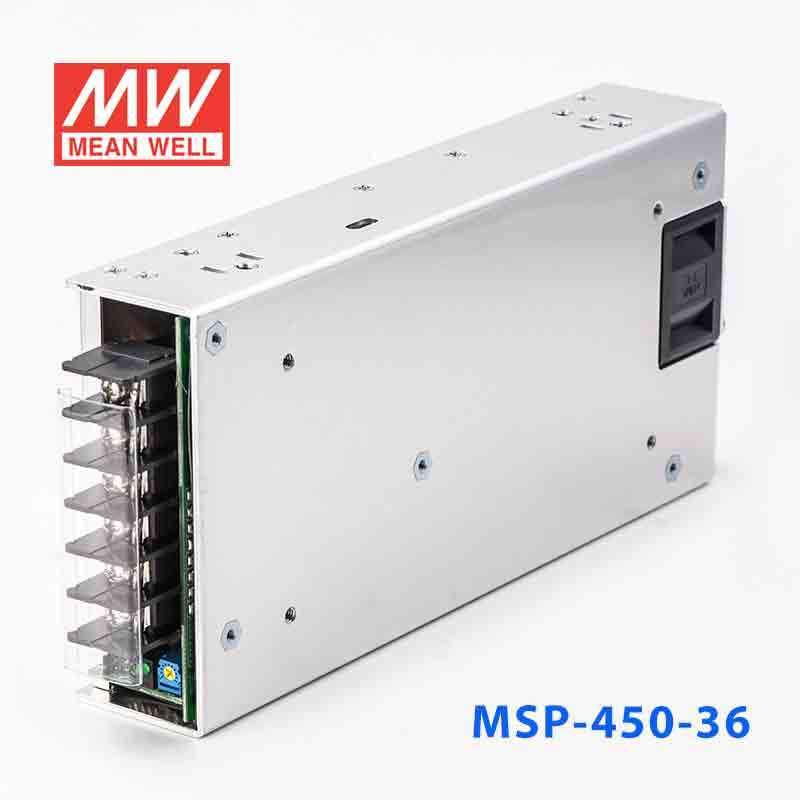

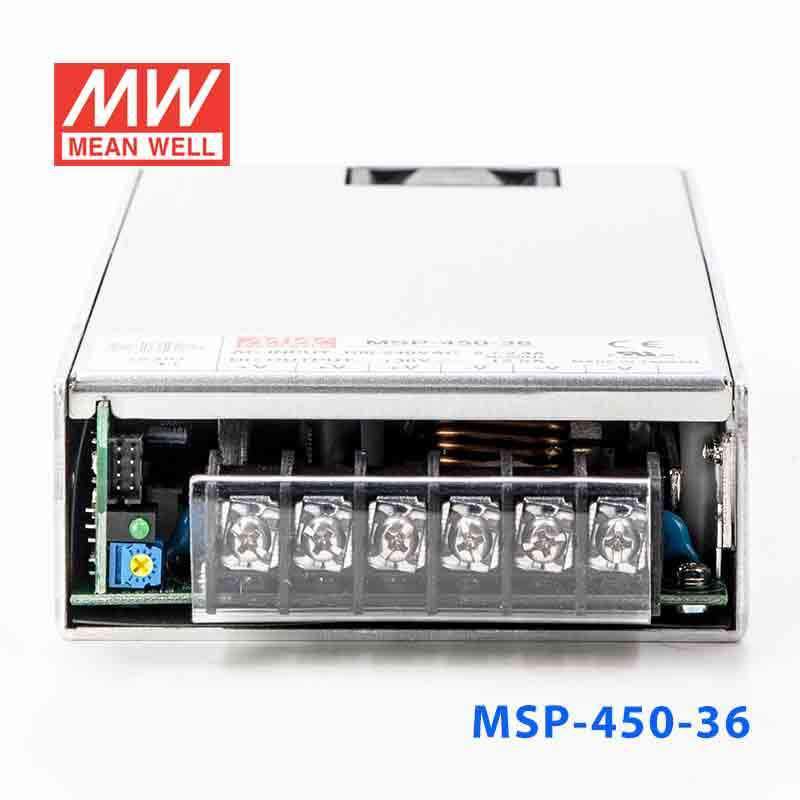

Mean Well MSP-450-36 Power Supply 450W 36V 12.5A

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU:

MSP-450-36

Log in to see price Trade pricing & online ordering for account holders

Mpdel

100W 36V 200W 36V 300W 36V 450W 36V 600W 36V

Product variants

Notify me when it's back in stock

The MSP-450 is a 450W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 4KVAC reinforced I/O isolation
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Remote ON/OFF control
✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION ANSI/AAMI ES60601-1, IEC60601-1
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well MSP-450-7.5 Power Supply 450W 7.5V 60A	450W	7.5V	60A	View
Mean Well MSP-450-5 Power Supply 450W 5V 90A	450W	5V	90A	View
Mean Well MSP-450-48 Power Supply 456W 48V 9.5A	456W	48V	9.5A	View
Mean Well MSP-450-3.3 Power Supply 297W 3.3V 90A	297W	3.3V	90A	View
Mean Well MSP-450-24 Power Supply 451.2W 24V 18.8A	451.2W	24V	18.8A	View
Mean Well MSP-450-15 Power Supply 450W 15V 30A	450W	15V	30A	View
Mean Well MSP-450-12 Power Supply 450W 12V 37.5A	450W	12V	37.5A	View
