Can I use the MSP-450-3.3 for a high-current 3.3V industrial control backplane?

Yes, this model is a constant voltage power supply rated for 3.3V output with up to 90A and 297W. That makes it suitable for 3.3V industrial control electronics that need very high current on a single DC rail.

Is the MSP-450-3.3 a fit for powering 3.3V embedded processors or FPGA systems in test equipment?

It can be a fit where the equipment is designed for a 3.3V constant voltage source and needs substantial current headroom, since the unit provides 3.3V at up to 90A. The wide 85-264VAC input also suits facilities that may have different AC supply standards.

Can this 3.3V power supply be used for low-voltage automation electronics with heavy current demand?

Yes, the MSP-450-3.3 is intended for constant voltage output at 3.3V and can deliver up to 297W. That profile fits low-voltage automation electronics, controller assemblies, or embedded platforms that run on 3.3V and draw high current.

Would the MSP-450-3.3 work for a rack-based electronics bench or burn-in fixture?

It is suited to bench or rack environments where a regulated 3.3V rail is required, especially when loads can approach 90A. Its compact 218.0 × 105.0 × 41.0 mm form factor and 1.19 kg weight can help in dense equipment layouts.

Is the MSP-450-3.3 suitable for outdoor or harsh-environment use?

The provided specs show an operating temperature range of -40°C to +70°C, which supports demanding temperature conditions. No IP rating is listed, so the specs do not identify it as an outdoor or washdown power supply.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

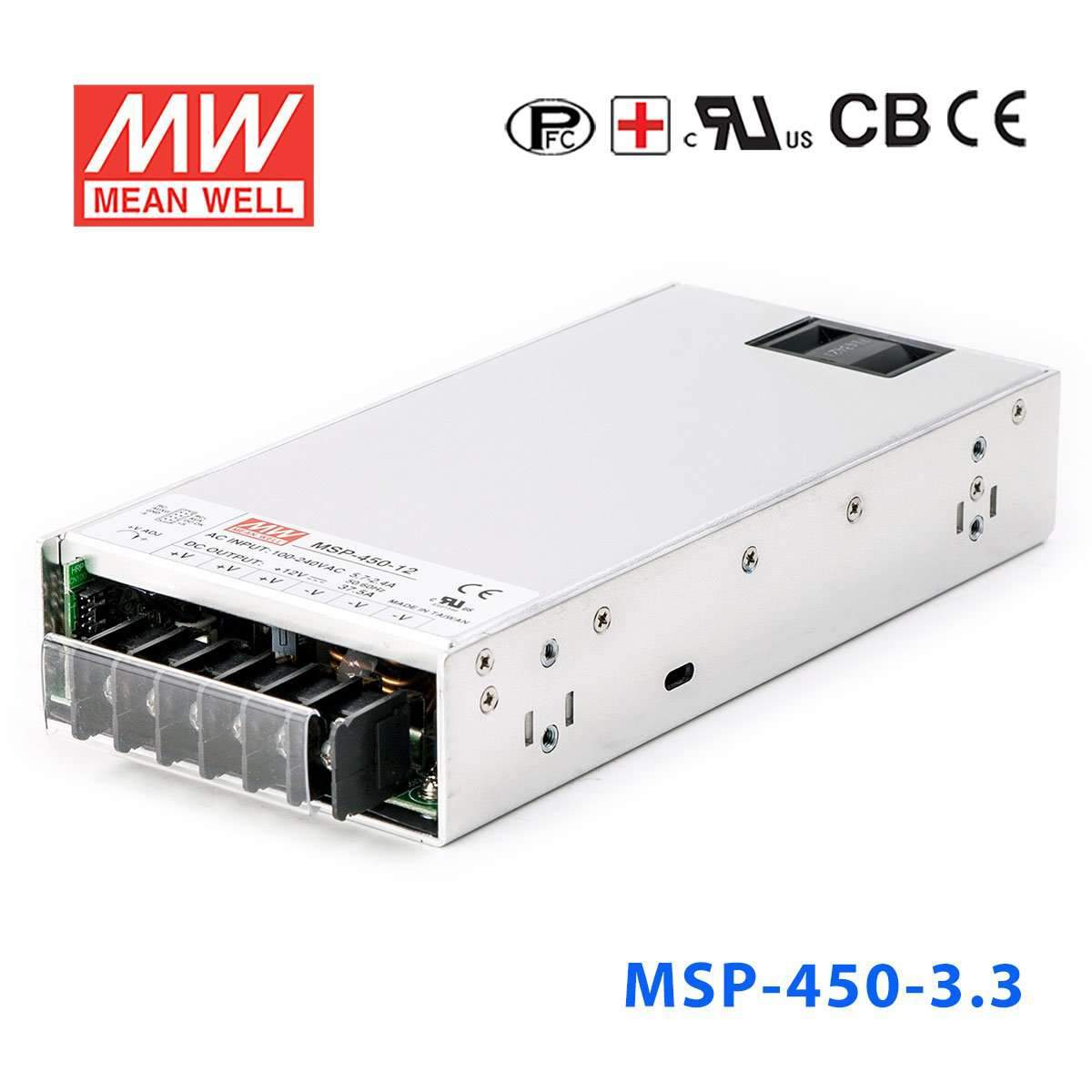

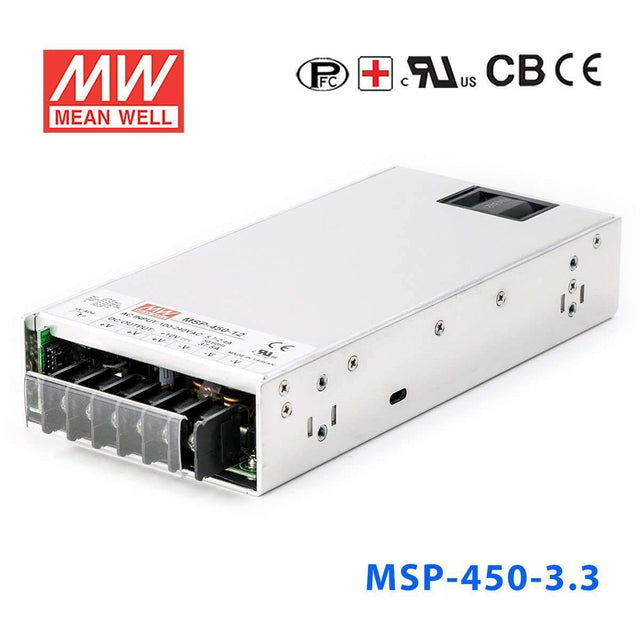

Mean Well MSP-450-3.3 Power Supply 297W 3.3V 90A

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU:

MSP-450-3.3

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

MSP-450-3.3

MSP-100-3.3 100W 3.3V Backorder

MSP-200-3.3 200W 3.3V Backorder

MSP-300-3.3 300W 3.3V Backorder

MSP-450-3.3 450W 3.3V Backorder

MSP-600-3.3 600W 3.3V Backorder

Product variants

Notify me when it's back in stock

The MSP-450 is a 450W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 4KVAC reinforced I/O isolation
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Remote ON/OFF control
✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION ANSI/AAMI ES60601-1, IEC60601-1
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well MSP-450-7.5 Power Supply 450W 7.5V 60A	450W	7.5V	60A	View
Mean Well MSP-450-5 Power Supply 450W 5V 90A	450W	5V	90A	View
Mean Well MSP-450-48 Power Supply 456W 48V 9.5A	456W	48V	9.5A	View
Mean Well MSP-450-36 Power Supply 450W 36V 12.5A	450W	36V	12.5A	View
Mean Well MSP-450-24 Power Supply 451.2W 24V 18.8A	451.2W	24V	18.8A	View
Mean Well MSP-450-15 Power Supply 450W 15V 30A	450W	15V	30A	View
Mean Well MSP-450-12 Power Supply 450W 12V 37.5A	450W	12V	37.5A	View
