Can I use the MSP-450-7.5 for 7.5V industrial electronics or legacy control hardware?

Yes, this model supplies constant 7.5V output at up to 60A with a 450W rating. That suits industrial or legacy DC equipment specifically designed around a 7.5V rail.

Is the MSP-450-7.5 suitable for embedded test systems that require a regulated 7.5V bus?

It can be, as long as the equipment is intended for a constant voltage 7.5V source and the load stays within 60A and 450W. The high available current is useful for larger embedded test platforms or multi-board fixtures.

Would this 7.5V power supply work for control panels or automation assemblies with uncommon DC voltage requirements?

Yes, the MSP-450-7.5 is relevant when the assembly is built for 7.5V DC rather than more common 5V, 12V, or 24V rails. Its 450W capacity gives more margin than lower-power 7.5V models for heavier assemblies.

Can the MSP-450-7.5 be used in electronics manufacturing fixtures that need high current at 7.5V?

It is a practical option for manufacturing fixtures or burn-in equipment that require a fixed 7.5V output and substantial current capacity. The unit provides up to 60A from a single 7.5V constant voltage supply.

Is the MSP-450-7.5 suitable for indoor harsh-temperature environments or outdoor use?

The operating temperature range is -40°C to +70°C, which supports demanding indoor temperature conditions. No IP rating appears in the listed specs, so the product data does not classify it as outdoor-rated.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

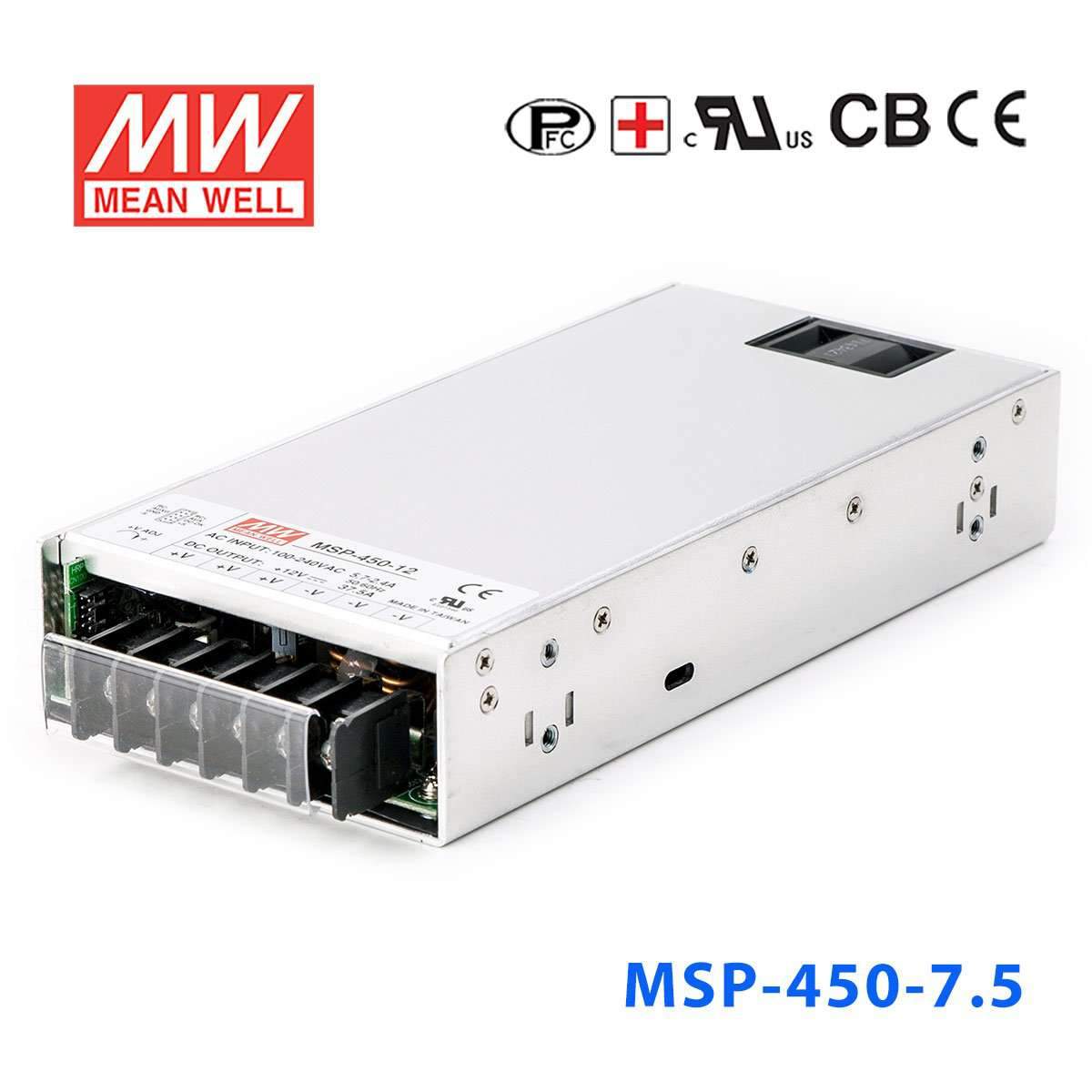

Mean Well MSP-450-7.5 Power Supply 450W 7.5V 60A

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU MSP-450-7.5

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

MSP-450-7.5

MSP-100-7.5 100W 7.5V Backorder

MSP-200-7.5 200W 7.5V Backorder

MSP-300-7.5 300W 7.5V Backorder

MSP-450-7.5 450W 7.5V Backorder

MSP-600-7.5 600W 7.5V Backorder

Product variants

Notify me when it's back in stock

The MSP-450 is a 450W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 4KVAC reinforced I/O isolation
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Remote ON/OFF control
✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION ANSI/AAMI ES60601-1, IEC60601-1
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well MSP-450-5 Power Supply 450W 5V 90A	450W	5V	90A	View
Mean Well MSP-450-48 Power Supply 456W 48V 9.5A	456W	48V	9.5A	View
Mean Well MSP-450-36 Power Supply 450W 36V 12.5A	450W	36V	12.5A	View
Mean Well MSP-450-3.3 Power Supply 297W 3.3V 90A	297W	3.3V	90A	View
Mean Well MSP-450-24 Power Supply 451.2W 24V 18.8A	451.2W	24V	18.8A	View
Mean Well MSP-450-15 Power Supply 450W 15V 30A	450W	15V	30A	View
Mean Well MSP-450-12 Power Supply 450W 12V 37.5A	450W	12V	37.5A	View
