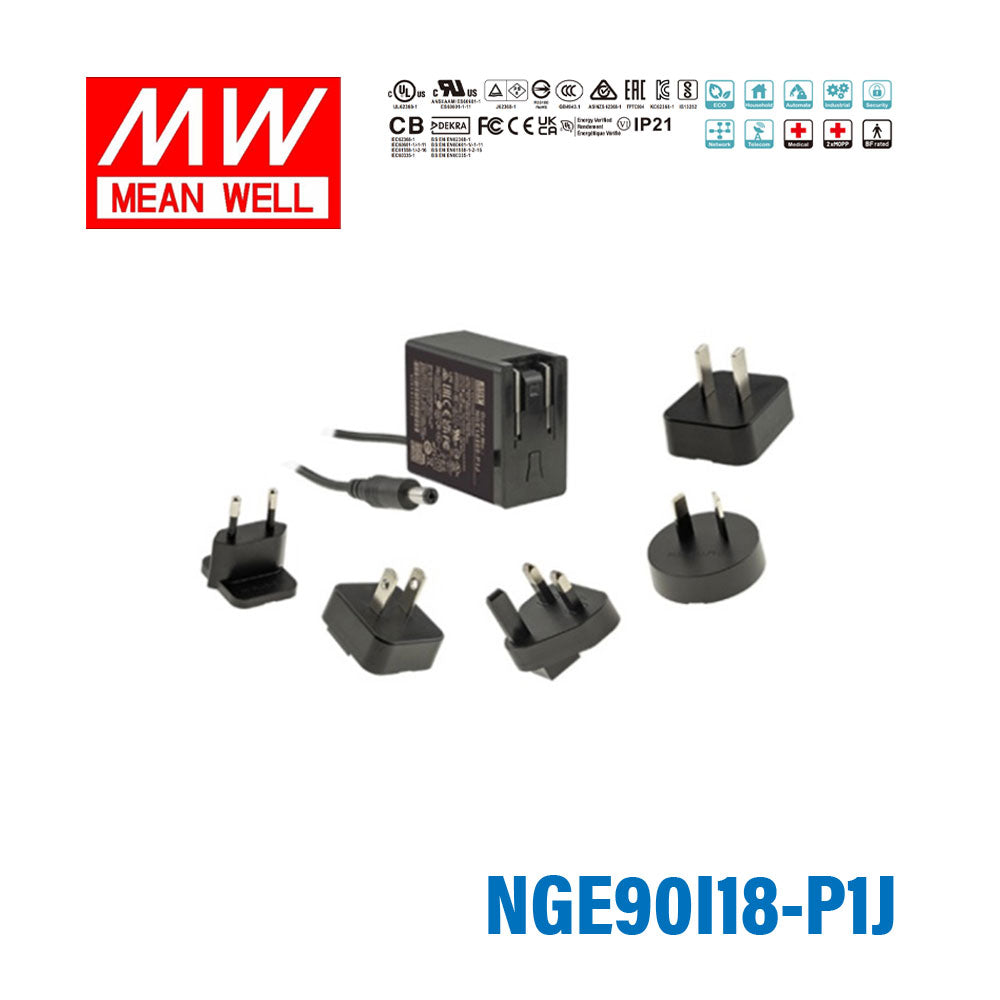

Mean Well NGE90I18-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE90I18 is a 90W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating90 Watt
-
Output Voltage18 Volt
-
Rated Current5 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height8.55 cm
-
Weight0.24 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well NGE90I18-P1J provide?
This model provides a regulated 18V DC output at up to 5A, with a maximum power rating of 90W. It is intended for applications that require a 90W class AC-DC wall-mounted power adaptor with a fixed 18V output.
What type of product is the NGE90I18-P1J?
The NGE90I18-P1J is an AC-DC wall-mounted green adaptor with interchangeable AC plugs. It is a Class II power supply, which means it does not require an earth pin.
What protections are included in this power adaptor?
This model includes short circuit, overload, and over voltage protection. For the 18V version, overload protection uses hiccup mode and recovers automatically after the fault condition is removed.
Is the Mean Well NGE90I18-P1J suitable for use in demanding environments?
Yes, it is designed for a wide operating temperature range of -30°C to +70°C. That makes it suitable for industrial and other demanding environments where standard indoor-only adaptors may be too limited.
What industries or applications is this adaptor certified for?
This series carries approvals across multiple application areas including ITE, medical, household, and industrial standards. The listed safety coverage includes IEC 62368-1, IEC 60601-1, IEC 60335-1, and IEC 61558-1/-2-16 among other regional approvals.
How energy efficient is the NGE90I18-P1J?
The adaptor meets Energy Efficiency Level VI and has very low no-load power consumption below 0.075W. This makes it a strong choice where standby power usage and energy efficiency matter.
What are the physical size and form factor of this model?
The NGE90I18-P1J has a compact wall-mounted design with dimensions of 62 x 30 x 85.5 mm. Its ultra-slim 28 mm profile helps reduce bulk compared with larger desktop-style power supplies.
Does this model support interchangeable plugs and accessory options?
Yes, the NGE90I18-P1J features interchangeable AC plugs. Mean Well also lists various DC plug quick adaptor accessories as available for this series.
