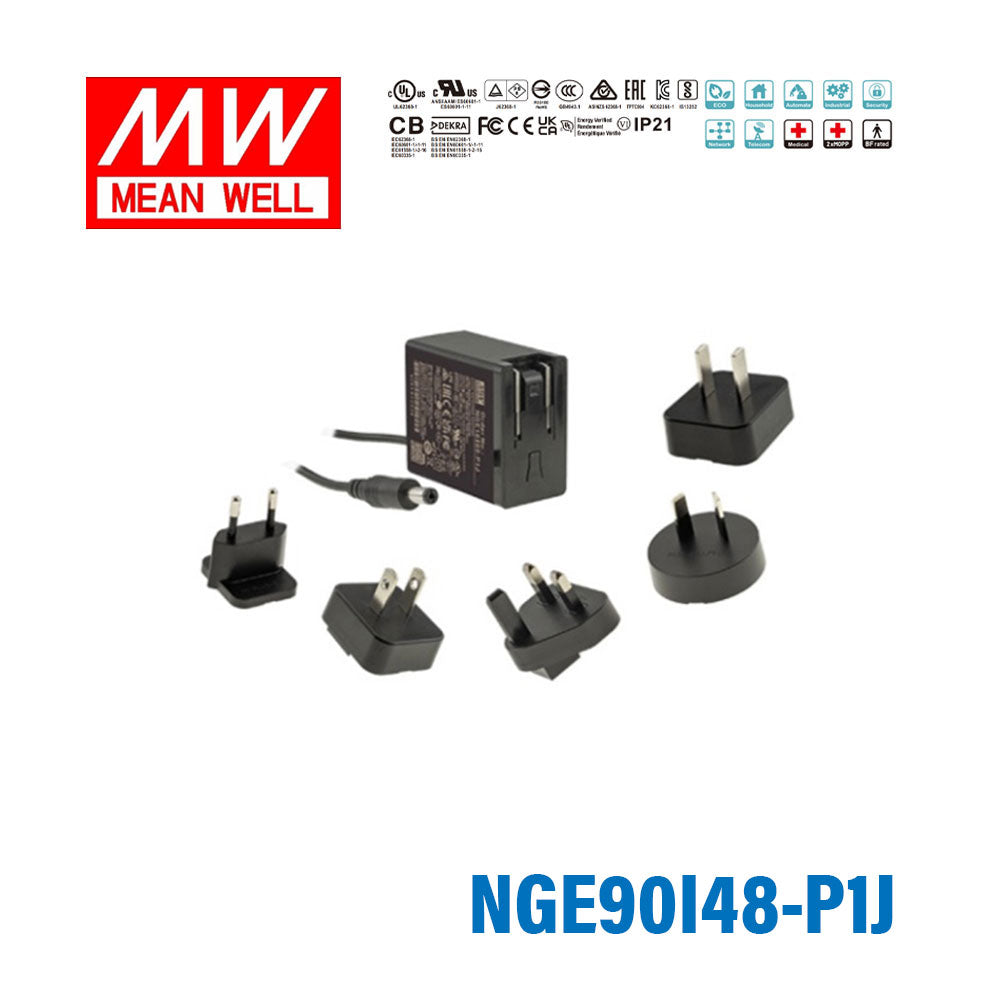

Mean Well NGE90I48-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE90I48 is a 90W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating90 Watt
-
Output Voltage48 Volt
-
Rated Current1.87 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height8.55 cm
-
Weight0.24 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well NGE90I48-P1J provide?
This model is a 90W AC-DC wall-mounted adaptor with a 48V DC output rated at 1.875A. It is designed for applications that require a regulated 48V supply within that power range.
What makes the NGE90I48-P1J suitable for international or multi-region use?
The NGE90I48-P1J uses interchangeable AC plugs and supports universal AC input from 80 to 264VAC. It also carries approvals across multiple standards and regions, which makes it a practical option for OEM and export-focused projects.
Is this adaptor intended for energy-efficient equipment?
Yes. This model meets Energy Efficiency Level VI and has very low no-load power consumption of less than 0.075W. That makes it a strong choice for equipment where standby power performance matters.
Can the NGE90I48-P1J be used in demanding temperature conditions?
It is rated for operation from -30°C to +70°C, giving it a wide working temperature range for industrial and commercial environments. Buyers should still confirm that the full application stays within the product's published operating conditions.
What protection features are included in this power adaptor?
The NGE90I48-P1J includes short circuit, overload, and over voltage protection. For the 48V version, overload protection uses shut down and latch-off behavior, with recovery after re-powering once the fault condition is cleared.
What types of equipment is this model commonly considered for?
Because it provides 48V DC at up to 90W, this adaptor is typically considered for professional, industrial, ITE, household, and certain medical-related equipment that matches those electrical requirements. It is especially relevant for B2B buyers needing a compact external power source with broad safety certifications.
How compact is the Mean Well NGE90I48-P1J?
This adaptor has a slim profile and measures 62 x 30 x 85.5 mm. Its ultra-slim 28 mm form factor can help when space around the outlet or mounted equipment is limited.
