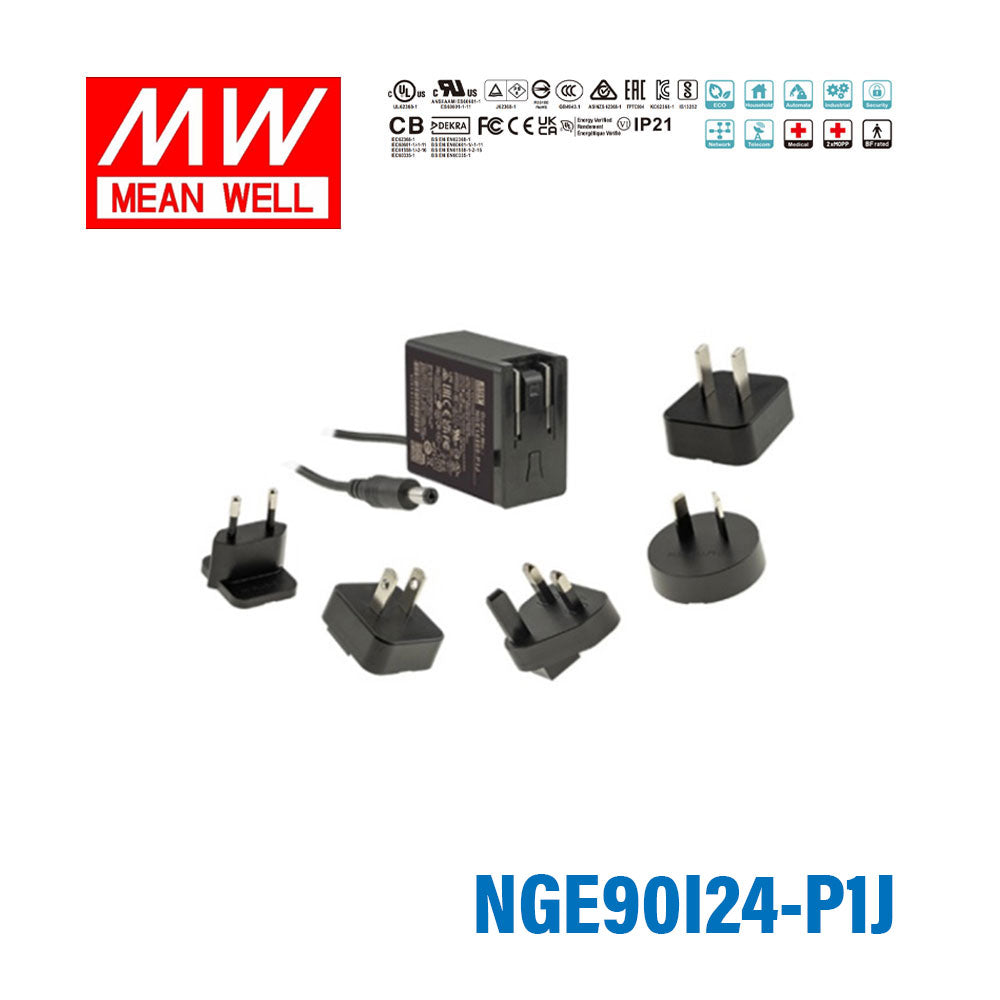

Mean Well NGE90I24-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE90I24 is a 90W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating90 Watt
-
Output Voltage24 Volt
-
Rated Current3.75 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height8.55 cm
-
Weight0.24 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE90I24-P1J?
The NGE90I24-P1J is a 90W AC-DC wall-mounted adaptor with a 24V DC output and a rated current of 3.75A. It is designed as a non-dimmable power adaptor for applications that need a regulated 24V supply within its rated power range.
What types of applications is the NGE90I24-P1J suited for?
This model is intended for professional and OEM use where a compact external 24V power adaptor is needed. Its certifications cover multiple fields including ITE, medical, household, and industrial standards, which makes it suitable for a wide range of equipment applications subject to overall system requirements.
Does this adaptor support international or interchangeable plug options?
Yes. The NGE90I24-P1J is part of Mean Well's interchangeable-plug adaptor range and is specified with interchangeable AC plugs. That makes it useful for deployments where regional plug flexibility is important.
Is the Mean Well NGE90I24-P1J energy efficient?
Yes. This model is rated to Energy Efficiency Level VI and has very low no-load power consumption of less than 0.075W. Those characteristics make it a strong fit for energy-conscious equipment designs and standby-sensitive applications.
Can the NGE90I24-P1J be used in demanding temperature conditions?
This adaptor has a specified operating temperature range of -30°C to +70°C. That wide range helps it suit environments that are harsher than typical indoor commercial conditions, provided the application stays within the product's rated limits.
What protection and safety features are included in this model?
The NGE90I24-P1J includes short circuit, overload, and over-voltage protection. It is also a Class II power unit with no earth pin, features low leakage current under 100uA, and carries a broad set of international safety approvals listed by Mean Well.
How compact is the Mean Well NGE90I24-P1J?
Mean Well specifies this adaptor as an ultra-slim design with dimensions of 62 x 30 x 85.5 mm. Its compact wall-mounted form factor can be useful where installation space around the power outlet is limited.
What warranty is provided for the NGE90I24-P1J?
This model includes a 3-year warranty from Mean Well. That warranty period can be valuable for commercial buyers who need support expectations aligned with longer equipment lifecycles.
