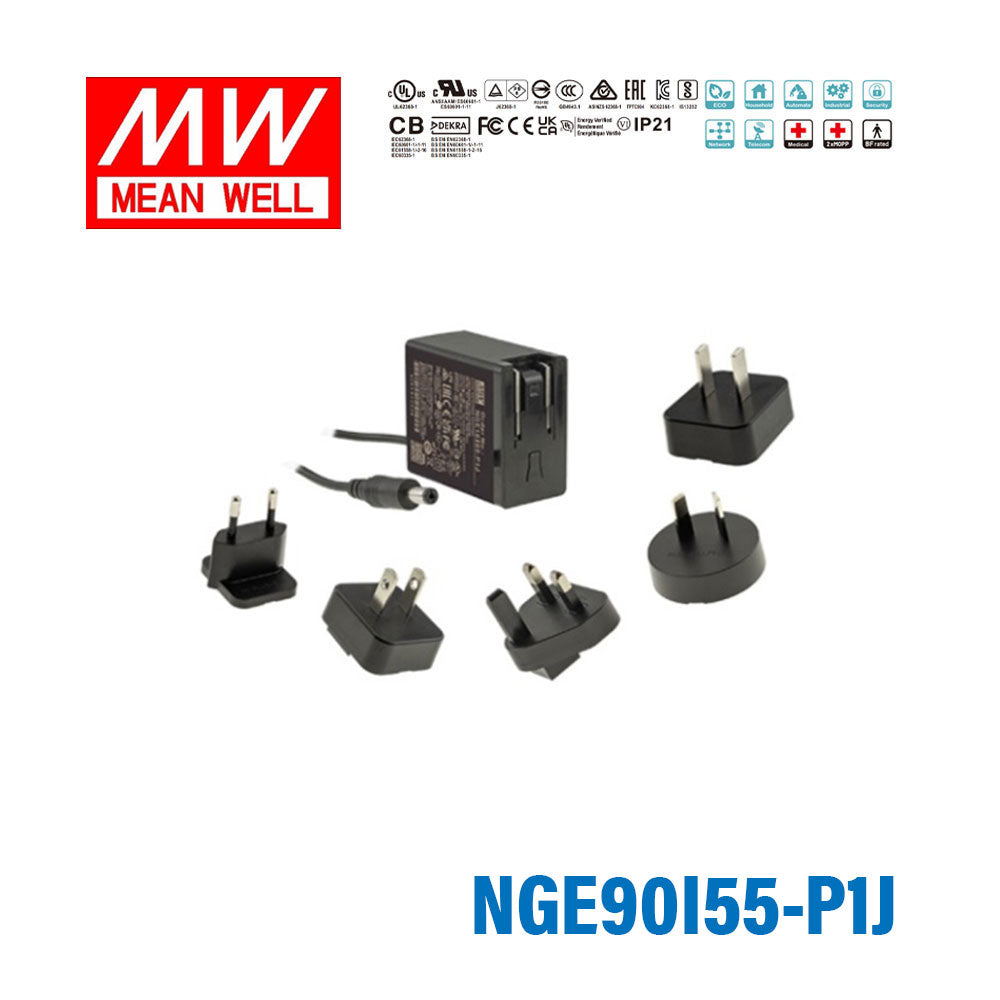

Mean Well NGE90I55-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE90I55 is a 90W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating90.2 Watt
-
Output Voltage55 Volt
-
Rated Current1.64 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height8.55 cm
-
Weight0.24 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE90I55-P1J?
This model is rated for 90.2W total output. It provides a 55V DC output at up to 1.64A, making it a high-voltage wall-mounted AC-DC adaptor within the NGE90 series.
What types of applications is the NGE90I55-P1J designed for?
The NGE90I55-P1J is intended for professional and OEM applications that need a regulated 55V DC external power source. Its certifications span ITE, medical, household, and industrial standards, so it is suited to buyers who need a versatile commercial-grade adaptor.
Does this adaptor support international or regional plug options?
Yes. This model uses an interchangeable plug design, which helps support different regional AC plug formats. That makes it useful for businesses sourcing the same power adaptor platform for multiple markets.
How energy efficient is the Mean Well NGE90I55-P1J?
This adaptor meets Energy Efficiency Level VI requirements. It also has very low no-load power consumption of less than 0.075W, which is useful in applications where standby energy use matters.
What protection features are included in the NGE90I55-P1J?
The unit includes protection against short circuit, overload, and over voltage. For the 48V to 55V range, overload protection uses shutdown and latch-off behavior, with recovery after the unit is powered on again.
Can the NGE90I55-P1J be used in demanding temperature environments?
Yes. Mean Well specifies an operating temperature range of -30°C to +70°C for this model. That wide range makes it suitable for applications that need reliable performance across both low and high ambient temperatures.
What size is the Mean Well NGE90I55-P1J adaptor?
The listed dimensions are 62 x 30 x 85.5 mm. Mean Well also describes the design as ultra slim, with a 28 mm profile noted in the feature list.
What warranty comes with the NGE90I55-P1J?
This model includes a 3-year warranty from Mean Well. That aligns with its positioning as a commercial-grade external power adaptor for long-term use.
