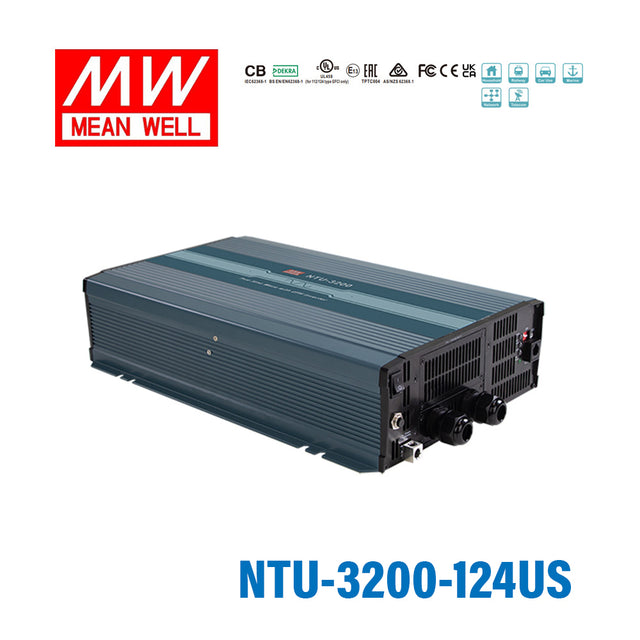

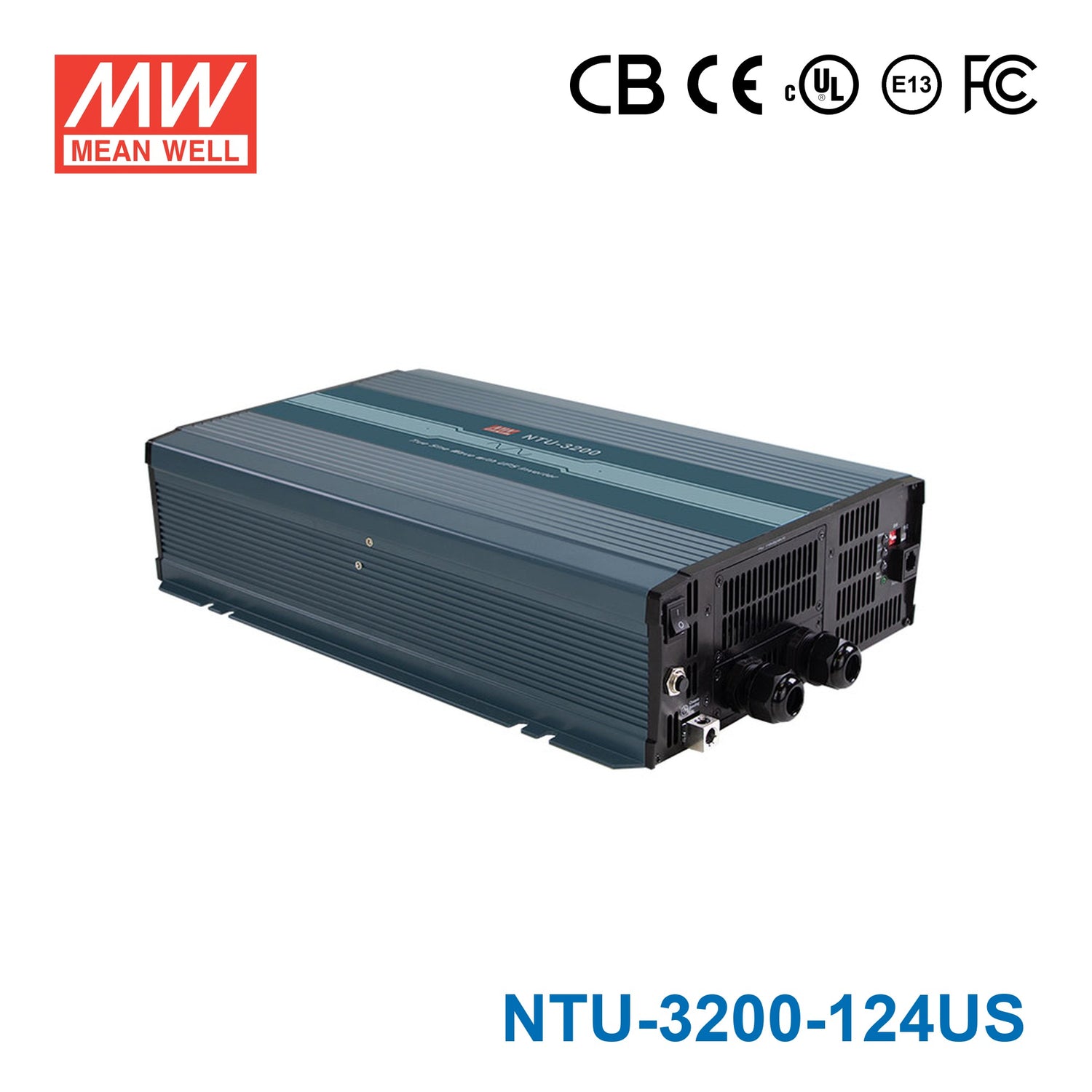

Mean Well NTU-3200-124US True Sine Wave DC-AC Inverter 3200W 110V out 24V in with US Socket, with AC by-pass function

The NTU-3200-124US is a 3200W true sine wave DC-AC inverter for applications that need 110V AC output from a 24V DC source. It is suited to mobile, backup power, industrial, and other B2B power-conversion uses where clean AC output and higher surge capacity matter.

This model is a 24V DC input inverter with 110V AC output in the US version. The general specification also lists selectable AC output ranges via DIP switch, including 100/110/115/120VAC and 200/220/230/240VAC options.

Yes. This model provides true sine wave output with total harmonic distortion listed at under 3%, which is important for loads that require cleaner AC power. That makes it a better fit than modified sine wave units for more sensitive equipment.

Yes. The NTU-3200-124US includes a built-in UPS function with AC by-pass capability, as listed in the product features. That makes it relevant for applications that need continuity between incoming AC power and inverter-backed output.

The rated output power is 3200W, and the product lists surge power up to 6400W. The overload specification also states 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.

Yes. The product data states that it is suitable for both lead-acid and lithium-ion batteries. It also includes battery over-discharge protection with low-voltage disconnect.

This model is built for tougher environments with a wide operating temperature range up to 70C, temperature-controlled cooling fan operation, and conformal coating. It also includes front-panel status indicators and protection for short circuit, overload, and over voltage conditions.

The NTU-3200-124US is listed with approvals including IEC62368-1, EN62368-1, UL458, E13, EAC TP TC 004, and AS/NZS 62368.1, along with EMC compliance such as EN55032 Class A. The listed warranty period for this model is 3 years.
