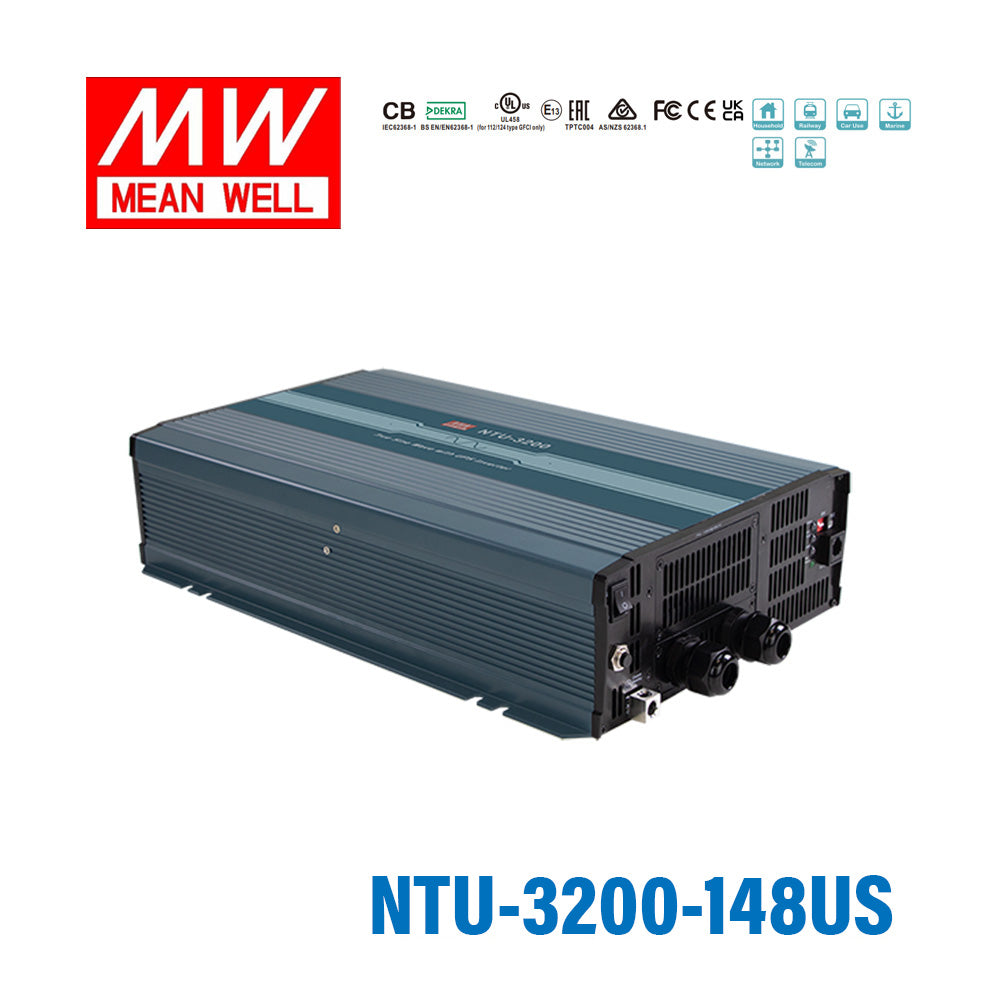

Mean Well NTU-3200-148US True Sine Wave DC-AC Inverter 3200W 110V out 48V in with US Socket, with AC by-pass function

This model is a 3200W true sine wave DC-AC inverter designed for applications that need 110V AC output from a 48V DC input source. It is suited to business and industrial environments where clean AC power and higher surge capacity are important.

Yes. The NTU-3200-148US provides true sine wave output with total harmonic distortion below 3%, which helps support sensitive AC loads that benefit from cleaner power. This is a key differentiator versus modified sine wave inverters.

Yes. The NTU-3200-148US includes a built-in UPS function with AC by-pass capability. That makes it suitable for applications where continuity of AC output is an important purchasing consideration.

This specific model is a 48V DC input inverter with 110V AC output. Its AC output voltage range is selectable by DIP switch, with options including 100/110/115/120VAC and 200/220/230/240VAC according to the product specification.

The inverter is rated for 3200W continuous power and supports surge power up to 6400W. The specification also states overload performance of 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.

Yes. Mean Well lists this model as suitable for both lead-acid and lithium-ion batteries. It also includes battery over-discharge protection through a low-voltage disconnect function.

It is designed for wide-temperature operation, with the general specification listing a working range of -25°C to +70°C. The unit also uses temperature-controlled cooling and conformal coating, which supports use in more demanding operating environments.

The NTU-3200-148US includes short circuit, overload, and over-voltage protections, along with battery over-discharge protection. It also has front panel status indicators and supports optional remote control and optional RS-232 communication accessories.
