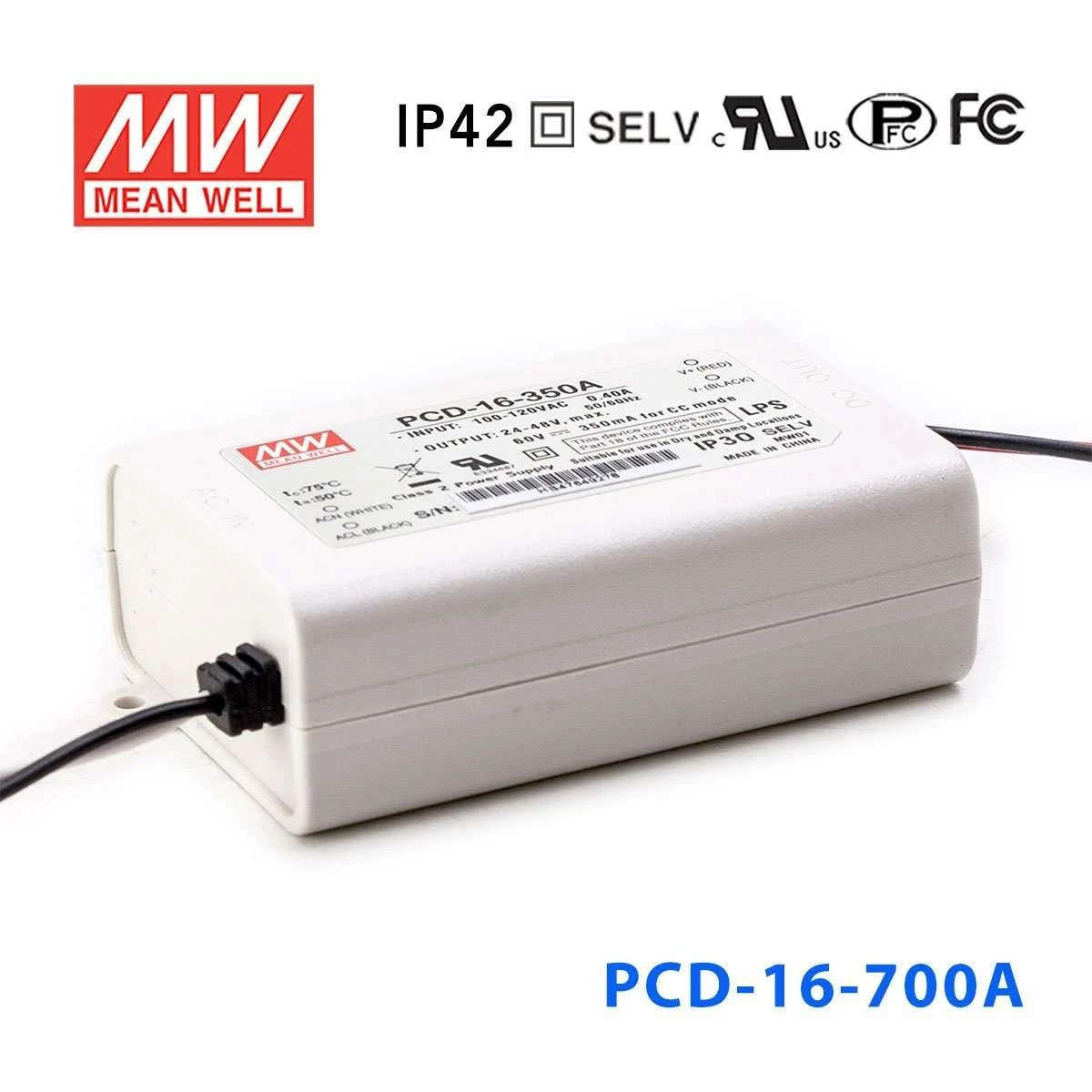

Mean Well PCD-16-700A Power Supply 16W 700mA
Please Login for Pricing
Description
Description
The PCD-16 is a 16W Mean Well power converter (input range: 24~48V, operating temperature: -30~+60℃).
Key Features
- ✓ Input voltage range: 24~48V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+60℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PCD-16-350), ENEC EN613471, EN61347-2-13, EN62384(for B type only), IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating16.8 Watt
-
Output Voltage24 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~135V
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length8.4 cm
-
Width5.7 cm
-
Height2.95 cm
-
Weight0.19 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PCD-16-700A for 700mA LED downlights?
Yes, if the downlight is designed for constant current at 700mA and the total LED forward-voltage load stays within the 16-24V constant-current range. The driver provides up to 16.8W, so the fixture load also needs to stay within that power limit.
Is the PCD-16-700A suitable for signage modules that need constant current?
It can work for signage modules when the module assembly is a constant-current 700mA load and operates within 16-24V. It is not the right choice for constant-voltage signage modules because this model is a constant-current driver.
Can this driver run a small LED array?
Yes, for a small LED array that is specified for 700mA constant current and falls within the 16-24V output range. The exact number of LEDs depends on the forward voltage of each LED, not on a fixed LED count.
How do I know if the PCD-16-700A is compatible with my LED load?
Match the load to 700mA constant current and make sure the total forward-voltage requirement stays inside the 16-24V constant-current range. The number of LEDs depends on each LED forward voltage, and this driver should not be paired with constant-voltage LED products.
Is the PCD-16-700A meant for indoor or exposed locations?
This model has an IP42 plastic casing and an operating temperature range of -30C to +60C. That makes it better suited to indoor or otherwise protected conditions rather than wet or heavily exposed environments.
How does the PCD-16-700A compare with other PCD series options?
Within the 16.8W group, PCD-16-350A/B cover 24-48V, PCD-16-700A/B cover 16-24V, and PCD-16-1050A/B and PCD-16-1400A/B cover 12-16V and 8-12V. Higher-power siblings expand the range to 20.3W, 25.2W, 37.8W, 39.9W, 40W, 40.25W, 40.6W, 54W, 59.5W, 59.85W, 60W, and 60.2W with constant-current ranges from 12-18V up to 70-108V depending on model.
Other PCD-16 Models
7 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well PCD-16-1050B Power Supply 16W 1050mA | 16.8W | 16V | 1.05A | Indoor | View |
| Mean Well PCD-16-350B Power Supply 16W 350mA | 16.8W | 48V | 0.35A | Indoor | View |
| Mean Well PCD-16-700B Power Supply 16W 700mA | 16.8W | 24V | 0.7A | Indoor | View |
| Mean Well PCD-16-350A Power Supply 16W 350mA | 16.8W | 48V | 0.35A | Indoor | View |
| Mean Well PCD-16-1400B Power Supply 16W 1400mA | 16.8W | 12V | 1.4A | Indoor | View |
| Mean Well PCD-16-1400A Power Supply 16W 1400mA | 16.8W | 12V | 1.4A | Indoor | View |
| Mean Well PCD-16-1050A Power Supply 16W 1050mA | 16.8W | 16V | 1.05A | Indoor | View |
