Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

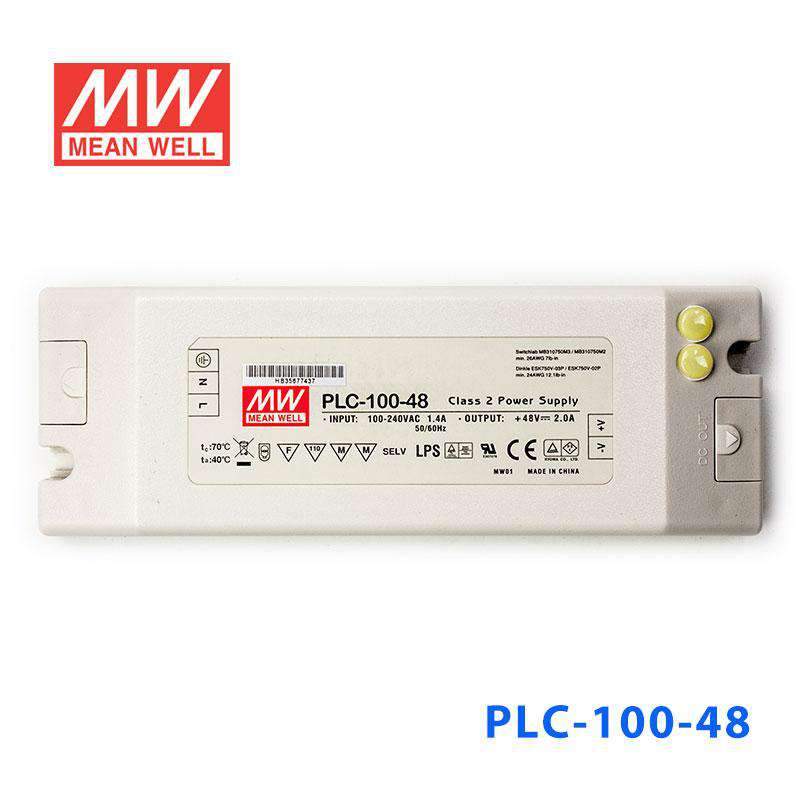

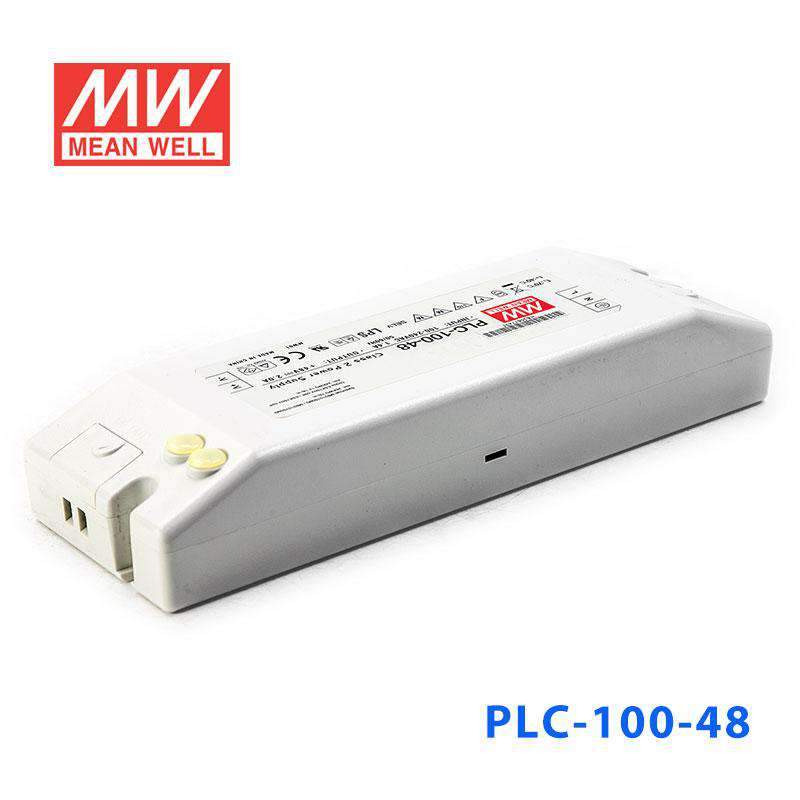

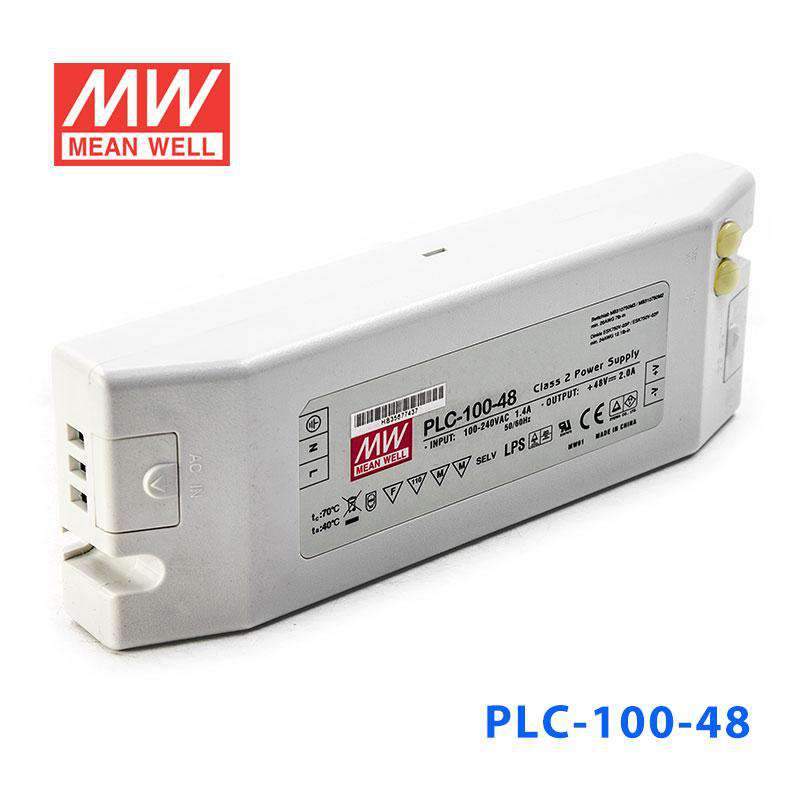

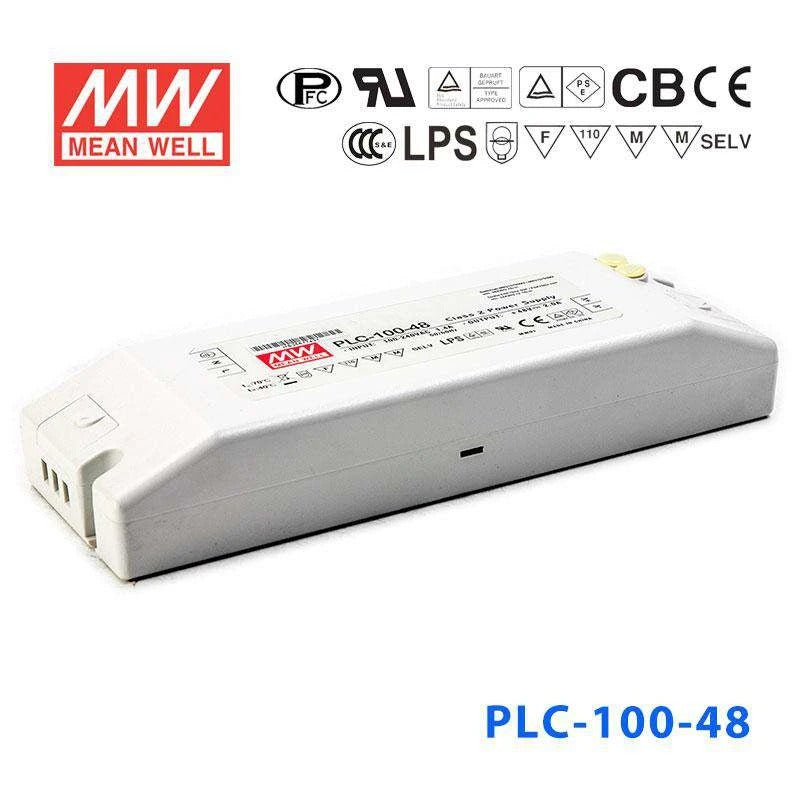

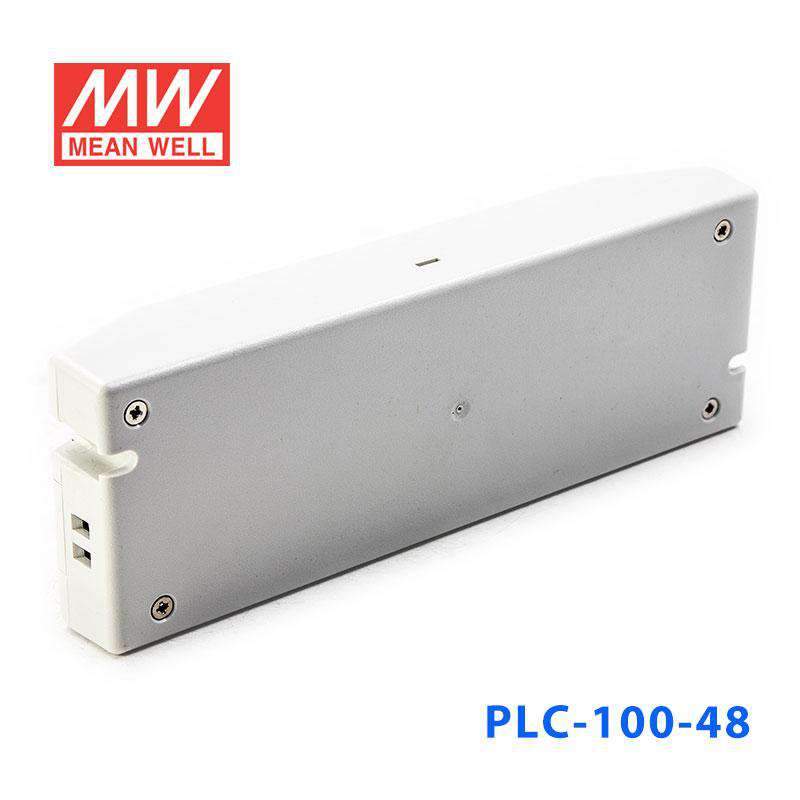

Mean Well PLC-100-48 Power Supply 100W 48V - PFC

screw terminal, fully isolated plastic case, suitable for signage applications

SKU:

PLC-100-48

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Fully isolated plastic case with screw terminal style of I/O

Built-in constant current limiting circuit (C.V.+C.C. mode)

Adjustable output voltage and current level

Built-in active PFC function, PF>0.9 for 75% of load or higher

High efficiency up to 89%

Class 2 power unit / Pass LPS

Protections: Short circuit / Over current / Over voltage / Over temperature

100% full load burn-in test

Suitable for LED lighting and moving sign applications

Cooling by free air convection

2 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 40A at 230VAC
DC adjustment range	85%~100% rated output voltage
Current adjustment range	75%~100%
Over current protection	95%~102% constant current limiting, auto-recovery
Over voltage protection	107%~135% rated output voltage
Setup time	1200ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature	-30~+50°C (refer to output derating curve)
Safety standards	UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; TUV EN60950-1 approved for PLC-100 only
EMC standards	EN55015, EN55022 class B (PLC-45/60/100), EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection (Input / Output)	3+2P screw terminal block
Dimension (LxWxH)(mm)	200.5x 69.5x 35
Packing	0.52kg ; 25pcs / 14kg

Specifications

Brand

Mean Well
Series

PLC Series
Power Rating

96 Watt
Output Voltage

48 Volt
Rated Current

2 Ampere
Input Voltage

90V~264V
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

20.05 cm
Width

6.95 cm
Height

3.5 cm
Weight

0.52 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the output of the Mean Well PLC-100-48?

The PLC-100-48 provides a 48V DC output with a rated current of 2.0A. Based on the supplied product data, its rated output power is 96W.

What types of applications is the PLC-100-48 designed for?

This model is described as suitable for LED lighting and moving sign applications. Its constant voltage output with built-in constant current limiting also makes it relevant for buyers looking for a regulated 48V LED power supply.

Does the Mean Well PLC-100-48 support dimming?

No. The product data for this model lists dimming control as none, so it is not presented as a dimmable power supply.

What protections are included in the PLC-100-48?

According to the product description, the PLC-100-48 includes protection for short circuit, over current, over voltage, and over temperature. These built-in protections help support reliable operation in demanding commercial lighting applications.

Can the PLC-100-48 be used in a wide range of ambient temperatures?

The specified operating temperature range in the provided data is -30°C to 50°C. That makes it suitable for applications where the power supply may be exposed to both low and moderately high ambient temperatures.

What distinguishes the PLC-100-48 from lower-voltage LED power supplies?

The PLC-100-48 is a 48V model, so it is intended for equipment that specifically requires a 48V DC supply rather than lower-voltage alternatives. Buyers should match the output voltage and current rating to the requirements of the load before selecting this model.

Model	Power	Voltage	Current	IP Rating
Mean Well PLC-100-36 Power Supply 100W 36V - PFC	95.4W	36V	2.65A	Indoor	View
Mean Well PLC-100-27 Power Supply 100W 27V - PFC	95.85W	27V	3.55A	Indoor	View
Mean Well PLC-100-24 Power Supply 100W 24V - PFC	96W	24V	4A	Indoor	View
Mean Well PLC-100-20 Power Supply 100W 20V - PFC	96W	20V	4.8A	Indoor	View
Mean Well PLC-100-15 Power Supply 100W 15V - PFC	75W	15V	5A	Indoor	View
Mean Well PLC-100-12 Power Supply 100W 12V - PFC	60W	12V	5A	Indoor	View
