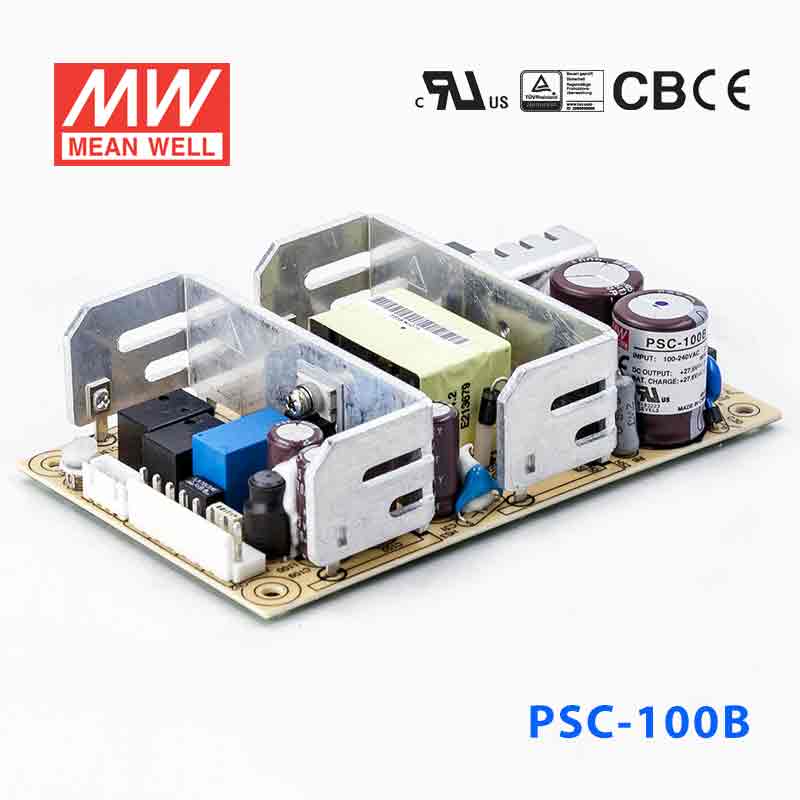

Mean Well PSC-100B Battery Chargers 100.74W 27.6V 2.4A - PFC

with UPS functionmodels with L-bracket and cover available(-C type)
SKU PSC-100B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

PSC-100B is the CH1: 27.6V, CH2: 27.6V output model of this series: rated current CH1: 2.4A, CH2: 1.25A, rated power 100.74W, typical efficiency 88%.

Features

  • Universal AC input / Full range
  • 5"x3" compact size
  • Models with L-Bracket and cover available (PSC-100x-C, x=A,B)
  • Protections: Short circuit / Overload / Over voltage
  • Battery low protection / Battery reverse polarity protection by fuse
  • Relay contact signal output for AC OK and Battery Low
  • Cooling by free air convection
  • 100% full load burn-in test
  • 2 years warranty

Specifications

PSC-100BSpecifications from the official datasheet (2024-10-30 edition)

OUTPUT

OUTPUT NUMBER
CH1, CH2
DC VOLTAGE
CH1: 27.6V, CH2: 27.6V
RATED CURRENT
CH1: 2.4A, CH2: 1.25A
CURRENT RANGE
CH1: 0 ~ 3.5A, CH2: --------
RATED POWER
100.74W
RIPPLE & NOISE (max.)Note.2
CH1: 100mVp-p, CH2: --------
VOLTAGE ADJ. RANGE
CH1: 24 ~ 29V
VOLTAGE TOLERANCENote.3
CH1: ±1.0%, CH2: --------
LINE REGULATION
CH1: ±0.5%, CH2: --------
LOAD REGULATION
CH1: ±0.5%, CH2: --------
SETUP, RISE TIMENote.4
2400ms, 30ms/230VAC 2400ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
40ms/230VAC 14ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
88%
AC CURRENT (Typ.)
2A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1:28.98 ~ 37.26V Protection type : Shut down o/p voltage, re-power on to recover
BATTERY CUT OFF
20±1V

ALARM FUNCTION

AC OKNote.6
Relay contact output, ON : AC OK ; OFF : AC Fail ; Max. rating : 30V / 1A
BATTERY LOW
Relay contact output, OFF : Battery OK ; ON : Battery Low ; Max. rating : 30V / 1A
BATTERY LOW
Battery low voltage : < 22V

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0~50℃) on CH1 output
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2094.5K hrs min. Telcordia SR-332 (Bellcore) ; 417.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
PCB:127*76.2*31mm (L*W*H) ; Enclosed type:130*85*37mm (L*W*H)
PACKING
PCB:0.23Kg; 63pcs/15.5Kg/1.28CUFT ; Enclosed type:0.44Kg;32pcs/15Kg/0.73CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  5. 5. Heat sink HS2,HS3 can not be shorted.
  6. 6. Heat sink HS2,HS3 must have safety isolation distance from system case.
  7. 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  8. 8. Please refer to suggest application (2)、(4) in page 3.
  9. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

PSC-100B Mechanical Specification
Mechanical Specification
PSC-100B Block Diagram
Block Diagram
PSC-100B Output Derating
Output Derating
PSC-100B Suggested Application
Suggested Application

Downloads

FAQ

Can I use the PSC-100B for a 27.6V battery-backed industrial control panel?

Yes, this model provides a 27.6V DC output and includes a UPS function, which fits battery-backed control equipment designed around a 27.6V DC rail. Its 2.4A rated CH1 current and 100.74W total rated power suit lower-power control, alarm, or automation loads that stay within those limits.

Is the PSC-100B suitable for embedded or automation equipment that needs AC input flexibility?

It can fit embedded or automation systems that need a wide AC input range, because it accepts 90-264VAC. On the DC side, the load still needs to match the unit's 27.6V output and stay within its 2.4A rated CH1 current (100.74W total rated power).

Can the PSC-100B be used for standby security or monitoring equipment with battery backup?

It is appropriate for standby equipment that operates on a 27.6V battery-backed supply, especially where the UPS function is part of the design. The output is 27.6V with 2.4A rated on CH1, so it fits lighter-duty monitoring, alarm, or communications loads within the 100.74W total rating.

Would the PSC-100B work for a small 27.6V telecom or network support power system?

It can work for compact telecom or network support equipment if the system is designed for a 27.6V DC source and the load stays within the 2.4A rated CH1 current and 100.74W total rated power. Its relay contact AC OK and battery low signals can also be used for status monitoring.

What is the difference between the PSC-100B and other PSC series charging models?

On the PSC-100 datasheet, the 27.6V models are PSC-100B (PCB only) and PSC-100B-C (enclosed, with L-bracket and cover) at 100.74W, rated 2.4A on CH1 and 1.25A on CH2, 88% efficiency. The 13.8V models are PSC-100A and PSC-100A-C at 100.05W, rated 4.75A on CH1 and 2.5A on CH2, 86% efficiency. Other PSC series models are not covered by this sheet.

Is the PSC-100B meant for outdoor use or harsh ambient temperatures?

The operating temperature range is -20°C to +70°C, with load derating at higher temperatures per the derating curve. No IP rating is listed, and the PSC-100B is a PCB-only (open frame) component intended to be installed inside end equipment, so it is not suited to outdoor use.
