Mean Well

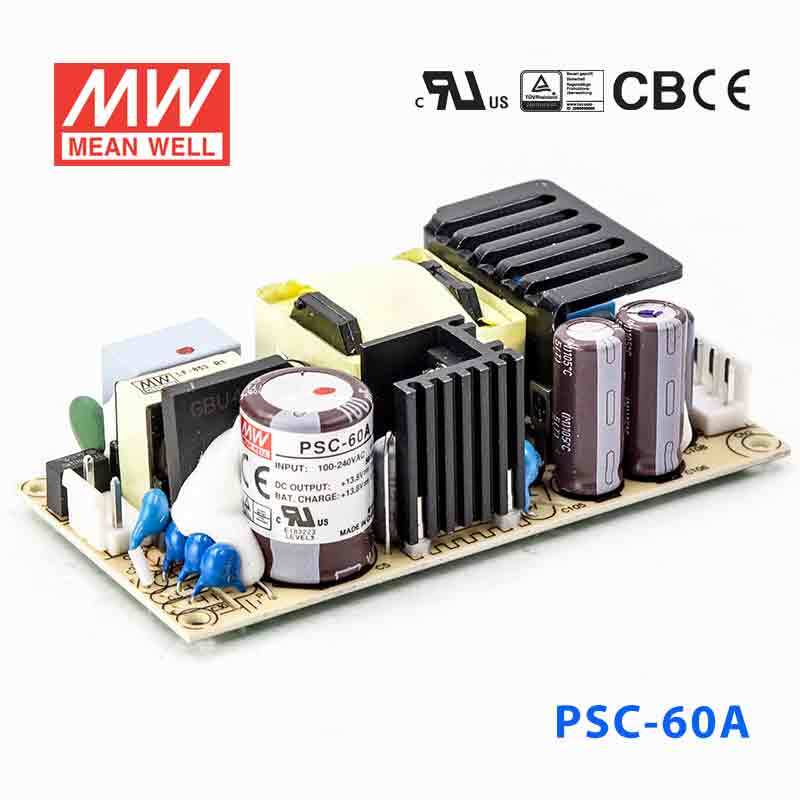

Mean Well PSC-60A Battery Chargers 59.34W 13.8V 2.8A - PFC

with UPS functionmodels with L-bracket and cover available(-C type)
SKU PSC-60A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

PSC-60A is the model of this series: rated power 59.34W, typical efficiency 84%.

Features

  • Universal AC input / Full range
  • Models with L-Bracket and cover available (PSC-60x-C, x=A,B)
  • Protections: Short circuit / Overload / Over voltage
  • Battery low protection / Battery reverse polarity protection by fuse
  • Alarm signal for AC OK and Battery reverse low
  • Cooling by free air convection
  • 100% full load burn-in test
  • 2 years warranty

Specifications

PSC-60ASpecifications from the official datasheet (2024-10-30 edition)

OUTPUT

OUTPUT NUMBER
CH1, CH2
DC VOLTAGE (CH1)
13.8V
DC VOLTAGE (CH2)
13.8V
RATED CURRENT (CH1)
2.8A
RATED CURRENT (CH2)
1.5A
CURRENT RANGE (CH1)
0 ~ 4.3A
CURRENT RANGE (CH2)
--------
RATED POWER
59.34W
RIPPLE & NOISE (max.) (CH1)Note.2
120mVp-p
RIPPLE & NOISE (max.) (CH2)Note.2
--------
VOLTAGE ADJ. RANGE
CH1: 12 ~ 15V
VOLTAGE TOLERANCE (CH1)Note.3
±1.0%
VOLTAGE TOLERANCE (CH2)Note.3
--------
LINE REGULATION (CH1)
±0.5%
LINE REGULATION (CH2)
--------
LOAD REGULATION (CH1)
±0.5%
LOAD REGULATION (CH2)
--------
SETUP, RISE TIMENote.4
800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
84%
AC CURRENT (Typ.)
1.6A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1:14.49 ~ 18.63V Protection type : Hiccup mode, recovers automatically after fault condition is removed
BATTERY CUT OFF
10.5±0.5V

FUNCTION

AC OK
TTL open collector output, ON : AC OK ; OFF : AC Fail ; Ice : max. 30mA@ 50VDC
BATTERY LOW
TTL open collector output, ON : Battery Low ; OFF : Battery OK ; Ice : max. 30mA@ 50VDC
Battery low voltage
< 11V

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0~50℃) on CH1 output
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCENote 7
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
3681.4K hrs min. Telcordia SR-332 (Bellcore) ; 589.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
PCB:101.6*50.8*29mm (L*W*H) ; Enclosed type:103.4*62*37mm (L*W*H)
PACKING
PCB:0.13Kg; 96pcs/13.5Kg/1.39CUFT ; Enclosed type:0.29Kg; 45pcs/14Kg/0.63CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  5. 5. Heat sink HS1,HS2 can not be shorted.
  6. 6. Heat sink HS1 must have safety isolation distance with system case.
  7. 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

PSC-60A Mechanical Specification
Mechanical Specification
PSC-60A Block Diagram
Block Diagram
PSC-60A Output Derating
Output Derating
PSC-60A Suggested Application
Suggested Application

Downloads

FAQ

Can I use the PSC-60A to back up a 12V alarm or access control panel?

The PSC-60A is a 13.8V constant-voltage unit rated at 2.8A and 59.34W, which fits many 12V-class backup power applications. It also includes a UPS function, so it is positioned for systems that need a charger and backup-power role in one supply.

Is the PSC-60A suitable for a small 12V industrial controller or embedded system?

It can fit 13.8V control or embedded loads that stay within the unit's 2.8A and 59.34W output rating. The wide 90-264VAC input also makes it practical where the AC source may vary across facilities or regions.

Can the PSC-60A be used for 12V telecom or communications backup equipment?

It is intended for 13.8V output at up to 2.8A, so it can be considered for lower-power 12V-class communications or monitoring equipment within that limit. Buyers should size the load against the 59.34W maximum and confirm the equipment is designed for a 13.8V constant-voltage source.

Is the PSC-60A suitable for outdoor or harsh-temperature locations?

The published operating temperature range is -20°C to +70°C, so the temperature rating is broad for industrial indoor use. No IP rating is listed in the provided specs, so outdoor or washdown exposure should not be assumed from this data alone.

How does the PSC-60A compare with other Mean Well PSC series models?

The PSC-60A is a 59.34W dual-output unit with 13.8V/2.8A on CH1 and 13.8V/1.5A on CH2. It features universal AC input (90-264VAC), free air convection cooling, and protections for overload, over voltage, and battery cut-off. It includes AC OK and Battery Low alarm signals and carries a 2-year warranty.
