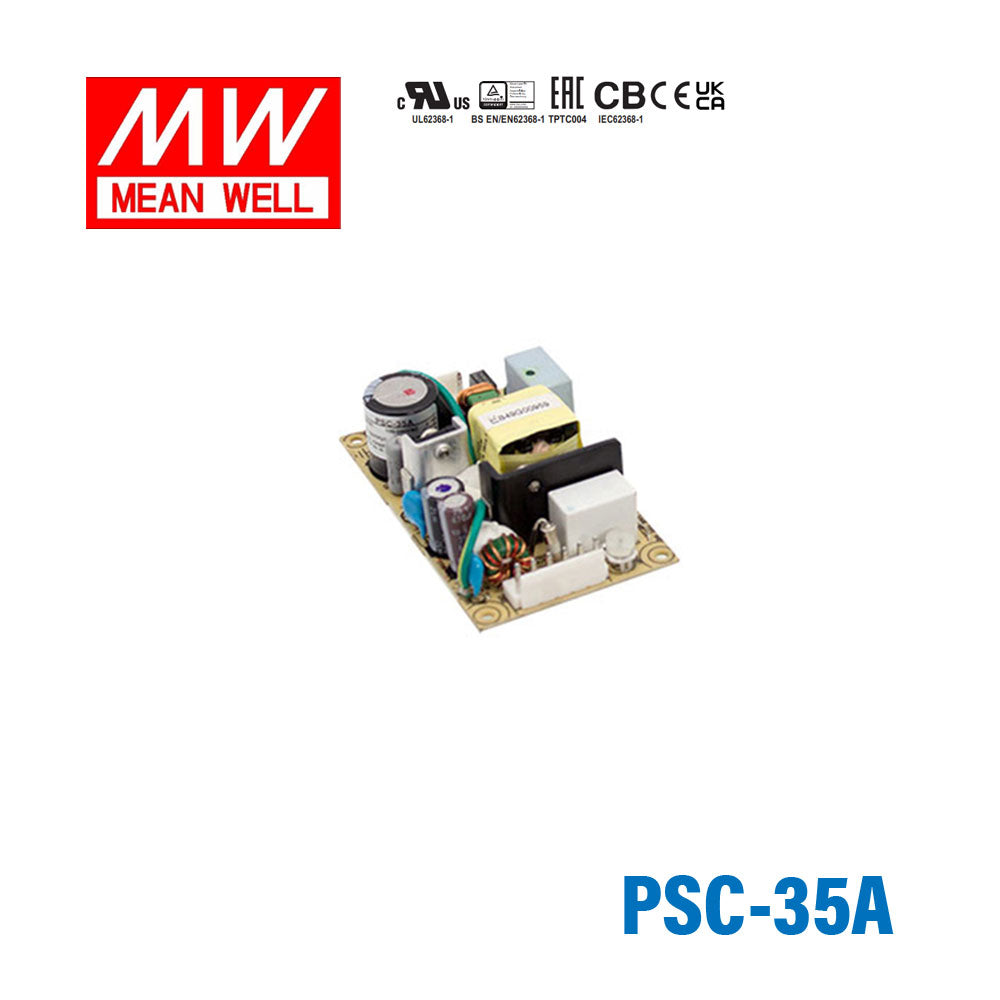

Mean Well PSC-35A Battery Chargers 35.88W 13.8V 1.7A - PFC

with UPS functionmodels with L-bracket and cover available(-C type)

SKU PSC-35A

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

PSC-35A is the CH1: 13.8V / CH2: 13.8V output model of this series: rated current CH1: 1.7A / CH2: 0.9A, rated power 35.88W, typical efficiency 84%.

PSC-35 series is a 35W AC/DC security power supply, allowing the universal input range between 90VAC and 264VAC and incorporating the built-in PFC function. In addition to the primary output, there is a charger output, with a smaller rated current, providing the backup application the security access systems normally need. PSC-35 delivers an efficiency up to 86%; it can operate with air convection under -30℃ through 70℃. This series is designed with thorough alarm features, including AC OK and battery low signaling; moreover, the relay contact is provided to facilitate users system designs. PSC-35 is available in the PCB type (3.3" x 2") or the enclosed type with L-Bracket and cover.

Features

Universal AC input / Full range
3.3"x2" compact PCB size
Models with L-Bracket and cover available (PSC-35x-C, x=A,B)
Protections: Short circuit / Overload / Over voltage
Battery low protection / Battery reverse polarity protection by fuse
Alarm signal for AC OK and Battery low
Cooling by free air convection
100% full load burn-in test
2 years warranty

Specifications

PSC-35ASpecifications from the official datasheet (2024-10-30 edition)

OUTPUT

OUTPUT NUMBER: CH1 / CH2
DC VOLTAGE: CH1: 13.8V / CH2: 13.8V
RATED CURRENT: CH1: 1.7A / CH2: 0.9A
CURRENT RANGE: CH1: 0 ~ 2.6A / CH2: --------
RATED POWER: 35.88W
RIPPLE & NOISE (max.)^Note.2: CH1: 120mVp-p / CH2: --------
VOLTAGE ADJ. RANGE: CH1: 12 ~ 15V
VOLTAGE TOLERANCE^Note.3: CH1: ±1.0% / CH2: --------
LINE REGULATION: CH1: ±0.5% / CH2: --------
LOAD REGULATION: CH1: ±0.5% / CH2: --------
SETUP, RISE TIME^Note.4: 800ms, 50ms/230VAC 1600ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 84%
AC CURRENT (Typ.): 0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: CH1:14.49 ~ 19.5V Protection type : Shut down O/P Voltage, repower on to recover
BATTERY CUT OFF: 10±0.5V

FUNCTION

AC OK: TTL open collector output, ON : AC OK ; OFF : AC Fail ; Ice : max. 30mA@ 50VDC
BATTERY LOW: TTL open collector output, ON : Battery Low ; OFF : Battery OK ; Ice : max. 30mA@ 50VDC Battery low voltage : < 11V

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0~50℃) on CH1 output
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 4114.3K hrs min. Telcordia SR-332 (Bellcore) ; 658.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: PCB:84.6*50.8*24mm (L*W*H) ; Enclosed type:86.4*59.6*30mm (L*W*H)
PACKING: PCB:0.092Kg;90pcs/9.28Kg/0.97CUFT ; Enclosed type: 0.145Kg;100pcs/15.5Kg/1.03CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. Heat sink HS1,HS2 can not be shorted.
6. Heat sink HS1 must have safety isolation distance with system case.
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

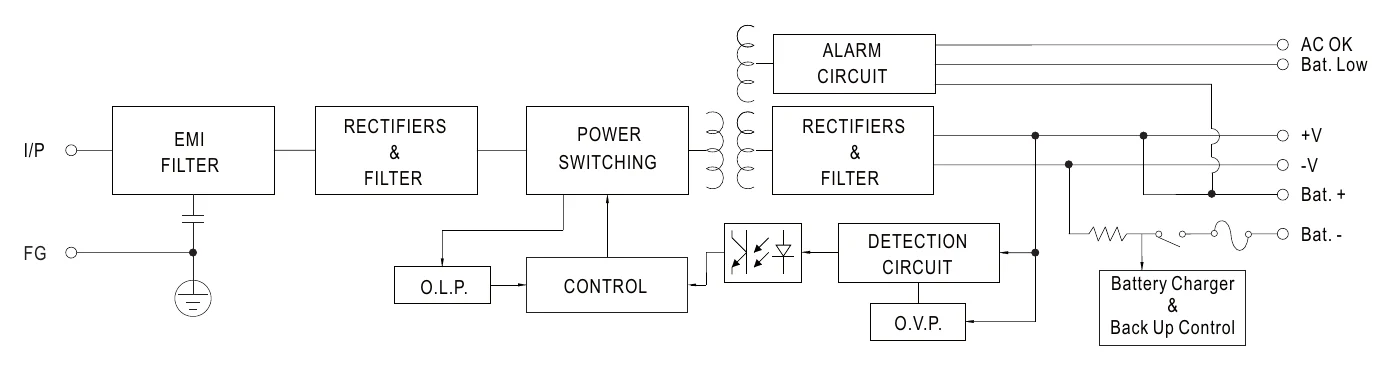

Technical drawings

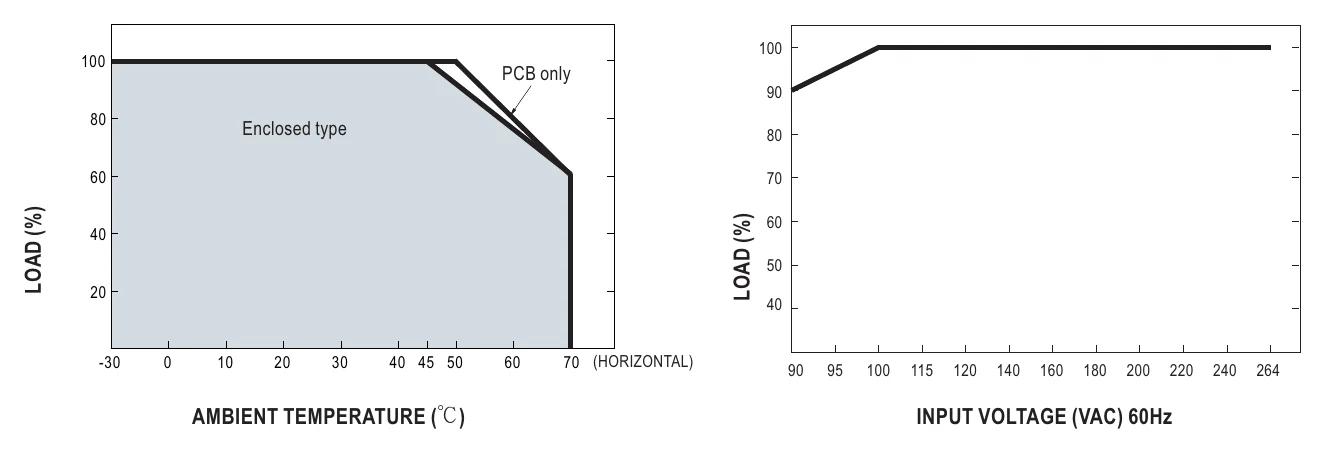

PSC-35A Output Derating — Output Derating

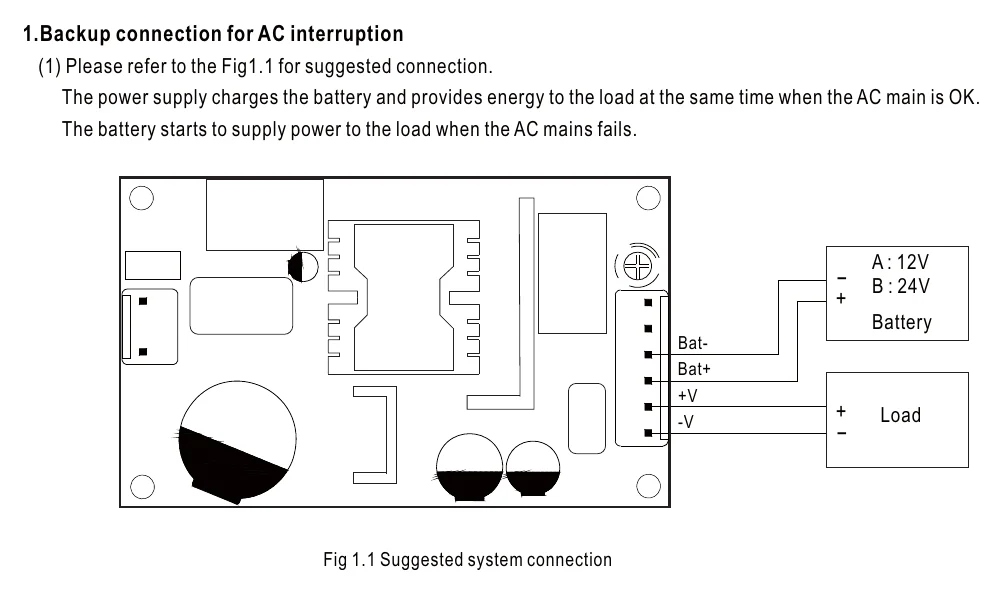

PSC-35A Suggested Application — Suggested Application

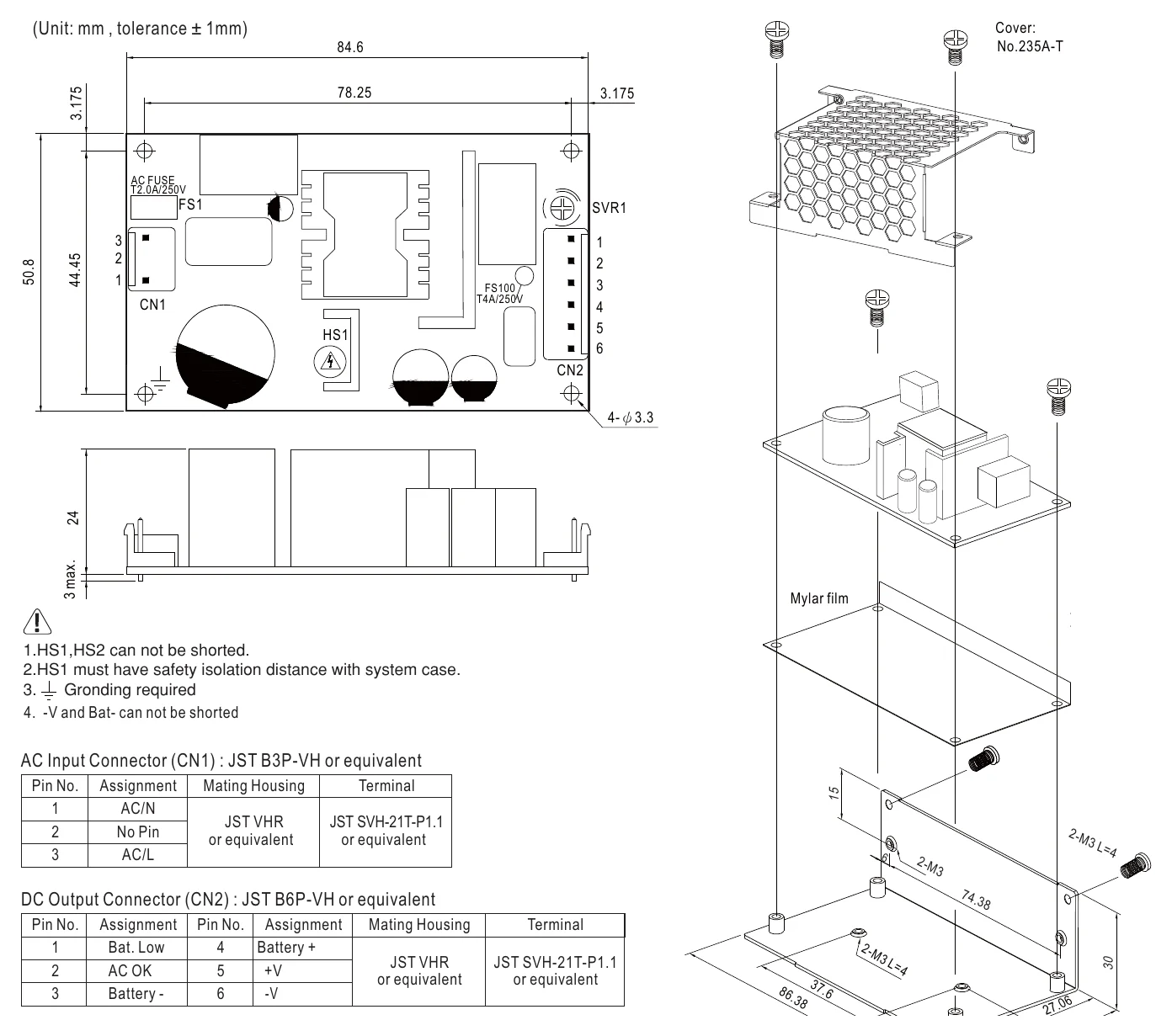

PSC-35A Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Certificates7

Mean Well E183223 UL Certificate PDF Download

Mean Well PSC-35-TUV Certificate PDF Download

Mean Well PSC-35-CB (UL) Certificate PDF Download

Mean Well PSC-35-CB (TUV) Certificate PDF Download

Mean Well PSC-35-EMC Certificate PDF Download

Mean Well PSC-35-CE-dec Certificate PDF Download

Mean Well PSC-35-UK-dec Certificate PDF Download

Test reports1

Mean Well PSC-35A Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the PSC-35A for a small 12V alarm or security backup application?

It provides 13.8V constant-voltage output at up to 1.7A, with 35.88W total output power. That makes it suitable for smaller 12V-class standby or backup applications that align with a 13.8V charging profile and do not exceed 1.7A.

Is the PSC-35A appropriate for low-power embedded control equipment that uses a 12V battery-backed supply?

This unit is aimed at low-power 13.8V applications and can supply up to 1.7A from a 90-264VAC input. It fits embedded or control equipment where the charging and backup requirement stays within 35.88W.

Can the PSC-35A support a compact automation panel that only needs modest charging current?

For lighter-duty 12V-class automation or panel applications, the 13.8V and 1.7A rating is appropriate when the load and charging demand stay within 35.88W. Its UPS function also makes it relevant where backup continuity is needed.

Is the PSC-35A suitable for indoor use in cold or hot equipment areas?

The operating temperature range is -30°C to +70°C, which gives it a broad temperature window for indoor equipment spaces. The provided specs do not include an IP rating, so outdoor suitability is not established here.

How does the PSC-35A compare with the other 13.8V PSC models?

The PSC-35A is the 13.8V model in the PSC-35 series, rated at 35.88W with a main output of 1.7A and a charger output of 0.9A. The PSC-35B is the 27.6V variant in this series, rated at 35.88W with a main output of 0.85A and a charger output of 0.45A. Both are available in PCB or enclosed types.
