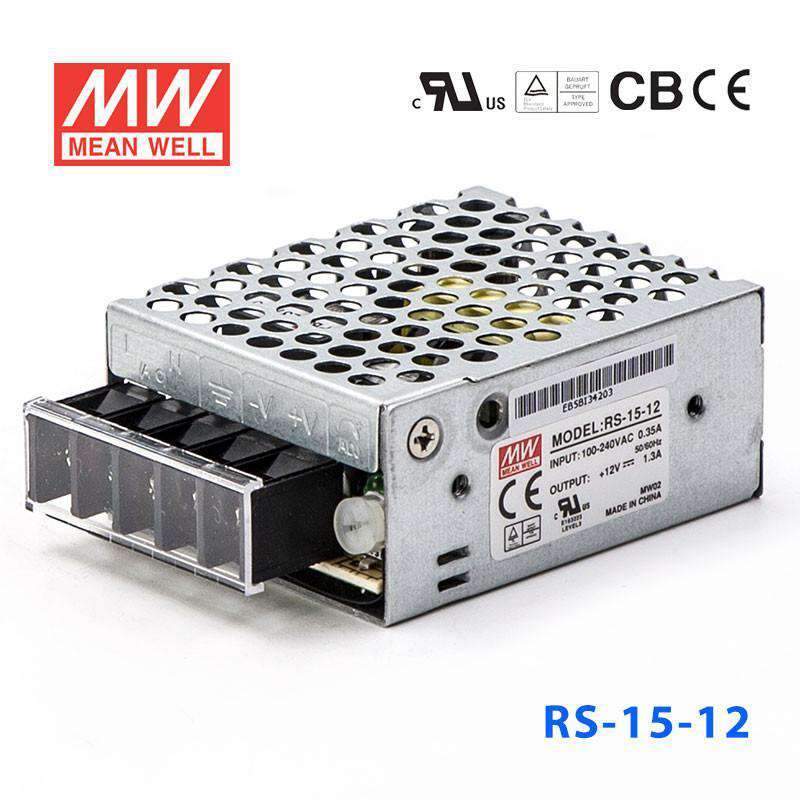

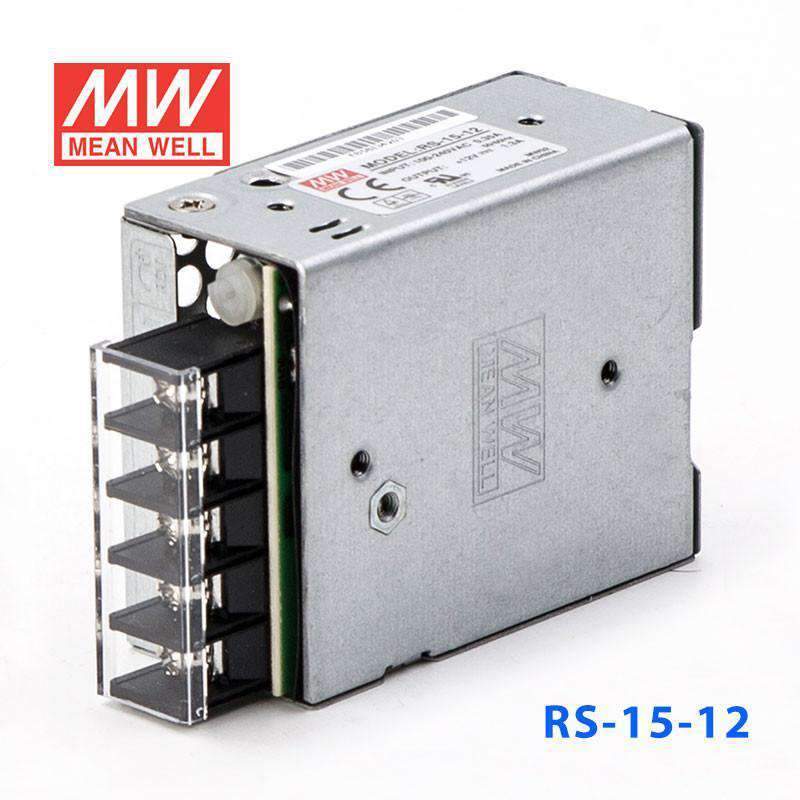

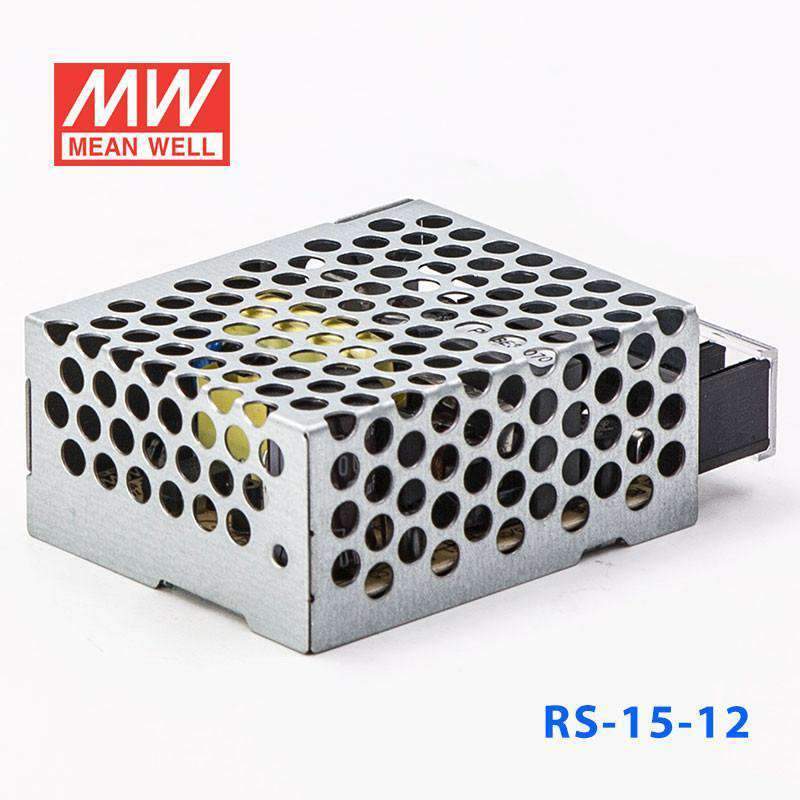

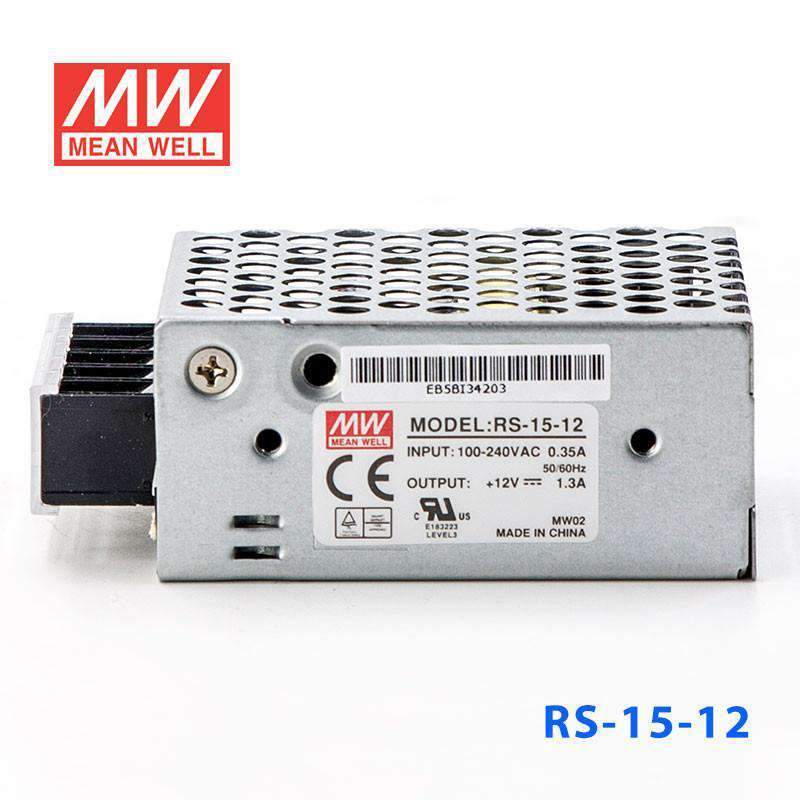

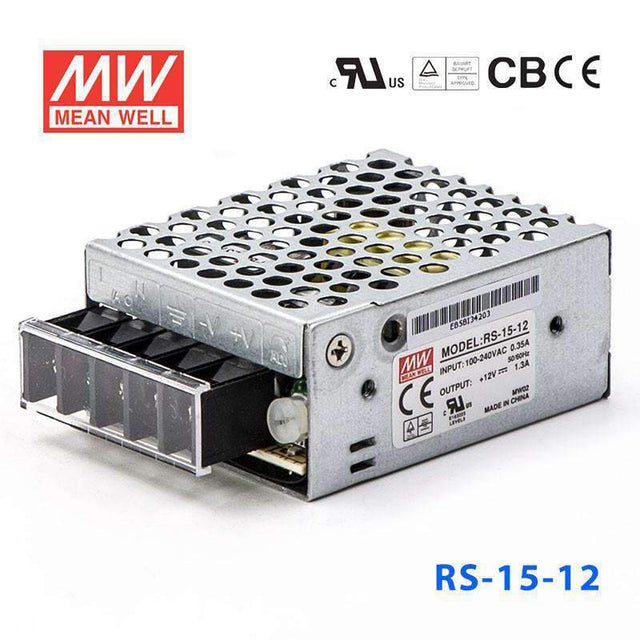

Mean Well RS-15-12 Power Supply 15W 12V
Please Login for Pricing
Description
Description
Features
| No load power consumption <0.5W |
| All using 105°C long life electrolytic capacitors |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| Meet EMS EN50082-2/EN61000-6-2 |
| heavy industry level (35~150W) |
| Withstand 300VAC surge input for 5 sec. |
| High operating temperature up to 70°C |
| Withstand 5G vibration test |
| Miniature size, high power density |
| High efficiency, long life and high reliability |
| LED indicator for power on |
| 100% full load burn-in test |
| Suitable for critical applications |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC, 120~370VDC |
| AC inrush current | Cold start, 65A at 230VAC |
| DC adjustment range | ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output |
| Overload protection | >105%, hiccup mode |
| Over voltage protection | 115%~135%, shut off |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute |
| Working temperature | -20~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W) |

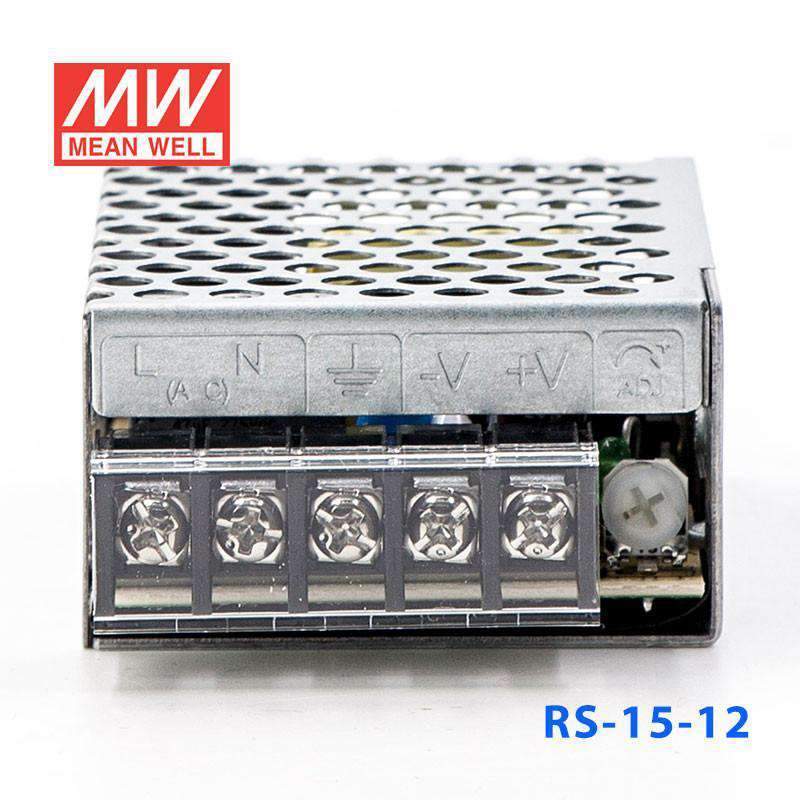

| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 62.5x 51x 28 |
| Case No. | 971A |
| Packing | 108pcs /15.0kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRS Series
-
Power Rating15.6 Watt
-
Output Voltage12 Volt
-
Rated Current1.3 Ampere
-
Input Voltage85V~264V
-
Standards MetCE,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length6.25 cm
-
Width5.1 cm
-
Height2.8 cm
-
Weight0.13 kg
