Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

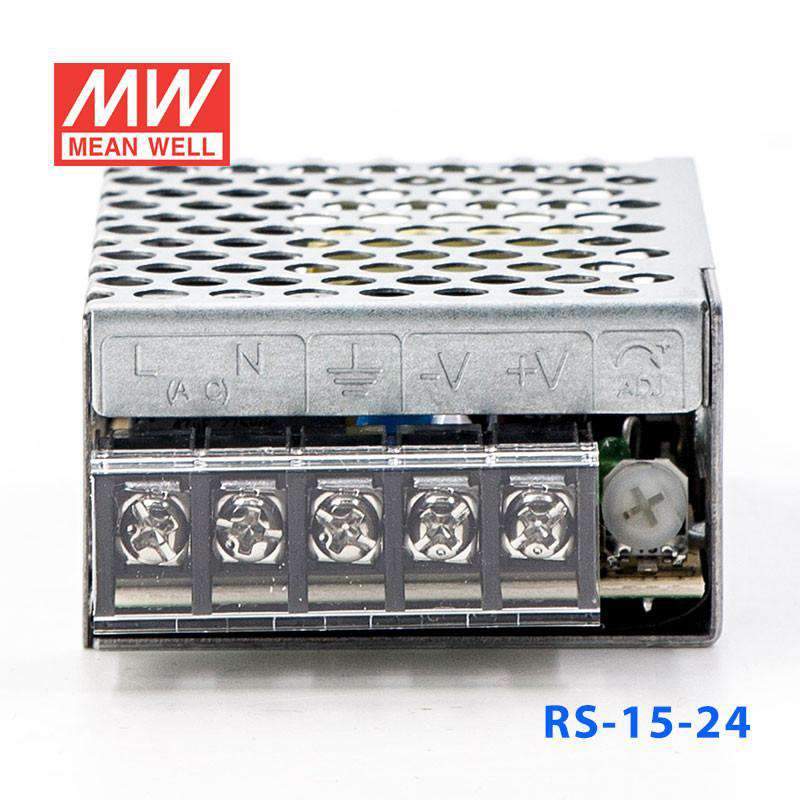

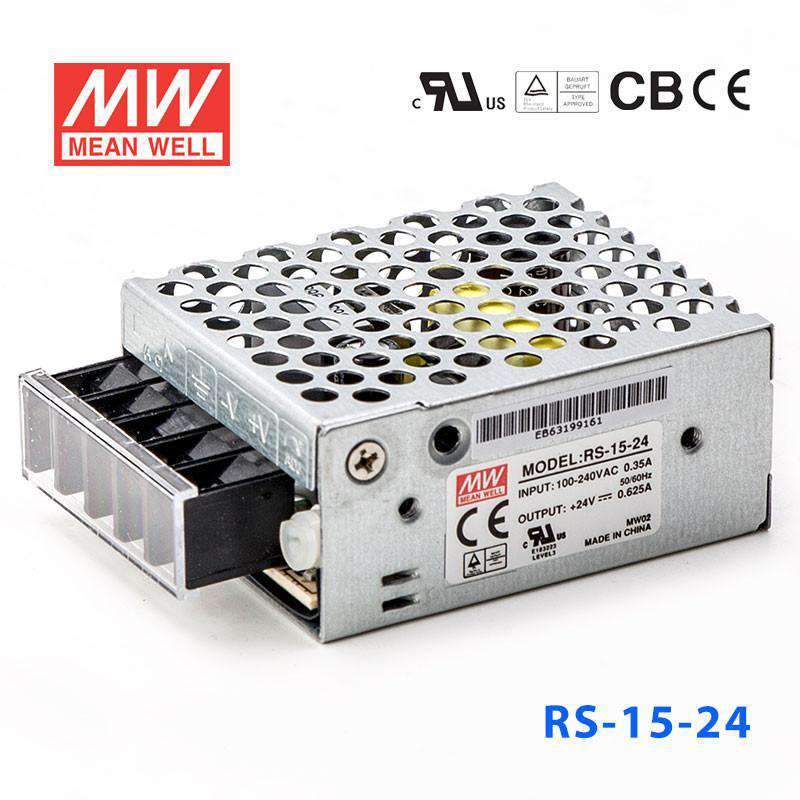

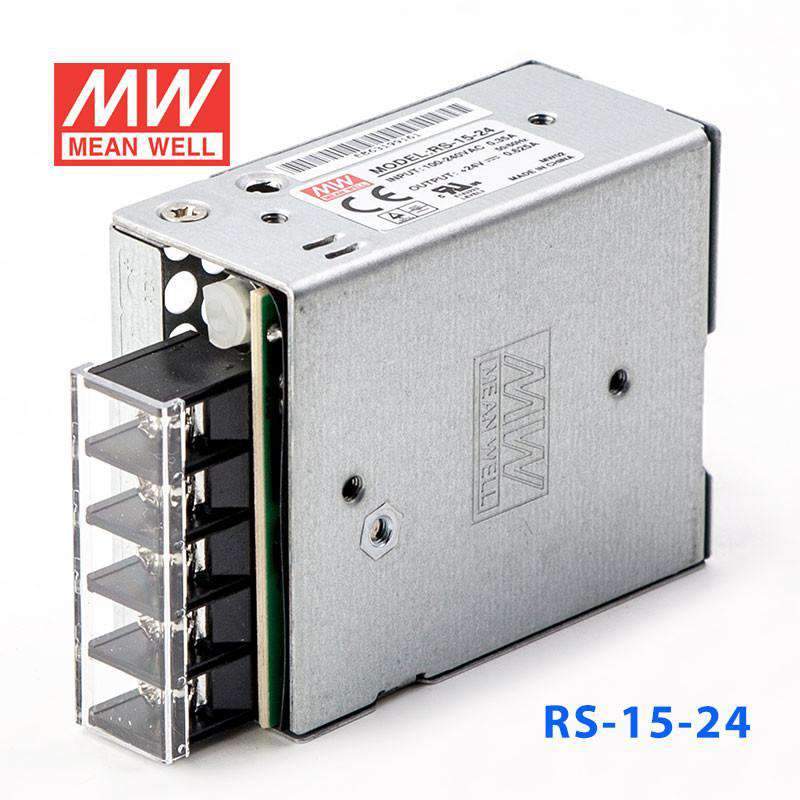

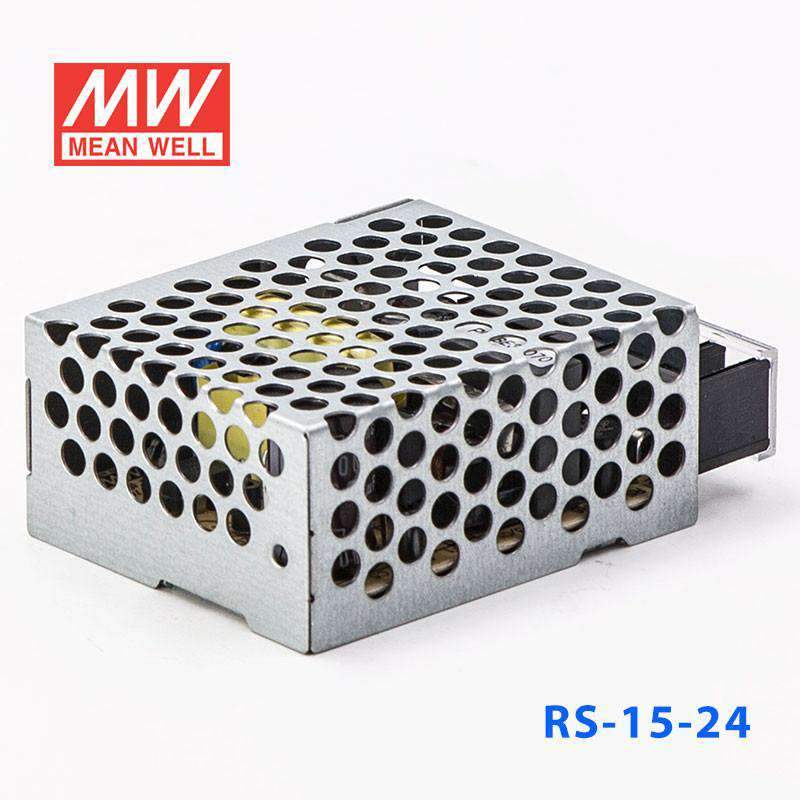

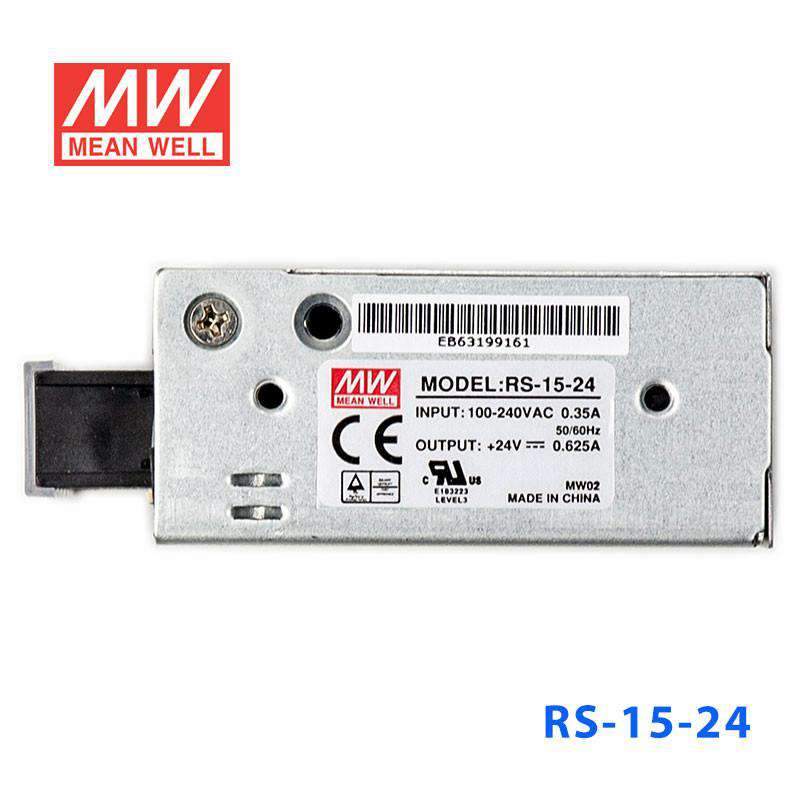

Mean Well RS-15-24 Power Supply 15W 24V 625mA

4.8 (14 reviews)

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-15-24

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

RS-15-24

RS-15-24 15W 24V In stock

RS-100-24 100W 24V Backorder

RS-150-24 150W 24V Backorder

RS-25-24 25W 24V Low stock

RS-35-24 35W 24V Backorder

RS-50-24 50W 24V Backorder

RS-75-24 75W 24V Backorder

Product variants

In stock

Overview

RS-15-24 is the 24V output model of this series: rated current 0.625A, rated power 15W, typical efficiency 82%.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
No load power consumption<0.5W
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-15-24Specifications from the official datasheet (2026-04-10 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 0.625A
CURRENT RANGE: 0 ~ 0.625A
RATED POWER: 15W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 22 ~ 27.6V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 70ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 82%
AC CURRENT (Typ.): 0.35A/115VAC 0.25A/230VAC
INRUSH CURRENT (Typ.): COLD START 65A / 230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 28.4 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020, CNS15936 Class B
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8,11, BS EN/EN55035, BS EN/EN61000-6-1, light industry level, EAC TP TC 020

OTHERS

MTBF: 4914.9K hrs min. Telcordia SR-332 (Bellcore) ; 1608.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 62.5*51*28mm (L*W*H)
PACKING: 0.13Kg; 108pcs/15Kg/0.8CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-15-24 Mechanical Specification — Mechanical Specification

RS-15-24 Derating Curve — Derating Curve

Downloads

Certificates3

UL Certificate (RS-15)(EN) PDF Download

CB Certificate (RS-15)(EN) PDF Download

TUV Certificate (RS-15)(EN) PDF Download

Test reports1

Test Report (RS-15-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RS-15-24 for a small 24V PLC, sensor, or automation load?

Yes, it is a constant-voltage 24V supply rated for up to 0.625A and 15W. That fits low-power 24V DC devices that do not need the higher current available from larger 24V models.

Is the RS-15-24 suitable for compact 24V embedded or control electronics?

It can be suitable for 24V equipment that stays within 0.625A and 15W. The compact 62.5 × 51.0 × 28.0 mm size and 0.13 kg weight help where enclosure space is limited.

Can this model power a low-demand 24V industrial interface module?

Yes, if the module requires a regulated 24V DC output and draws no more than 0.625A. Its 85-264VAC input range also supports use across a broad range of AC input conditions.

Is the RS-15-24 intended for indoor cabinets or outdoor locations?

The product is rated for -20°C to +70°C operation, with output derating at higher ambient temperatures per the derating curve, and is specified to withstand 5G vibration. No IP rating is listed in the provided specs, so the data supports temperature use limits but does not confirm outdoor weather resistance.
