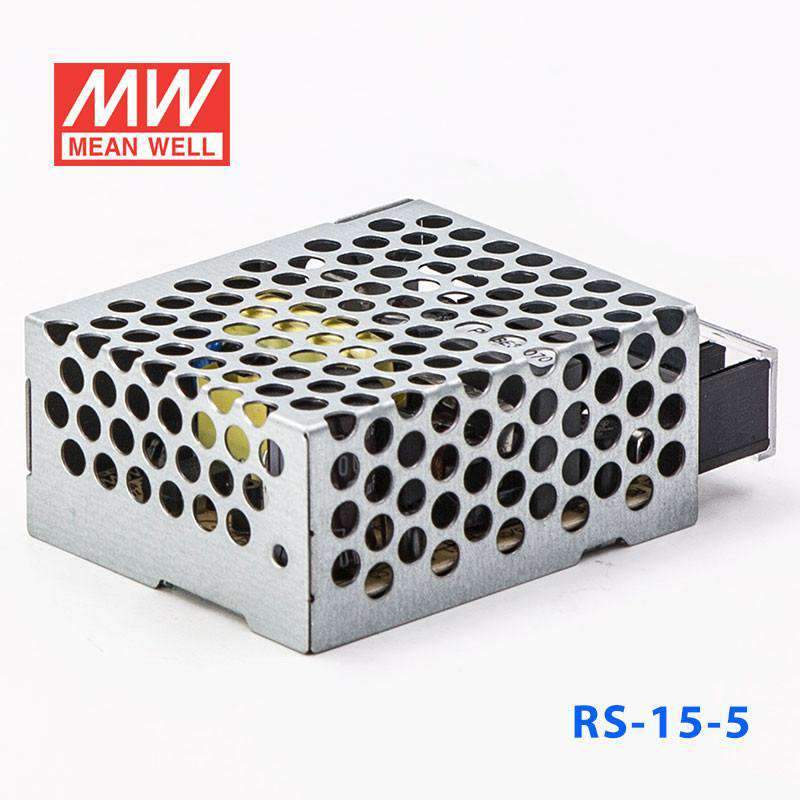

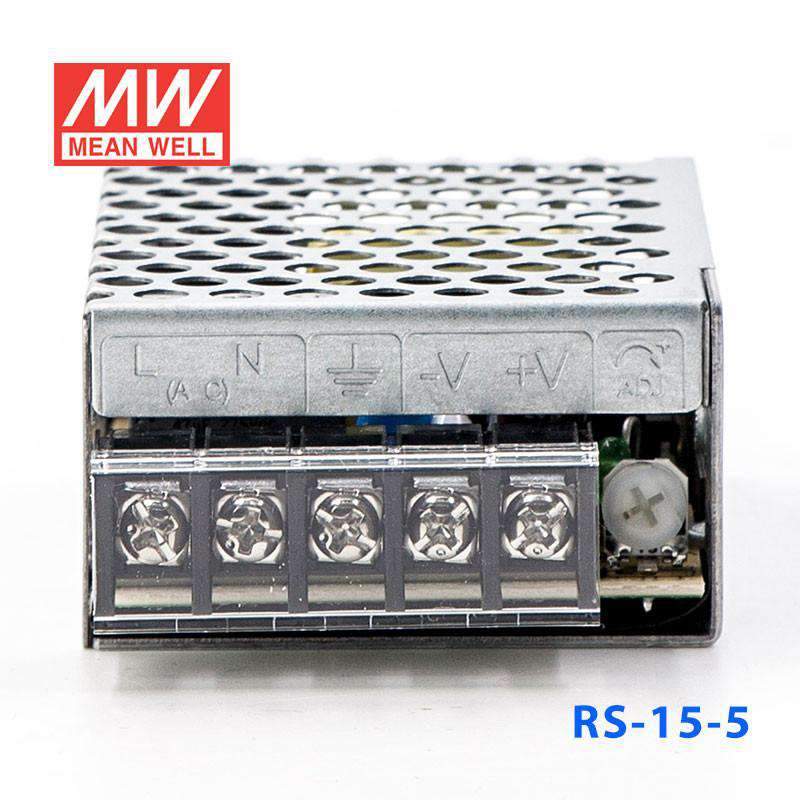

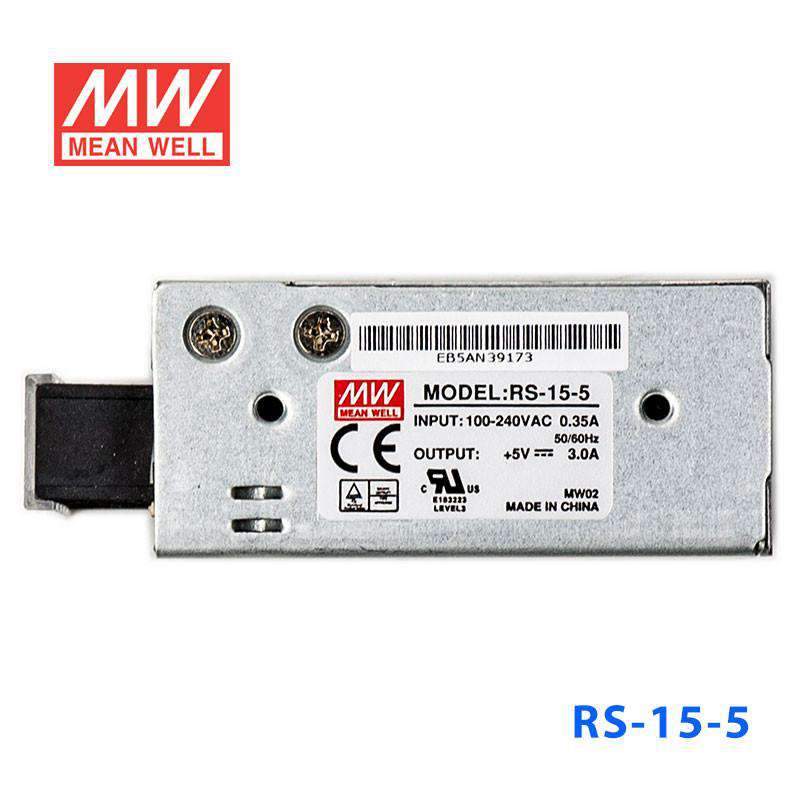

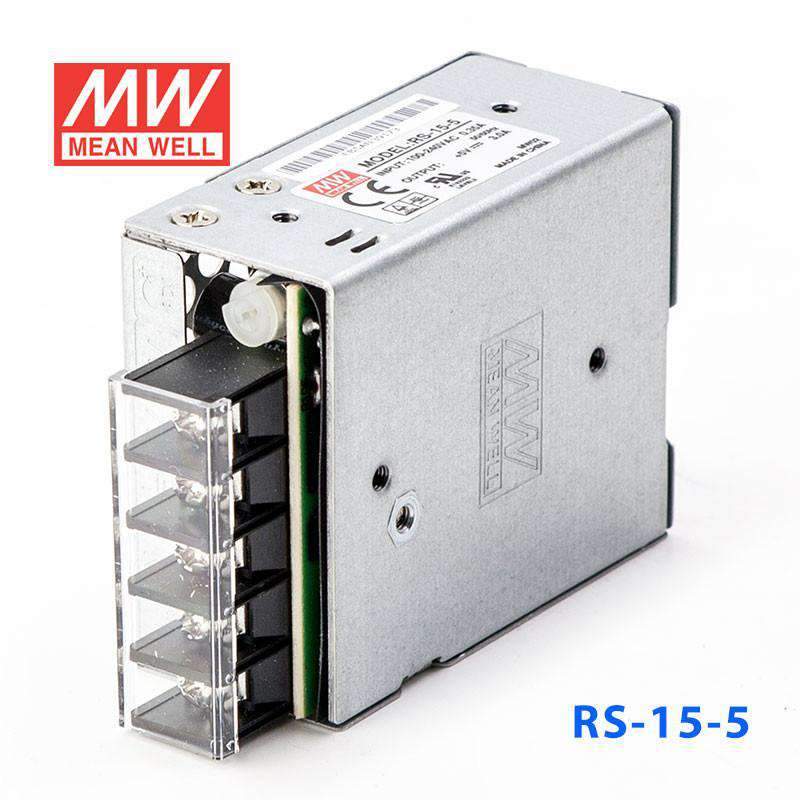

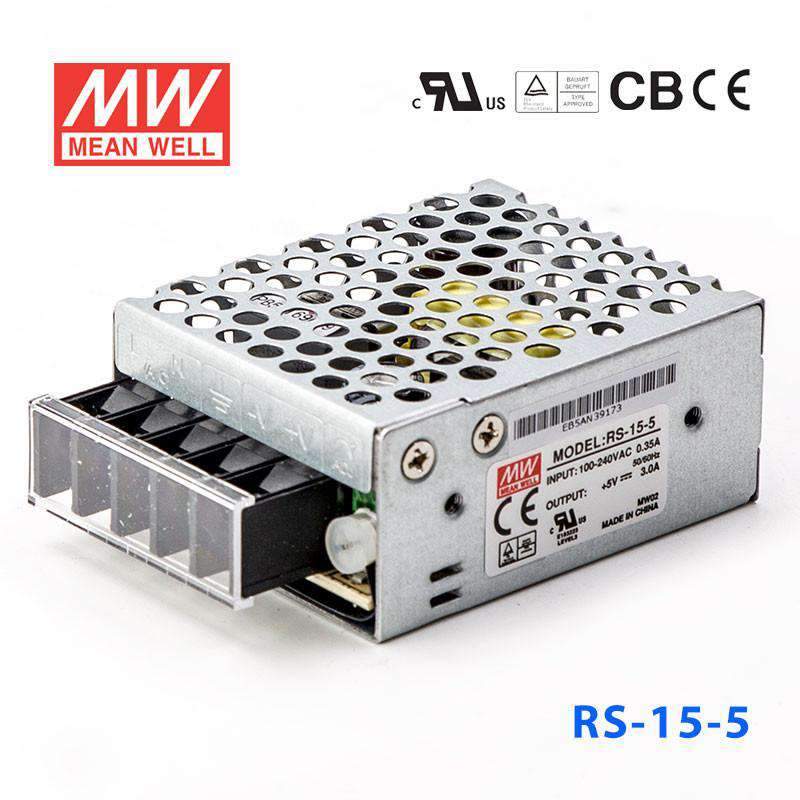

Mean Well RS-15-5 Power Supply 15W 5V 3A

4.8 (14 reviews)
miniature sizeeconomicalwithstand 5G vibration and 70Β°C operation
SKU RS-15-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model β€” 7 in this family

RS-15-5
Available to order
|

Overview

RS-15-5 is the 5V output model of this series: rated current 3A, rated power 15W, typical efficiency 77%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • No load power consumption<0.5W
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RS-15-5Specifications from the official datasheet (2026-04-10 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
3A
CURRENT RANGE
0 ~ 3A
RATED POWER
15W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
Β±2.0%
LINE REGULATIONNote.4
Β±0.5%
LOAD REGULATIONNote.5
Β±1.5%
SETUP, RISE TIME
1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
70ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
77%
AC CURRENT (Typ.)
0.35A/115VAC 0.25A/230VAC
INRUSH CURRENT (Typ.)
COLD START 65A / 230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
Β±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020, CNS15936 Class B
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8,11, BS EN/EN55035, BS EN/EN61000-6-1, light industry level, EAC TP TC 020

OTHERS

MTBF
4914.9K hrs min. Telcordia SR-332 (Bellcore) ; 1608.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
62.5*51*28mm (L*W*H)
PACKING
0.13Kg; 108pcs/15Kg/0.8CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1ΞΌF & 47ΞΌF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to β€œEMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-15-5 Mechanical Specification
Mechanical Specification
RS-15-5 Block Diagram
Block Diagram
RS-15-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RS-15-5 for a 5V embedded controller or development board in industrial equipment?

Yes, this unit provides constant-voltage 5V output up to 3A. It fits 5V embedded electronics, controller boards, and small industrial logic assemblies that stay within its 15W rating.

Is the RS-15-5 suitable for powering USB-class 5V electronics inside a machine or kiosk?

It can be appropriate for internal 5V electronics when the total load does not exceed 3A. The main selection points are its 5V output (adjustable 4.75-5.5V) and 15W maximum power.

Can this model support 5V sensor interfaces or automation I/O modules?

It is a reasonable choice for 5V sensor interface boards, compact I/O modules, and low-power automation electronics that need constant-voltage 5V power. Capacity is limited to 3A, so it is best for lighter 5V loads rather than larger systems.

Is the RS-15-5 useful in equipment that sees vibration or elevated cabinet temperatures?

The specifications list 5G vibration resistance and operation up to +70Β°C with derating per the derating curve. That makes it relevant for protected industrial enclosures where a small 5V, 15W supply is needed and environmental stress is a concern.

Can the RS-15-5 be used in outdoor equipment?

The rated operating temperature is -20Β°C to +70Β°C, with output derating at higher ambient temperatures, so the thermal range is broad for indoor equipment use. The provided specs do not show an IP rating, so it is better matched to protected indoor installations rather than exposed outdoor locations.
