Mean Well

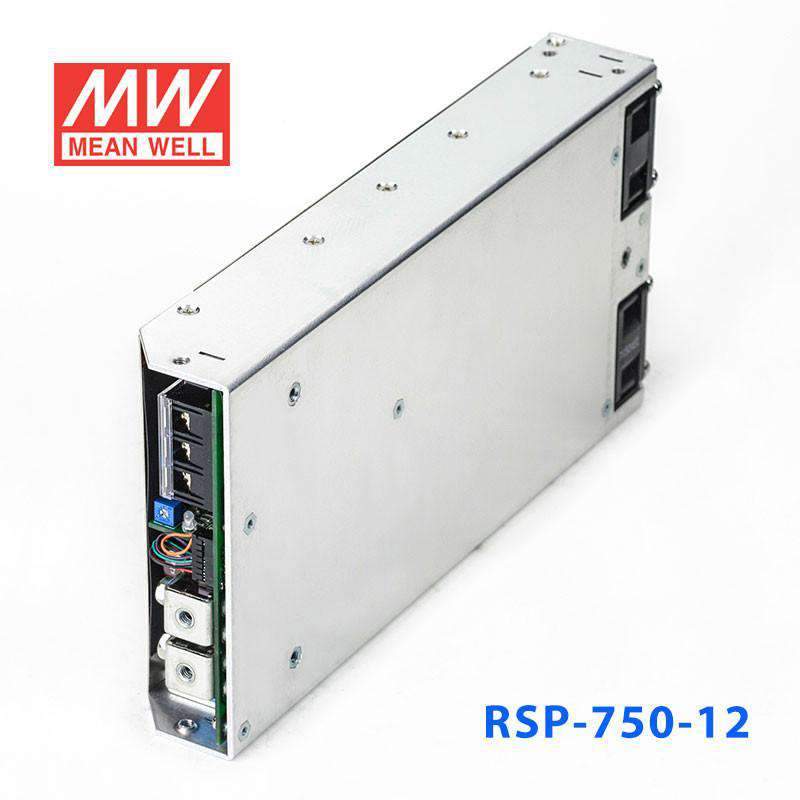

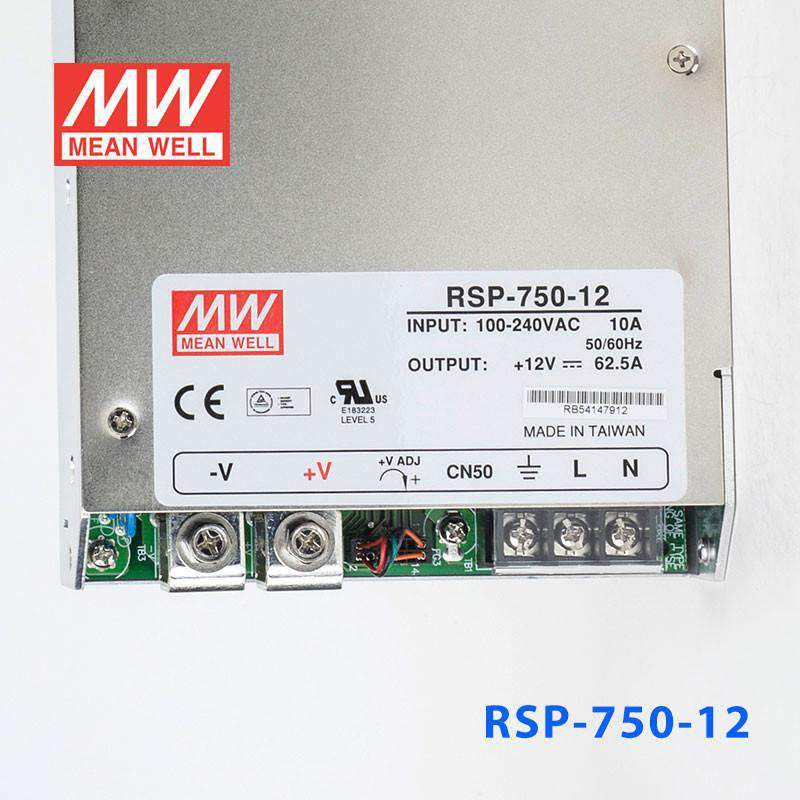

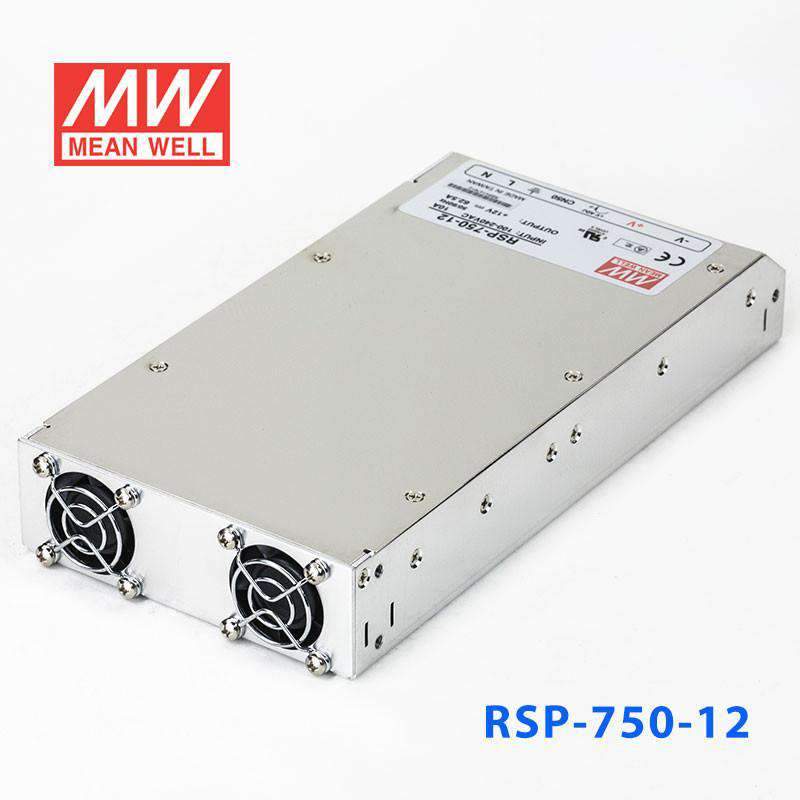

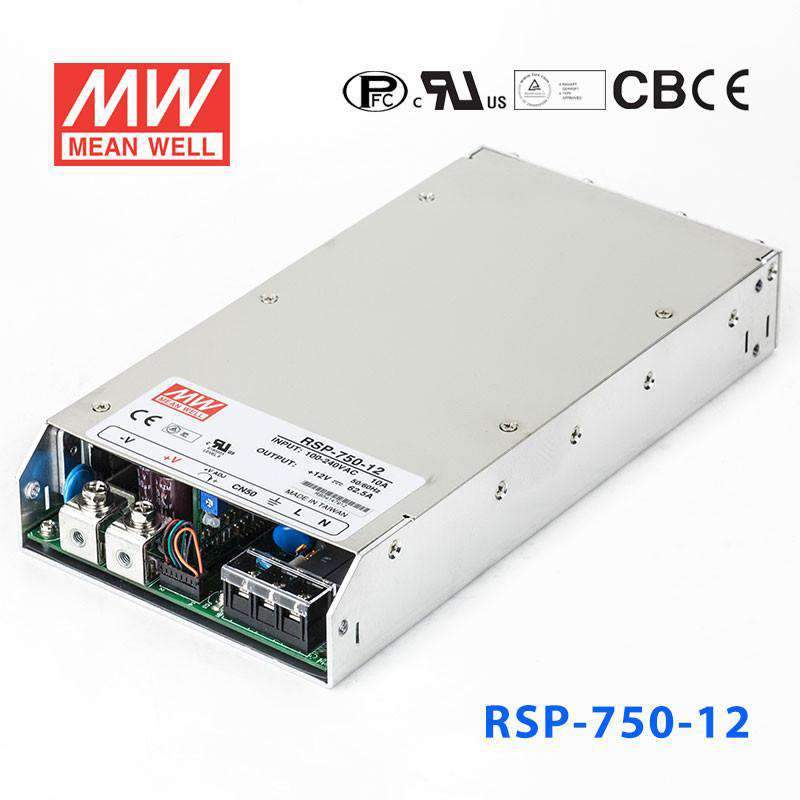

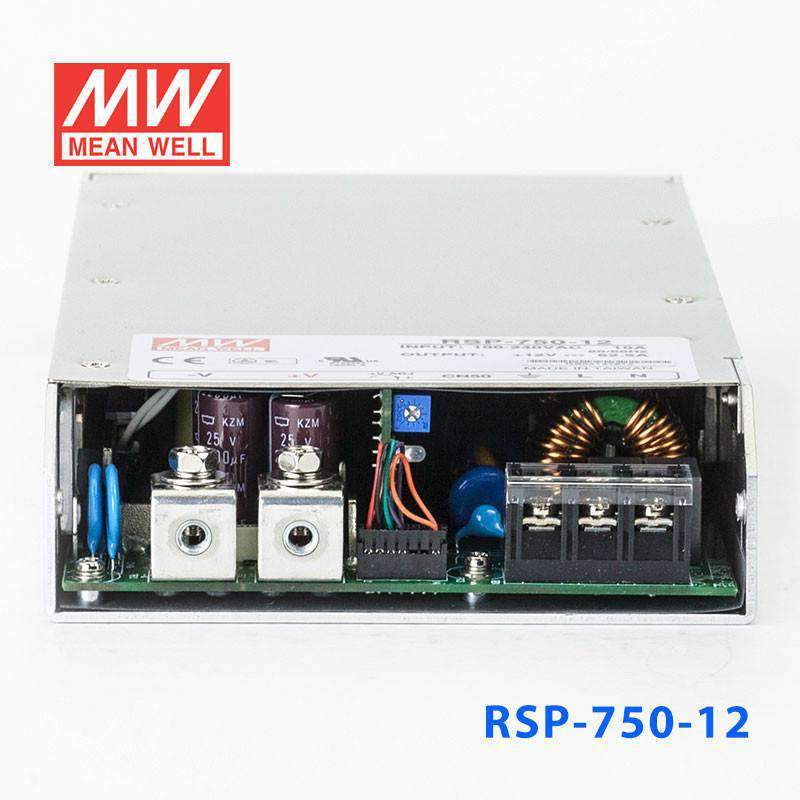

Mean Well RSP-750-12 Power Supply 750W 12V

built-in active PFC, high efficiency up to 92%, optional conformal coating
SKU:
RSP-750-12
Model
Please for Pricing
|

Description

Features

Universal AC input / Full range
Built-in active PFC function
Built-in constant current limiting circuit
Protections:Short circuit/ Overload / Over voltage
Cooling by free air convection
1U low profile 30mm
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) Cold start, 35A at 230VAC
Overload protection 105%~135% Constant current limiting, auto-recovery
Over temperature protection Shut down o/p voltage, re-power on to recover
Setup, rise, hold up time 600ms,30ms,16ms at full load
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -25~+70ºC(refer to output derating curve)
Safety standards UL60950-1,TUV EN60950-1,EN61558-1,EN61558-2-16,CCC GB4943 approved
EMC standards

EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Connection 5P/9.5mm pitch terminal block
Dimension (LxWxH) (mm) 159x97x 30mm
Packing 30pcs / 14.2kg

Specifications
  • Brand
    Mean Well
  • Series
    RSP Series
  • Power Rating
    750 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    62.5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    5 Year
  • Length
    25 cm
  • Width
    12.7 cm
  • Height
    4.1 cm
  • Weight
    1.64 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What industrial or IT systems is the RSP-750-12 suited to power?

The RSP-750-12 delivers 750W at 12V with 62.5A output, appropriate for rack-mount server infrastructure, high-current embedded computing arrays, and industrial automation controllers operating on a 12V DC bus. Its 250.0 × 127.0 × 41.0 mm form factor fits standard 1U rack enclosures.

What is the operating temperature range of the RSP-750-12?

The RSP-750-12 operates from -30°C to +70°C. It carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and is designed for indoor enclosed use. A 5-year warranty is included.

How does the RSP-750-12 compare to the RSP-500-12 and RSP-750-24 at different voltages?

The RSP-500-12 provides 500.4W at 41.7A in a 230.0 × 127.0 × 40.5 mm chassis. The RSP-750-12 increases output to 750W at 62.5A in a 250.0 × 127.0 × 41.0 mm chassis. The RSP-750-24 provides 751.2W at 31.3A in the same chassis as the RSP-750-12. The RSP-750-12 and RSP-750-24 offer similar power at different voltages and current ratings.

Does the RSP-750-12 offer any optional environmental protection?

Yes. The RSP-750-12 is available with optional conformal coating, which adds protection against humidity and condensation inside the enclosure. Efficiency reaches up to 92% with built-in active PFC.
