Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

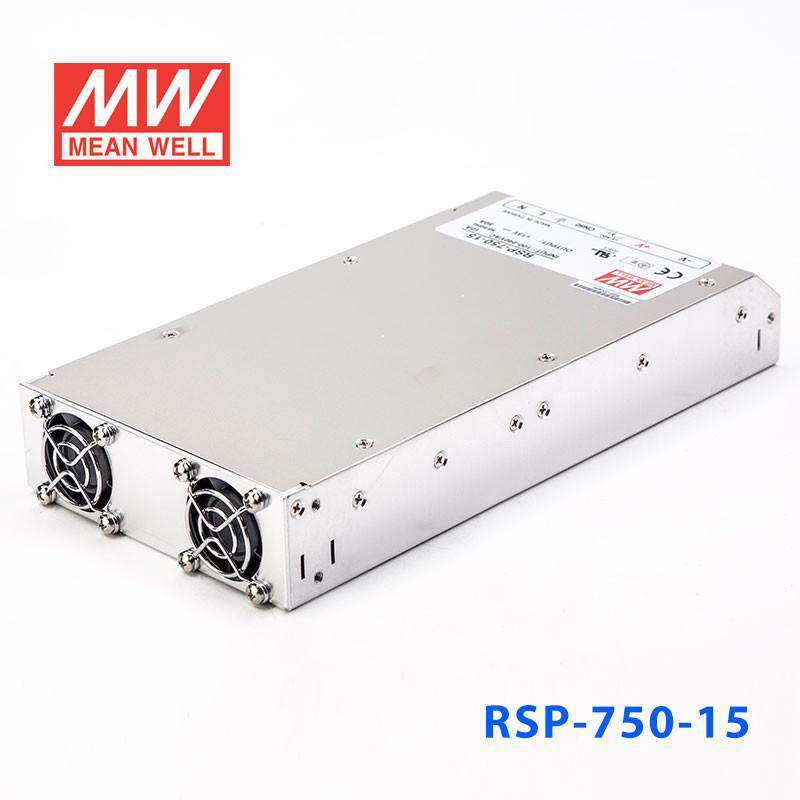

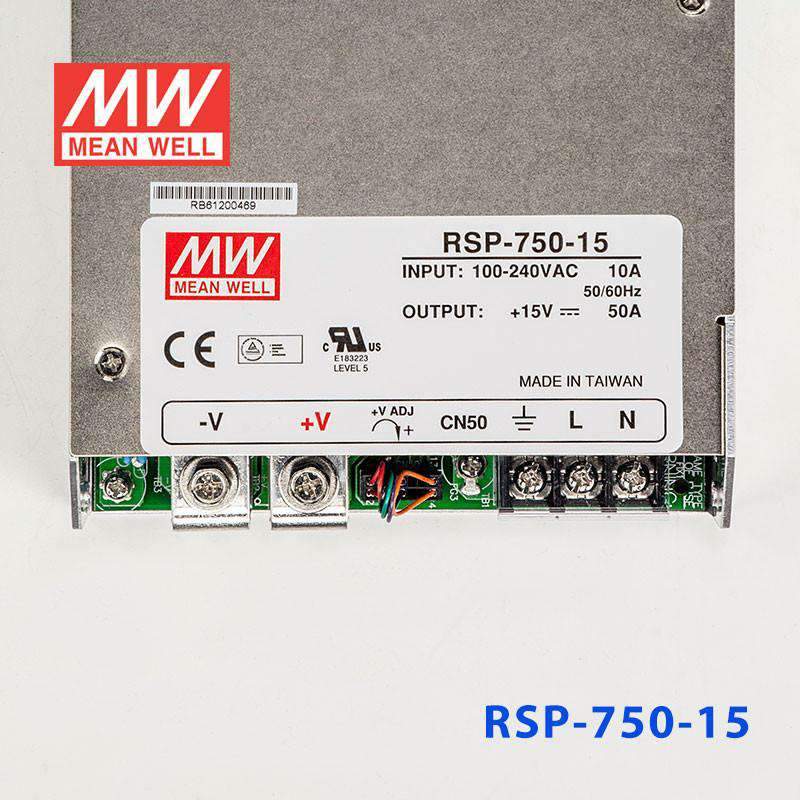

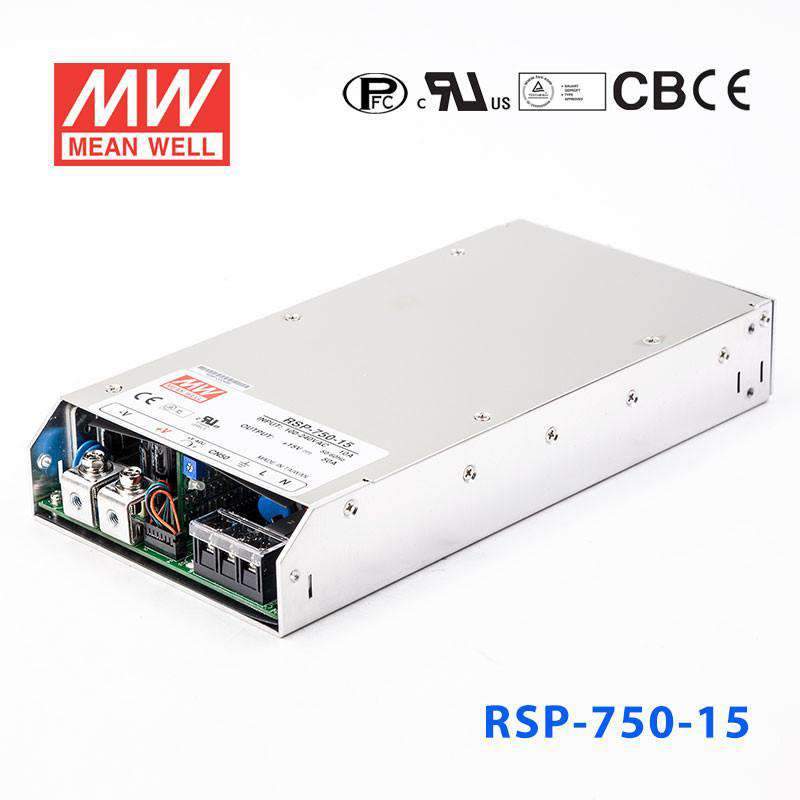

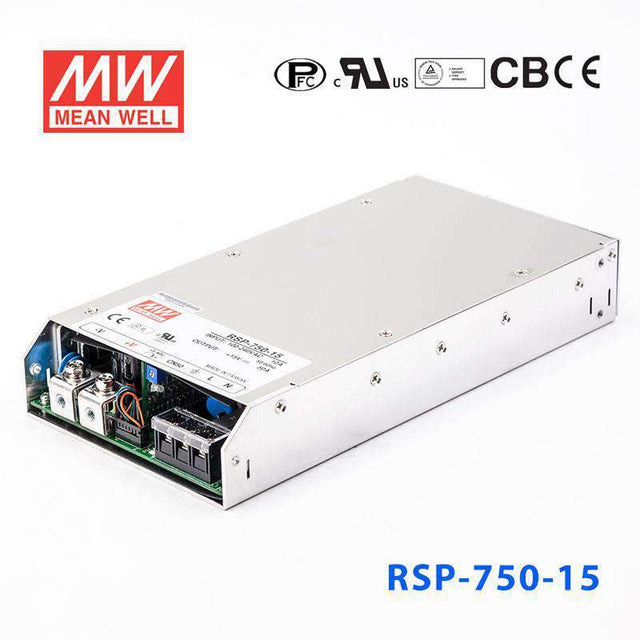

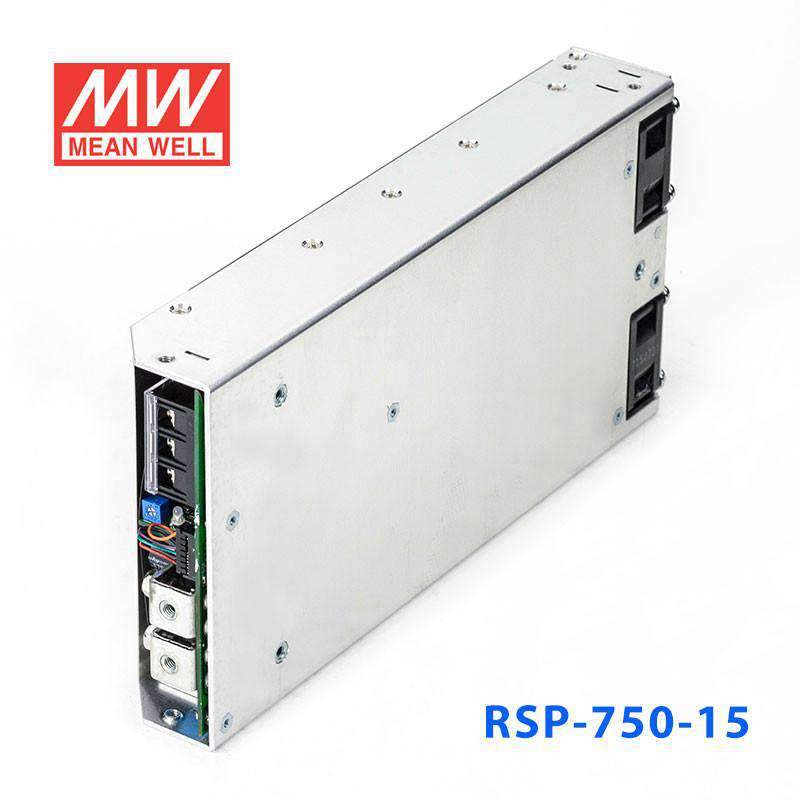

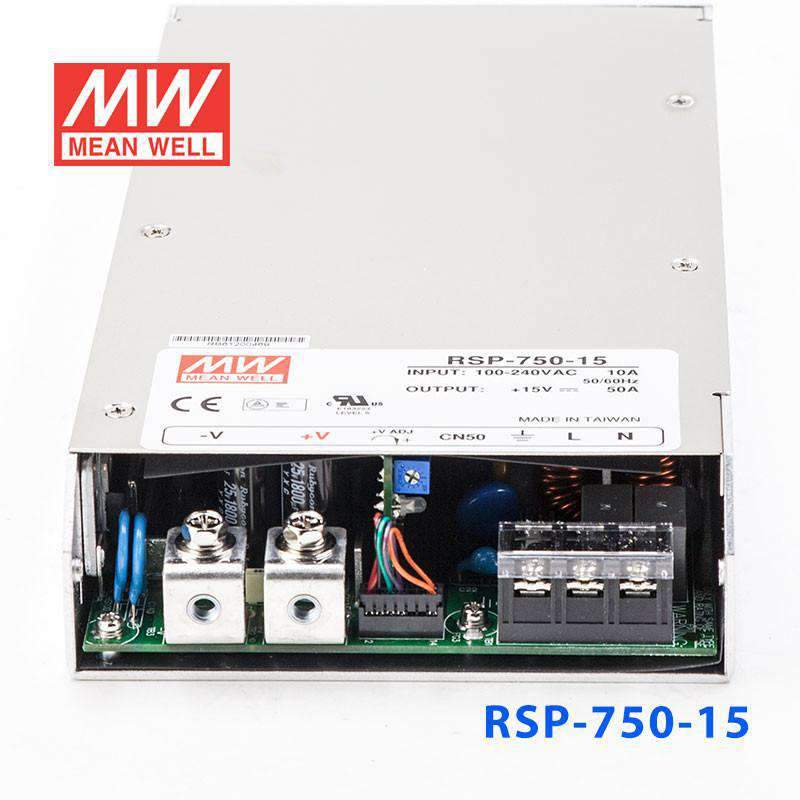

Mean Well RSP-750-15 Power Supply 750W 15V

built-in active PFC, high efficiency up to 92%, optional conformal coating

SKU:

RSP-750-15

Model

75W 15V

SKU: RSP-75-15

100W 15V

SKU: RSP-100-15

1000W 15V

SKU: RSP-1000-15

150W 15V

SKU: RSP-150-15

1500W 15V

SKU: RSP-1500-15

200W 15V

SKU: RSP-200-15

320W 15V

SKU: RSP-320-15

500W 15V

SKU: RSP-500-15

750W 15V

SKU: RSP-750-15

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Built-in active PFC function

Built-in constant current limiting circuit

Protections:Short circuit/ Overload / Over voltage

Cooling by free air convection

1U low profile 30mm

Remote ON-OFF control

LED indicator for power on

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range	85~264VAC ; 120~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
Overload protection	105%~135% Constant current limiting, auto-recovery
Over temperature protection	Shut down o/p voltage, re-power on to recover
Setup, rise, hold up time	600ms,30ms,16ms at full load
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-25~+70ºC(refer to output derating curve)
Safety standards	UL60950-1,TUV EN60950-1,EN61558-1,EN61558-2-16,CCC GB4943 approved
EMC standards	EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Connection	5P/9.5mm pitch terminal block
Dimension (LxWxH) (mm)	159x97x 30mm
Packing	30pcs / 14.2kg

Specifications

Brand

Mean Well
Series

RSP Series
Power Rating

750 Watt
Output Voltage

15 Volt
Rated Current

50 Ampere
Input Voltage

90V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

25 cm
Width

12.7 cm
Height

4.1 cm
Weight

1.64 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications benefit from 750W at 15V?

The RSP-750-15 supplies 750W at 15V with 50A output, suitable for servo amplifier auxiliary rails, high-current 15V bus systems in embedded computing, and large-scale sensor network power supplies. Its 250.0 × 127.0 × 41.0 mm 1U form factor supports rack integration.

What is the ambient temperature operating range of the RSP-750-15?

The RSP-750-15 operates from -30°C to +70°C ambient. It is designed for indoor enclosed use and holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications. A 5-year warranty is included.

How does the RSP-750-15 compare to the RSP-750-12 and RSP-750-24?

All three RSP-750 units share the 250.0 × 127.0 × 41.0 mm chassis and 90-264VAC input. The RSP-750-12 delivers 750W at 62.5A, the RSP-750-15 delivers 750W at 50A, and the RSP-750-24 delivers 751.2W at 31.3A. Power output is consistent; current decreases as voltage increases.

Is conformal coating available on the RSP-750-15?

Yes. The RSP-750-15 is available with optional conformal coating. It achieves up to 92% efficiency with built-in active PFC and weighs 1.64 kg.

Model	Power	Voltage	Current
Mean Well RSP-750-48 Power Supply 750W 48V	753.6W	48V	15.7A	View
Mean Well RSP-750-5 Power Supply 500W 5V	500W	5V	100A	View
Mean Well RSP-750-27 Power Supply 750W 27V	750.6W	27V	27.8A	View
Mean Well RSP-750-24 Power Supply 750W 24V	751.2W	24V	31.3A	View
Mean Well RSP-750-12 Power Supply 750W 12V	750W	12V	62.5A	View
