Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

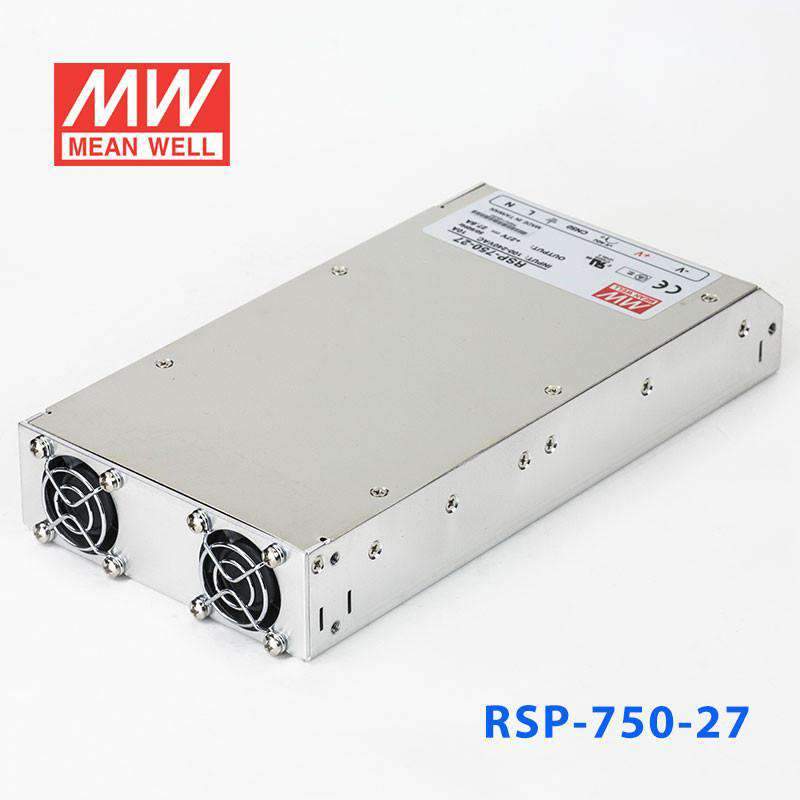

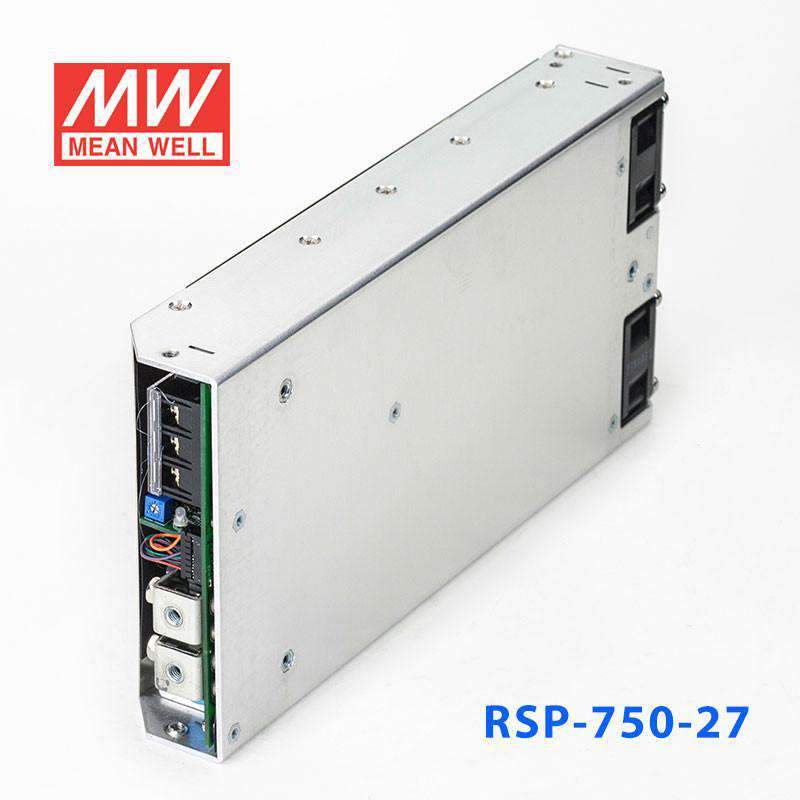

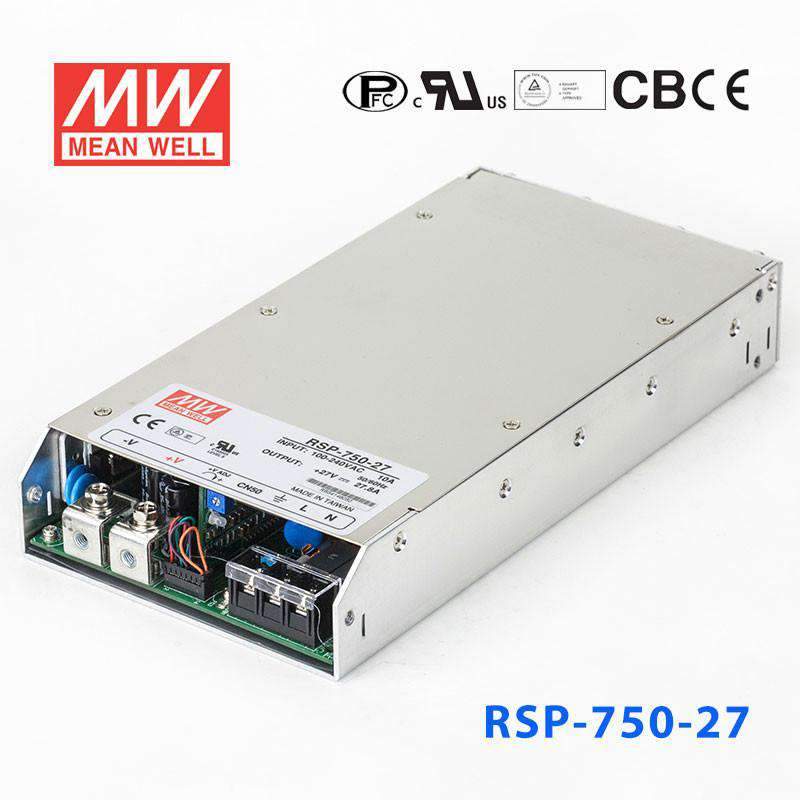

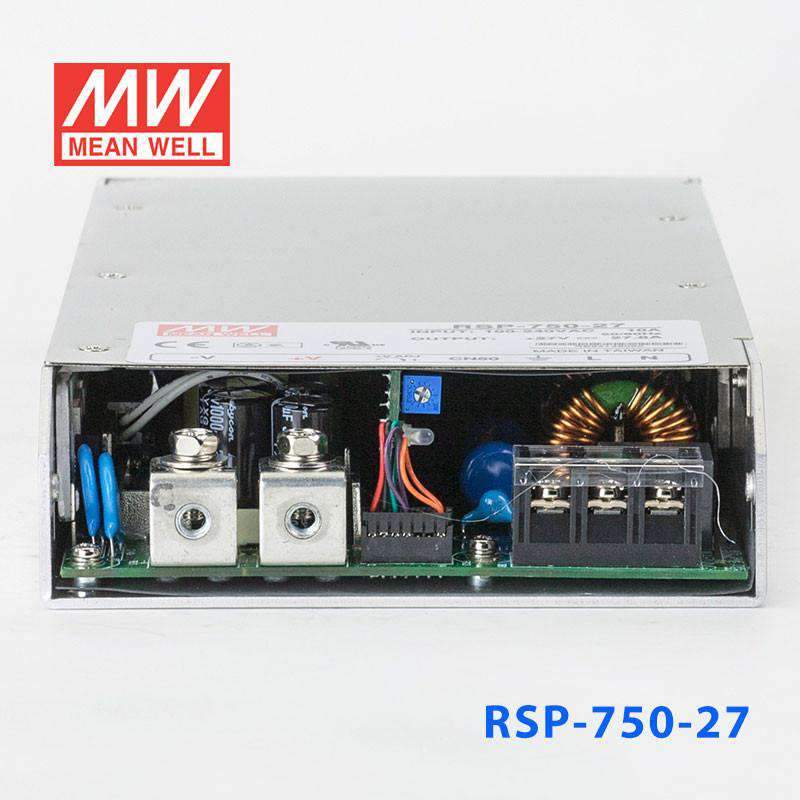

Mean Well RSP-750-27 Power Supply 750W 27V

built-in active PFC, high efficiency up to 92%, optional conformal coating

SKU:

RSP-750-27

Model

75W 27V

SKU: RSP-75-27

100W 27V

SKU: RSP-100-27

1000W 27V

SKU: RSP-1000-27

150W 27V

SKU: RSP-150-27

1500W 27V

SKU: RSP-1500-27

1600W 27V

SKU: RSP-1600-27

320W 27V

SKU: RSP-320-27

500W 27V

SKU: RSP-500-27

750W 27V

SKU: RSP-750-27

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Built-in active PFC function

Built-in constant current limiting circuit

Protections:Short circuit/ Overload / Over voltage

Cooling by free air convection

1U low profile 30mm

Remote ON-OFF control

LED indicator for power on

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range	85~264VAC ; 120~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
Overload protection	105%~135% Constant current limiting, auto-recovery
Over temperature protection	Shut down o/p voltage, re-power on to recover
Setup, rise, hold up time	600ms,30ms,16ms at full load
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-25~+70ºC(refer to output derating curve)
Safety standards	UL60950-1,TUV EN60950-1,EN61558-1,EN61558-2-16,CCC GB4943 approved
EMC standards	EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Connection	5P/9.5mm pitch terminal block
Dimension (LxWxH) (mm)	159x97x 30mm
Packing	30pcs / 14.2kg

Specifications

Brand

Mean Well
Series

RSP Series
Power Rating

750.6 Watt
Output Voltage

27 Volt
Rated Current

27.8 Ampere
Input Voltage

90V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

25 cm
Width

12.7 cm
Height

4.1 cm
Weight

1.64 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What equipment uses 27V DC that the RSP-750-27 can power at high wattage?

The RSP-750-27 provides 750.6W at 27V and 27.8A, suitable for driving medium-power brushless DC motor controllers, 24-28V nominal industrial bus equipment, and specialized motion control systems at higher wattage than 320W or 500W class units. Its 1U form factor (250.0 × 127.0 × 41.0 mm) fits standard rack mounts.

What is the cold-temperature limit of the RSP-750-27?

The RSP-750-27 operates down to -30°C, with an upper limit of +70°C. It is certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL and is rated for indoor enclosed use.

How does the RSP-750-27 compare to the RSP-750-24 and RSP-750-48?

All three share the 250.0 × 127.0 × 41.0 mm chassis and 90-264VAC input. The RSP-750-24 provides 751.2W at 31.3A, the RSP-750-27 provides 750.6W at 27.8A, and the RSP-750-48 provides 753.6W at 15.7A. Power is consistent; current decreases as output voltage increases.

Is optional conformal coating available for the RSP-750-27?

Yes. The RSP-750-27 is available with optional conformal coating for additional humidity protection. It achieves up to 92% efficiency with built-in active PFC and includes a 5-year warranty.

Model	Power	Voltage	Current
Mean Well RSP-750-48 Power Supply 750W 48V	753.6W	48V	15.7A	View
Mean Well RSP-750-5 Power Supply 500W 5V	500W	5V	100A	View
Mean Well RSP-750-24 Power Supply 750W 24V	751.2W	24V	31.3A	View
Mean Well RSP-750-15 Power Supply 750W 15V	750W	15V	50A	View
Mean Well RSP-750-12 Power Supply 750W 12V	750W	12V	62.5A	View
