Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

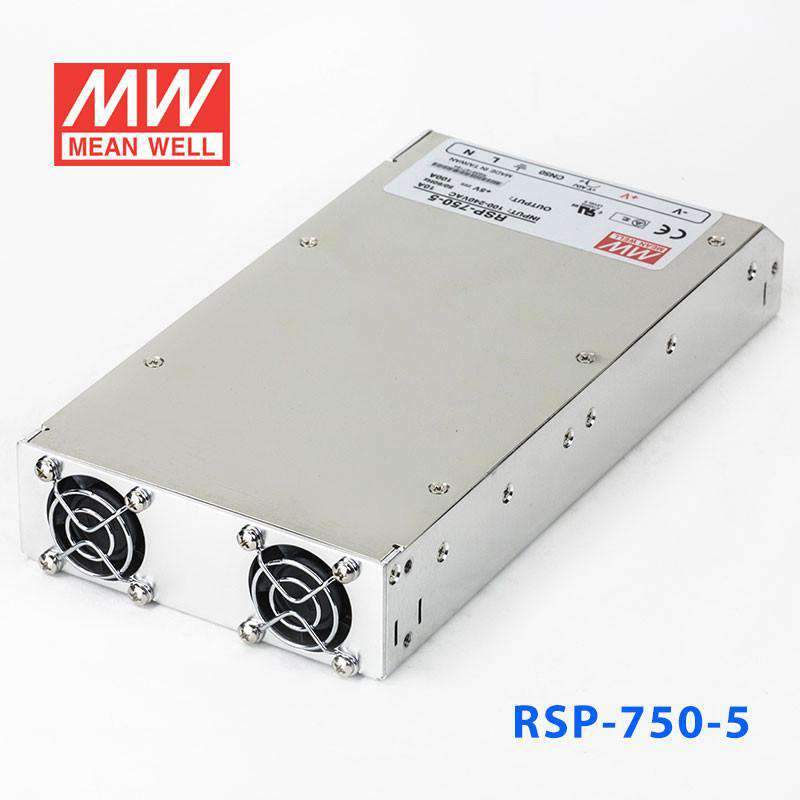

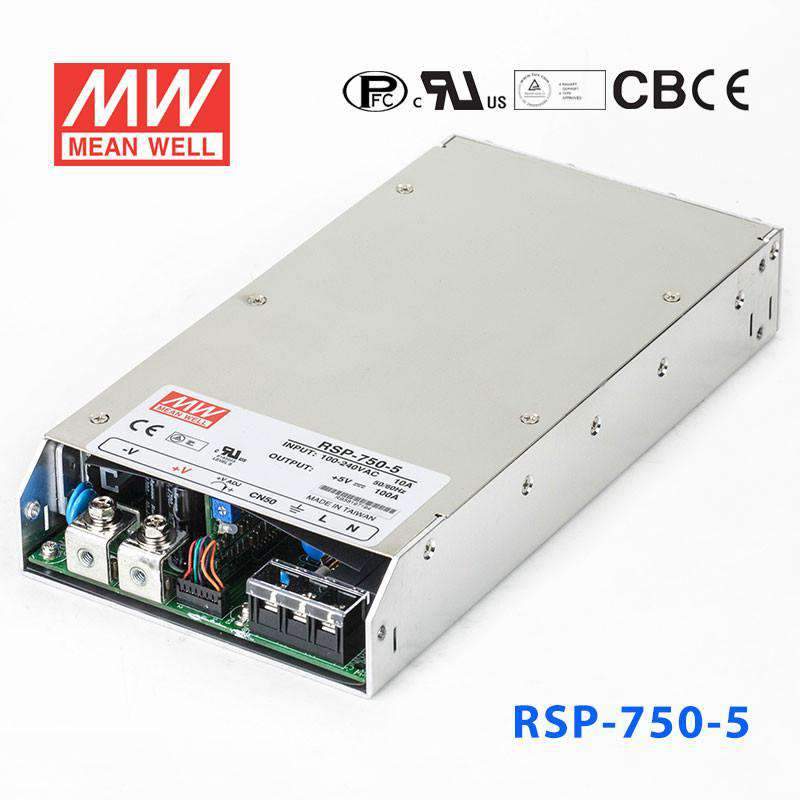

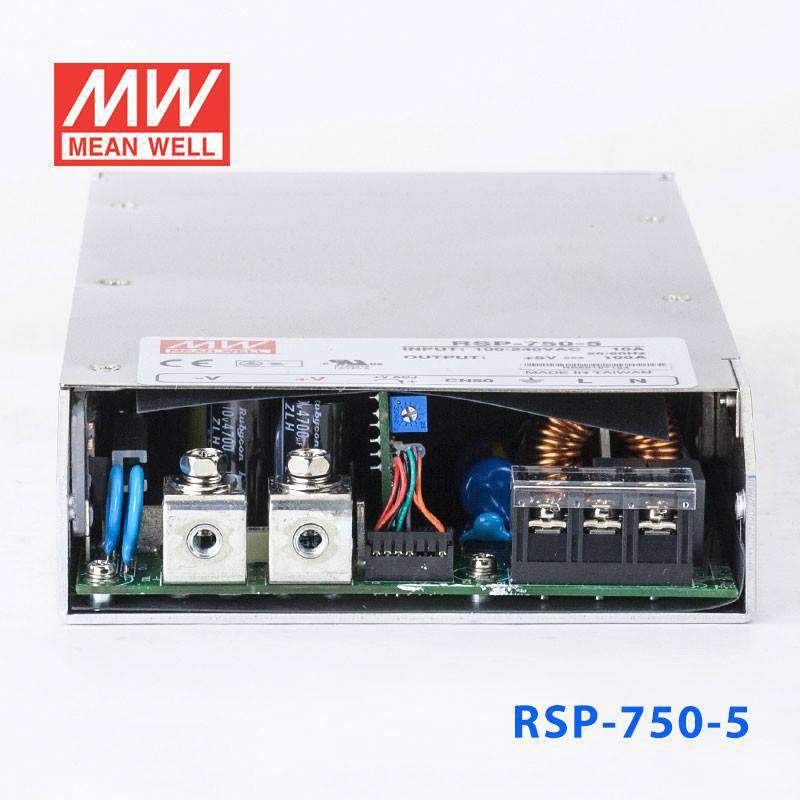

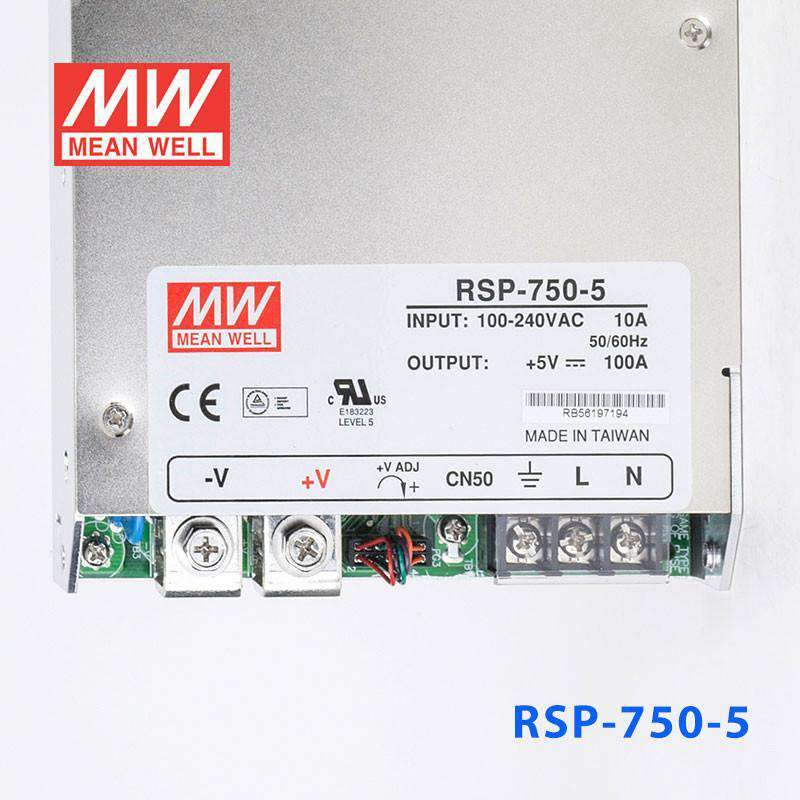

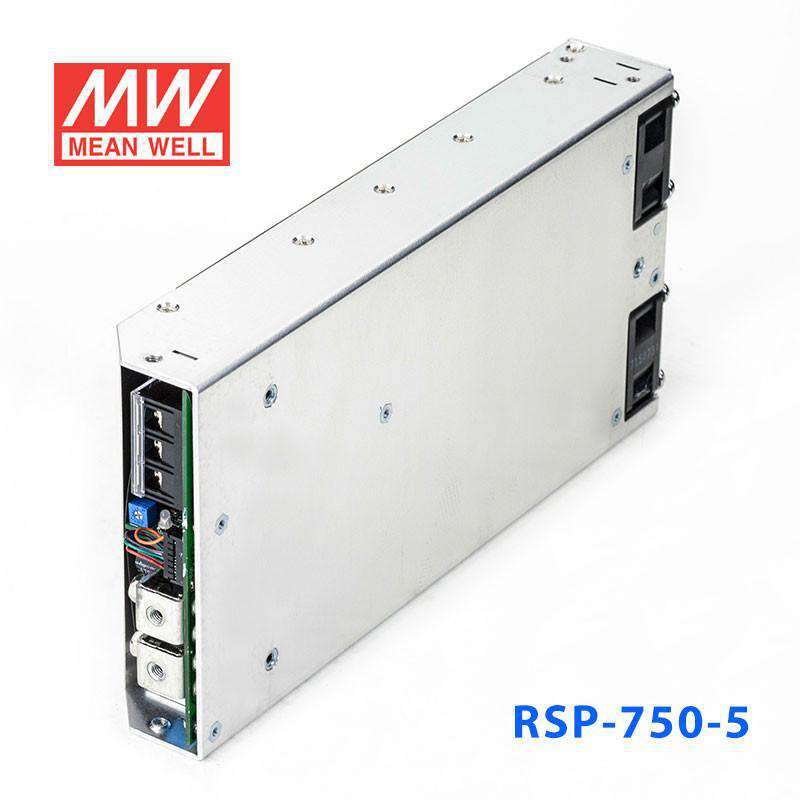

Mean Well RSP-750-5 Power Supply 500W 5V

built-in active PFC, high efficiency up to 92%, optional conformal coating

SKU:

RSP-750-5

Model

75W 5V

SKU: RSP-75-5

100W 5V

SKU: RSP-100-5

150W 5V

SKU: RSP-150-5

1200W 5V

SKU: RSP-1500-5

200W 5V

SKU: RSP-200-5

300W 5V

SKU: RSP-320-5

450W 5V

SKU: RSP-500-5

500W 5V

SKU: RSP-750-5

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Built-in active PFC function

Built-in constant current limiting circuit

Protections:Short circuit/ Overload / Over voltage

Cooling by free air convection

1U low profile 30mm

Remote ON-OFF control

LED indicator for power on

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range	85~264VAC ; 120~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
Overload protection	105%~135% Constant current limiting, auto-recovery
Over temperature protection	Shut down o/p voltage, re-power on to recover
Setup, rise, hold up time	600ms,30ms,16ms at full load
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-25~+70ºC(refer to output derating curve)
Safety standards	UL60950-1,TUV EN60950-1,EN61558-1,EN61558-2-16,CCC GB4943 approved
EMC standards	EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Connection	5P/9.5mm pitch terminal block
Dimension (LxWxH) (mm)	159x97x 30mm
Packing	30pcs / 14.2kg

Specifications

Brand

Mean Well
Series

RSP Series
Power Rating

500 Watt
Output Voltage

5 Volt
Rated Current

100 Ampere
Input Voltage

90V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

25 cm
Width

12.7 cm
Height

4.1 cm
Weight

1.64 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What high-current 5V applications can the RSP-750-5 support?

The RSP-750-5 provides 500W at 5V with 100A output, appropriate for powering large-scale embedded computing platforms, legacy 5V TTL bus systems requiring high current, and industrial test equipment with significant 5V power demands. Its 250.0 × 127.0 × 41.0 mm 1U chassis supports standard rack mounting.

What is the operating temperature range of the RSP-750-5?

The RSP-750-5 operates from -30°C to +70°C ambient. It carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and is designed for indoor enclosed use. A 5-year warranty is included.

How does the RSP-750-5 compare to the RSP-500-5 and RSP-750-12 at different voltages?

The RSP-500-5 delivers 450W at 90A in a 230.0 × 127.0 × 40.5 mm chassis. The RSP-750-5 provides 500W at 100A in a 250.0 × 127.0 × 41.0 mm chassis — a higher power and higher current option in a slightly larger footprint. The RSP-750-12 provides 750W at 62.5A, delivering more total power at lower current.

What is the actual rated power of the RSP-750-5?

The RSP-750-5 is rated at 500W (5V × 100A). Despite the RSP-750 series name, the low output voltage constrains total output power. It includes built-in active PFC, optional conformal coating, and weighs 1.64 kg.

Model	Power	Voltage	Current
Mean Well RSP-750-48 Power Supply 750W 48V	753.6W	48V	15.7A	View
Mean Well RSP-750-27 Power Supply 750W 27V	750.6W	27V	27.8A	View
Mean Well RSP-750-24 Power Supply 750W 24V	751.2W	24V	31.3A	View
Mean Well RSP-750-15 Power Supply 750W 15V	750W	15V	50A	View
Mean Well RSP-750-12 Power Supply 750W 12V	750W	12V	62.5A	View
