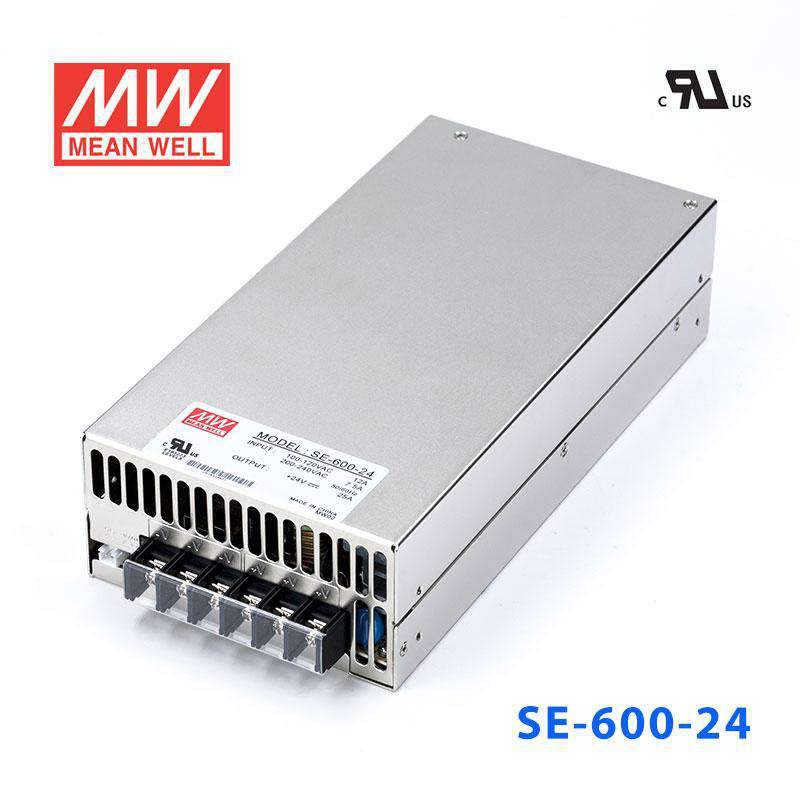

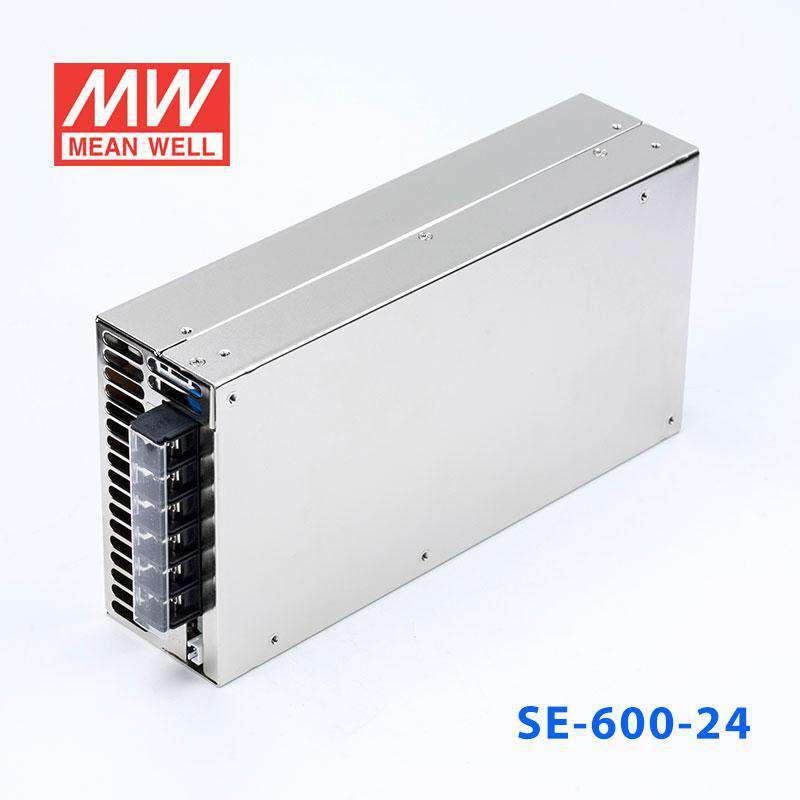

Mean Well SE-600-24 Power Supply 600W 24V

economical model medium to high power(450W~1500W)

SKU:

SE-600-24

Model

450W 24V

SKU: SE-450-24

1000W 24V

SKU: SE-1000-24

1500W 24V

SKU: SE-1500-24

600W 24V

SKU: SE-600-24

Product variants

End of Life, Succeeded by LRS-600-24

Please for Pricing

Notify me when it's back in stock

Description

Features

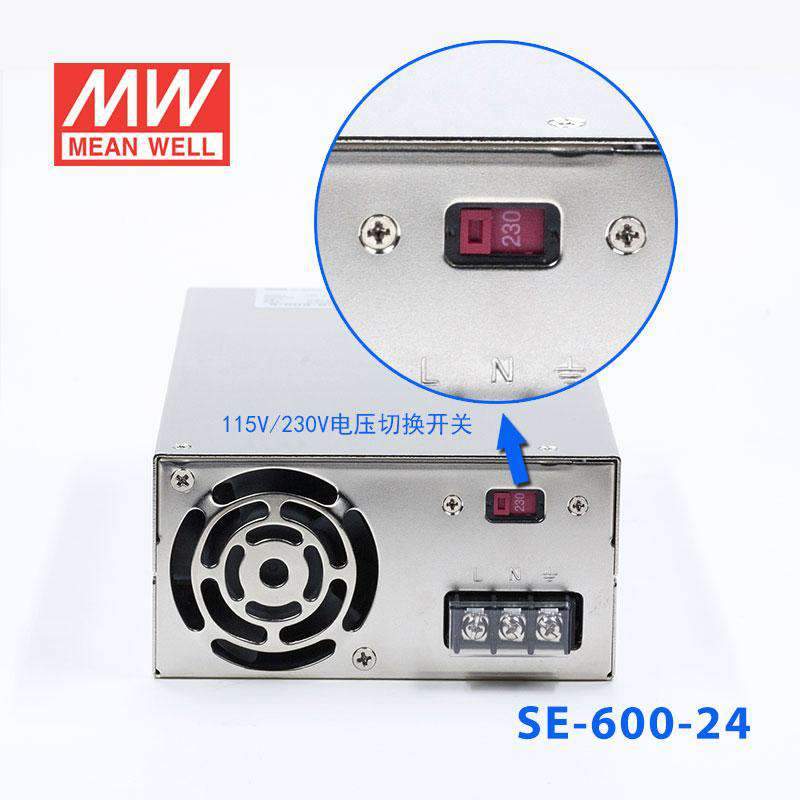

AC input selectable by switch

100% full load burn-in test

LED indicator for power on

Built-in remote sense function

Forced air cooling by built-in DC fan

Protections: Short circuit / Overload / Over voltage / Over temperature

2 years warranty

General Specification

AC input voltage range	90~132VAC / 180~264VAC selected by switch (600~1000W)
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection Range	105%~125%
Overload protection Type	Shut down o/p voltage, re-power on to recover
Over voltage protection	115%~145%
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, 1 minute
Working temperature	-20~+60°C (refer to output derating curve)
Safety standards	UL60950-1 approved
EMC standards	Design refer to EN55022 class B

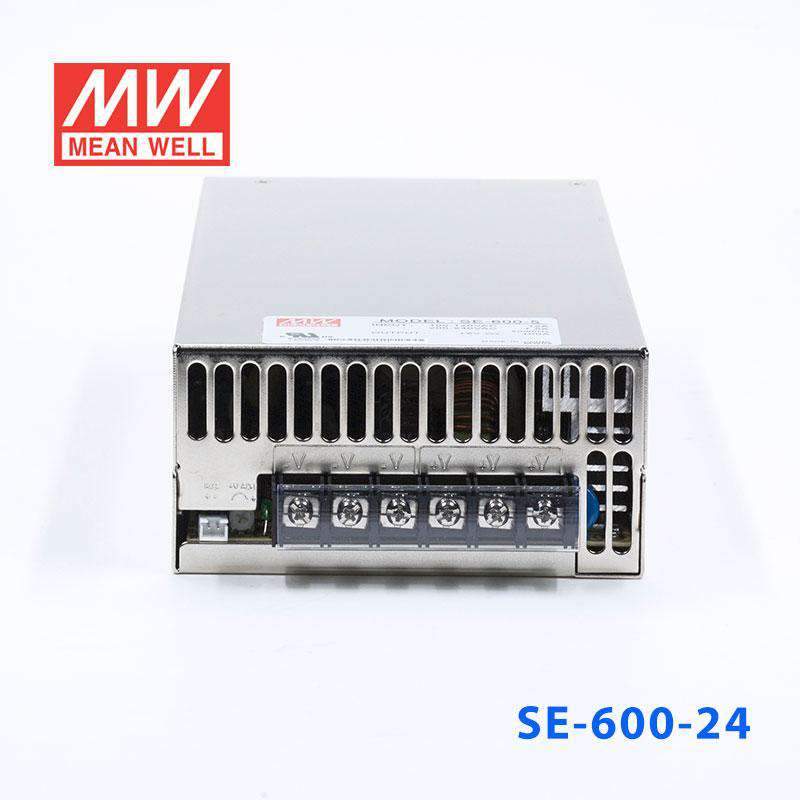

Connection	Terminal block with cover for input and output (SE-1000/1500: copper pillars for output)
Dimension (LxWxH)	247x 127x 63.5
Case No.	926A
Packing	6pcs / 13.4kg

Specifications

Brand

Mean Well
Series

SE Series
Power Rating

600 Watt
Output Voltage

24 Volt
Rated Current

25 Ampere
Input Voltage

90V~264V
Standards Met

BSMI,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~60°C
Warranty

2 Year
Length

24.7 cm
Width

12.7 cm
Height

6.35 cm
Weight

2.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SE-600-24 for a 24V PLC or industrial control cabinet?

Yes, this model is a constant-voltage 24V supply rated for 25A and 600W. That makes it suitable for 24V control systems, PLC panels, and automation loads that need a fixed 24V DC source within that output range.

Is the SE-600-24 suitable for 24V sensors, I/O modules, and industrial peripherals?

It can be used when the connected equipment is designed for 24V DC and the total current stays within 25A. The unit provides a fixed 24V output rather than a lower-voltage or higher-voltage DC rail.

Would this power supply work for 24V embedded systems or network appliances?

Yes, for embedded or IT equipment that requires a constant 24V DC input and fits inside the 600W power budget. The available output is 24V at up to 25A.

Can the SE-600-24 power 24V solenoids, relays, or machine accessories?

It is appropriate for 24V DC accessories in industrial or OEM equipment where a constant-voltage source is required. The sizing limit from the provided specs is 25A and 600W total output.

How does the SE-600-24 compare with the rest of the SE-600 series?

The listed SE-600 family includes 5V at 100A and 500W, 12V at 50A and 600W, 15V at 40A and 600W, 24V at 25A and 600W, 27V at 22.2A and 599.4W, 36V at 16.6A and 597.6W, and 48V at 12.5A and 600W. The SE-600-24 is the 24V, 25A version.

Is the SE-600-24 suitable for outdoor or unprotected locations?

The specs show an operating temperature range of -20°C to +60°C, so that ambient range is defined. The provided data does not include an IP rating, which means outdoor or exposed-environment protection is not specified here.

Model	Power	Voltage	Current
Mean Well SE-600-48 Power Supply 600W 48V	600W	48V	12.5A	View
Mean Well SE-600-12 Power Supply 600W 12V	600W	12V	50A	View
Mean Well SE-600-5 Power Supply 500W 5V	500W	5V	100A	View
Mean Well SE-600-36 Power Supply 600W 36V	597.6W	36V	16.6A	View
Mean Well SE-600-27 Power Supply 600W 27V	599.4W	27V	22.2A	View
Mean Well SE-600-15 Power Supply 600W 15V	600W	15V	40A	View
