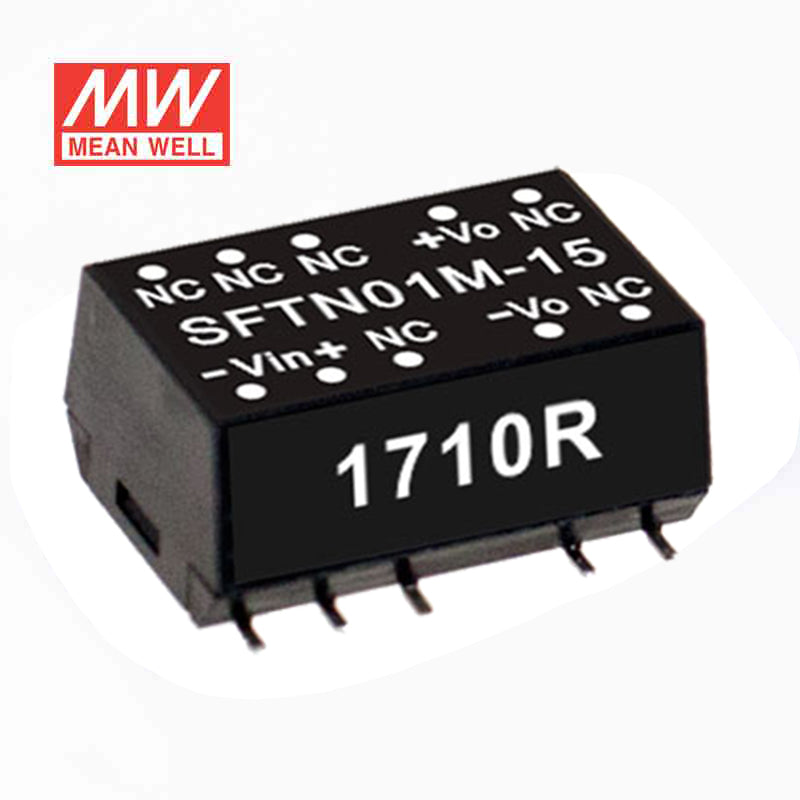

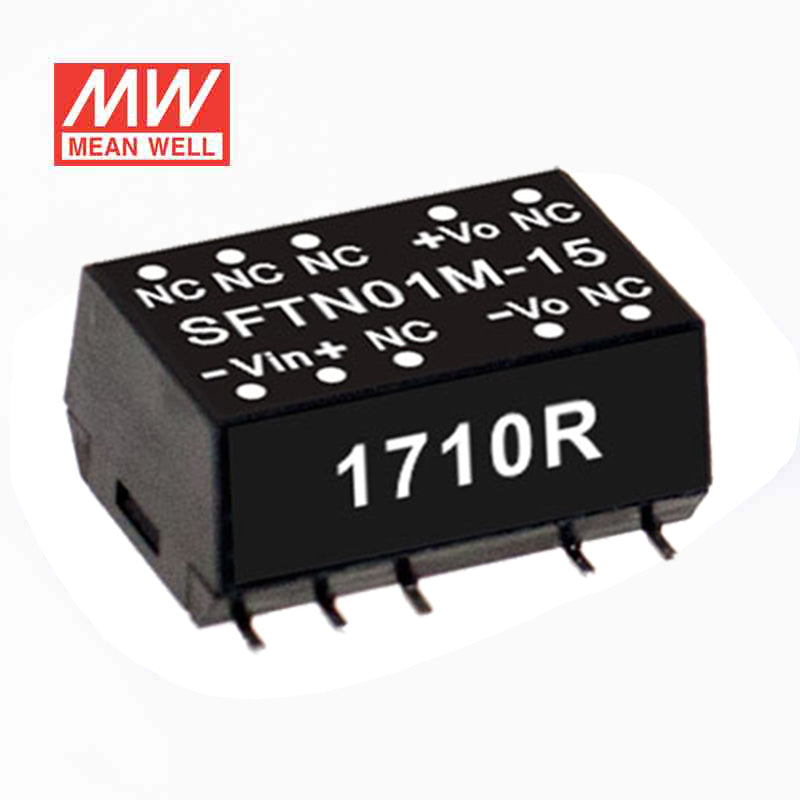

Mean Well SFTN01M-15 DC-DC Converter - 1W - 10.8~13.2V in 15V out 67mA
Log in to see priceThe SFTN01M is a 1W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: UL62368-1(Except for 9V output models), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSFTN Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage10.8V~13.2V
-
Standards MetCB,CE,EMC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.52 cm
-
Width1.09 cm
-
Height0.71 cm
-
Weight0 kg
::specification::
Frequently Asked Questions
Can I use the SFTN01M-15 for a low-power 15V analog or sensing circuit?
It is suited to low-power 15V sections that need constant-voltage output. The unit is rated for 1W with a 15V output and 0.07A output current, so it fits small analog, sensing, or interface loads rather than anything with higher current demand.
Is the SFTN01M-15 a good fit for compact embedded equipment that needs 15V output?
It is designed for very small spaces, with dimensions of 15.24 x 10.9 x 7.1 mm and a weight of 0.0012 kg. That makes it practical for compact embedded assemblies where only a 1W, 15V constant-voltage rail is needed.
Can this model support a small 15V control stage in industrial electronics?
It can support a light-duty 15V control stage as long as the load stays within 0.07A and 1W. For larger control components or anything needing more current, this model would be undersized based on its published output rating.
Does the SFTN01M-15 work in wide-temperature environments?
The specified operating temperature range is -40°C to +90°C, which covers a wide span for equipment use. No IP rating is provided in the specs, so environmental sealing and outdoor suitability are not defined here.
What are the differences between the SFTN01M-15 and the other SFTN01M versions?
The listed SFTN01M siblings are SFTN01M-05 at 1W, 5V, 200A; SFTN01M-09 at 1W, 9V, 111A; and SFTN01M-12 at 1W, 12V, 0.08A. The SFTN01M-15 model is the 1W option with 15V output and 0.07A output current.
