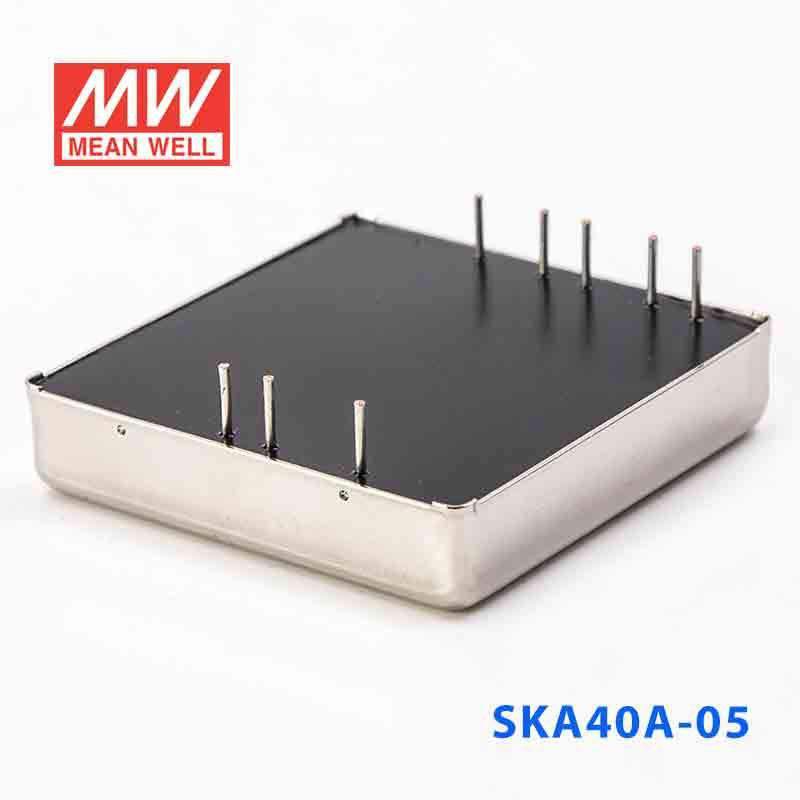

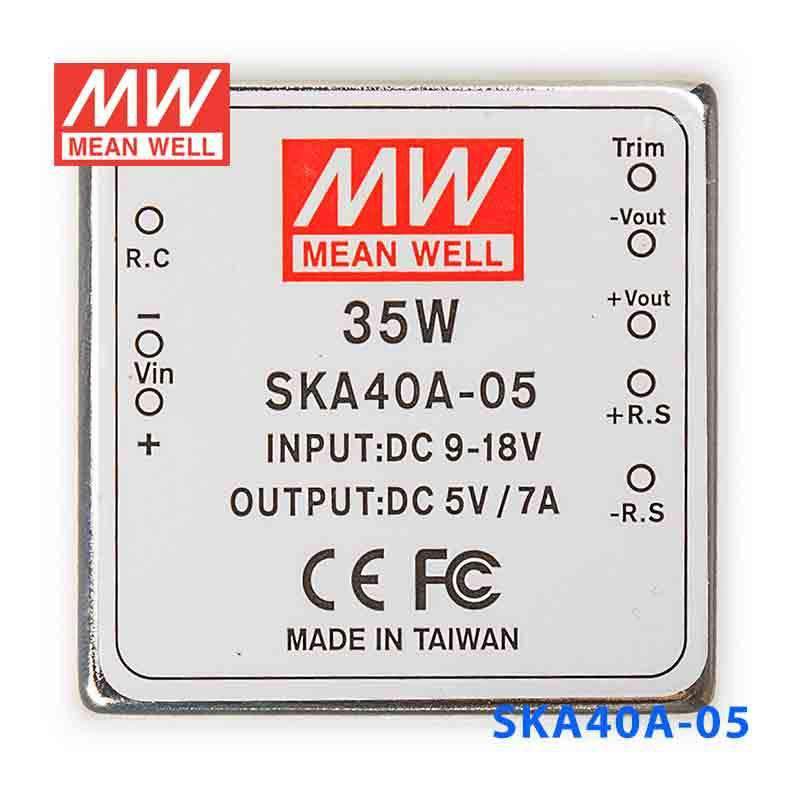

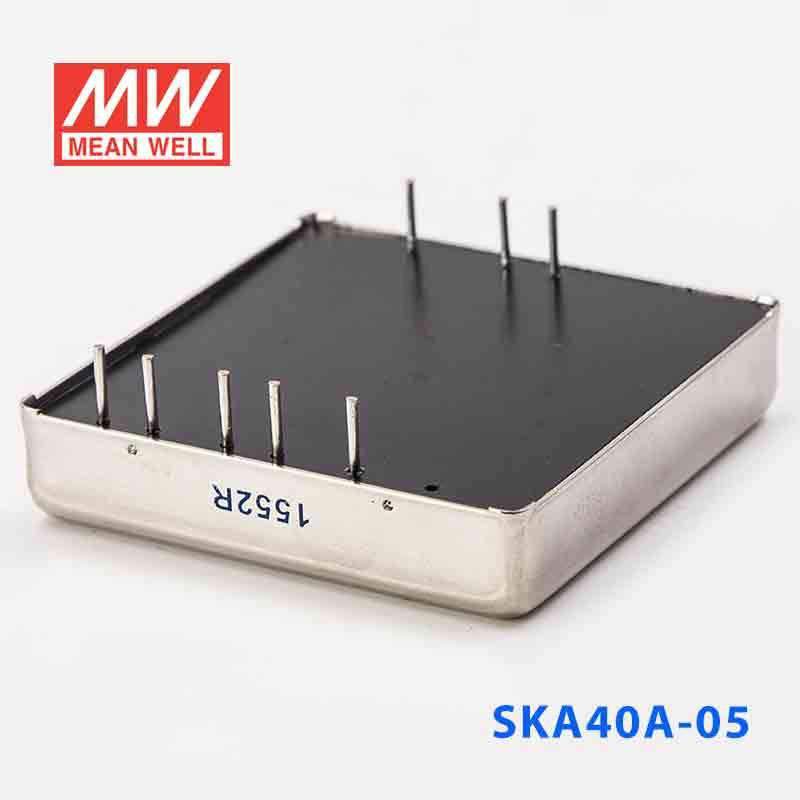

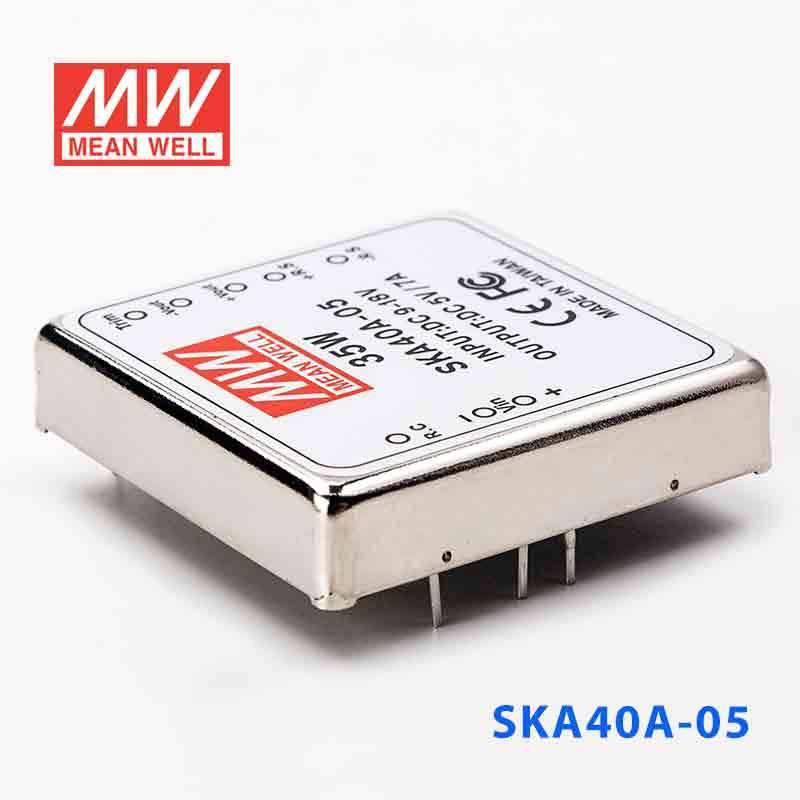

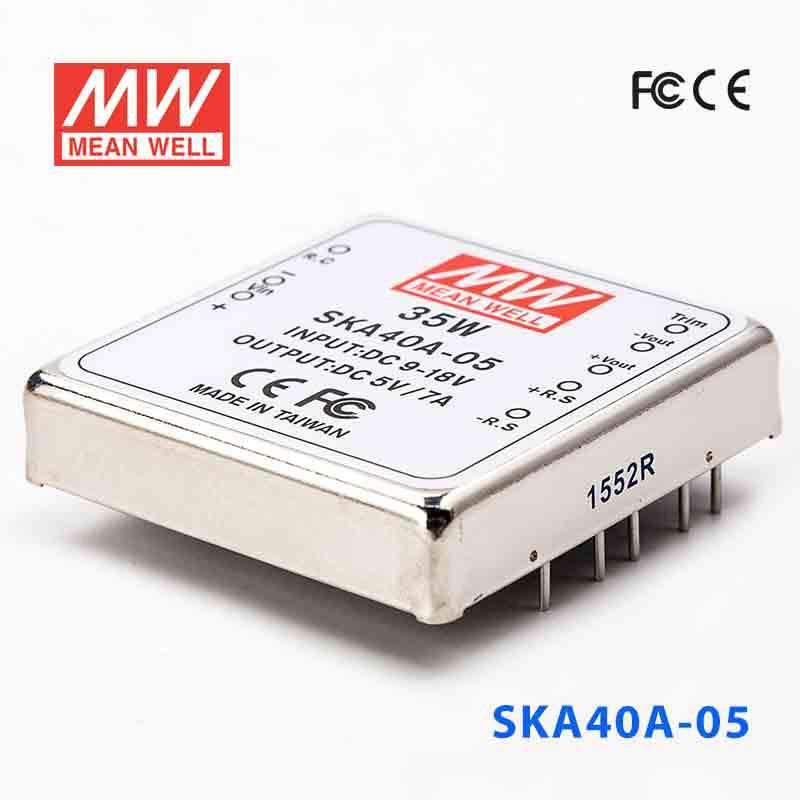

Mean Well SKA40A-05 DC-DC Converter - 35W - 9~18V in 5V out
Please Login for Pricing
Description
Description
The SKA40A is a 40W Mean Well power converter (input range: 9~18VDC, operating temperature: -40~+80℃).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage
- ✓ Safety approvals: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating35 Watt
-
Output Voltage5 Volt
-
Rated Current7 Ampere
-
Input Voltage9V~18V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty2 Year
-
Length5.08 cm
-
Width5.08 cm
-
Height1.1 cm
-
Weight0.06 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKA40A-05 to power a 5V embedded controller or single-board computer in equipment with a 9-18VAC input?
This converter provides a constant 5V output at up to 7A with 35W capacity. Its listed input range is 9-18VAC, so it suits embedded electronics that need 5V power from that source range.
Is the SKA40A-05 a fit for industrial USB hubs, gateways, or low-voltage IT hardware that need 5V power?
The output is regulated 5V with up to 7A available, which is useful for 5V IT or control hardware. The total output limit is 35W, so the load needs to remain within that rating.
Can this model support 5V automation electronics in vehicles or mobile equipment with a 9-18VAC supply range?
The listed input range is 9-18VAC and the output is a constant 5V. That makes it suitable where the source and the 5V load both match those published limits.
Would the SKA40A-05 work for compact control cabinets with limited space?
Its dimensions are 50.8 × 50.8 × 11.0 mm and its weight is 0.06 kg. Those specs support use in compact assemblies where a low-profile 5V, 35W converter is needed.
Can the SKA40A-05 be used in outdoor or temperature-variable environments?
The operating temperature range is specified as -40°C to +80°C. No IP rating is listed, so temperature capability is defined, but outdoor or washdown suitability is not established by the published specs.
What is the difference between the SKA40A-05 and the other SKA40A versions?
The SKA40A-05 is rated for 35W with 5V output at 7A. In the same series, the SKA40A-12 is 35W with 12V at 3.33A, and the SKA40A-15 is 35W with 15V at 2.67A.
Other SKA40 Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SKA40C-15 DC-DC Converter - 35W - 36~75V in 15V out | 35W | 15V | 2.67A | Indoor | View |
| Mean Well SKA40C-12 DC-DC Converter - 35W - 36~75V in 12V out | 35W | 12V | 3.33A | Indoor | View |
| Mean Well SKA40C-05 DC-DC Converter - 35W - 36~75V in 5V out | 35W | 5V | 7A | Indoor | View |
| Mean Well SKA40B-15 DC-DC Converter - 35W - 18~36V in 15V out | 35W | 15V | 2.67A | Indoor | View |
| Mean Well SKA40B-12 DC-DC Converter - 35W - 18~36V in 12V out | 35W | 12V | 3.33A | Indoor | View |
| Mean Well SKA40B-05 DC-DC Converter - 35W - 18~36V in 5V out | 35W | 5V | 7A | Indoor | View |
| Mean Well SKA40A-15 DC-DC Converter - 35W - 9~18V in 15V out | 35W | 15V | 2.67A | Indoor | View |
| Mean Well SKA40A-12 DC-DC Converter - 35W - 9~18V in 12V out | 35W | 12V | 3.33A | Indoor | View |
