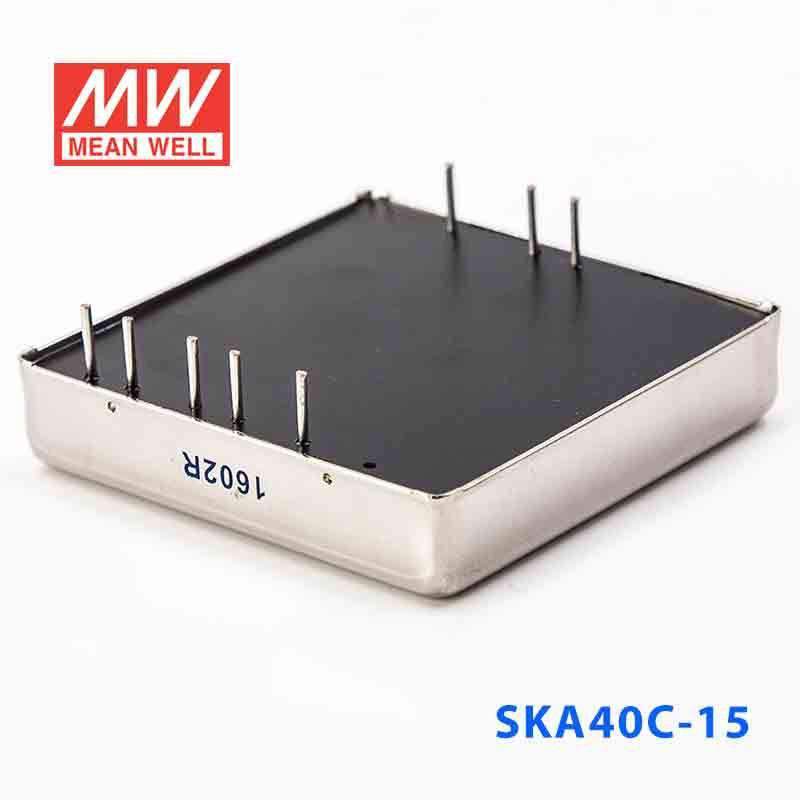

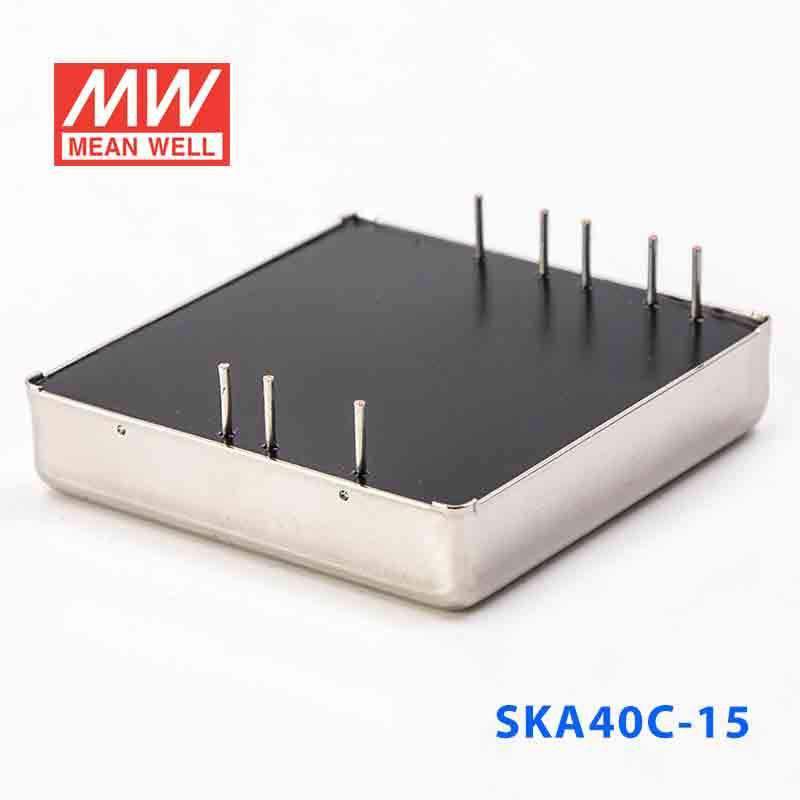

Mean Well SKA40C-15 DC-DC Converter - 35W - 36~75V in 15V out
Please Login for Pricing
Description
Description
The SKA40C is a 40W Mean Well power converter (input range: 9~18VDC, operating temperature: -40~+80℃).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage
- ✓ Safety approvals: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating35 Watt
-
Output Voltage15 Volt
-
Rated Current2.67 Ampere
-
Input Voltage36V~75V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty2 Year
-
Length5.08 cm
-
Width5.08 cm
-
Height1.1 cm
-
Weight0.06 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKA40C-15 for 15V automation or instrumentation electronics?
Yes, this converter provides constant 15V output and is rated for 35W with up to 2.67A output current. It is suitable for 15V automation, embedded, or instrumentation loads that stay within those limits.
Is the SKA40C-15 a fit for 15V control boards in systems with a 36-75VAC source?
It is built for a 36-75VAC input range and delivers a regulated 15V constant-voltage output. The output capacity is 35W total, with up to 2.67A available for the load.
Can this model power 15V sensing, measurement, or communications hardware?
It can power 15V electronics that require a constant-voltage supply, including sensing, measurement, or communications hardware within 35W. The maximum output current is 2.67A.
Would the SKA40C-15 work in a small embedded or control housing?
The unit measures 50.8 × 50.8 × 11.0 mm and weighs 0.06 kg, which supports compact integration. That can be useful in embedded or control assemblies where available space is limited.
Is the SKA40C-15 suitable for harsh temperature swings?
Its operating temperature range is specified as -40°C to +80°C. That makes it suitable for protected equipment exposed to wide ambient temperature changes.
Can this converter be used in exposed outdoor conditions?
The specs include the -40°C to +80°C operating range, but no IP rating is listed. Because ingress protection is not specified, the product data does not confirm use in exposed outdoor, wet, or dusty locations.
How does the SKA40C-15 differ from the other output options in the same series?
The listed SKA40C family members all share a 35W rating. The SKA40C-05 is 5V at 7A, the SKA40C-12 is 12V at 3.33A, and the SKA40C-15 is 15V at 2.67A.
Other SKA40 Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SKA40C-12 DC-DC Converter - 35W - 36~75V in 12V out | 35W | 12V | 3.33A | Indoor | View |
| Mean Well SKA40C-05 DC-DC Converter - 35W - 36~75V in 5V out | 35W | 5V | 7A | Indoor | View |
| Mean Well SKA40B-15 DC-DC Converter - 35W - 18~36V in 15V out | 35W | 15V | 2.67A | Indoor | View |
| Mean Well SKA40B-12 DC-DC Converter - 35W - 18~36V in 12V out | 35W | 12V | 3.33A | Indoor | View |
| Mean Well SKA40B-05 DC-DC Converter - 35W - 18~36V in 5V out | 35W | 5V | 7A | Indoor | View |
| Mean Well SKA40A-15 DC-DC Converter - 35W - 9~18V in 15V out | 35W | 15V | 2.67A | Indoor | View |
| Mean Well SKA40A-12 DC-DC Converter - 35W - 9~18V in 12V out | 35W | 12V | 3.33A | Indoor | View |
| Mean Well SKA40A-05 DC-DC Converter - 35W - 9~18V in 5V out | 35W | 5V | 7A | Indoor | View |
