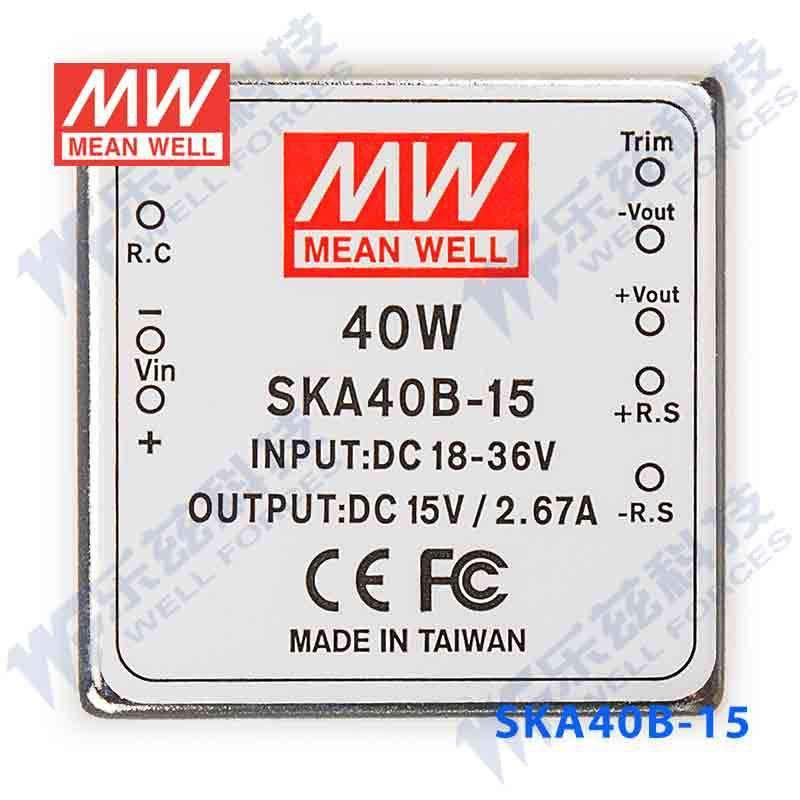

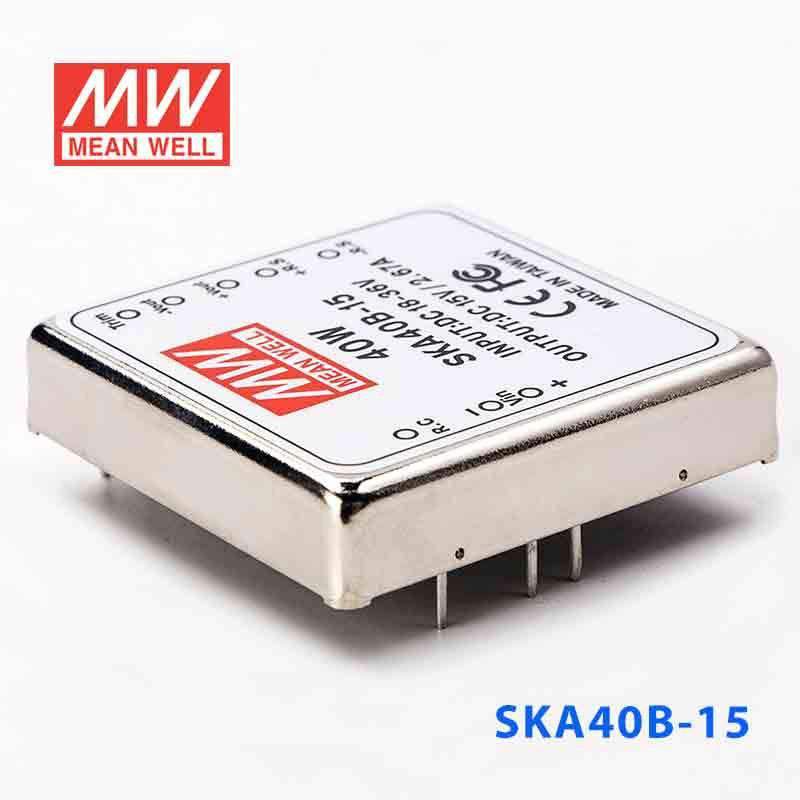

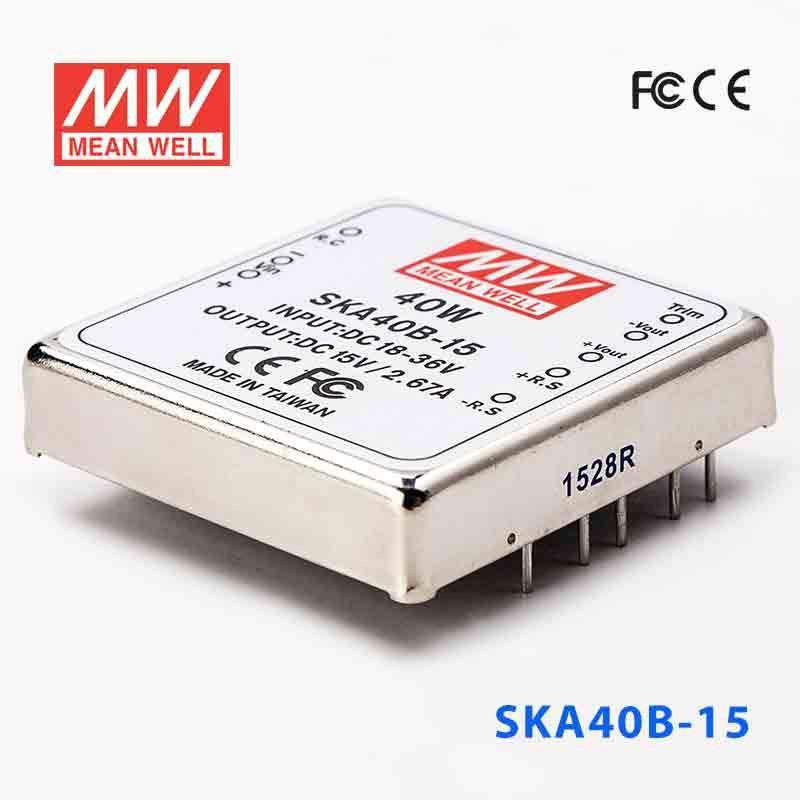

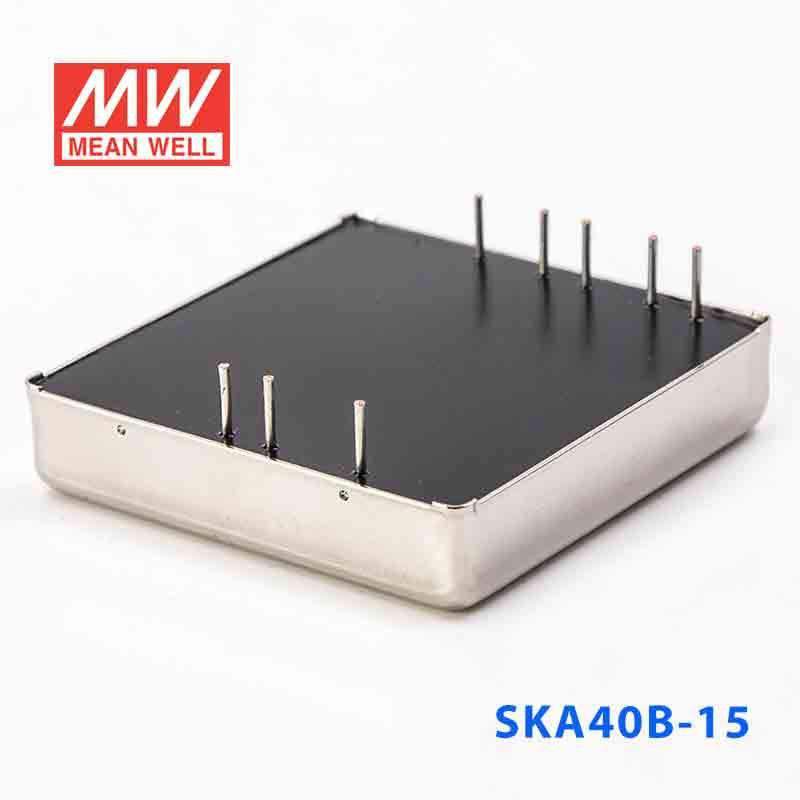

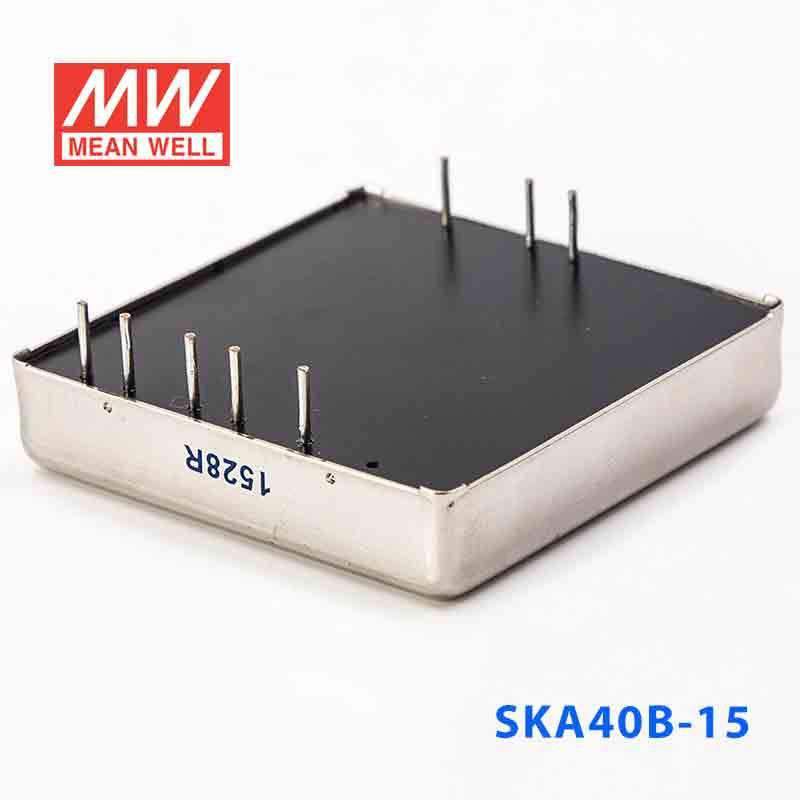

Mean Well SKA40B-15 DC-DC Converter - 35W - 18~36V in 15V out
Please Login for Pricing
Description
Description
The SKA40B is a 40W Mean Well power converter (input range: 9~18VDC, operating temperature: -40~+80℃).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage
- ✓ Safety approvals: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating35 Watt
-
Output Voltage15 Volt
-
Rated Current2.67 Ampere
-
Input Voltage18V~36V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty2 Year
-
Length5.08 cm
-
Width5.08 cm
-
Height1.1 cm
-
Weight0.06 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKA40B-15 for a 15V industrial sensor or instrumentation load?
Yes, this unit provides a constant 15V output and is rated for 35W with up to 2.67A output current. It is appropriate for 15V industrial or embedded loads that stay within those electrical limits.
Is the SKA40B-15 suitable for 15V automation electronics in a compact enclosure?
It is designed for compact builds, with dimensions of 50.8 × 50.8 × 11.0 mm and a weight of 0.06 kg. For automation electronics that require 15V constant voltage, it supports loads up to 35W and 2.67A.
Can this model support 15V control modules in industrial equipment?
It can support 15V control modules when the available source is within the 18-36VAC input range. The converter delivers constant 15V output with a 35W rating and 2.67A maximum output current.
Would the SKA40B-15 work for 15V test or measurement devices inside a machine cabinet?
It can be used for 15V test, measurement, or control devices that require constant voltage and remain within 35W. The 2.67A output current limit is the key sizing number for those applications.
Can the SKA40B-15 handle wide ambient temperatures in industrial service?
The operating temperature range is specified as -40°C to +80°C. That supports use across a broad temperature range for protected industrial equipment.
Is this converter rated for exposed outdoor use?
The specs show a -40°C to +80°C operating temperature range, but they do not provide an IP rating. Because no ingress-protection rating is listed, the product specs do not establish suitability for exposed outdoor environments.
What is the difference between the SKA40B-15 and the other SKA40B models?
All listed SKA40B versions are 35W models. The SKA40B-05 is 5V at 7A, the SKA40B-12 is 12V at 3.33A, and the SKA40B-15 is 15V at 2.67A.
Other SKA40 Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SKA40C-15 DC-DC Converter - 35W - 36~75V in 15V out | 35W | 15V | 2.67A | Indoor | View |
| Mean Well SKA40C-12 DC-DC Converter - 35W - 36~75V in 12V out | 35W | 12V | 3.33A | Indoor | View |
| Mean Well SKA40C-05 DC-DC Converter - 35W - 36~75V in 5V out | 35W | 5V | 7A | Indoor | View |
| Mean Well SKA40B-12 DC-DC Converter - 35W - 18~36V in 12V out | 35W | 12V | 3.33A | Indoor | View |
| Mean Well SKA40B-05 DC-DC Converter - 35W - 18~36V in 5V out | 35W | 5V | 7A | Indoor | View |
| Mean Well SKA40A-15 DC-DC Converter - 35W - 9~18V in 15V out | 35W | 15V | 2.67A | Indoor | View |
| Mean Well SKA40A-12 DC-DC Converter - 35W - 9~18V in 12V out | 35W | 12V | 3.33A | Indoor | View |
| Mean Well SKA40A-05 DC-DC Converter - 35W - 9~18V in 5V out | 35W | 5V | 7A | Indoor | View |
