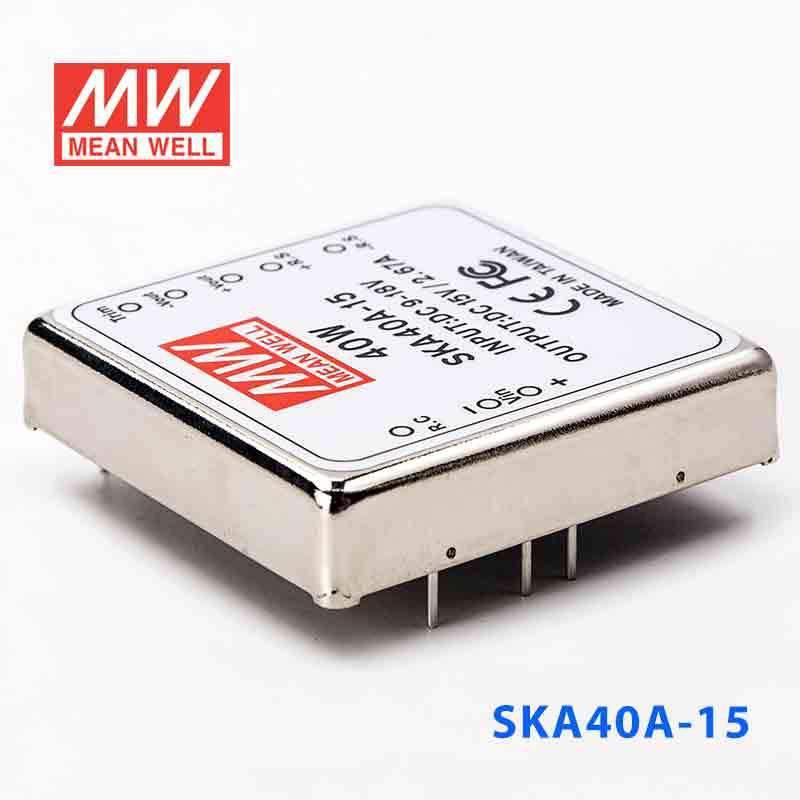

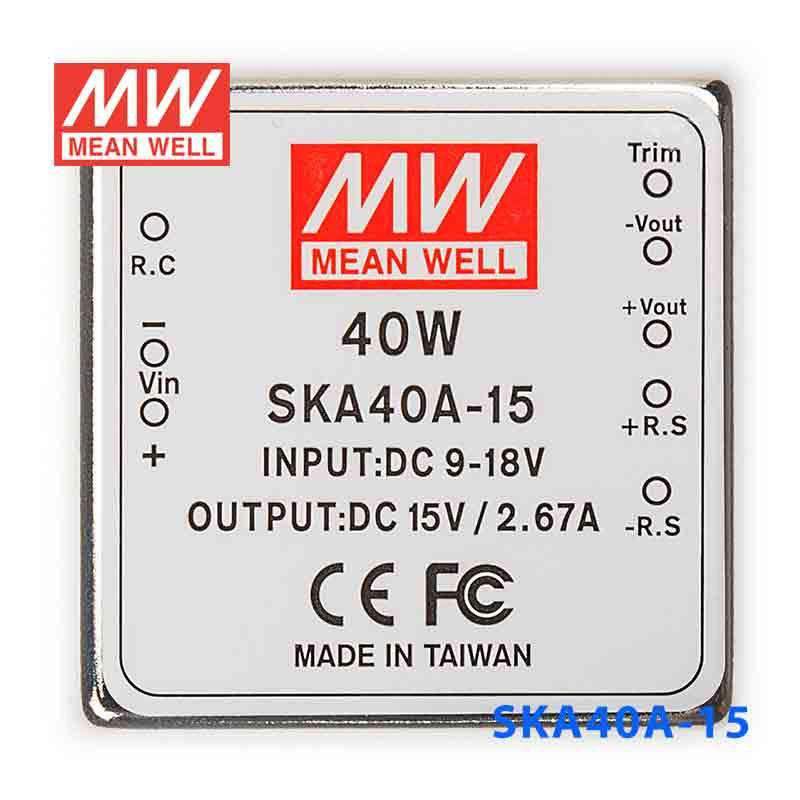

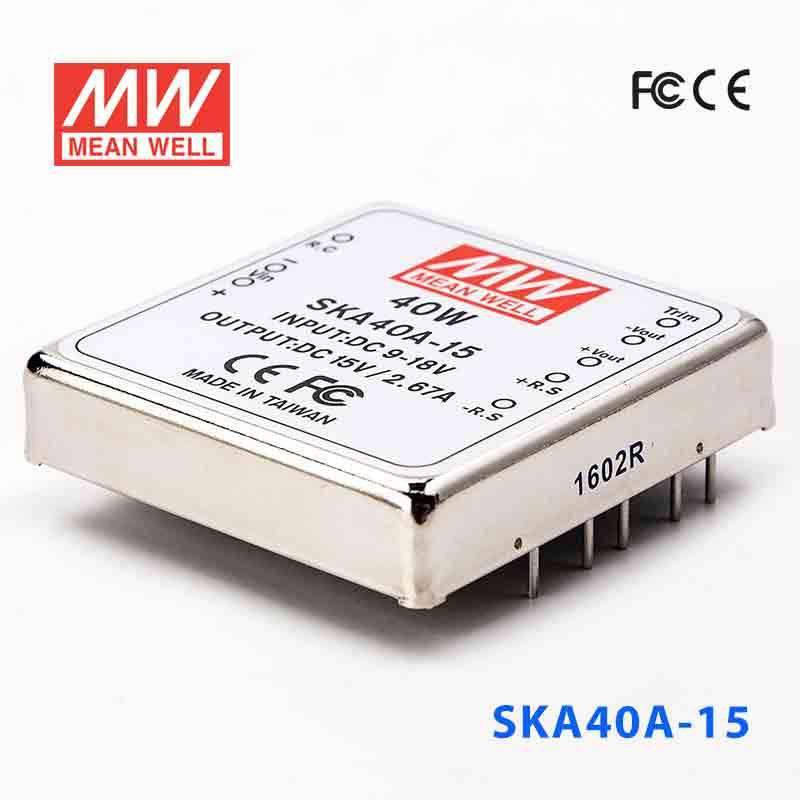

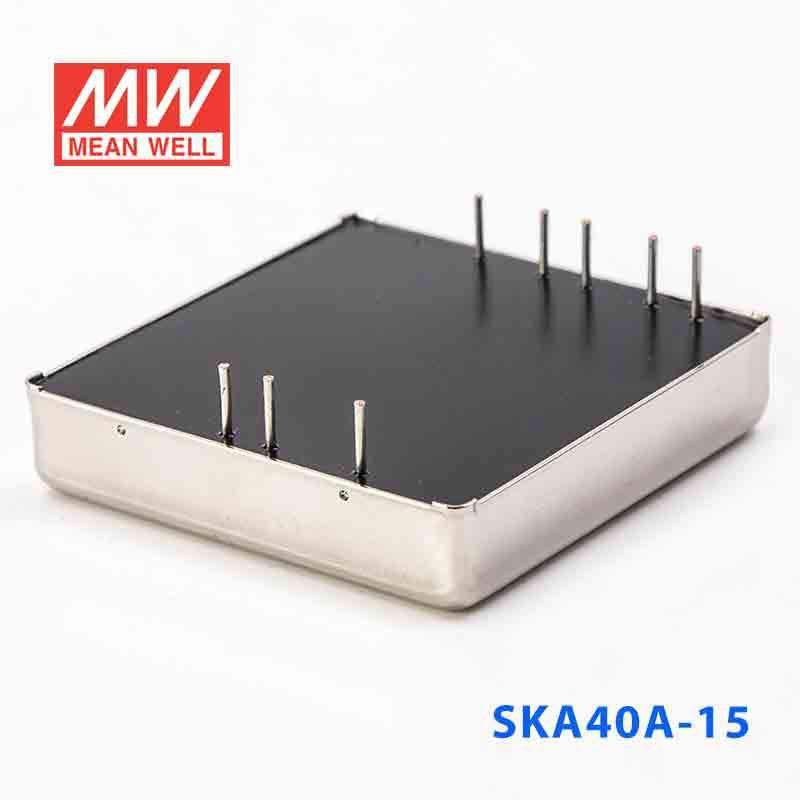

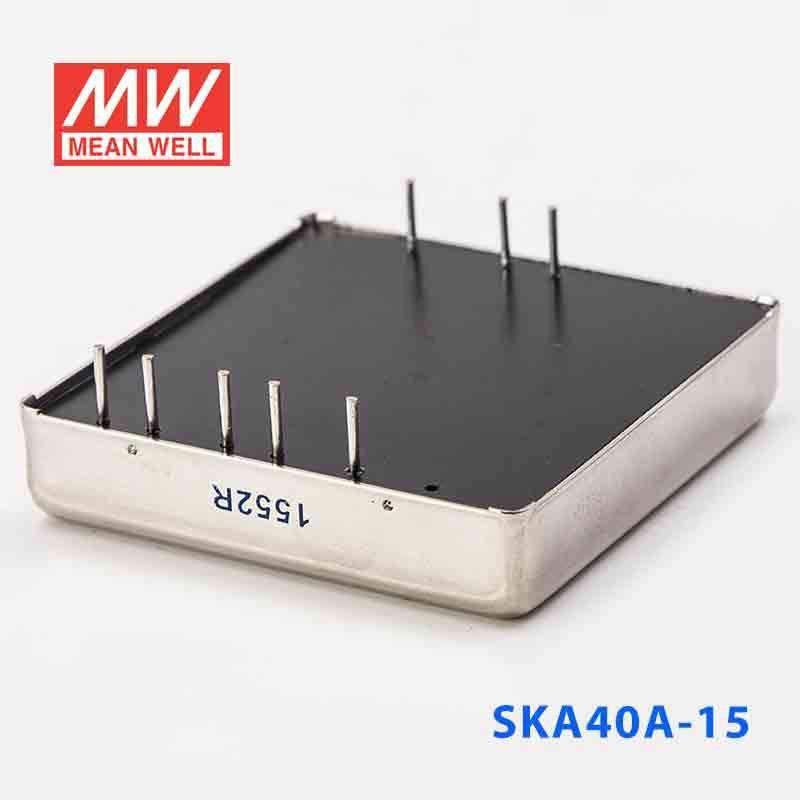

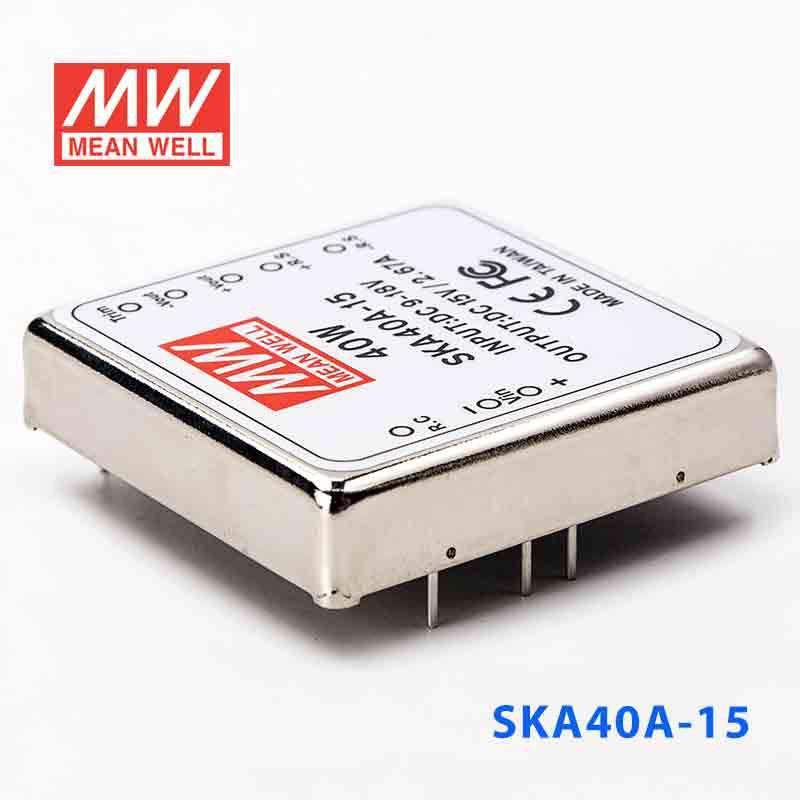

Mean Well SKA40A-15 DC-DC Converter - 35W - 9~18V in 15V out
Please Login for Pricing
Description
Description
The SKA40A is a 40W Mean Well power converter (input range: 9~18VDC, operating temperature: -40~+80℃).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage
- ✓ Safety approvals: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating35 Watt
-
Output Voltage15 Volt
-
Rated Current2.67 Ampere
-
Input Voltage9V~18V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty2 Year
-
Length5.08 cm
-
Width5.08 cm
-
Height1.1 cm
-
Weight0.06 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKA40A-15 to run a 15V automation controller or industrial interface module?
This model provides a constant 15V output with up to 2.67A available and a 35W maximum rating. It suits 15V automation or interface loads that operate within those limits and use a 9-18VAC input.
Is the SKA40A-15 appropriate for 15V embedded systems that need regulated power from a 9-18VAC source?
The listed input range is 9-18VAC, and the output is a fixed 15V. That makes it suitable for embedded systems that need a stable 15V rail and draw no more than 2.67A.
Can this converter power 15V test, monitoring, or communications equipment in compact industrial enclosures?
The converter is rated for 35W at 15V constant voltage output. With dimensions of 50.8 × 50.8 × 11.0 mm and a weight of 0.06 kg, it can fit compact equipment where a low-profile 15V supply is needed.
Would the SKA40A-15 work in equipment exposed to wide ambient temperatures?
Its operating temperature range is specified as -40°C to +80°C. That supports use in equipment that sees cold-start or elevated-temperature conditions within that range.
Can the SKA40A-15 be used in outdoor or exposed environments?
The published specs define temperature capability at -40°C to +80°C, but they do not list an IP rating. Based on the provided information, environmental sealing for outdoor exposure is not specified.
What are the key differences between the SKA40A-15 and the other SKA40A models?
The SKA40A-15 is rated at 35W with 15V output and 2.67A output current. The SKA40A-05 provides 35W at 5V and 7A, while the SKA40A-12 provides 35W at 12V and 3.33A.
Other SKA40 Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SKA40C-15 DC-DC Converter - 35W - 36~75V in 15V out | 35W | 15V | 2.67A | Indoor | View |
| Mean Well SKA40C-12 DC-DC Converter - 35W - 36~75V in 12V out | 35W | 12V | 3.33A | Indoor | View |
| Mean Well SKA40C-05 DC-DC Converter - 35W - 36~75V in 5V out | 35W | 5V | 7A | Indoor | View |
| Mean Well SKA40B-15 DC-DC Converter - 35W - 18~36V in 15V out | 35W | 15V | 2.67A | Indoor | View |
| Mean Well SKA40B-12 DC-DC Converter - 35W - 18~36V in 12V out | 35W | 12V | 3.33A | Indoor | View |
| Mean Well SKA40B-05 DC-DC Converter - 35W - 18~36V in 5V out | 35W | 5V | 7A | Indoor | View |
| Mean Well SKA40A-12 DC-DC Converter - 35W - 9~18V in 12V out | 35W | 12V | 3.33A | Indoor | View |
| Mean Well SKA40A-05 DC-DC Converter - 35W - 9~18V in 5V out | 35W | 5V | 7A | Indoor | View |
