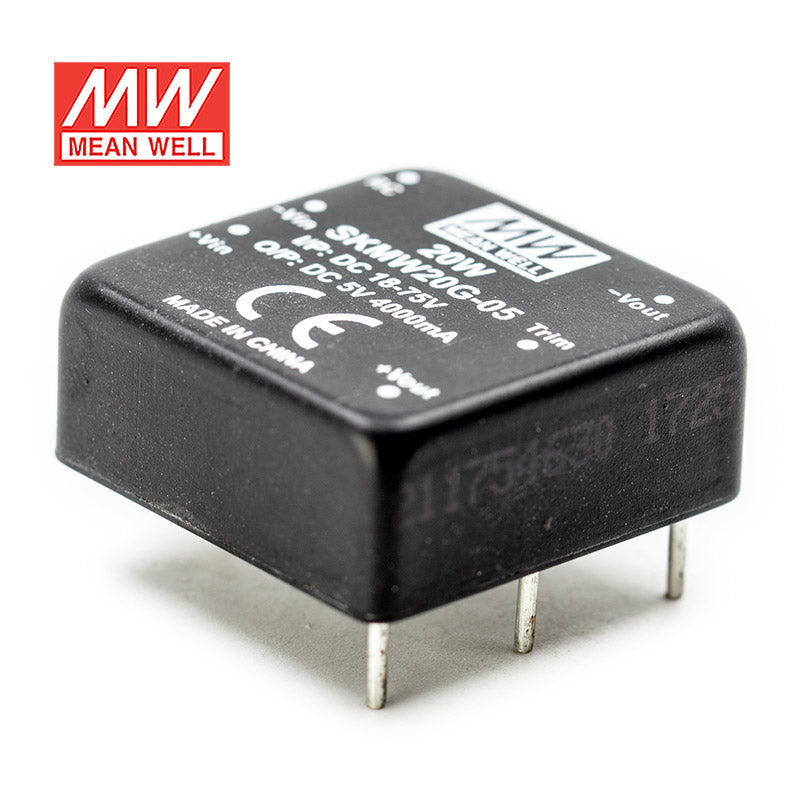

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SKMW20G-05 DC-DC Converter - 20W - 18~75V in 5V out

SKU:

SKMW20G-05

Please for Pricing

Notify me when it's back in stock

Description

Features

DIP 1"x1" package with industry-standard pinout

Operating temperature range -40~+85°C

4:1 ultrawide input range

No minimum load required

Comply to BS EN/EN55032 radiated Class A without additional components

High efficiency up to 89%

Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage

1.5KVDC I/O isolation

Remote ON/OFF control and trimming output (±10%)

3 years warranty

General Specification

Voltage accuracy	±1.5%
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	Continuous, automatic recovery
Working temperature	-40°C to +85°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6
Temp. Coefficient	0.03% / ℃ (0 ~ 60℃)
Dimension (LxWxH) (mm)	25.425.410.2mm (110.4 inch)
Potting material	Black coated copper with a non-conductive base

Specifications

Brand

Mean Well
Series

SKMW Series
Power Rating

20 Watt
Output Voltage

5 Volt
Rated Current

4 Ampere
Input Voltage

18V~75V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

2.54 cm
Width

2.54 cm
Height

1.02 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKMW20G-05 for 5V industrial computers, gateways, or controller electronics from a high-voltage bus?

Yes, if the equipment needs constant 5V output and draws no more than 4A. This model accepts an 18-75V input range and is rated for 20W.

Is the SKMW20G-05 appropriate for 5V embedded systems in telecom or industrial control equipment?

It is suitable where a regulated 5V rail is needed from an 18-75V source. The converter provides constant-voltage output at 5V with up to 4A available.

Can this converter be used when I need 5V power in a very small module footprint?

Yes, the dimensions are 25.4 × 25.4 × 10.2 mm and the weight is 0.018 kg. Within that size, it delivers up to 20W at 5V.

Is the SKMW20G-05 suitable for harsh environments or outdoor cabinets?

The operating temperature range is -40°C to +85°C, which supports use across wide ambient conditions. The provided specifications do not include an IP rating, so outdoor sealing performance is not stated.

What is the difference between the SKMW20G-05 and the other SKMW20G versions?

The SKMW20G series uses the same 20W platform with different output ratings. The sibling models are 3.3V at 4.5A, 12V at 1.67A, and 15V at 1.33A, while this model is 5V at 4A.

Model	Power	Voltage	Current	IP Rating
Mean Well SKMW20G-15 DC-DC Converter - 20W - 18~75V in 15V out	20W	15V	1.33A	Indoor	View
Mean Well SKMW20G-12 DC-DC Converter - 20W - 18~75V in 12V out	20W	12V	1.67A	Indoor	View
Mean Well SKMW20G-03 DC-DC Converter - 20W - 18~75V in 3.3V out	20W	3.3V	4.5A	Indoor	View
Mean Well SKMW20F-15 DC-DC Converter - 20W - 9~36V in 15V out	20W	15V	1.33A	Indoor	View
Mean Well SKMW20F-12 DC-DC Converter - 20W - 9~36V in 12V out	20W	12V	1.67A	Indoor	View
Mean Well SKMW20F-05 DC-DC Converter - 20W - 9~36V in 5V out	20W	5V	4A	Indoor	View
Mean Well SKMW20F-03 DC-DC Converter - 20W - 9~36V in 3.3V out	20W	3.3V	4.5A	Indoor	View
