Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

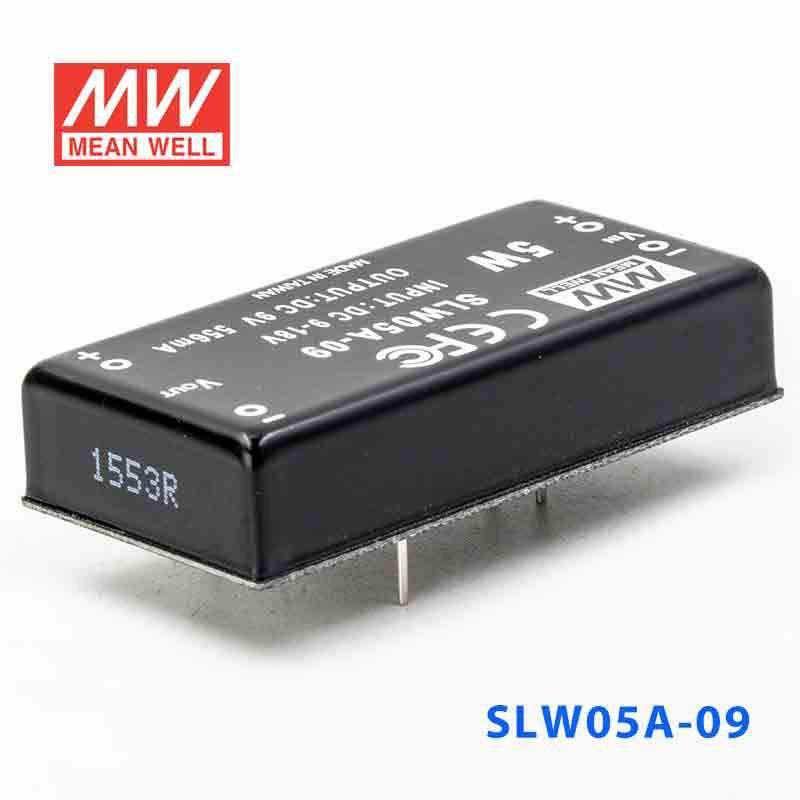

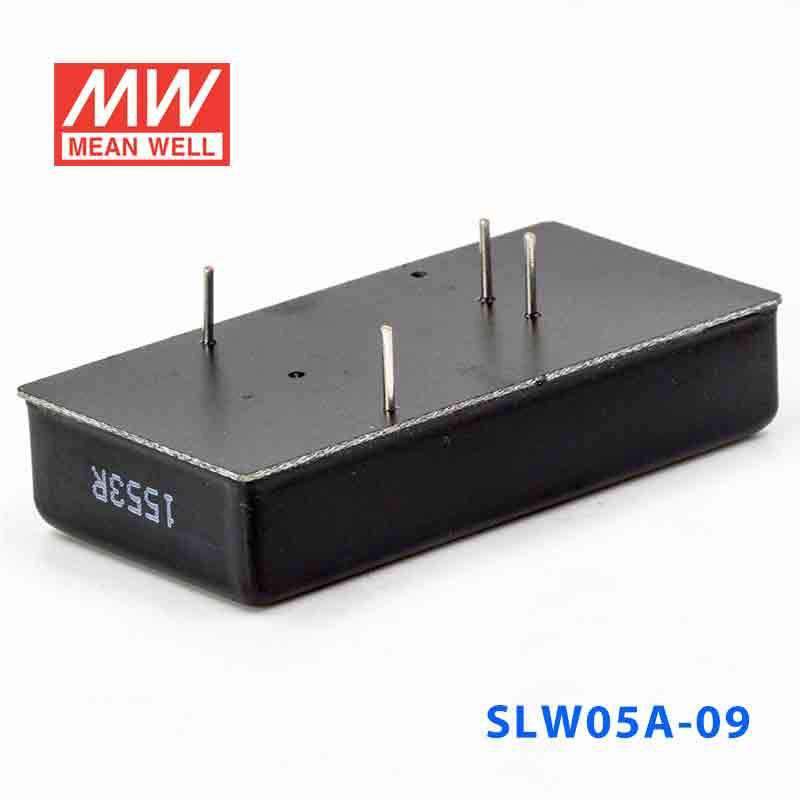

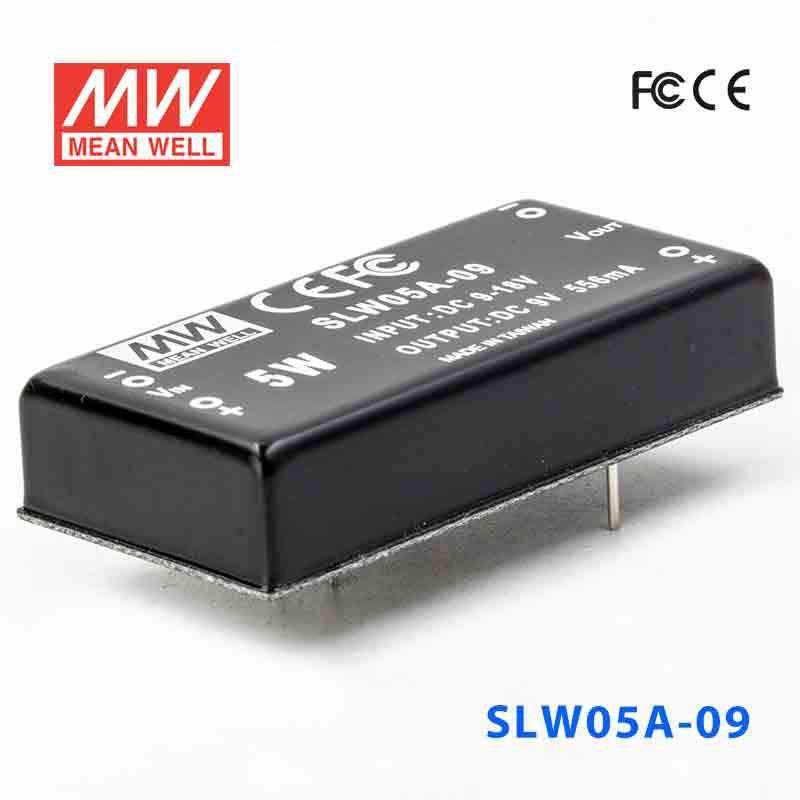

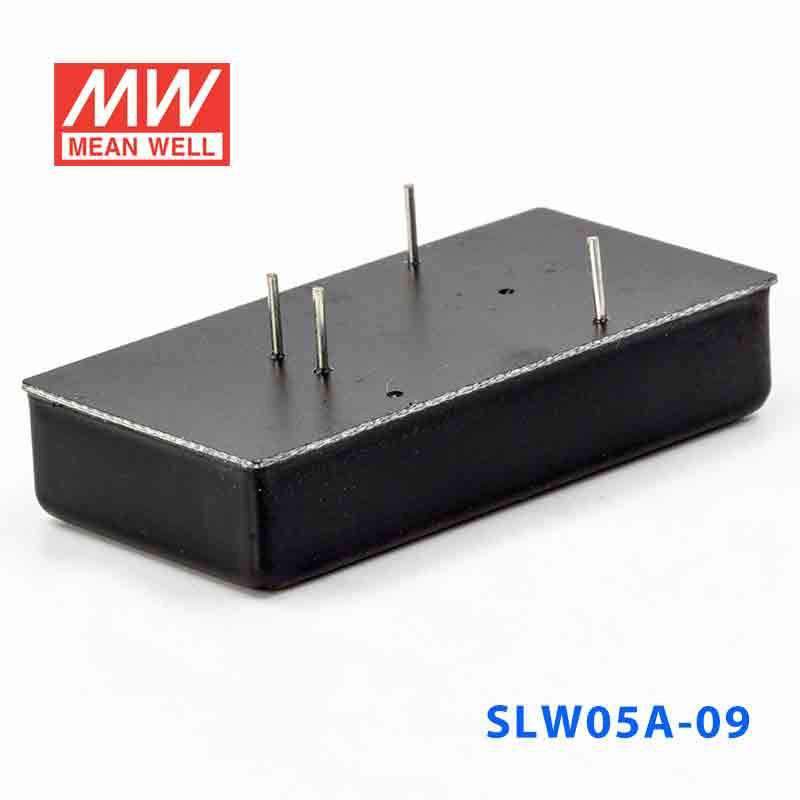

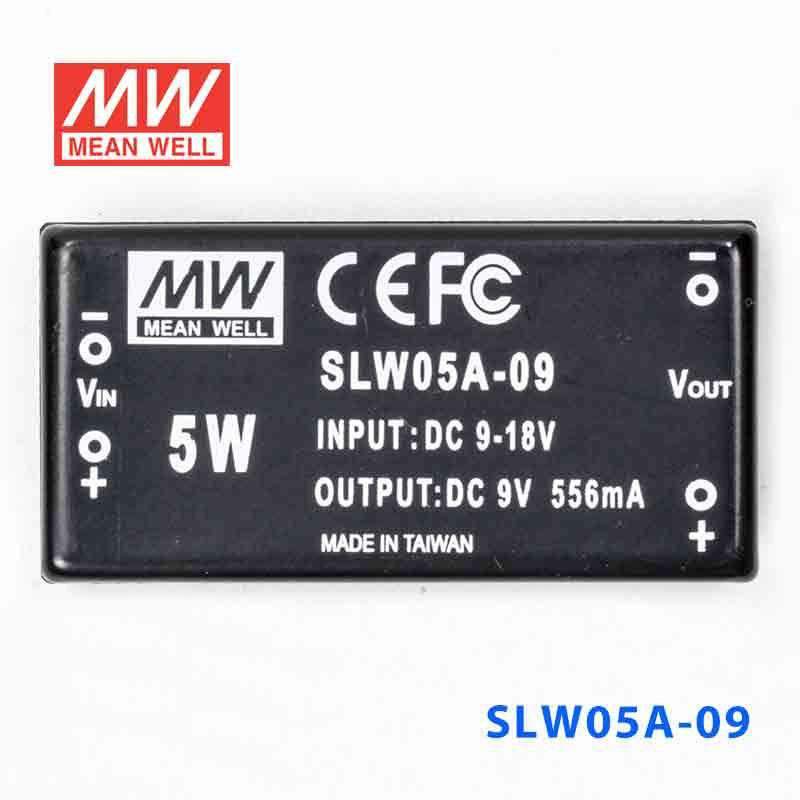

Mean Well SLW05A-09 DC-DC Converter - 5W - 9~18V in 9V out

SKU:
SLW05A-09
Please for Pricing
|

Description

The SLW05A is a 5W Mean Well power converter (operating temperature: -25~+71℃).

Key Features

  • ✓ 1KVDC reinforced I/O isolation
  • ✓ Wide operating temperature: -25~+71℃
  • ✓ Protections: Short circuit
  • ✓ Safety approvals: ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 -25 ~ +105 ± 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
  • ✓ 3 years warranty

Specifications
  • Brand
    Mean Well
  • Series
    SLW Series
  • Power Rating
    5 Watt
  • Output Voltage
    9 Volt
  • Rated Current
    0.55 Ampere
  • Input Voltage
    9V~18V
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~71°C
  • Warranty
    2 Year
  • Length
    5.08 cm
  • Width
    2.54 cm
  • Height
    1.13 cm
  • Weight
    0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SLW05A-09 in a small industrial control circuit that needs 9V?

Yes, this model is a 5W constant-voltage DC-DC converter with a 9V output. It fits low-power industrial control or monitoring circuits when the available input falls within 9-18VAC.

Is the SLW05A-09 suitable for embedded monitoring hardware with a 9V rail?

It can be used for embedded hardware that requires a regulated 9V output and stays within the 5W power limit. The constant-voltage output is appropriate for electronics designed specifically for 9V operation.

Can this converter support a compact automation accessory that runs on 9V?

Yes, it is intended for low-power 9V loads in compact automation or industrial electronics. Its 50.8 × 25.4 × 11.27 mm size and 0.032 kg weight also make it easier to place in space-constrained assemblies.

Is the SLW05A-09 suitable for outdoor use?

No IP rating is listed for this model, so the specs do not support direct outdoor exposure. The stated operating temperature is -25°C to +71°C, so it is better suited to protected indoor equipment or an enclosed housing within that temperature range.

How does the SLW05A-09 compare with other SLW05A models?

Within the SLW05A series, all listed models are 5W units. The sibling outputs are SLW05A-05 at 5V and 1000A, SLW05A-09 at 9V and 556A, SLW05A-12 at 12V and 417A, and SLW05A-15 at 15V and 333A.
