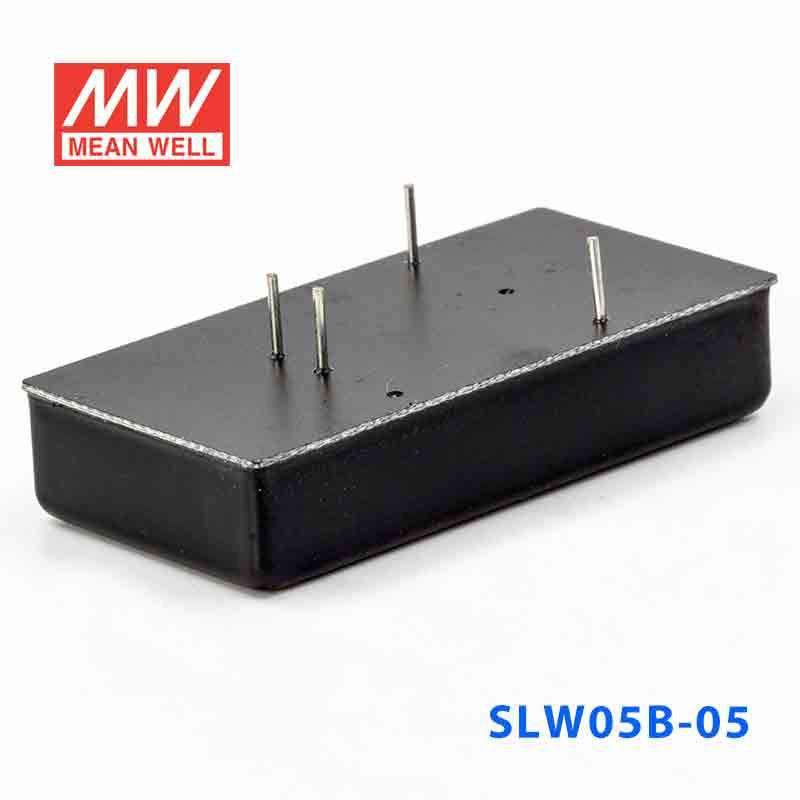

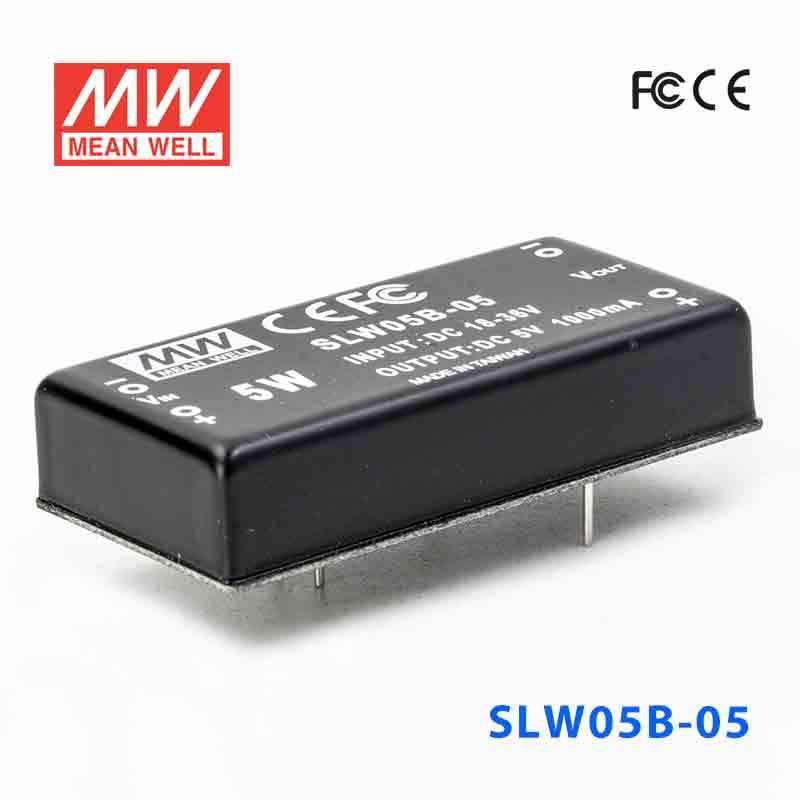

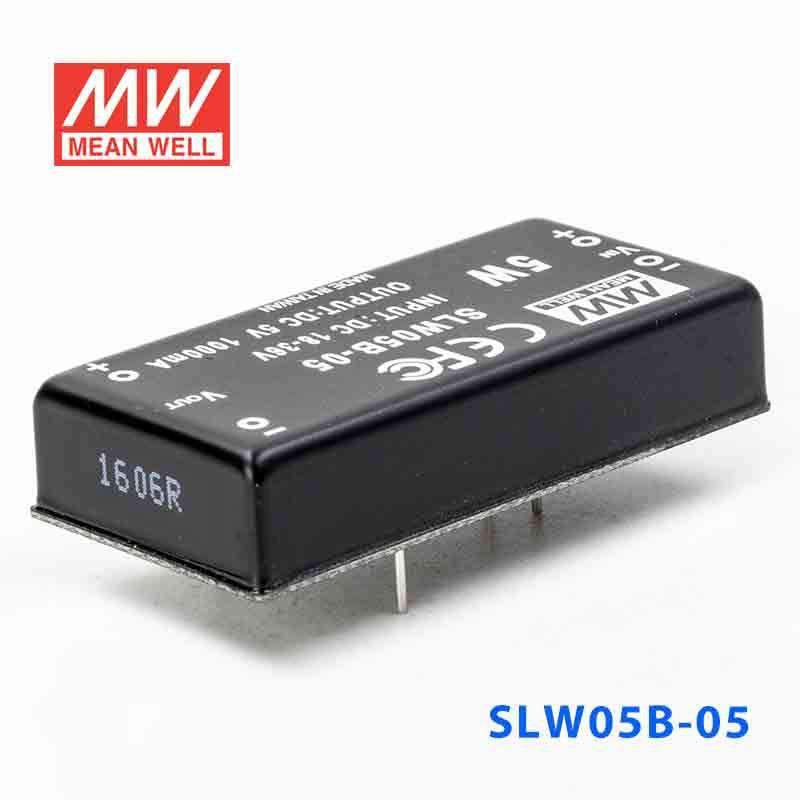

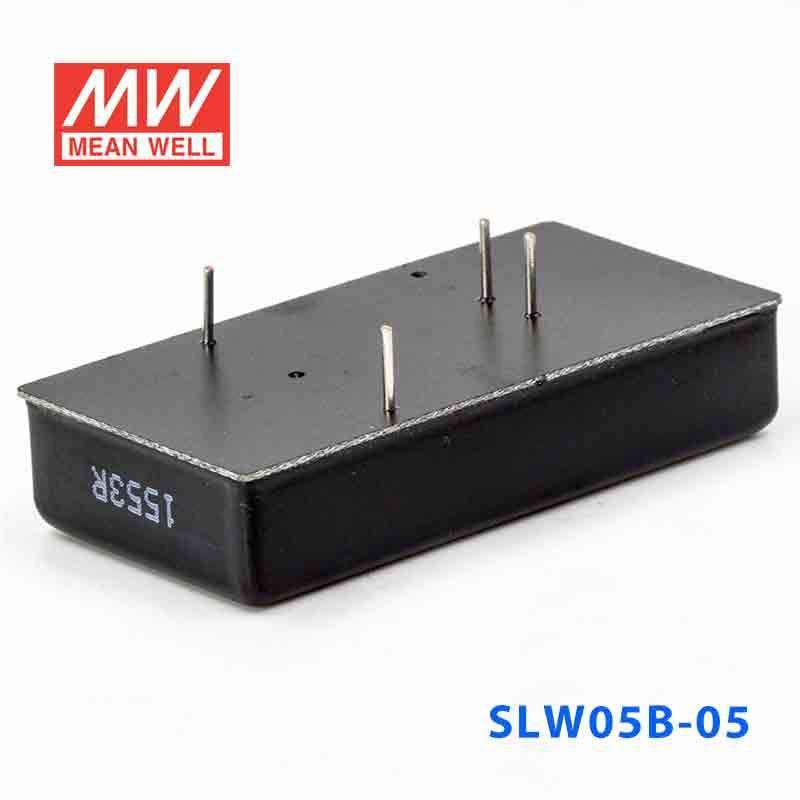

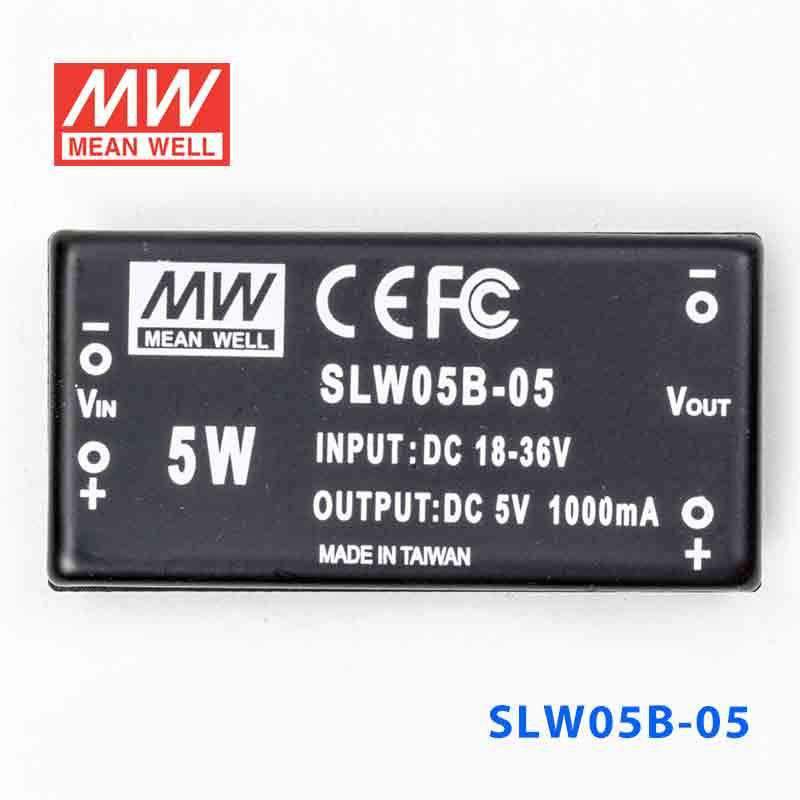

Mean Well SLW05B-05 DC-DC Converter - 5W - 18~36V in 5V out
Please Login for Pricing
Description
Description
The SLW05B is a 5W Mean Well power converter (operating temperature: -25~+71℃).
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit
- ✓ Safety approvals: ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 -25 ~ +105 ± 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSLW Series
-
Power Rating5 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage18V~36V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length5.08 cm
-
Width2.54 cm
-
Height1.13 cm
-
Weight0.03 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SLW05B-05 to power 5V logic or controller electronics from an 18-36VAC source?
Yes, this converter is built for applications that need a constant 5V output from an 18-36VAC input. Its 5W rating makes it suitable for low-power logic, controller, or interface electronics rather than larger loads.
Is the SLW05B-05 suitable for embedded boards in higher-voltage AC control systems?
It is a good fit when the embedded board requires 5V constant voltage and the available source to the converter is within 18-36VAC. The 5W power limit should be checked against the total board load.
Can this model be used for compact industrial communication or monitoring modules that run on 5V?
Yes, the 5V output is appropriate for low-power digital or monitoring electronics designed for that voltage. The compact 50.8 × 25.4 × 11.27 mm size and 0.032 kg weight also help in tight equipment spaces.
Is the SLW05B-05 appropriate for outdoor installations?
No IP rating is stated in the product specs, so outdoor exposure is not supported by the published data. The converter is specified for -25°C to +71°C operation, which points to protected indoor use or use inside an enclosure within that temperature range.
What is the difference between the SLW05B-05 and the other SLW05B versions?
The listed SLW05B family members all have a 5W rating and differ by output voltage and rated output current. The series includes SLW05B-05 at 5V and 1000A, SLW05B-09 at 9V and 556A, SLW05B-12 at 12V and 417A, and SLW05B-15 at 15V and 333A.
