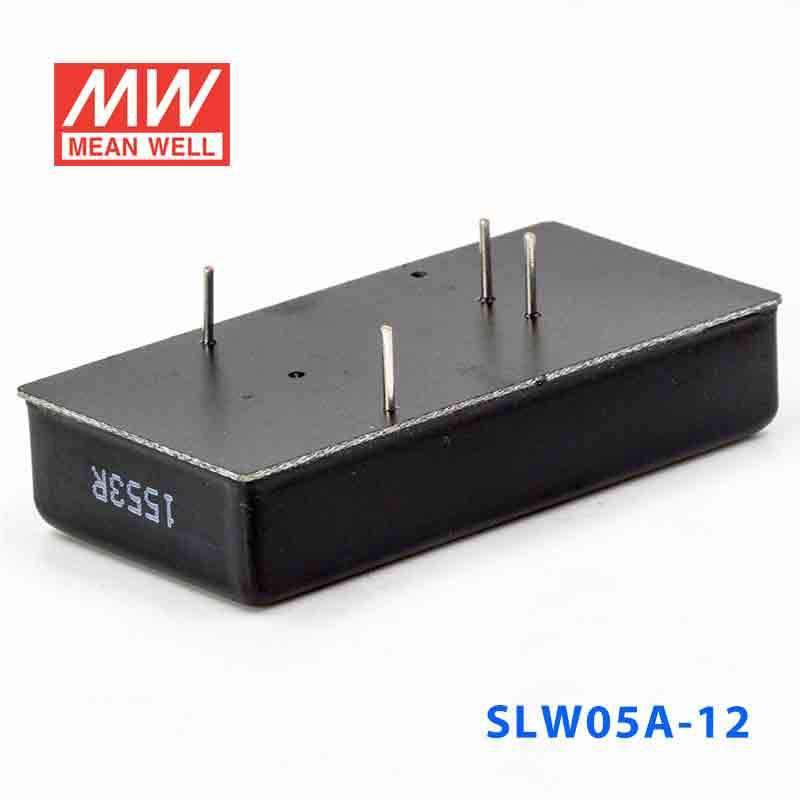

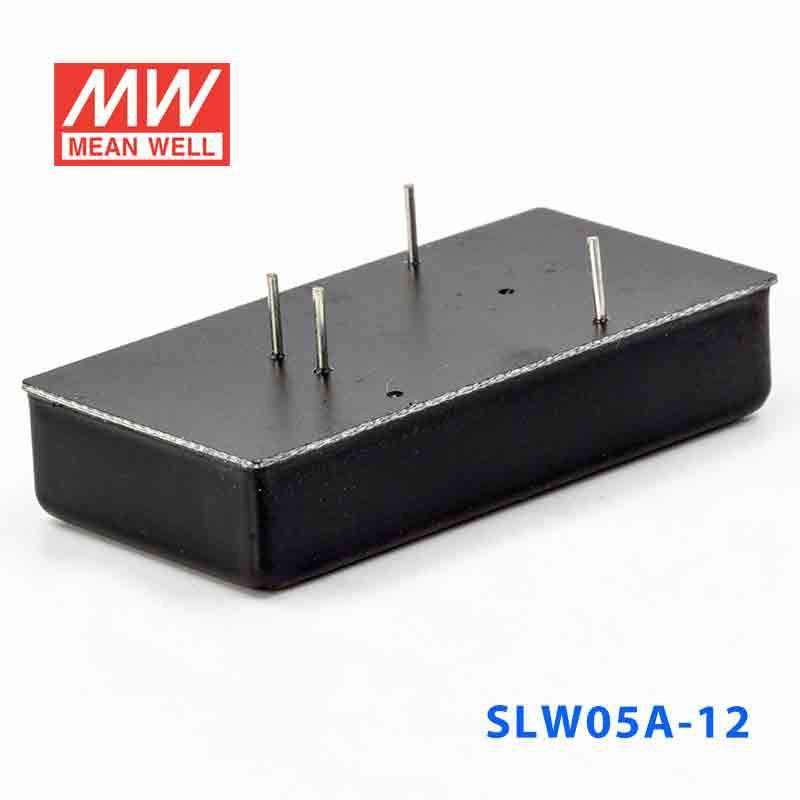

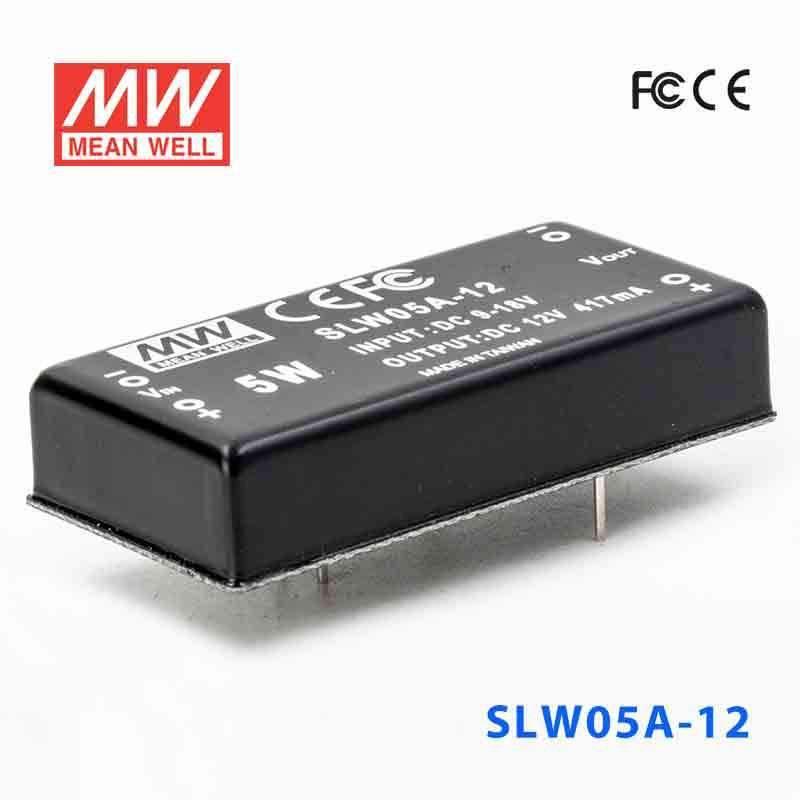

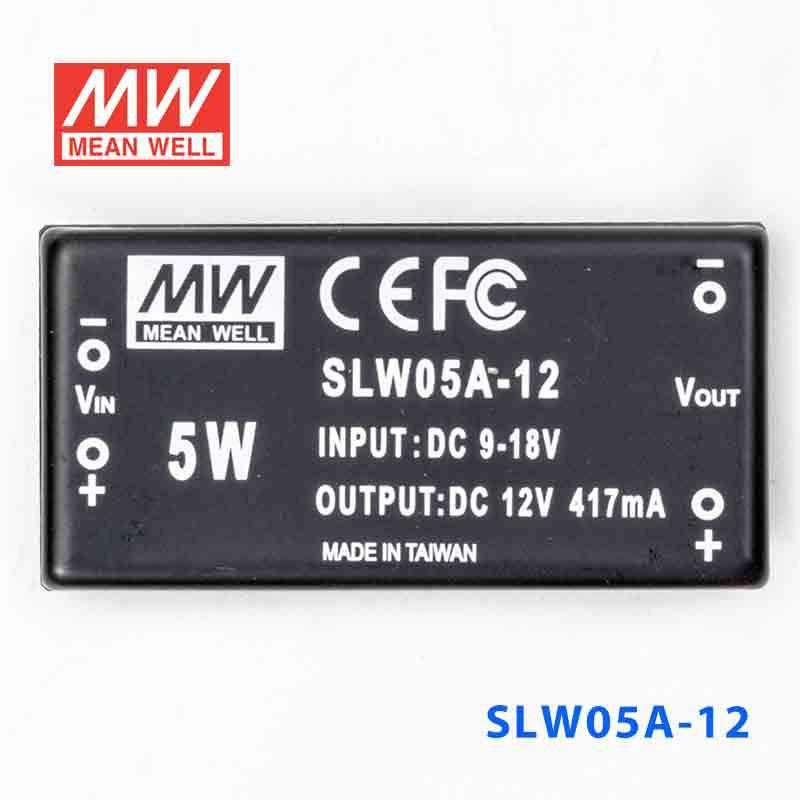

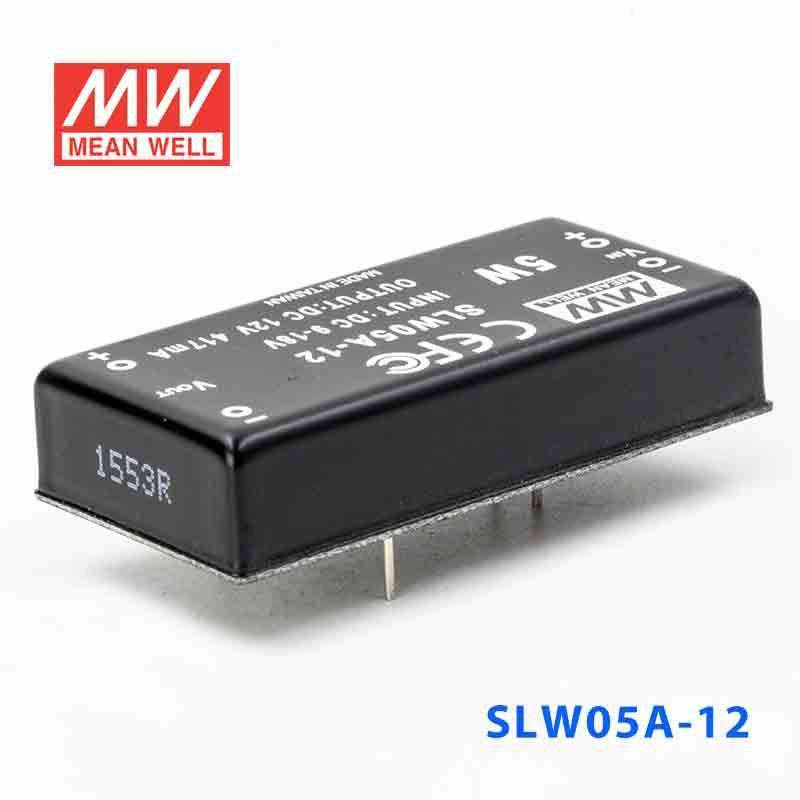

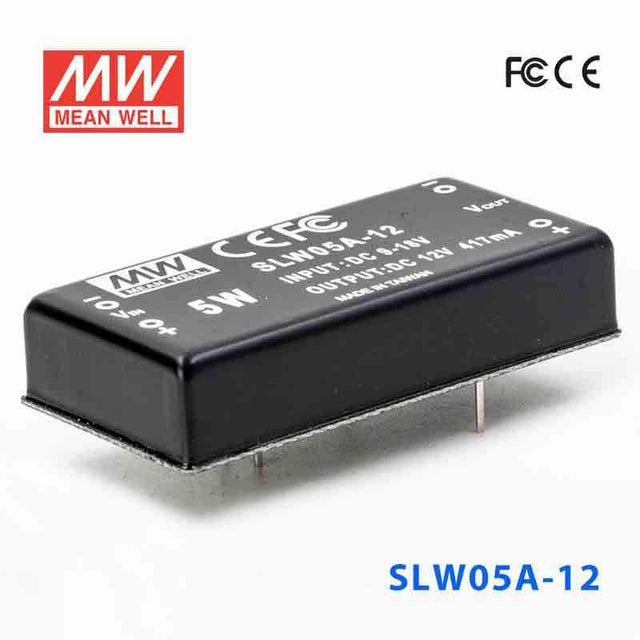

Mean Well SLW05A-12 DC-DC Converter - 5W - 9~18V in 12V out
Please Login for Pricing
Description
Description
The SLW05A is a 5W Mean Well power converter (operating temperature: -25~+71℃).
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit
- ✓ Safety approvals: ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 -25 ~ +105 ± 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSLW Series
-
Power Rating5 Watt
-
Output Voltage12 Volt
-
Rated Current0.41 Ampere
-
Input Voltage9V~18V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length5.08 cm
-
Width2.54 cm
-
Height1.13 cm
-
Weight0.03 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SLW05A-12 for low-power 12V control electronics in an automation panel?
Yes, this converter provides a constant 12V output with a 5W power rating. It is appropriate for low-power control electronics when the source available to the converter is within 9-18VAC.
Is the SLW05A-12 a fit for embedded devices that require a regulated 12V supply?
It can be used where the embedded device is designed for a 12V constant-voltage input and the load stays within 5W. The output is fixed at 12V, so it is meant for equipment that specifically calls for that voltage.
Can this model be used for compact industrial monitoring or test modules that run on 12V?
Yes, the 12V output and 5W rating make it suitable for smaller monitoring or test electronics rather than higher-power loads. Its compact 50.8 × 25.4 × 11.27 mm housing is also useful where board or enclosure space is limited.
Can the SLW05A-12 be used in harsh indoor environments?
The specified operating range is -25°C to +71°C, which supports use across a broad temperature span. Since no IP rating is listed, the environmental data supports protected indoor use rather than exposed outdoor use.
What are the key differences between the SLW05A-12 and the other SLW05A versions?
The listed SLW05A siblings are all 5W models with different outputs. SLW05A-05 is 5V and 1000A, SLW05A-09 is 9V and 556A, SLW05A-12 is 12V and 417A, and SLW05A-15 is 15V and 333A.
Other SLW05 Models
11 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SLW05C-15 DC-DC Converter - 5W - 36~72V in 15V out | 5W | 15V | 0.33A | Indoor | View |
| Mean Well SLW05C-12 DC-DC Converter - 5W - 36~72V in 12V out | 5W | 12V | 0.41A | Indoor | View |
| Mean Well SLW05C-09 DC-DC Converter - 5W - 36~72V in 9V out | 5W | 9V | 0.55A | Indoor | View |
| Mean Well SLW05C-05 DC-DC Converter - 5W - 36~72V in 5V out | 5W | 5V | 1A | Indoor | View |
| Mean Well SLW05B-15 DC-DC Converter - 5W - 18~36V in 15V out | 5W | 15V | 0.33A | Indoor | View |
| Mean Well SLW05B-12 DC-DC Converter - 5W - 18~36V in 12V out | 5W | 12V | 0.41A | Indoor | View |
| Mean Well SLW05B-09 DC-DC Converter - 5W - 18~36V in 9V out | 5W | 9V | 0.55A | Indoor | View |
| Mean Well SLW05B-05 DC-DC Converter - 5W - 18~36V in 5V out | 5W | 5V | 1A | Indoor | View |
| Mean Well SLW05A-15 DC-DC Converter - 5W - 9~18V in 15V out | 5W | 15V | 0.33A | Indoor | View |
| Mean Well SLW05A-09 DC-DC Converter - 5W - 9~18V in 9V out | 5W | 9V | 0.55A | Indoor | View |
| Mean Well SLW05A-05 DC-DC Converter - 5W - 9~18V in 5V out | 5W | 5V | 1A | Indoor | View |
